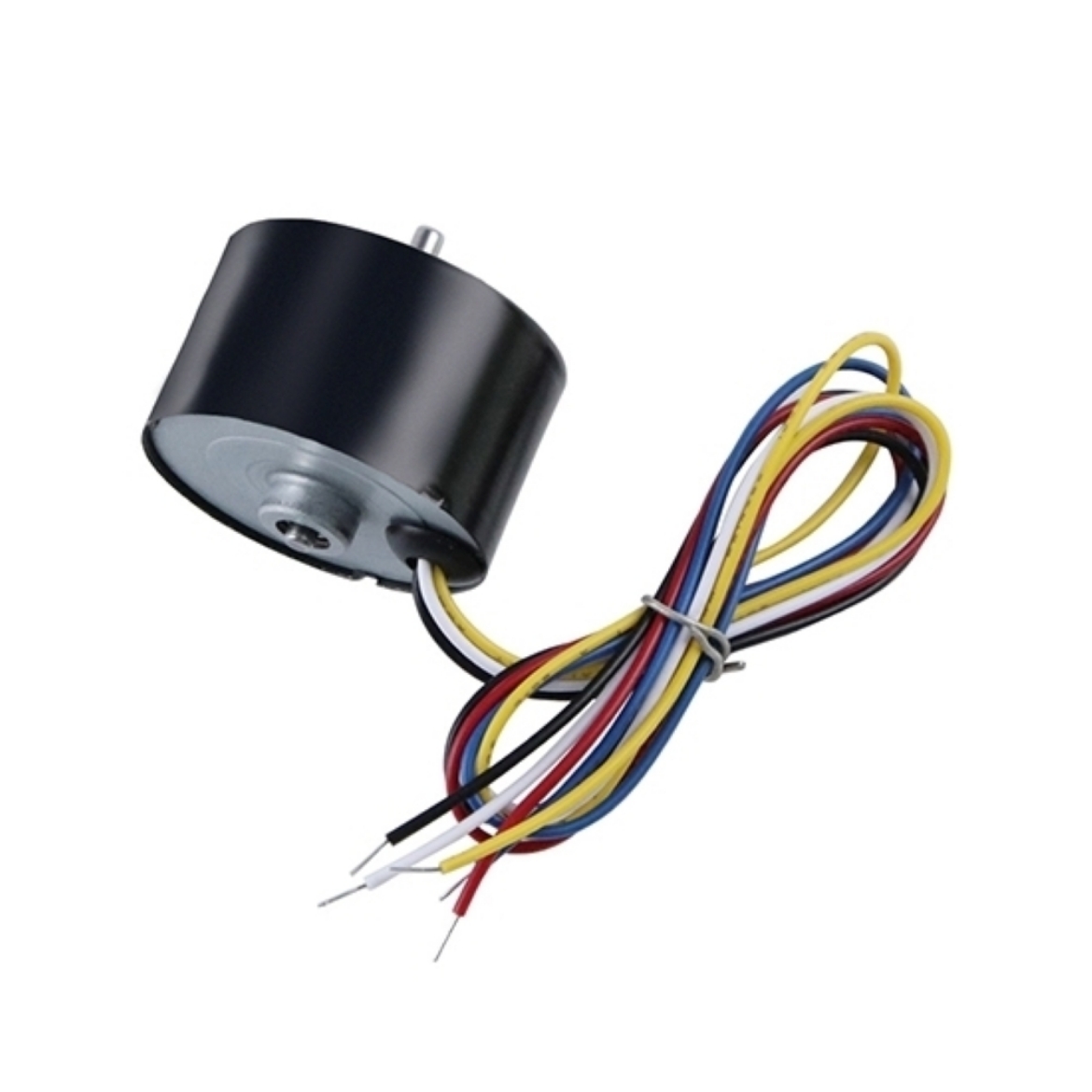

3000 rpm Small Inrunner BLDC Motor

$77.62
| 1 review(s) | Add your review
High-speed micro BLDC motor, available in 3000 rpm or 6000 rpm models. Built with high-strength magnetic tiles for a powerful magnetic field and wide voltage range. Features a 3 mm shaft diameter, compact micro design, and simple wiring for convenient installation.
Free shipping
Delivery date: 7-14 days
SKU: BLDC-3000R
*
*
*
increase decrease

The micro brushless DC motor with built-in hall sensor, 3 mm shaft, 3000 rpm or 6000 rpm, and 5-wire connection to prevent reverse polarity. Compact, low-noise, high-torque design ideal for small cutting tables, grinders, medical devices, and other precision machinery.

Specification

Model BLDC-3525
Shaft Length 6.6 mm
Shaft Diameter 3 mm
Size 35 mm (D), 36 mm (L)
Construction Permanent Magnet
Wiring 5 lines
Motor Type Micro Brushless DC Motor
Rated Power 2.5W
Rated Voltage 12V DC, 24V DC
Rated Current 0.28A, 0.35A, 0.4A
No-load Speed 3000 rpm, 6000 rpm
No-load Current 0.09A, 0.13A
Rated Torque 40 g.cm, 60 g.cm, 90 g.cm
Motor Housing Stainless Steel
Weight 190 g
Efficiency 80%
Certification CE
Warranty 12 Months

Features


  • 12V/24V high-speed brushless DC motor has a strong conductivity of pure copper coil which makes the BLDC motor power output continuously.
  • 3000 rpm/6000 rpm BLDC motor has positive inversion and adjustable speed.
  • It also has functions such as pulse width PWM speed regulation, FG signal test, etc.
3000rpm small BLDC motor details

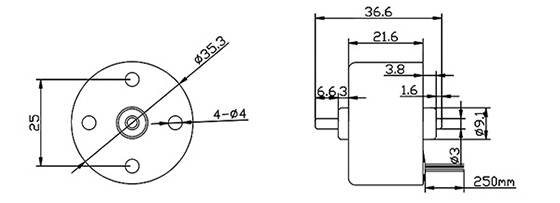

Dimension (Unit: mm)

3000rpm BLDC dimension

Applications

Small BLDC motor for home appliances

Home Appliances

Small BLDC motor for automotive

Automotive

Small BLDC motor for office tools

Office Tools

Small BLDC motor for smart devices

Smart Devices

Q: What is a small inrunner BLDC motor?

A: A small inrunner BLDC motor is a compact brushless DC motor where the rotor is located inside the stator. This design allows for high-speed rotation, efficient performance, and precise control in a small form factor, making it ideal for applications like home appliances, automotive, office tools, and smart devices.

Write your own review
*
*
Existing reviews
Great motor for the price
This motor is a solid choice for my project. Fast, efficient, and offers great power. Compact size and simple wiring make installation a breeze, which I really appreciate.  The only downside is that it’s a bit louder than I hoped, especially when pushed to higher speeds. Overall, a great motor for the price, but could be quieter.
Daniel | 11/27/2025 6:58 AM
Was this review helpful? Yes No (0/0)
