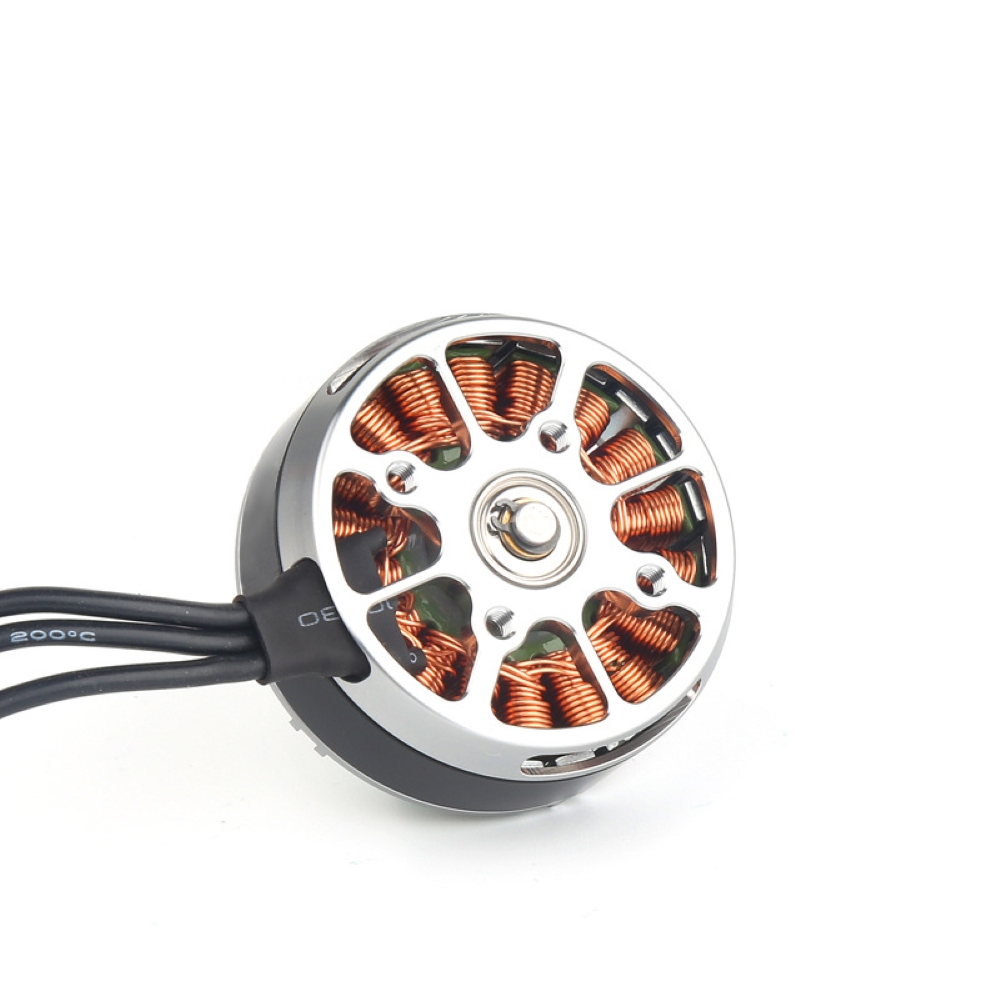

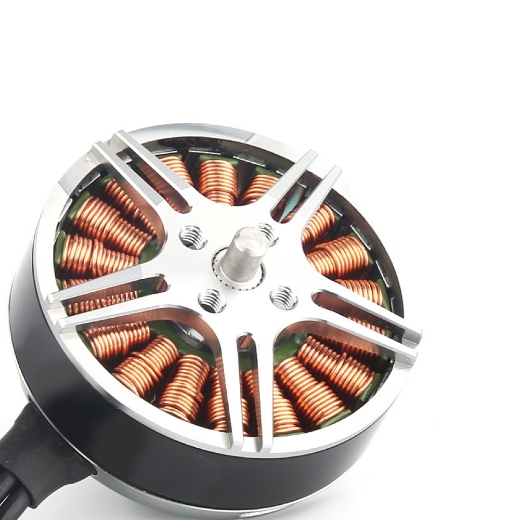

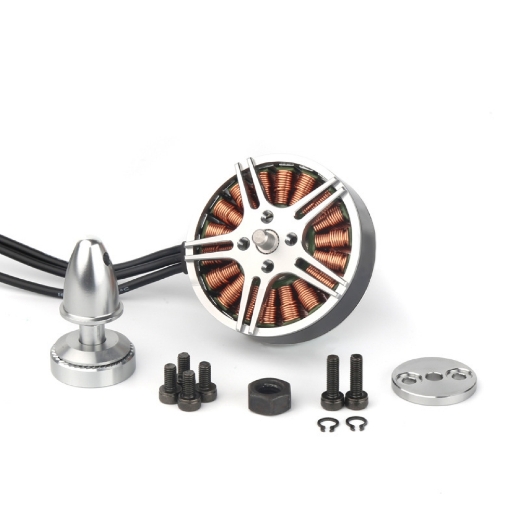

330KV BLDC Drone Motor

330KV / 600KV small brushless motor for rotary-wing drones, featuring a 4 mm shaft diameter, excellent insulation, and strong heat resistance. Suitable for RC aircraft, drones, fixed-wing planes, and helicopters.

Specification

Features

• 330KV/600KV brushless drone motors are engineered for long-duration flights on multi-rotor drones, delivering ample torque at low RPM while maintaining peak efficiency throughout the flight.
• Patented Stepped and Knurled design keeps motors secure and ensures stable power output.
• To optimize strength and reduce weight, the V motor caps are extensively hollowed, maximizing the thrust-to-weight ratio and extending flight time.
• Each brushless drone motor undergoes rigorous dynamic balancing. Axial and radial runouts are strictly tested to design specifications, with performance variations controlled within 3%, guaranteeing precise and stable power for professional use.

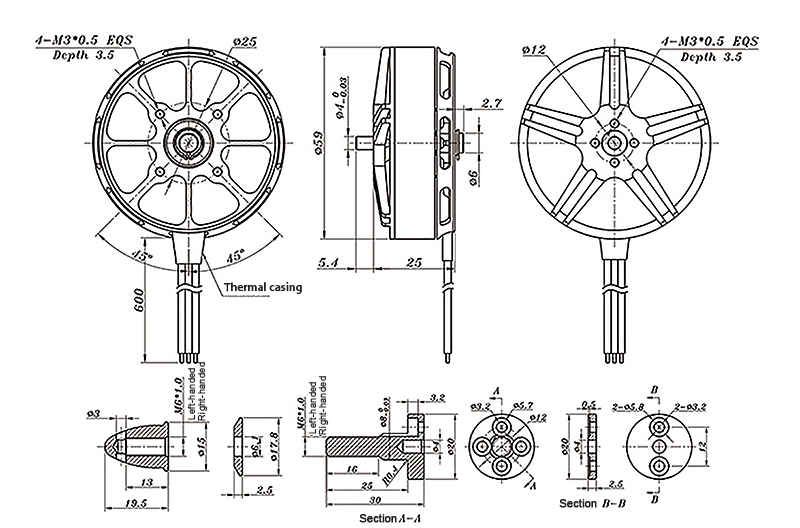

Dimension (Unit: mm)

Applications

Aerial Mapping

Agriculture

Logistics and Transportation

Security Patrol

Q: How to choose a brushless motor for a drone?

A: To choose a brushless motor for a drone, consider the drone type, size, and application, then match the motor’s KV rating, thrust, and power with the propeller size and battery voltage. Low KV motors are better for heavy-lift or long-endurance drones, while high KV motors suit smaller, high-speed models. Efficiency, weight, and build quality are also important to ensure stable performance and longer flight time.
