The 1300KV brushless motor is a high-performance power solution for RC boats, offering an ideal blend of speed, torque, and durability. With a robust aluminum alloy housing for efficient heat dissipation and a waterproof design for harsh marine environments, it ensures smooth, responsive acceleration and long-lasting performance. Unlike brushed motors, it operates without physical brushes, reducing wear, improving efficiency, and providing longer run times with minimal maintenance.
Specification
| Model |
BLDC-SP-056820-10 |
| Rotational Speed |
1300KV |
| Maximum Current |
193A |
| Maximum Voltage |
22V |
| Maximum Power |
4200W |
| Length |
82 mm |
| Diameter |
56 mm |
| Winding Type |
WYE |
| Number of Turns |
2Y |
| No-load Current |
3.1A |
| Max. Speed |
30000KV |
| Shaft |
8 mm |
| Number of Rotor Stages |
4 |
| Weight |
800 g |
Features
- 1300KV motor with 4-pole 12-slot design.
- CNC-machined 6061-T6 aluminum heat sink.
- High-purity copper winding.
- Oversized ABEC5 high-speed bearings.
- Precisely balanced rotor, high-speed stability and reduces vibration.
- Ultra-thin 0.2mm stator laminations.
- Removable and replaceable rotor design.
- Precision engineering for high energy conversion.

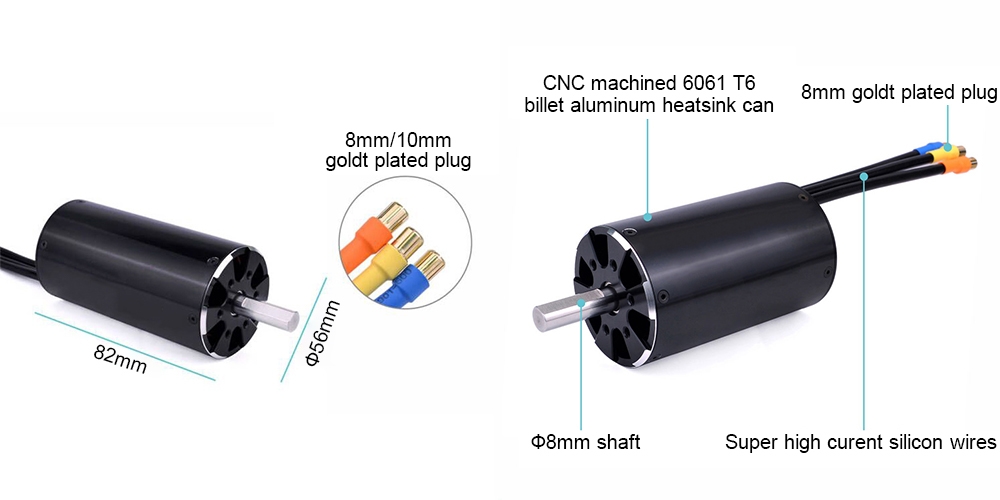

Dimension (Unit: mm)
Applications
Q: Why are brushless motors preferred for RC boats?
A: Brushless motors are preferred for RC boats because they offer significantly better performance, efficiency, and durability compared to brushed motors. They provide higher power output and faster speeds, which are ideal for high-performance RC boats. Additionally, BLDC motors generate less heat, require less maintenance (since there are no brushes to wear out), and have a longer lifespan. Their improved efficiency also means longer run times on a single battery charge—crucial for extended play or racing sessions on the water.
