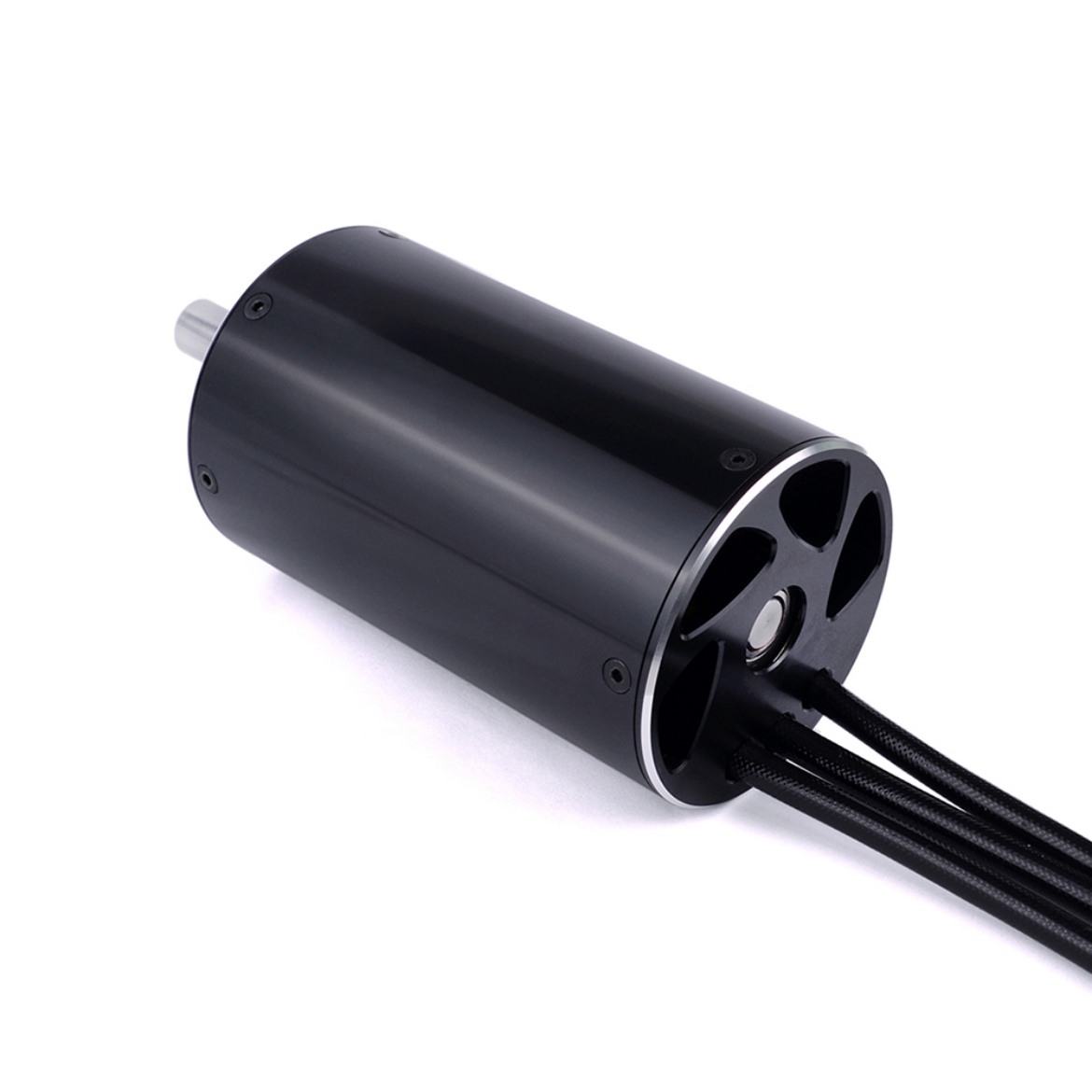

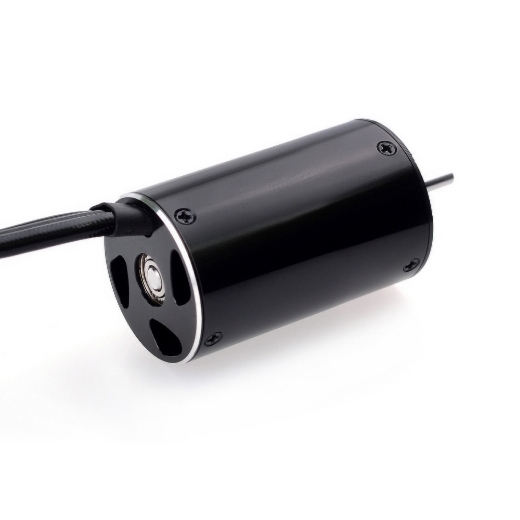

The 980KV brushless motor is a high-performance, factory-priced option for RC boats, offering a perfect balance of torque and RPM. It features oversized ABEC-5 bearings and a balanced rotor for smooth, reliable operation. With long run times, high efficiency, and low maintenance, it's a durable, cost-effective choice for RC boating.
Specification
| Model |
BLDC-SP-056920-10 |
| Rotational Speed |
980KV |
| Maximum Current |
172A |
| Maximum Voltage |
30V |
| Maximum Power |
5200W |
| Length |
92 mm |
| Diameter |
56 mm |
| Winding Type |
DELTA |
| Number of Turns |
2Y |
| No-load Current |
3.2A |
| Max. Speed |
30000KV |
| Shaft |
8 mm |
| Number of Rotor Stages |
4 |
| Weight |
920 g |
Features
- 980KV motor with 4-pole 12-slot design.
- CNC-machined 6061-T6 aluminum heat sink.
- High-purity copper winding.
- Oversized ABEC5 high-speed bearings.
- Precisely balanced rotor, high-speed stability and reduces vibration.
- Ultra-thin 0.2mm stator laminations.
- Removable and replaceable rotor design.
- Precision engineering for high energy conversion.

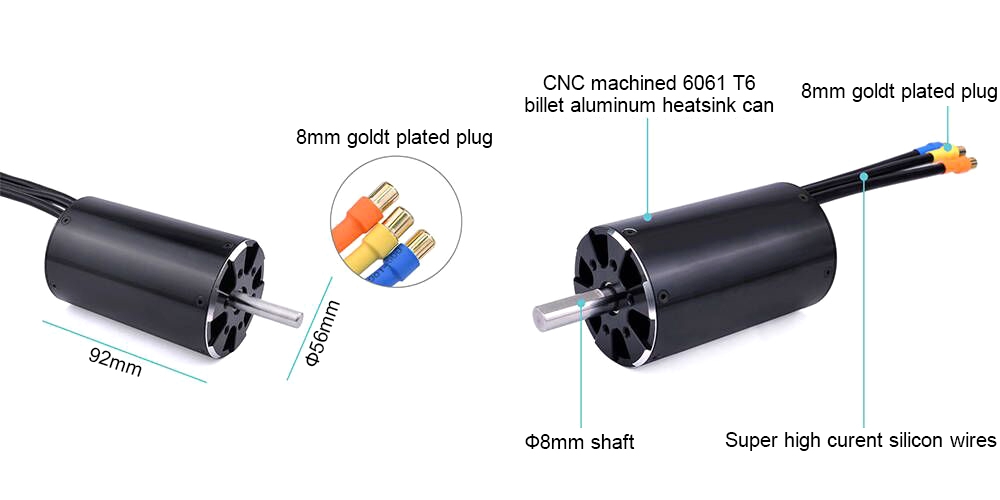

Dimension (Unit: mm)
Applications
Q: How can I prevent my RC boat's brushless motor from overheating?
A: To prevent your RC boat’s brushless motor from overheating, ensure the water-cooling system is fully functional and properly connected, with steady water flow during operation. Use a propeller that matches the brushless DC motor’s specifications to avoid excessive load, and confirm that your ESC and battery setup stays within the recommended voltage and current limits. It’s also helpful to avoid prolonged full-throttle usage and operate in cooler environments when possible. Regular maintenance, such as flushing the cooling system and checking for clogs or leaks, will also help maintain optimal temperatures.
