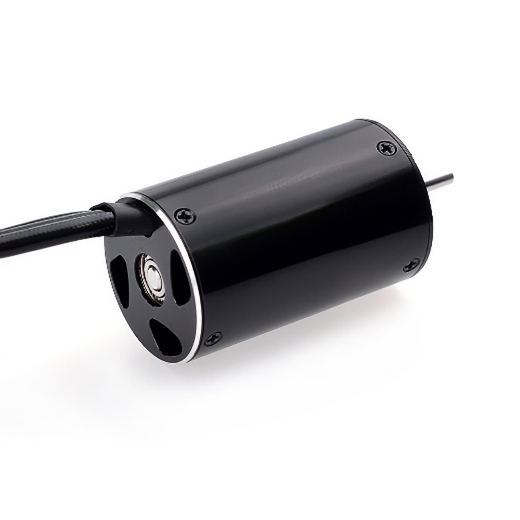

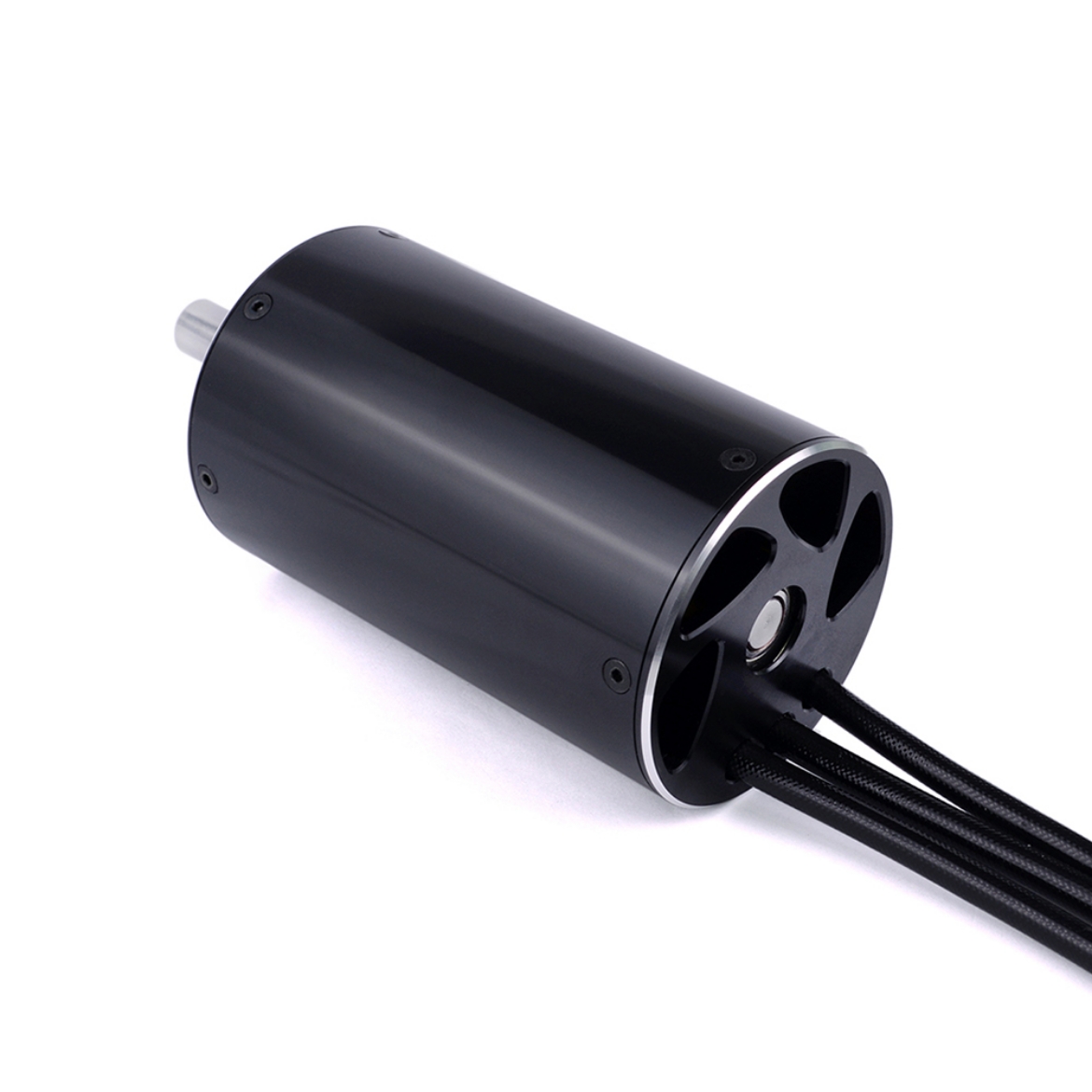

This 600KV brushless motor is designed for RC boats, delivering high efficiency and exceptional performance. Its waterproof construction ensures reliable operation in challenging water environments, while the user-friendly design makes maintenance simple. Whether you're a hobbyist or a competitive racer, this motor offers a cost-effective solution without sacrificing power or durability, making it a valuable addition to any RC boat setup.
Specification
| Model |
BLDC-SP-056102-10 |
| Rotational Speed |
600KV |
| Maximum Current |
126A |
| Maximum Voltage |
50V |
| Maximum Power |
6300W |
| Length |
102 mm |
| Diameter |
56 mm |
| Winding Type |
WYE |
| Number of Turns |
3Y |
| No-load Current |
1.8A |
| Max. Speed |
30000KV |
| Shaft |
8 mm |
| Number of Rotor Stages |
4 |
| Weight |
1040 g |
Features
- 600KV motor with 4-pole 12-slot design.
- CNC-machined 6061-T6 aluminum heat sink.
- High-purity copper winding.
- Oversized ABEC5 high-speed bearings.
- Precisely balanced rotor, high-speed stability and reduces vibration.
- Ultra-thin 0.2mm stator laminations.
- Removable and replaceable rotor design.
- Precision engineering for high energy conversion.

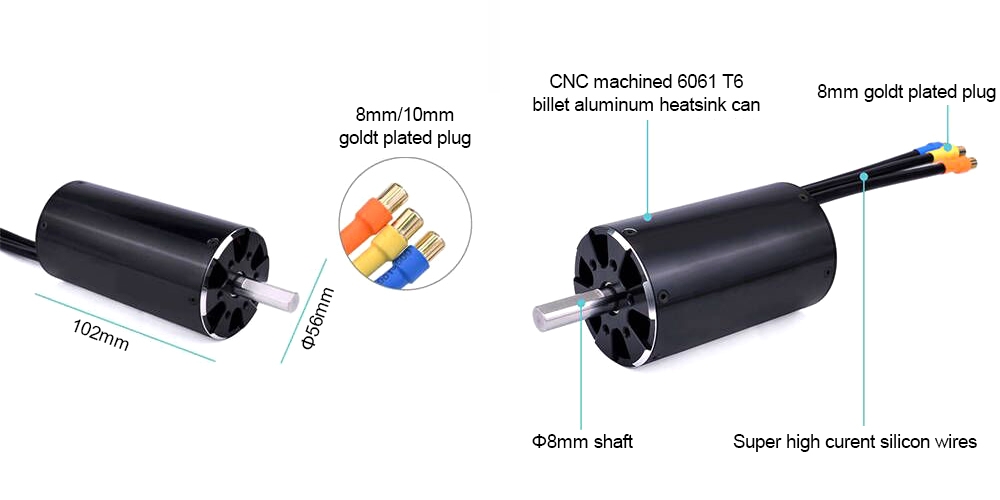

Dimension (Unit: mm)
Applications
Q: How do you select the right brushless motor for an RC boat?
A: When choosing a brushless motor for your RC boat, there are several key factors to consider. First, check the motor's KV rating, which indicates the motor’s RPM per volt; a higher KV is suitable for faster boats, while a lower KV is ideal for more torque and slower, steady speeds. Next, ensure that the motor's voltage and current ratings match your battery specifications to prevent overloading. The power output (in watts) is also crucial – higher wattage means more power, which translates to better performance in terms of speed and handling.
Also, consider the size and weight of the brushless motor, as it must fit the design and weight distribution of your boat. Cooling mechanisms, such as water cooling, are important for high-performance motors to prevent overheating. Lastly, assess the motor's durability and ease of maintenance, as reliability is key for both recreational and competitive use. By balancing these factors, you'll be able to choose the ideal brushless motor for your RC boat.
