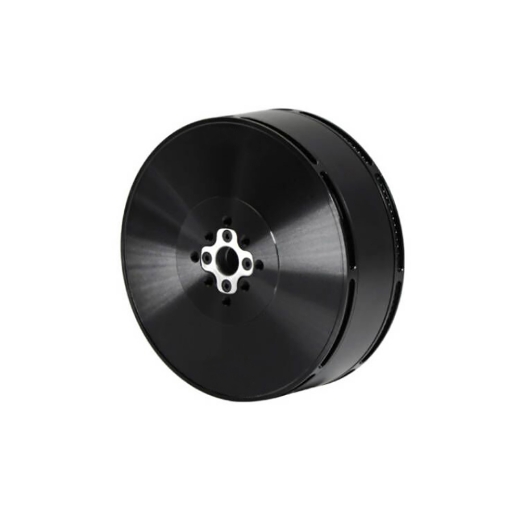

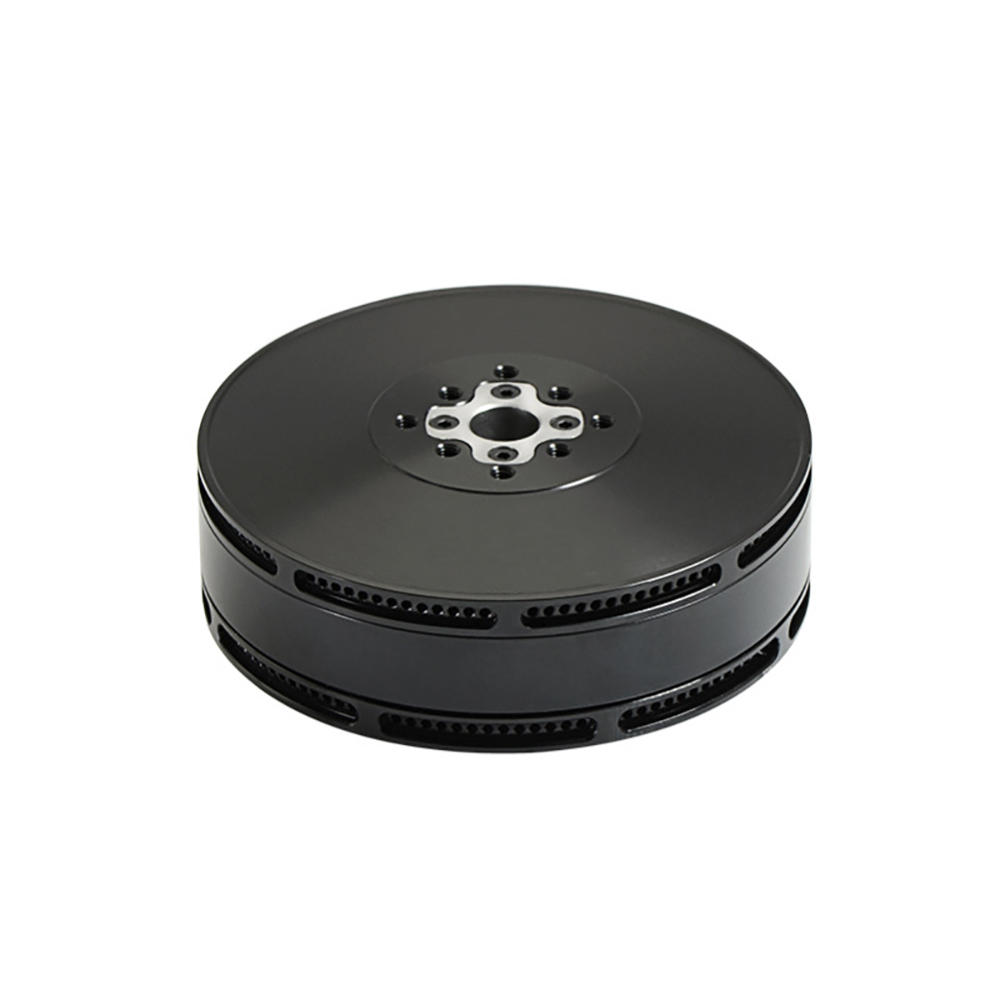

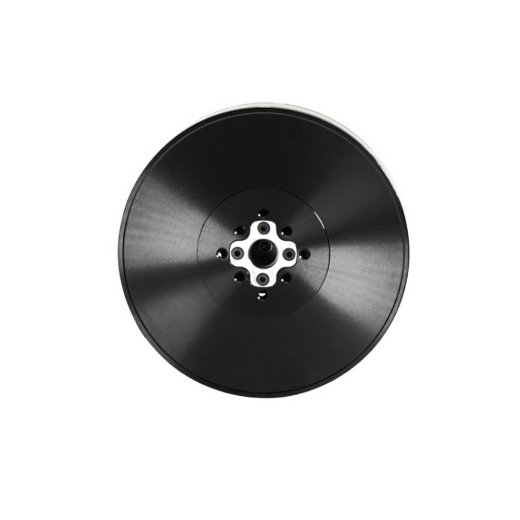

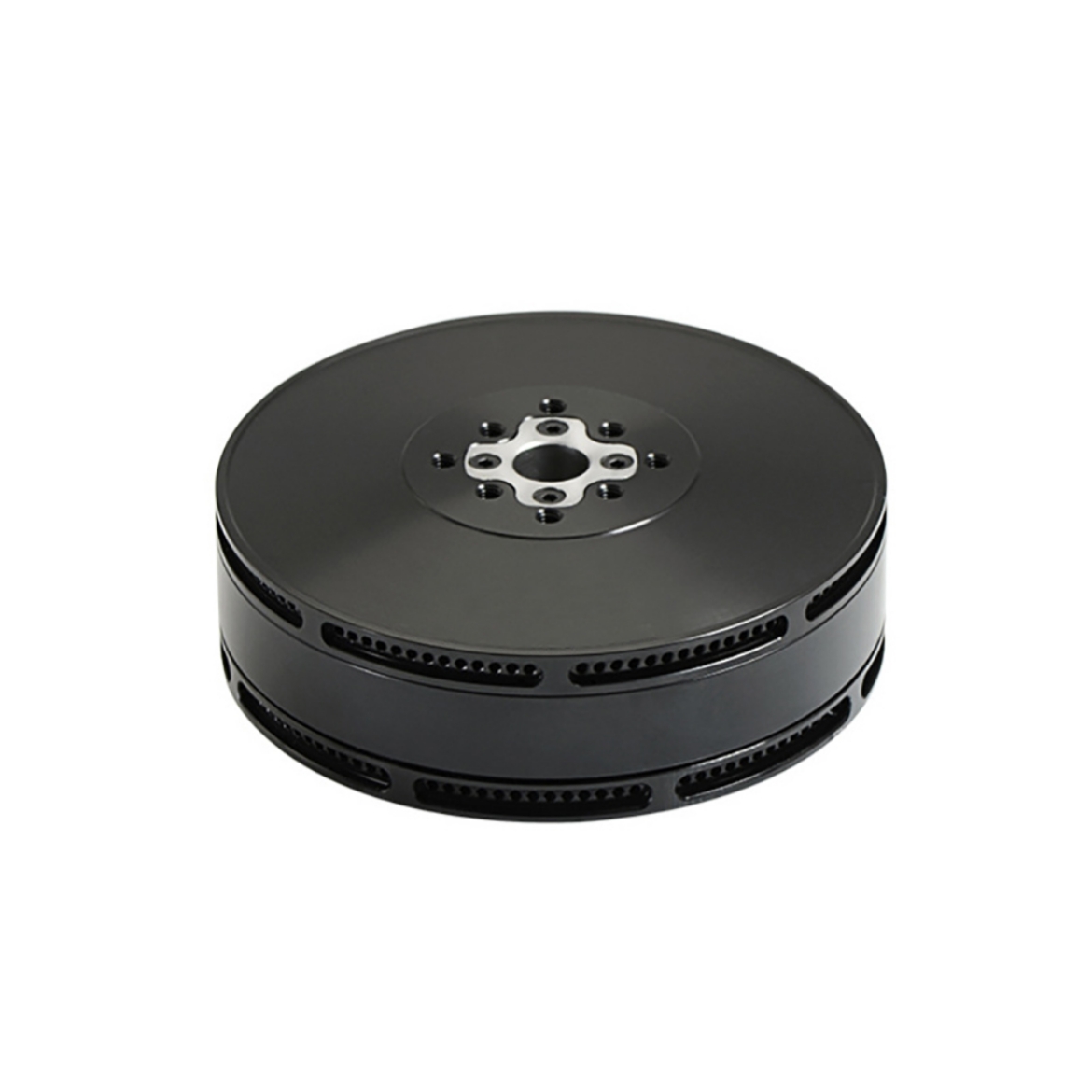

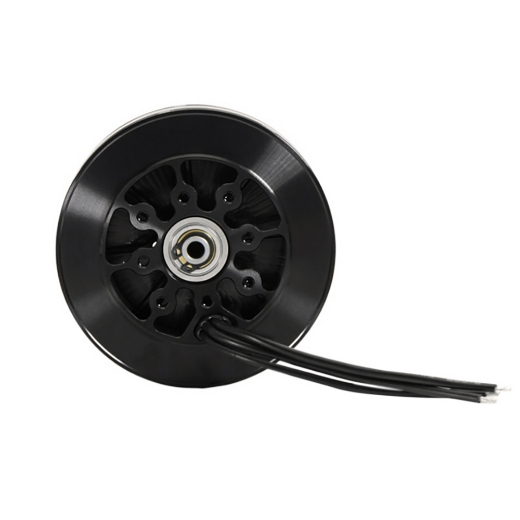

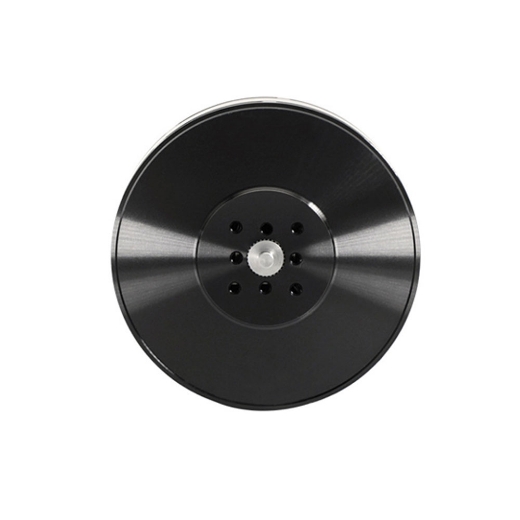

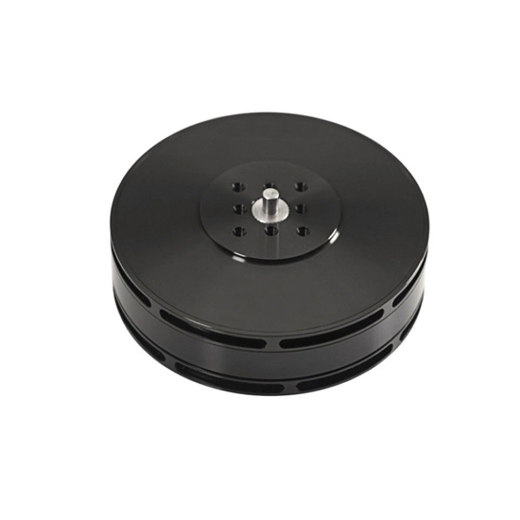

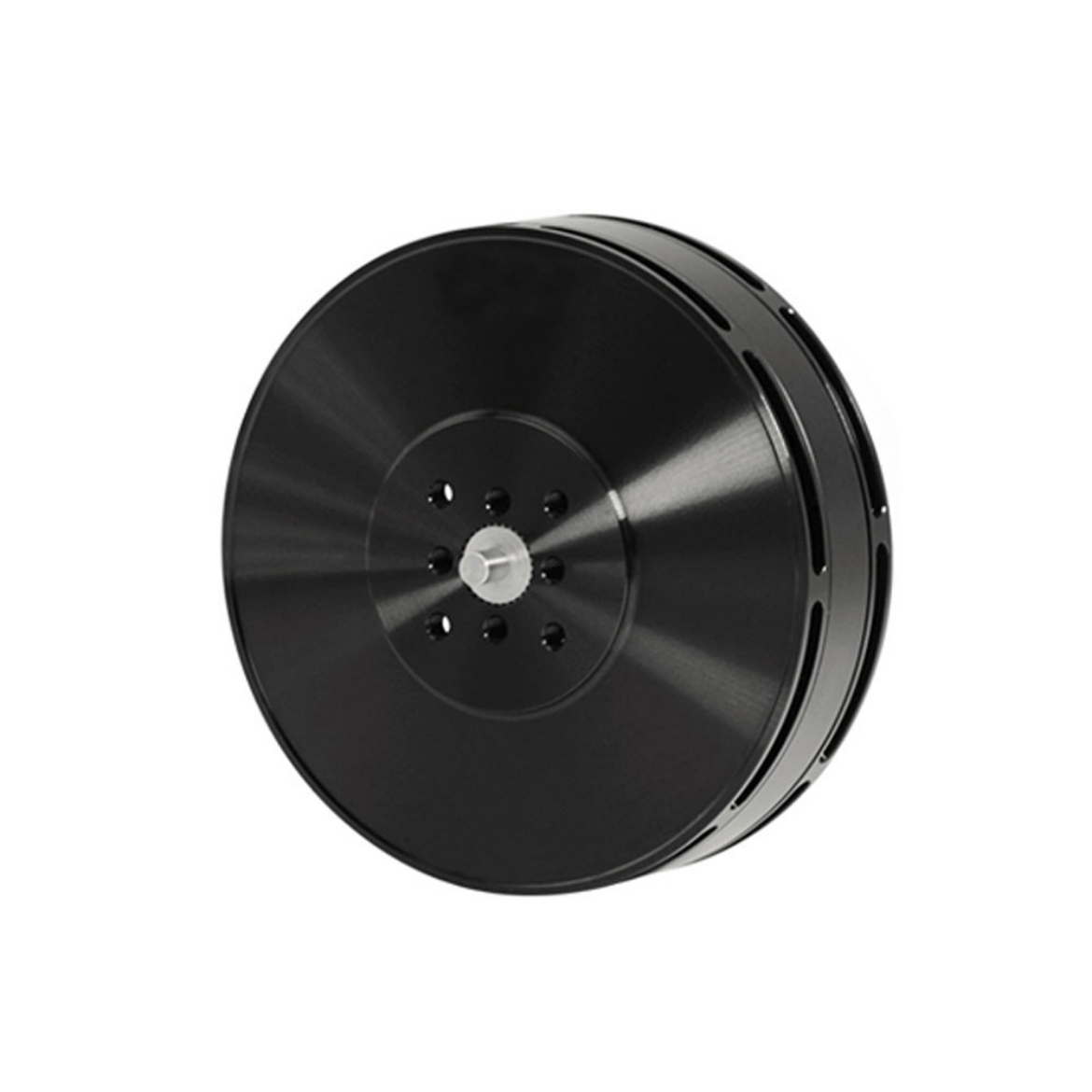

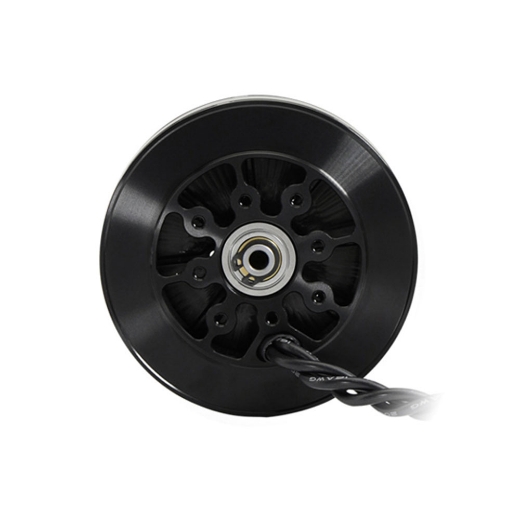

130KV BLDC Heavy Lift Drone Motor, 6S/12S

This BLDC drone motor is specifically designed for multirotor drones, which also makes it an ideal quadcopter motor. For different drone setups, 100KV, 130KV, and 260KV heavy lift drone motors are also available to meet various thrust and load requirements.

Specification

Features

• High efficiency and stable performance: The 100KV/130KV/260KV brushless DC motor delivers consistent performance with high efficiency, making it ideal for heavy-lift drone applications.
• IP54 motor structure: Designed with an IP54-rated casing, the BLDC motor is protected against dust and water, ensuring reliable operation in various environments.
• Optimized winding and magnetic design: This lightweight BLDC drone motor features hand-wound coils, a maximized slot fill rate, and an optimized magnetic circuit, providing stronger power and improved overall performance.

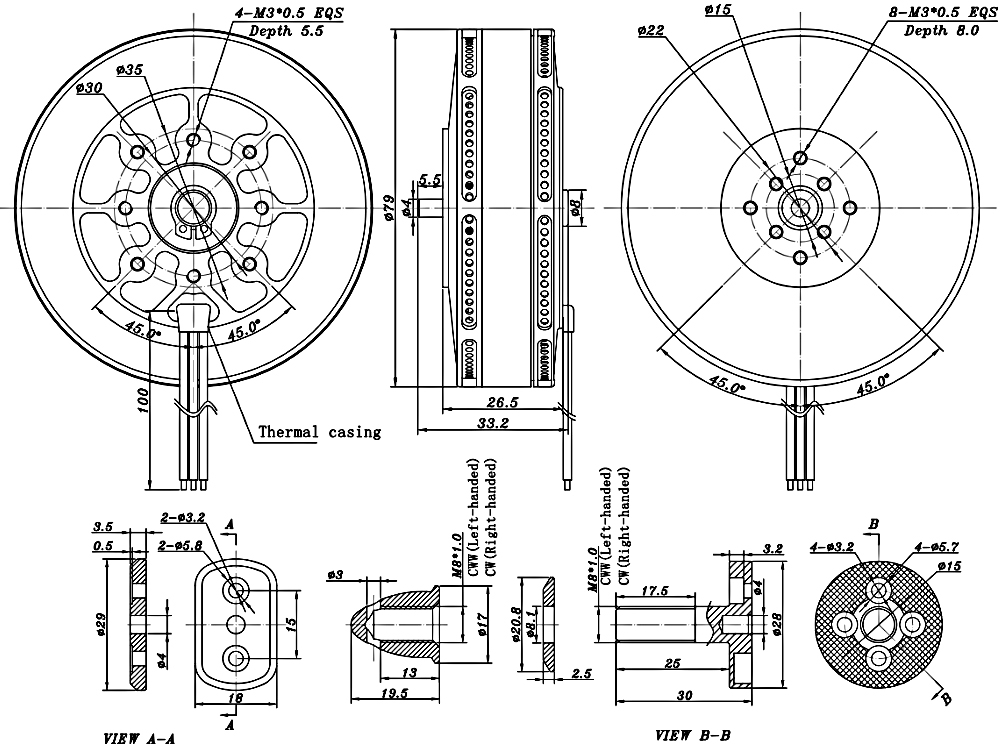

Dimension (Unit: mm)

Applications

Agriculture Drone

Delivery Drone

Environmental Monitoring Drone

Firefighting Drone

Q: How does motor KV rating affect the lifting capacity of a drone?

A: KV rating indicates how many RPMs a motor produces per volt without a load. For heavy lift drones, lower KV motors (typically 100-200 KV) are preferred because they deliver higher torque at lower RPM. This is important when spinning large propellers, which are more efficient at producing lift. High KV motors, on the other hand, spin faster but produce less torque, making them better suited for lightweight racing drones rather than lifting payloads. Using a brushless DC (BLDC) motor with the wrong KV rating can lead to inefficiency, overheating, and reduced flight times. By matching a low KV motor with large-diameter propellers, heavy lift drones can maximize thrust while keeping power consumption balanced. Understanding KV is crucial to ensuring your drone lifts heavy loads safely and efficiently.
