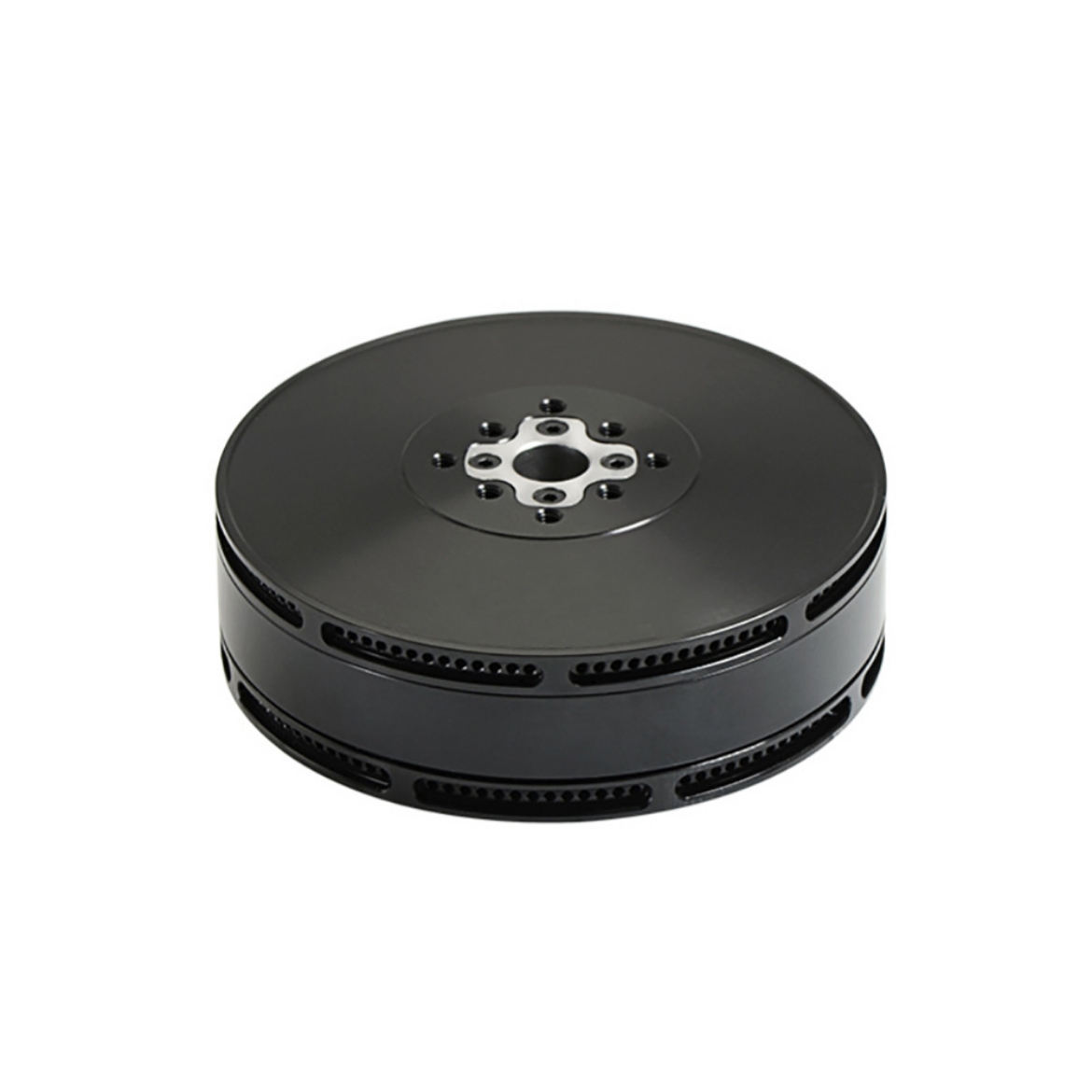

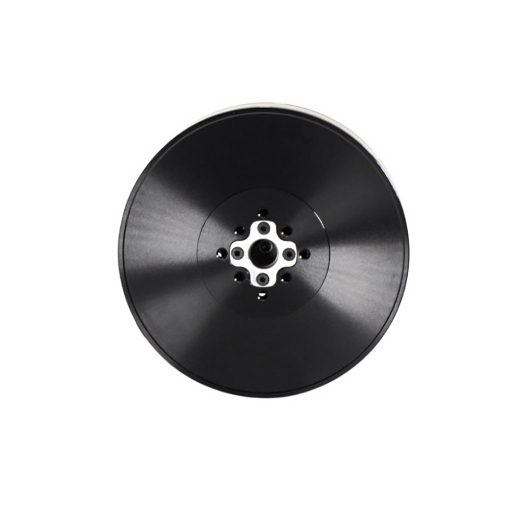

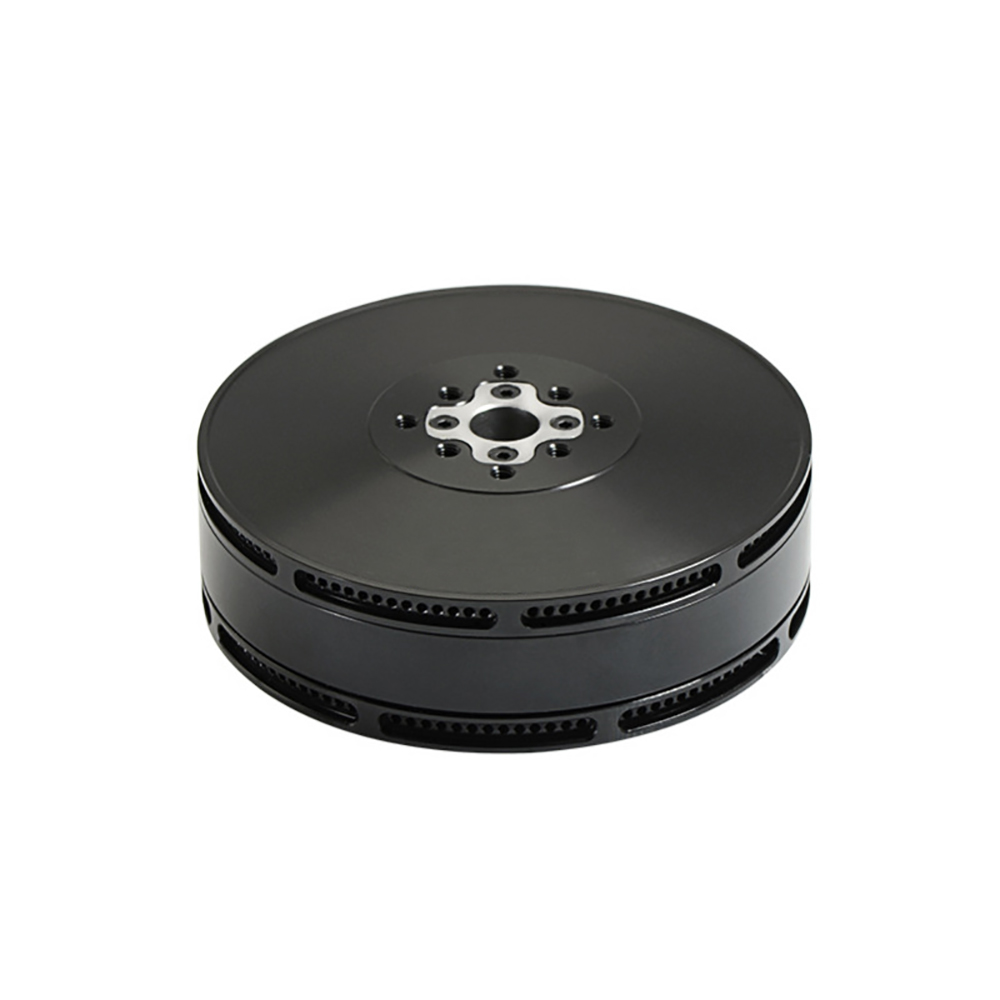

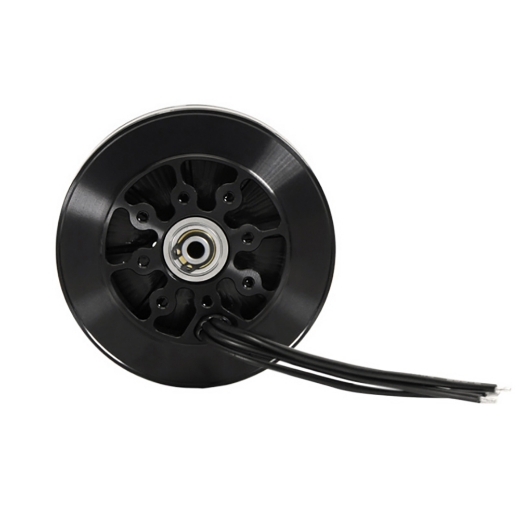

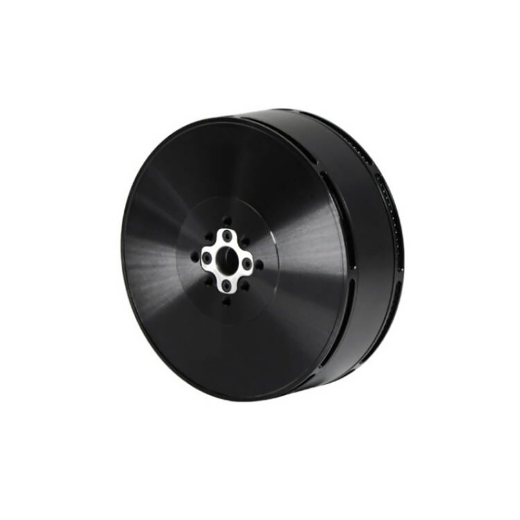

170KV BLDC Heavy Lift Drone Motor, 6S/12S

90KV/110KV/170KV/135KV BLDC heavy lift drone motor is designed to deliver strong torque and smooth performance, making them ideal for drones that need to carry heavy payloads. The 6S/12S brushless drone motor provides the thrust and control needed to keep your drone flying safely and efficiently.

Specification

Features

• High efficiency and stable performance: The 90KV/110KV/135KV/170KV brushless DC motor delivers consistent performance with high efficiency, making it ideal for heavy-lift drone applications.
• IP54 motor structure: Designed with an IP54-rated casing, the BLDC motor is protected against dust and water, ensuring reliable operation in various environments.
• Optimized winding and magnetic design: This lightweight BLDC drone motor features hand-wound coils, a maximized slot fill rate, and an optimized magnetic circuit, providing stronger power and improved overall performance.

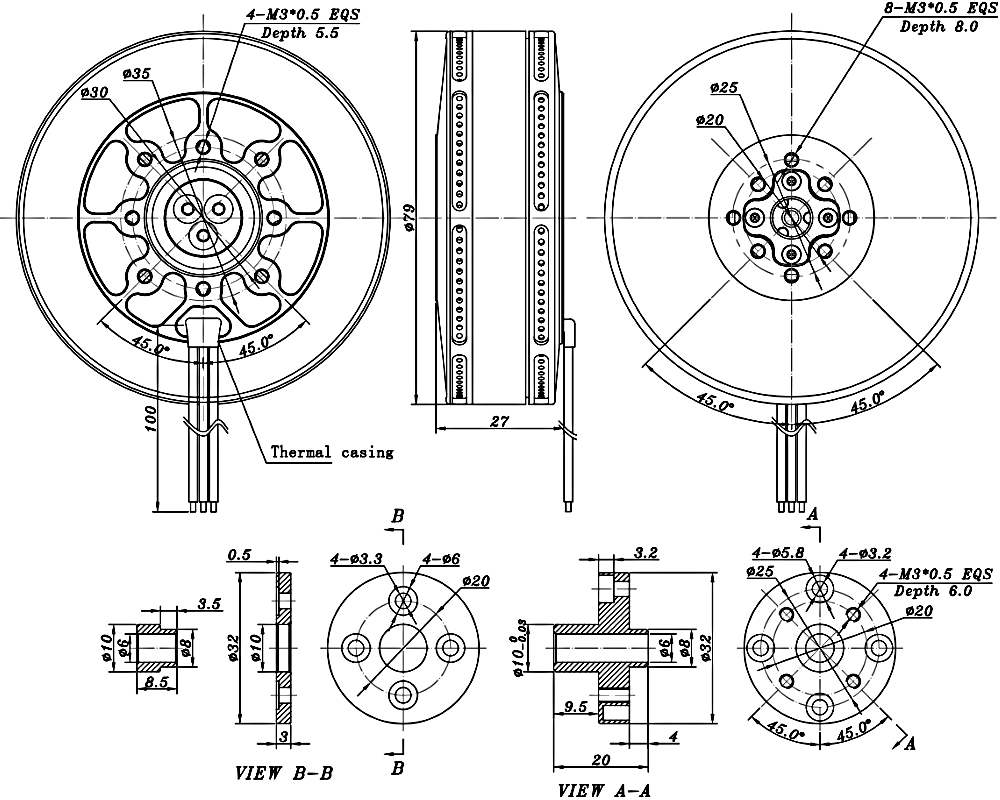

Dimension (Unit: mm)

Applications

Agriculture Drone

Delivery Drone

Environmental Monitoring Drone

Firefighting Drone

Q: Why is torque more important than speed for heavy lift drone motors?

A: In heavy lift applications, torque is more critical than speed because torque determines how much force the BLDC motor can apply to spin large propellers. Unlike racing drones that need high RPM for speed, heavy lift drones rely on big, slow-turning propellers to generate stable and efficient thrust. A motor with high torque ensures the drone can carry heavy payloads without straining or overheating. More torque also provides smoother control and stability, which is essential when carrying expensive equipment like cameras, sensors, or delivering cargo. In addition, higher torque allows for longer propeller blades, which are more efficient in moving large volumes of air. Prioritizing torque over raw RPM ensures that the motor can sustain flight under heavy loads, reduce energy waste, and extend the overall flight time.
