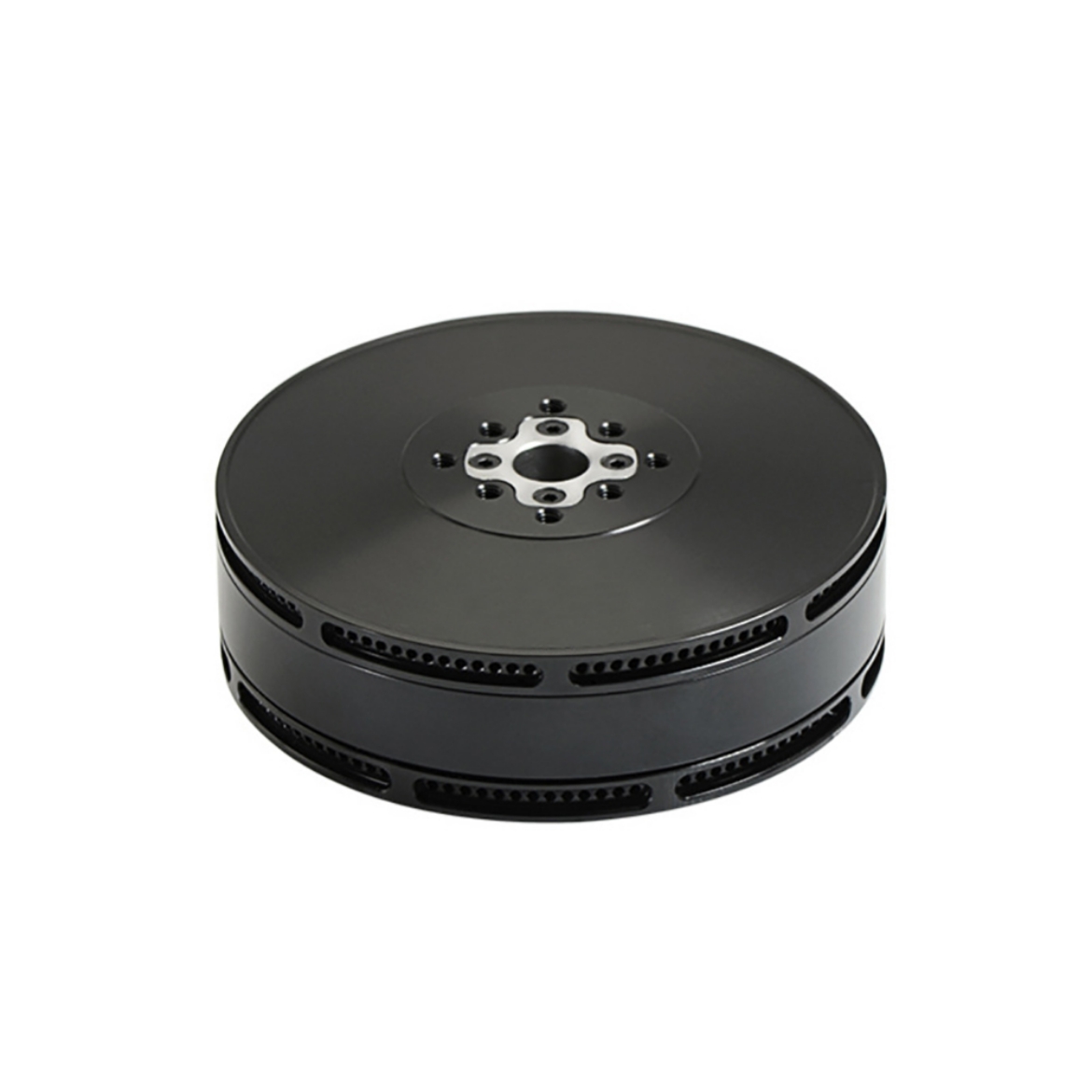

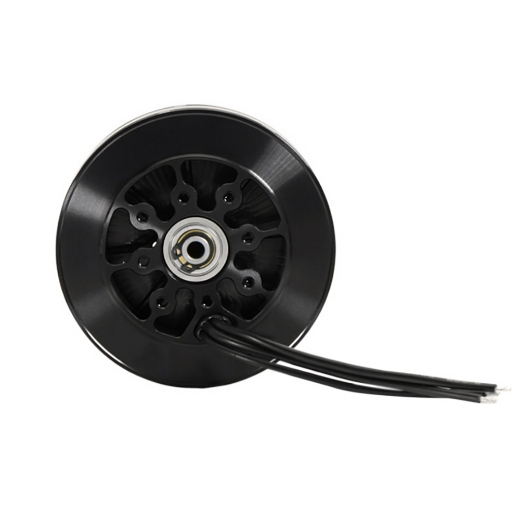

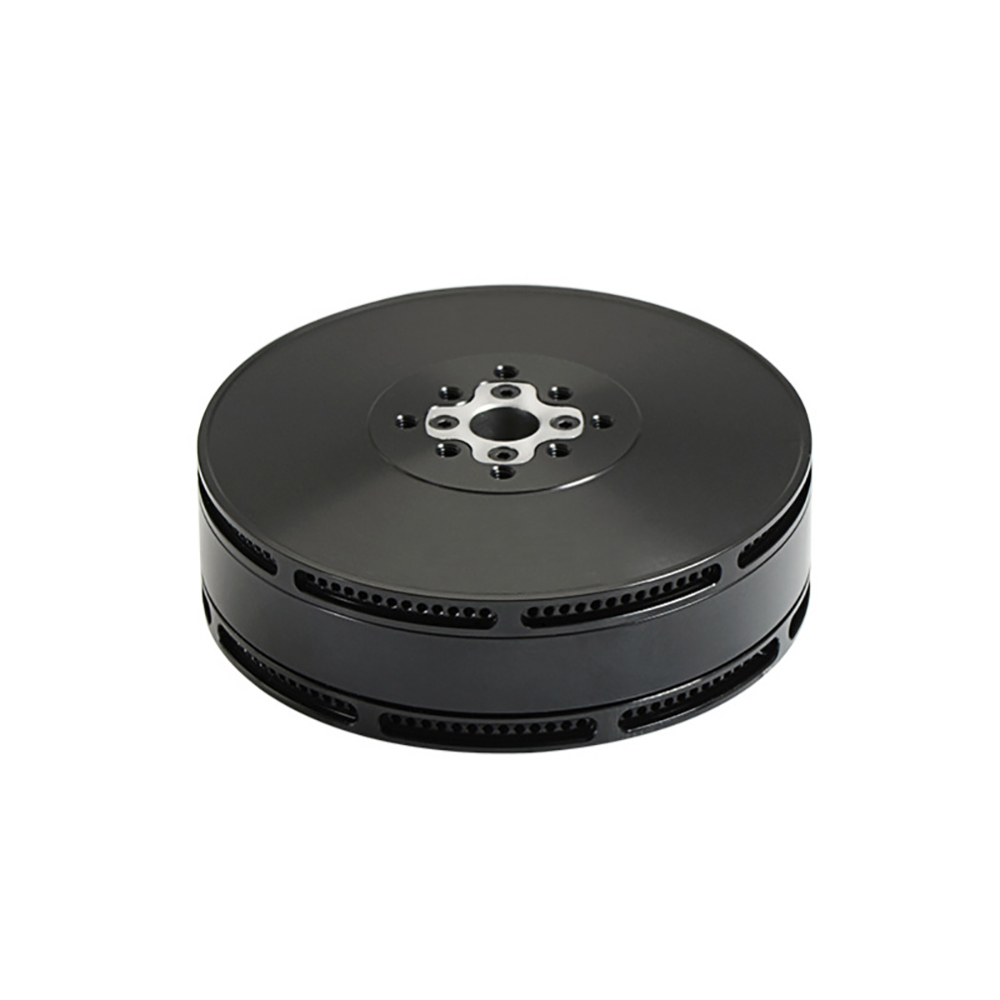

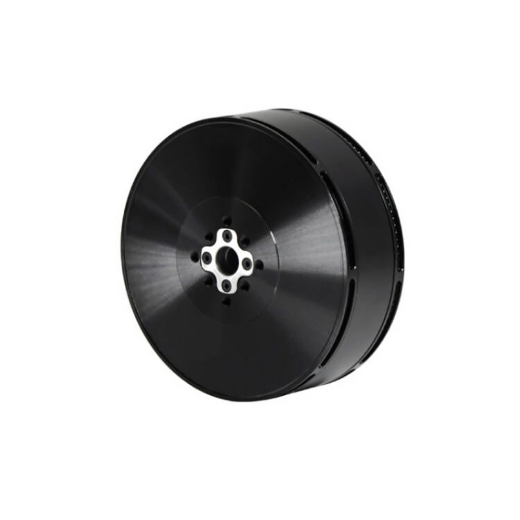

100KV BLDC Heavy Lift Drone Motor, 12S

100KV brushless DC motor built to operate with a 12S power system provides stable output and supports heavy payloads, making it an excellent choice for industrial, agricultural, logistics, and aerial photography applications. This heavy lift drone motor ensures consistent performance in a wide range of working environments, from long-endurance flights to demanding heavy-lift tasks.

Specification

Features

• High efficiency and stable performance: The 100KV brushless DC motor delivers consistent performance with high efficiency, making it ideal for heavy-lift drone applications.
• IP54 motor structure: Designed with an IP54-rated casing, the BLDC motor is protected against dust and water, ensuring reliable operation in various environments.
• Optimized winding and magnetic design: This lightweight BLDC drone motor features hand-wound coils, a maximized slot fill rate, and an optimized magnetic circuit, providing stronger power and improved overall performance.

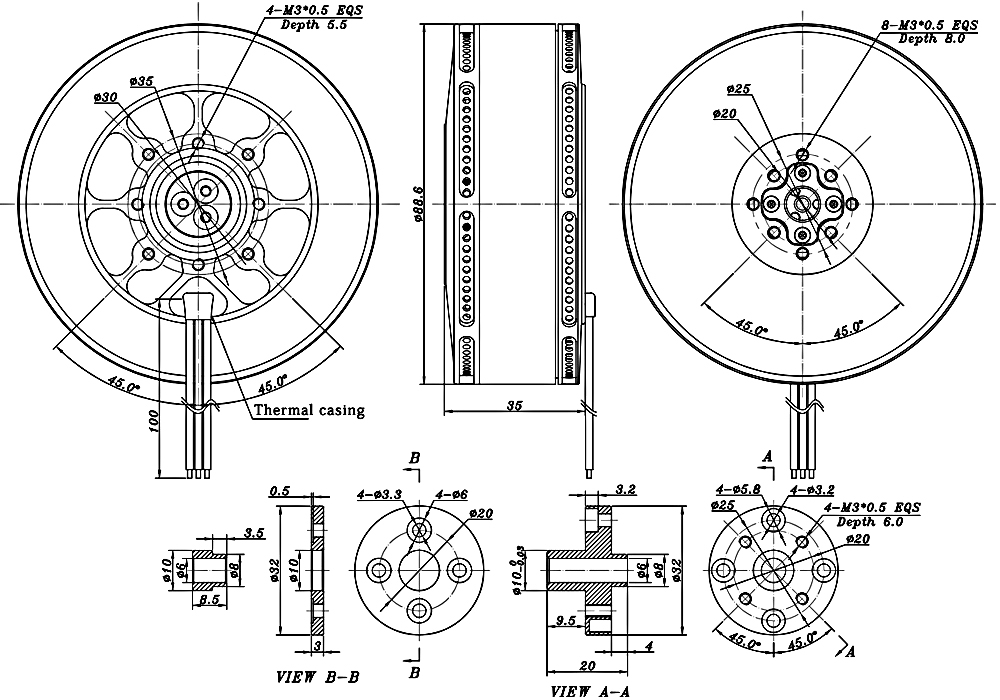

Dimension (Unit: mm)

Applications

Agriculture Drone

Delivery Drone

Environmental Monitoring Drone

Firefighting Drone

Q: What factors should I consider when choosing a heavy lift drone motor?

A: When selecting a heavy lift drone motor, the key factors include thrust-to-weight ratio, motor KV rating, efficiency, and durability. A good rule of thumb is to have at least twice the thrust compared to the total drone weight, including payload. KV rating should be low for heavy lift applications since lower KV motors provide more torque at lower RPMs, which is crucial for lifting heavier loads. You should also check whether the motor is optimized for large propellers, as they generate more lift. Additionally, reliability and heat management are vital because heavy lift missions often run longer and put higher stress on the brushless DC motors. Finally, consider the availability of spare parts and compatibility with ESCs, batteries, and propellers, so your BLDC motor integrates smoothly with the entire drone system.
