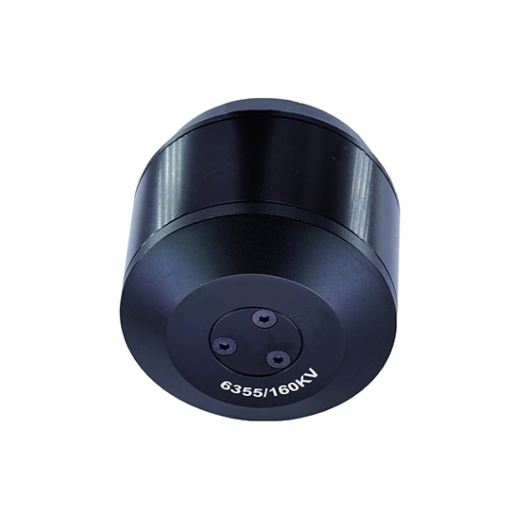

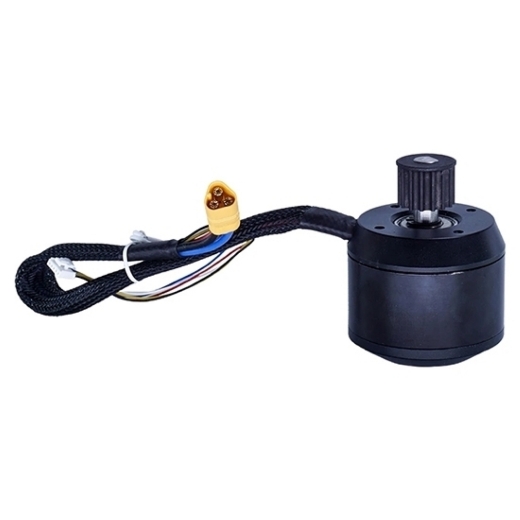

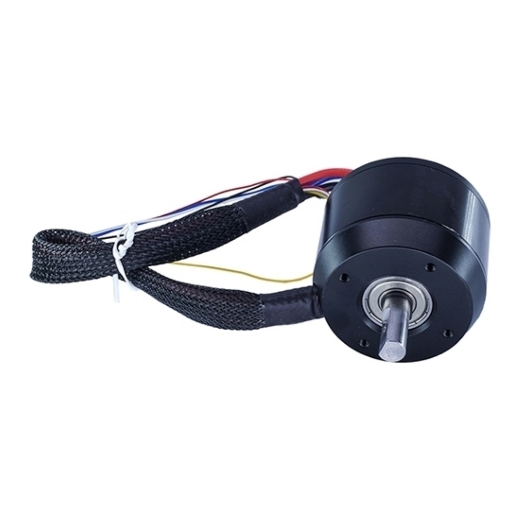

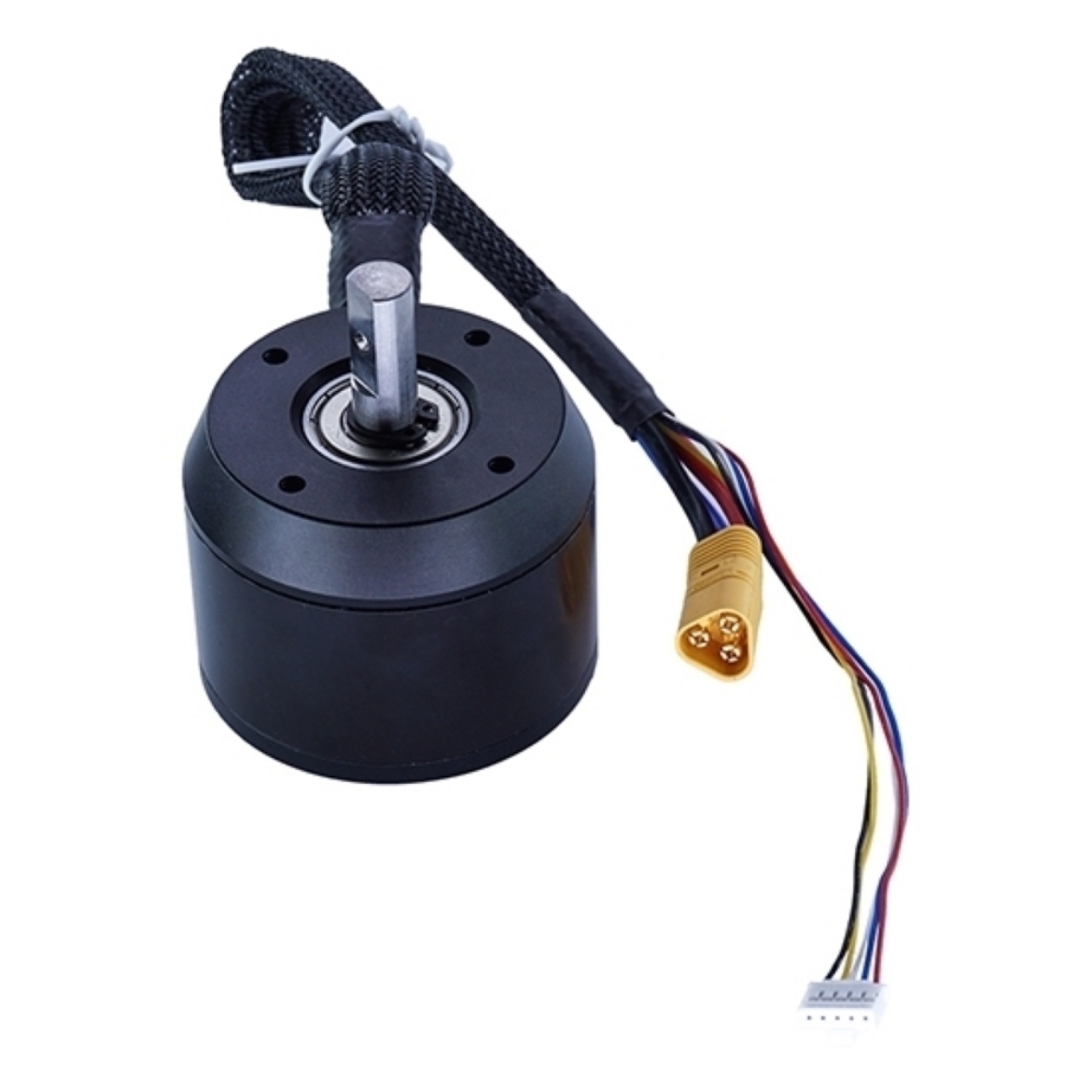

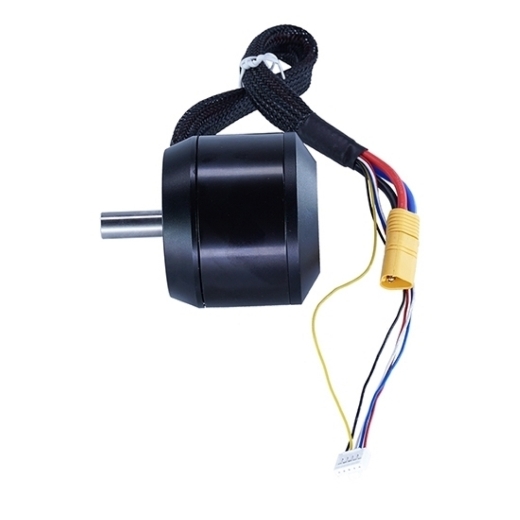

1600W 160KV 12S Outrunner Sensored BLDC Motor

Outrunner sensored brushless DC motor available in 160KV and 220KV speed options, delivering up to 1.6kW maximum power with 12S (DC 44V) input voltage. Featuring a precision-engineered design for high efficiency and reliable performance, this motor ensures optimal energy conversion. Optional BLDC motor driver and 10mm pulley are also available to meet diverse application needs.

Specification

Note: The motor is powered by 12S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.

ESC (Electronic Speed Controller) Selection for Waterproof BLDC Motor

• A BLDC motor can be used with an ESC as long as its speed does not exceed the ESC’s limit.
• BLDC motor speed = Battery Voltage × KV value;
  Stator speed = Battery Voltage × KV value × Pole Pairs.
• The maximum speed limit of the V4 series ESC is 60,000 ERPM.
  The maximum speed limit of the V6 series ESC is 150,000 ERPM.
• If a BLDC motor’s maximum speed surpasses the ESC’s limit, it is possible to match them by lowering the motor’s operating voltage. However, this is not recommended, as it prevents the motor from functioning as a true brushless DC motor.

ESC (Electronic Speed Controller) Specification

Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.

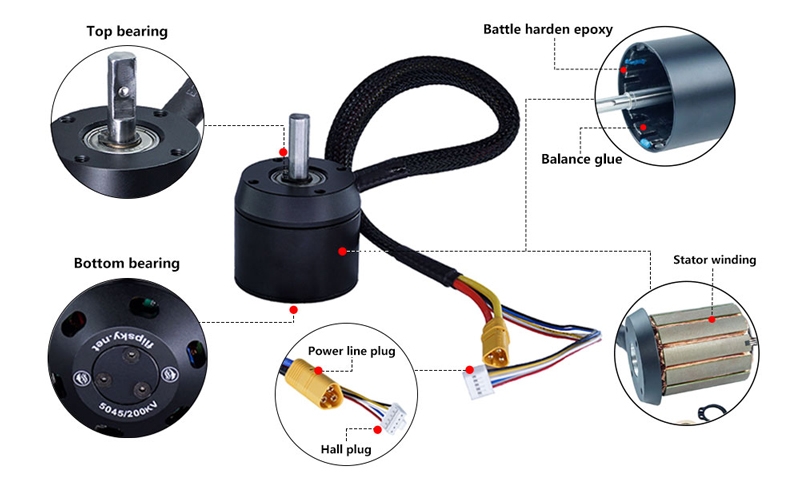

Details

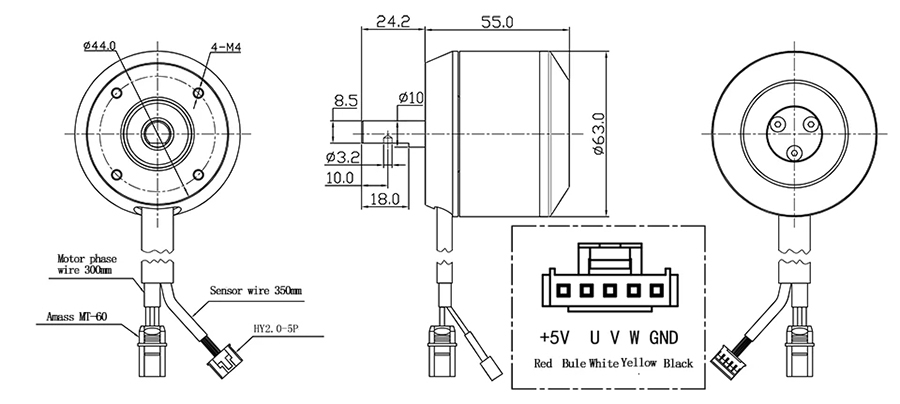

Dimension (Unit: mm)

Applications

Electric Skateboard

Car Model

Robot Model

Off-road Kart

Q: What are the advantages of an outrunner BLDC motor?

A: A BLDC motor, especially in the outrunner design, offers high torque at low RPM, smooth startup, and efficient direct-drive performance without the need for a gearbox. With compact size, strong power density, and good cooling, it is widely used in drones, electric skateboards, robotics, and small electric vehicles where reliable torque and efficiency are essential.
