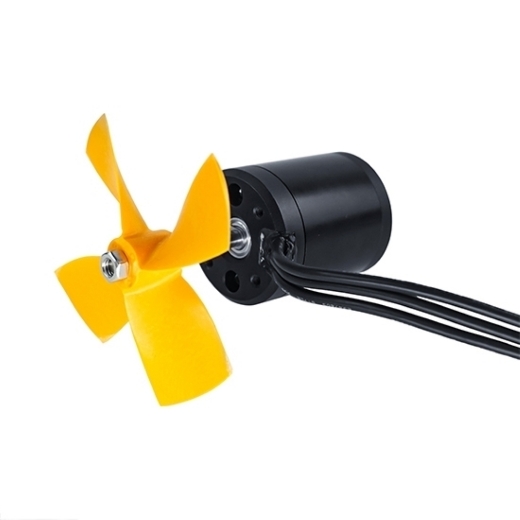

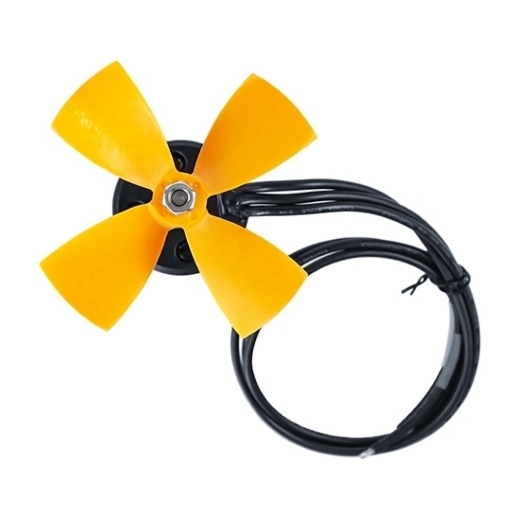

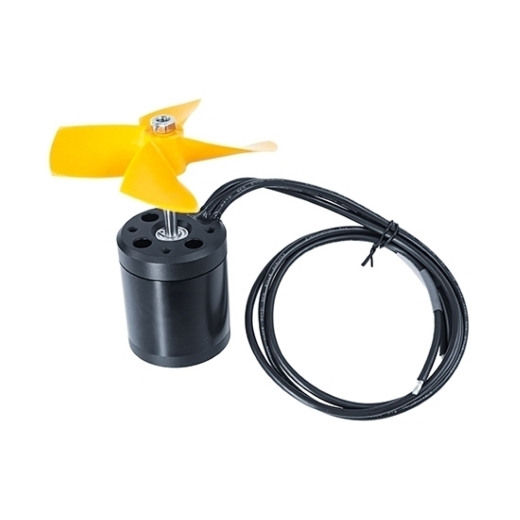

160KV sensorless BLDC motor at a great price, IP68 waterproof, 500W max power, supports 12S (DC 44V) input. This waterproof motor is widely used in electric surfboards, surf bikes, submersible propellers, drones, and more.
Specification
| Model |
BLDC-5062 |
| Max Power |
500W |
| Rotation Speed KV (RPM/V) |
160KV |
| Max Input Voltage* |
DC 44V |
| Rated Voltage |
24V |
| No-Load Current |
＜1A |
| Maximum Load Current |
30A |
| Motor Dimension |
50*62mm |
| Trust |
5kg |
| Hole Distance |
φ 35mm |
| Screw Holes |
4 × M4 |
| Waterproof Grade |
IP68 |
| Motor Wire |
12AWG |
Note: The motor is powered by 12S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.
ESC (Electronic Speed Controller) Selection for Waterproof BLDC Motor
- A BLDC motor can be used with an ESC as long as its speed does not exceed the ESC’s limit.
- BLDC motor speed = Battery Voltage × KV value;
Stator speed = Battery Voltage × KV value × Pole Pairs.
- The maximum speed limit of the V4 series ESC is 60,000 ERPM.
The maximum speed limit of the V6 series ESC is 150,000 ERPM.
- If a BLDC motor’s maximum speed surpasses the ESC’s limit, it is possible to match them by lowering the motor’s operating voltage. However, this is not recommended, as it prevents the motor from functioning as a true brushless DC motor.
ESC (Electronic Speed Controller) Specification
| Model |
Current Value |
Number of Batteries (Input Voltage) |
| FSESC 4.12 |
Continuous 50A, peak 240A |
3S-12S (8V-60V) |
| FSESC 4.20 |
Continuous 50A, peak 240A |
3S-12S (8V-60V) |
| VESC 6.6 mini dual drive |
1-channel 100A continuous, 2-channel 200A continuous |
3S-12S (8V-60V) |
| 1-channel peak 400A, 2-channel total peak 800A |
| VESC6.6 integrated switch dual drive version |
1-channel 100A continuous, 2-channel 200A continuous |
3S-12S (8V-60V) |
| 1-channel peak 400A, 2-channel total peak 800A |
| FSESC6.6 VESC6.6 single drive integration |
Continuous 60A, peak 150A |
3S-12S (8V-60V) |
| VESC4 dual drive integration |
50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel |
3S-12S (8V-60V) |
| ODESC3.6 single drive/dual drive |
50A continuous 1-channel, peak 120A 1-channel |
3S-12S (8V-60V) |
| VESC6 dual drive |
1-channel 100A continuous, 2-channel 200A continuous |
3S-12S (8V-60V) |
| 1-channel peak 400A, 2-channel total peak 800A |
| Single drive V6 75200 |
Continuous 200A |
3S-12S (8V-60V) |
| Single drive VESC6 waterproof version* |
Continuous 60A, peak 150A |
3S-12S (8V-60V) |
Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.
Details

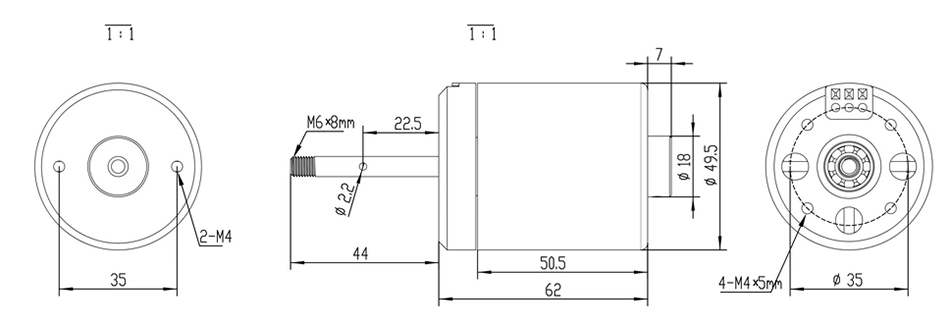

Dimension (Unit: mm)
Applications
Q: What applications are suitable for waterproof BLDC motors?
A: Waterproof BLDC motors are ideal for applications where exposure to water, moisture, or harsh environments is expected. They are commonly used in marine vehicles like electric surfboards, jetboards, and underwater drones, as well as in water pumps, irrigation systems, and other equipment requiring reliable, corrosion-resistant operation in wet conditions.
