Brushless DC motors (BLDC motors) have become the preferred choice in a wide range of applications, from drones and electric vehicles to industrial automation and home appliances, due to their high efficiency, long service life, and precise control. However, choosing the right BLDC motor for your application is not always straightforward. This article walks you through all the critical factors to consider when selecting a BLDC motor, ensuring your system operates reliably and efficiently.
Matching Motor Specifications to Application Needs
Every application has different power and performance demands. Therefore, the first step is to define the requirements of your system clearly. These include:
- Torque and Speed: Determine the torque required to overcome the load and the speed range within which the BLDC motor must operate. Torque is essential for acceleration and load handling, while speed affects the mechanical output rate.
- Voltage and Current: Understand the voltage supply available and current limitations. Higher voltage motors can run faster but require appropriate controllers and power electronics.
- Duty Cycle: Assess if the motor will run continuously or intermittently. Continuous operation demands brushless DC motors with superior thermal management and efficiency.
- Environment: Consider environmental factors such as temperature, humidity, dust, and exposure to corrosive agents. Harsh environments require motors with protective coatings or special enclosures.
Key Motor Parameters to Consider
Rated Power and Torque
Rated power refers to the continuous mechanical output a BLDC electric motor can deliver without overheating, commonly ranging from 10W to 5kW, depending on the application. Torque indicates the rotational force. For instance:
- A small 100W BLDC motor might provide 0.3–0.5 Nm rated torque.
- A medium 500W BLDC motor may offer 1.6–2.0 Nm.
- Industrial-grade 2kW BLDC motors can reach 6–10 Nm or more.
Tip: Always choose a brushless DC motor with rated torque at least 20–30% higher than your maximum expected load to ensure long-term reliability. Use the torque-speed curve to understand behavior at various speeds—typically, torque decreases as speed increases.
Speed (RPM)
BLDC motors are capable of a wide speed range, from a few hundred to tens of thousands of revolutions per minute (RPM). The optimal speed depends on the application. For example, a drone motor typically operates at high RPM for thrust, whereas a conveyor motor might require a lower speed with higher torque.
Voltage and Current Ratings
Ensure the brushless motor voltage rating matches your power supply. The current rating relates to the torque output; higher torque motors draw more current. Also, check the stall current and peak current specifications as these influence the controller and power supply design.
Motor Size and Weight
Physical size and weight often constrain motor selection, especially in portable or compact applications like handheld tools or drones. Always verify motor dimensions and mounting options to ensure mechanical compatibility.
Motor Configuration and Construction
Rotor Type
BLDC motors can be classified into inner rotor and outer rotor types based on the rotor structure:
| Feature | Inrunner BLDC Motor | Outrunner BLDC Motor |
| Rotor Position | Rotor located inside the stator coils | Rotor surrounds the stator coils |
| Torque Density | Generally lower torque at low speed | Higher torque at low speed |
| Speed Capability | Typically supports higher maximum speeds | Usually operates at lower maximum speeds |
| Thermal Management | Better heat dissipation due to the internal rotor | Heat dissipation is less efficient |
| Moment of Inertia | Lower moment of inertia enables faster acceleration | Higher moment of inertia, smoother operation |
| Size and Weight | Usually more compact and lighter | Typically larger and heavier |
| Common Applications | Drones, high-speed tools, and electric vehicles | Fans, direct drive systems, and appliances |
Winding Types
The two main winding configurations are:
-
Wye (Star) Winding: Provides higher torque at lower current and better thermal management.
-
Delta Winding: Offers higher speed capabilities but may result in higher current draw.
Choosing the winding type depends on the desired speed-torque characteristics.
Sensor Types: Sensored vs. Sensorless
BLDC motors require rotor position feedback to operate efficiently.
-
Sensored Motors: Include Hall effect sensors or encoders that provide precise rotor position data. These are ideal for applications requiring smooth start-up, precise speed control, and reverse operation.
-
Sensorless Motors: Rely on back-EMF detection to estimate rotor position. Sensorless motors reduce complexity and cost but may suffer from less accurate control at low speeds.
Controller Compatibility and Integration

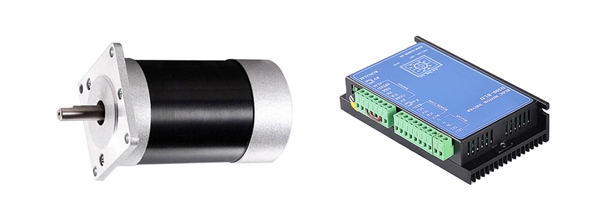

The motor controller plays a critical role in driving the BLDC motor. Ensure that the motor you select is compatible with your controller’s voltage, current, and control algorithms.
Modern BLDC controllers often support various communication interfaces (e.g., PWM, CAN, UART) and offer programmable parameters such as speed setpoints, acceleration ramps, and torque limits. If you require closed-loop control, feedback sensors and encoders should be integrated and supported.
Efficiency and Thermal Management
Efficiency impacts power consumption, heat generation, and battery life in portable systems. Look for motors with high efficiency ratings, usually expressed as a percentage at rated load conditions.
Heat dissipation is also vital. Motors with better thermal design and materials can sustain higher loads without overheating. Some motors come with integrated heat sinks or liquid cooling options for demanding applications.
Reliability and Maintenance
One of the main advantages of BLDC motors is their low maintenance requirement due to the absence of brushes. However, durability depends on quality manufacturing, bearing selection, and protection against environmental factors.
If your application involves continuous or heavy-duty operation, invest in motors with sealed bearings, protective coatings, and dust/water ingress ratings such as IP65 or higher.
Conclusion
Choosing the right BLDC motor is a multifaceted process that requires careful consideration of technical specifications, application requirements, and long-term operational factors. By understanding the fundamental principles and evaluating the critical parameters outlined in this article, you can make an informed decision that optimizes performance, reliability, and cost-efficiency.
Whether you are building industrial machinery, consumer electronics, or electric vehicles, selecting the appropriate BLDC motor will lay a solid foundation for your system’s success.
