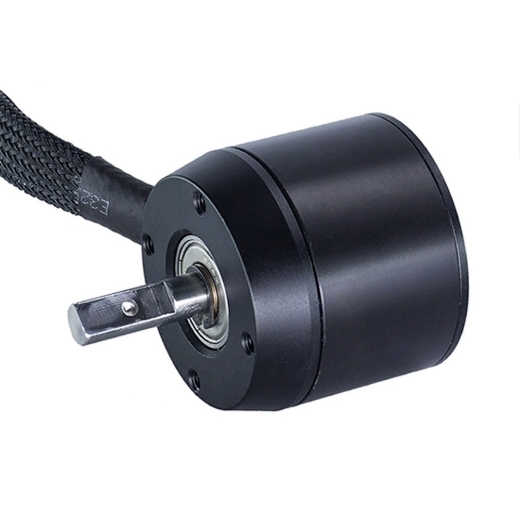

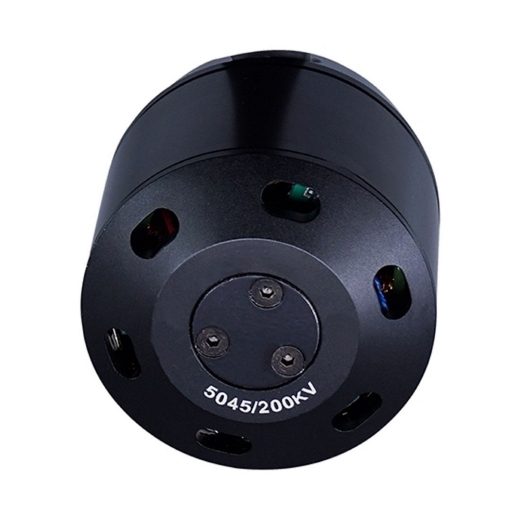

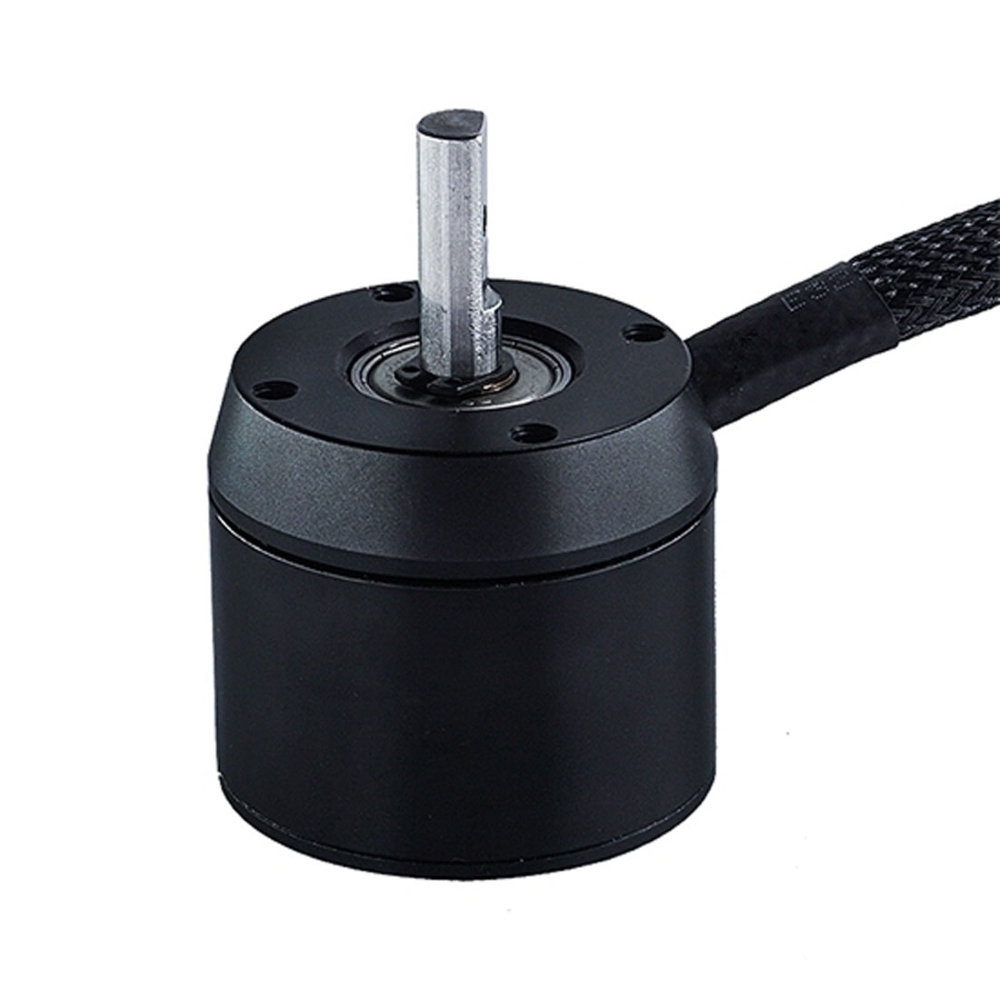

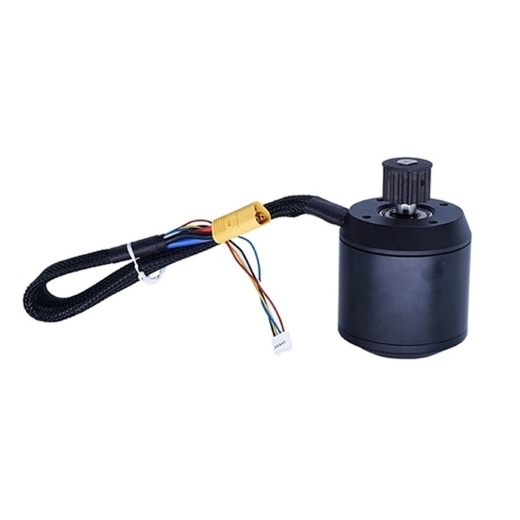

Picture of 1000W 200KV 12S Outrunner Sensored BLDC Motor Picture of 1000W 200KV 12S Outrunner Sensored BLDC Motor Picture of 1000W 200KV 12S Outrunner Sensored BLDC Motor Picture of 1000W 200KV 12S Outrunner Sensored BLDC Motor

1000W 200KV 12S Outrunner Sensored BLDC Motor

$138.15
| 0 review(s) | Add your review
Brushless sensored motor for electric skateboard. Power 1000W, speed 200KV, input voltage 12S (44V), maximum current 32A, maximum torque 0.85 N·m, shaft diameter 8 mm. Outrunner brushless motor works with matching controller and pulley for higher efficiency. Suitable for electric skateboard, longboard, and mountainboard applications.
Free shipping
Delivery date: 7-14 days
SKU: BLDC-ES1000
*
*
increase decrease

200KV Outrunner Sensored BLDC Motor. Provides 0.85 N·m torque, maximum power 1 kW, and supports up to 12S input (44V). Compatible with optional speed controller and D-axis pulley. Suitable for electric skateboard, longboard, and mountainboard applications.

Specification

Model BLDC-H5045
Max Power 1150W (1.5 hp)
Rotation Speed KV (RPM/V) 200KV
Max Current 32A
Max Input Voltage* DC 44V
Max Torque 0.85 N.m
Recommend ESC 3-12S 50A (FSESC4.20 50A)
Motor Length 48.6mm
Motor Diameter 49.5mm
Weight 0.74 lb (0.34 kg)
No-Load Current 0.4A
Internal Resistance 0.11 ohm
Shaft Diamete 8mm
Shaft Length 25mm
Motor Wire 300mm silicone 16AWG wire with MT30 male connector
Wire Configuration Blue = U
White = V
Yellow = W
Number of Poles 14
Sensor Wire Standard RC Sensor Wire HY2.0-5P connector
Shipping Package BLDC-H5045 motor*1, free VESC sensor wire*1

Note: The motor is powered by 12S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.

ESC (Electronic Speed Controller) Selection for Waterproof BLDC Motor

  • A BLDC motor can be used with an ESC as long as its speed does not exceed the ESC’s limit.
  • BLDC motor speed = Battery Voltage × KV value;
    Stator speed = Battery Voltage × KV value × Pole Pairs.
  • The maximum speed limit of the V4 series ESC is 60,000 ERPM.
    The maximum speed limit of the V6 series ESC is 150,000 ERPM.
  • If a BLDC motor’s maximum speed surpasses the ESC’s limit, it is possible to match them by lowering the motor’s operating voltage. However, this is not recommended, as it prevents the motor from functioning as a true brushless DC motor.

ESC (Electronic Speed Controller) Specification

Model Current Value Number of Batteries (Input Voltage)
FSESC 4.12 Continuous 50A, peak 240A 3S-12S (8V-60V)
FSESC 4.20* Continuous 50A, peak 240A 3S-12S (8V-60V)
VESC 6.6 mini dual drive 1-channel 100A continuous, 2-channel 200A continuous 3S-12S (8V-60V)
1-channel peak 400A, 2-channel total peak 800A
VESC6.6 integrated switch dual drive version 1-channel 100A continuous, 2-channel 200A continuous 3S-12S (8V-60V)
1-channel peak 400A, 2-channel total peak 800A
FSESC6.6 VESC6.6 single drive integration Continuous 60A, peak 150A 3S-12S (8V-60V)
VESC4 dual drive integration 50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel 3S-12S (8V-60V)
ODESC3.6 single drive/dual drive 50A continuous 1-channel, peak 120A 1-channel 3S-12S (8V-60V)
VESC6 dual drive 1-channel 100A continuous, 2-channel 200A continuous 3S-12S (8V-60V)
1-channel peak 400A, 2-channel total peak 800A
Single drive V6 75200 Continuous 200A 3S-12S (8V-60V)
Single drive VESC6 waterproof version Continuous 60A, peak 150A 3S-12S (8V-60V)

Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.



Details

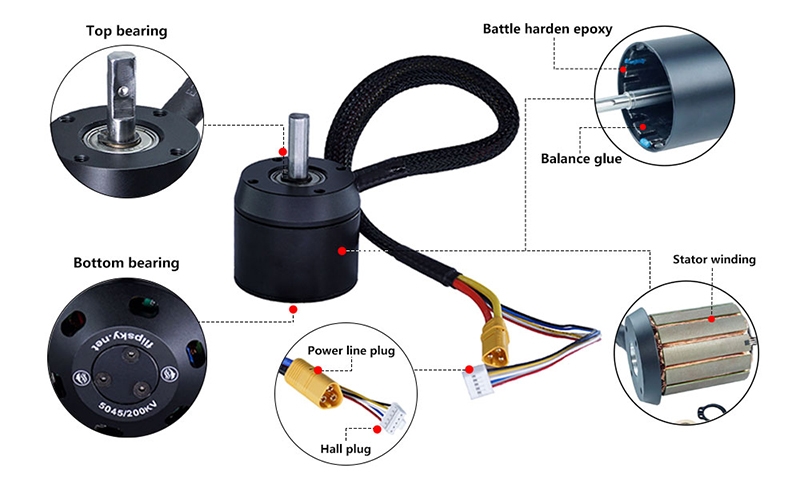

1000W outrunner sensored BLDC motor details



Dimension (Unit: mm)

1000W outrunner sensored BLDC motor dimension

Applications

Outrunner sensored BLDC motor for electric skateboard

Electric Skateboard

Outrunner sensored BLDC motor for car model

Car Model

Outrunner sensored BLDC motor for robot model

Robot Model

Outrunner sensored BLDC motor for off-road kart

Off-road Kart

Q: What is an outrunner BLDC motor?

A: An outrunner brushless DC (BLDC) motor is a type of BLDC motor where the outer casing and the magnets attached to it rotate around a stationary inner component called the stator, which contains the coils. This design provides a high-torque, low-speed output, making it suitable for applications like drones, electric vehicles, and cordless tools, though it places more demands on the electronic speed controller.
