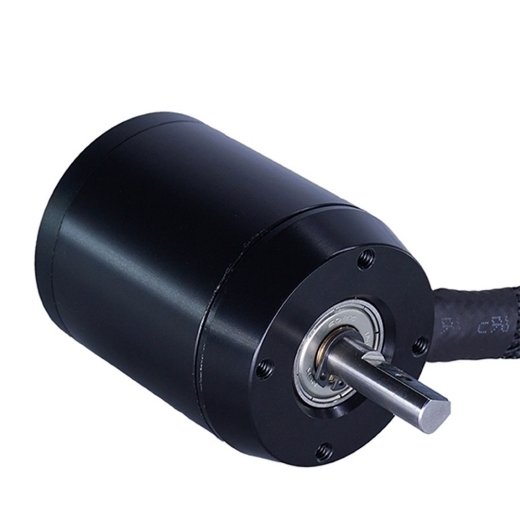

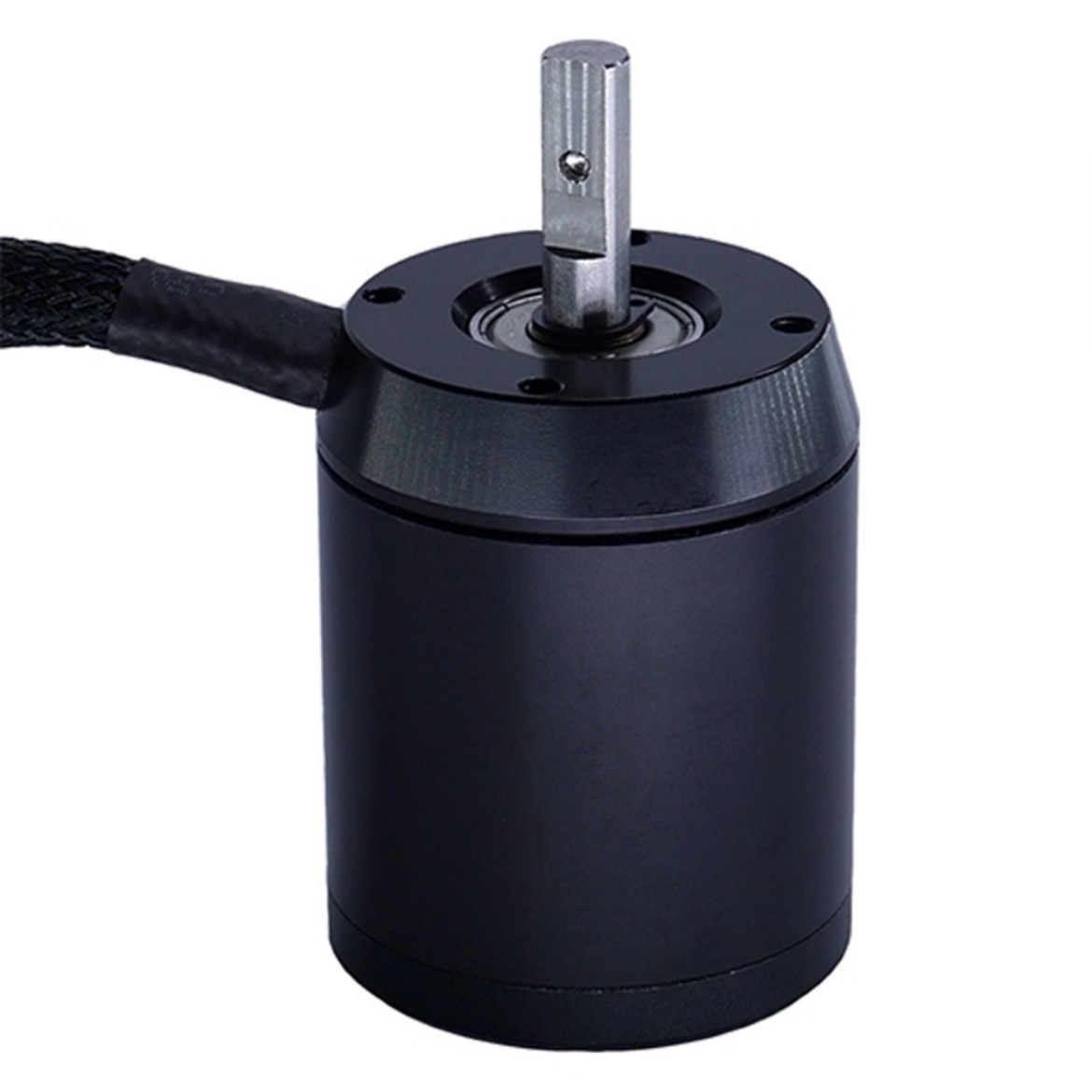

1200W outrunner sensored BLDC motor available in 200KV or 140KV speed options. Supports 6–12S input (DC 22–44V), max current 34A, and max torque 1.2 N·m. Features low energy consumption, quiet operation, stable shaft performance, and long service life.
Specification
| Model |
BLDC-H5065 |
| Max Power |
1200W (1.6 hp) |
| Rotation Speed KV (RPM/V) |
200KV, 140KV |
| Max Current |
34A |
| Input Voltage* |
DC 22-44V |
| Max Torque |
1.2 N.m |
| Recommend ESC |
3-12S 50A (FSESC4.20 50A) |
| Weight |
1.64 lb (0.745 kg) |
| No-Load Current |
0.6A |
| No-Load Speed |
5200 rpm |
| Shaft Diameter |
8mm |
| Motor Wire |
300mm |
| Shipping Package |

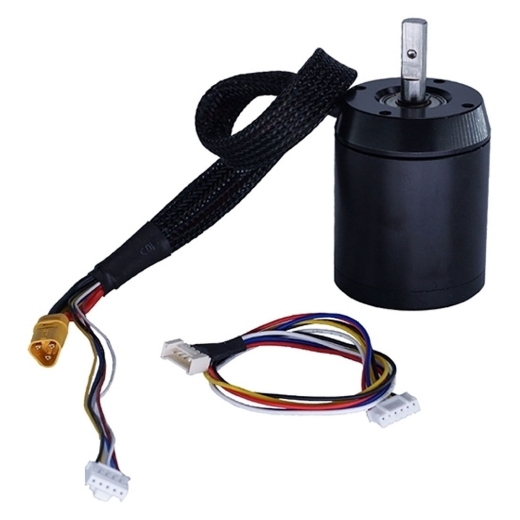

BLDC-H5065 motor*1, free VESC sensor wire*1 |
Note: The motor is powered by 6-12S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.
ESC (Electronic Speed Controller) Selection for Waterproof BLDC Motor
- A BLDC motor can be used with an ESC as long as its speed does not exceed the ESC’s limit.
- BLDC motor speed = Battery Voltage × KV value;
Stator speed = Battery Voltage × KV value × Pole Pairs.
- The maximum speed limit of the V4 series ESC is 60,000 ERPM.
The maximum speed limit of the V6 series ESC is 150,000 ERPM.
- If a BLDC motor’s maximum speed surpasses the ESC’s limit, it is possible to match them by lowering the motor’s operating voltage. However, this is not recommended, as it prevents the motor from functioning as a true brushless DC motor.
ESC (Electronic Speed Controller) Specification
| Model |
Current Value |
Number of Batteries (Input Voltage) |
| FSESC 4.12 |
Continuous 50A, peak 240A |
3S-12S (8V-60V) |
| FSESC 4.20* |
Continuous 50A, peak 240A |
3S-12S (8V-60V) |
| VESC 6.6 mini dual drive |
1-channel 100A continuous, 2-channel 200A continuous |
3S-12S (8V-60V) |
| 1-channel peak 400A, 2-channel total peak 800A |
| VESC6.6 integrated switch dual drive version |
1-channel 100A continuous, 2-channel 200A continuous |
3S-12S (8V-60V) |
| 1-channel peak 400A, 2-channel total peak 800A |
| FSESC6.6 VESC6.6 single drive integration |
Continuous 60A, peak 150A |
3S-12S (8V-60V) |
| VESC4 dual drive integration |
50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel |
3S-12S (8V-60V) |
| ODESC3.6 single drive/dual drive |
50A continuous 1-channel, peak 120A 1-channel |
3S-12S (8V-60V) |
| VESC6 dual drive |
1-channel 100A continuous, 2-channel 200A continuous |
3S-12S (8V-60V) |
| 1-channel peak 400A, 2-channel total peak 800A |
| Single drive V6 75200 |
Continuous 200A |
3S-12S (8V-60V) |
| Single drive VESC6 waterproof version |
Continuous 60A, peak 150A |
3S-12S (8V-60V) |
Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.

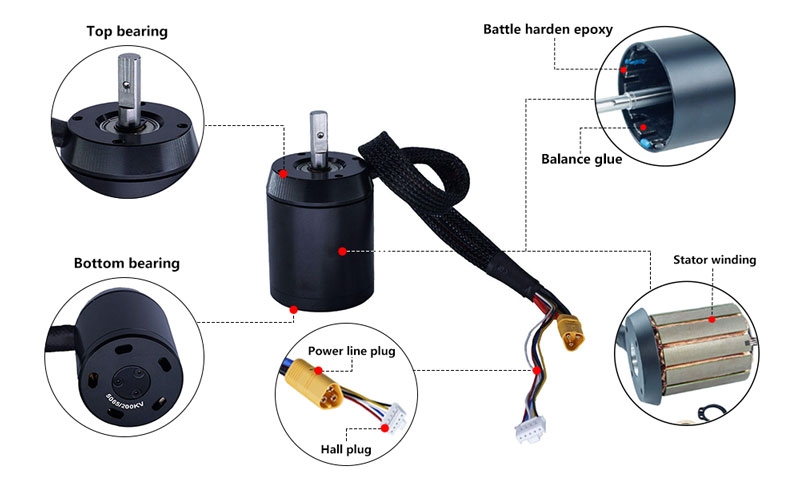

Details

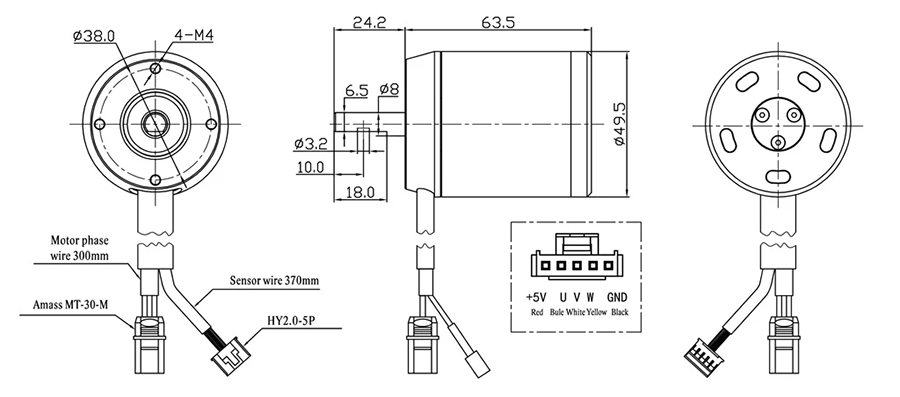

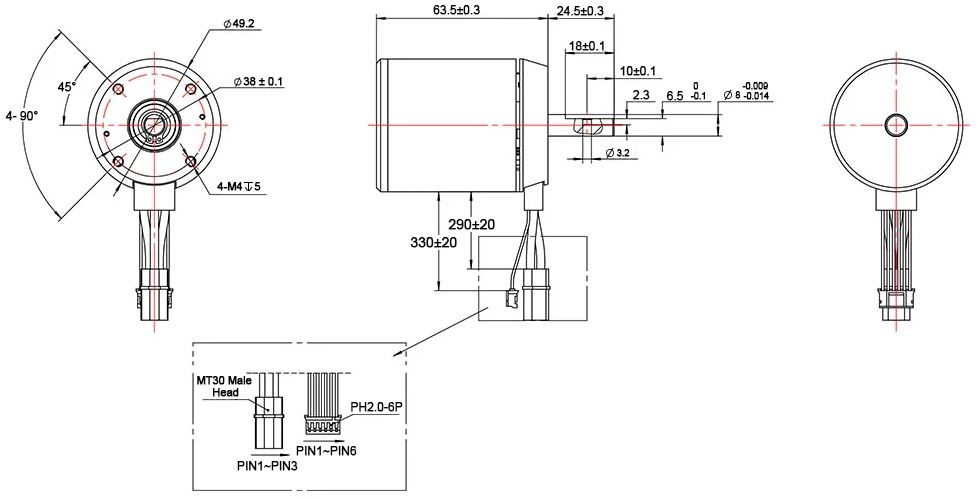

Dimension (Unit: mm)
Applications
Q: What is an inrunner BLDC motor?
A: An inrunner brushless DC motor is a type of BLDC motor where the rotor (the part that spins) is located inside the stator. The rotor is typically smaller and spins at higher RPMs compared to outrunner motors. This design makes inrunners well-suited for applications that require high speed, precise control, and compact size—such as RC cars, drones, electric tools, and some robotics.
