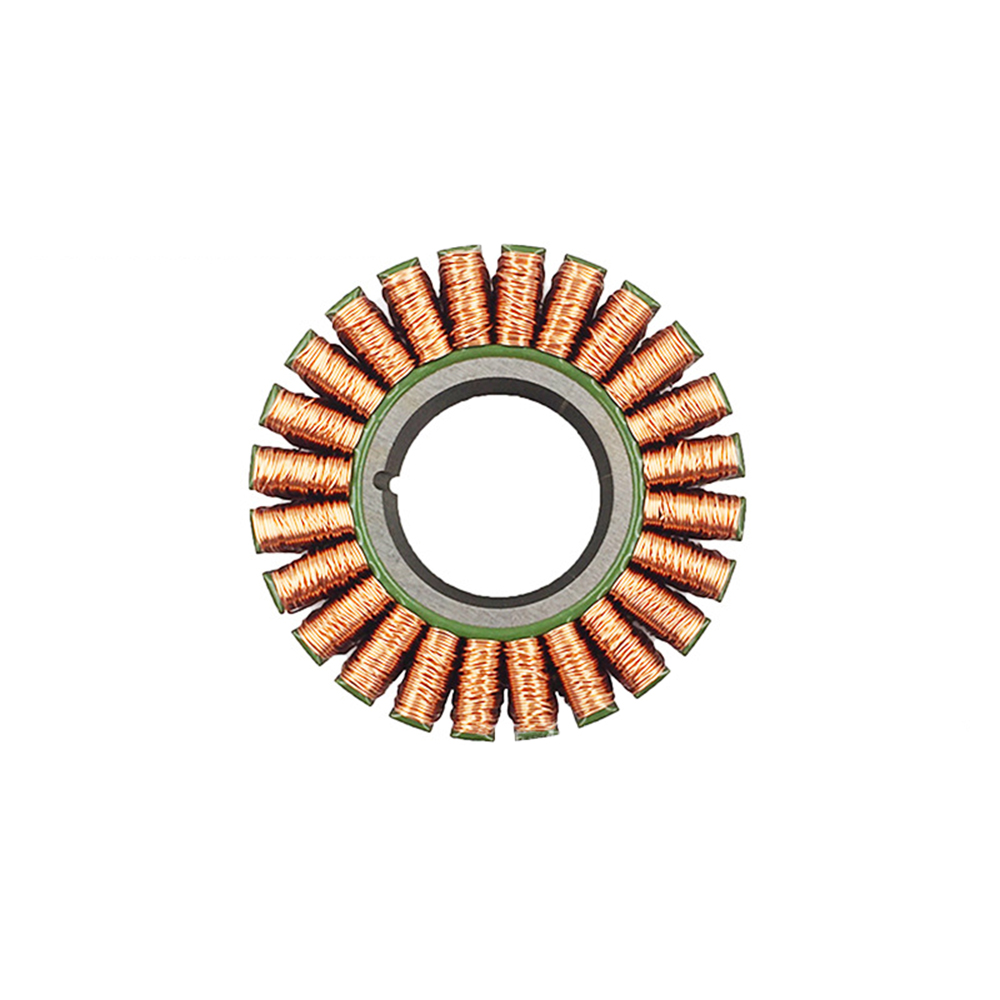

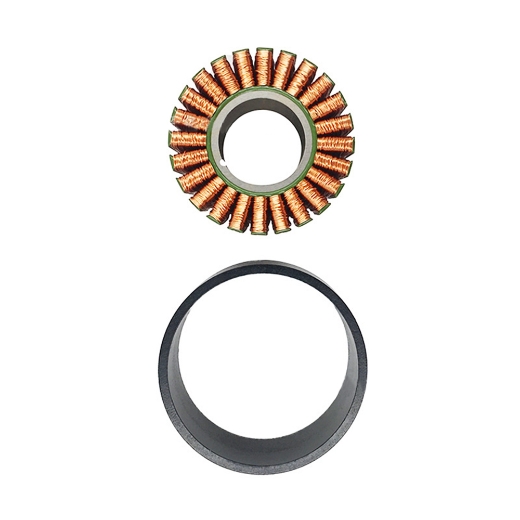

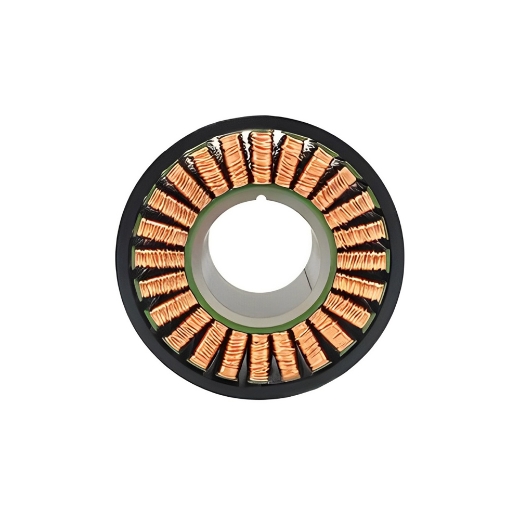

With a focus on precise, low-speed performance, this frameless BLDC motor delivers dependable torque and control in a compact, integration-ready form. Its open-core design eliminates traditional housing constraints, allowing for lighter system designs and more creative mechanical configurations. Leveraging brushless technology for durability and efficiency, it’s a smart solution for robotics, automation, and medical systems where consistent motion and minimal upkeep are essential.
Specification
| Model |
BLDC-WK5225 |
| Rated Power |
30.72W |
| Nominal Voltage |
24V |
| Nominal Current |
1.28A |
| Nominal Torque |
1.26 Nm |
| Nominal Speed |
221 rpm |
| Max. Speed |
336 rpm |
| Stall Torque |
1.9 Nm |
| Stall Current |
1.94A |
| Winding Turns of Motor |
50T |
| Phase to Phase Resistance |
11.8Ω |
| Phase to Phase Inductance |
11.31Mh |
| Speed Constant |
14 rpm/V |
| Torque Constant |
0.98 Nm/A |
| Rotor Inertia |
933 gcm2 |
| Number of Pole Pairs |
11 |
| Motor Weight |
281 g |
| Working Temperature |
-20~80℃ |
| Max. Demagnetize Temperature |
120℃ |
Features
- The frameless design enables easy integration, saving space and allowing flexible custom designs.
- With a speed of 221 rpm, this frameless BLDC motor is ideal for precise, smooth low-speed applications.
- Operating at 24V, it delivers 30W of power with efficient performance and minimal heat.
- The brushless design reduces maintenance, wear, and increases durability.
- Its frameless build and low speed suit direct-drive systems, removing the need for gears.
- Frameless motors allow custom housing design, perfect for DIY and specialized projects.

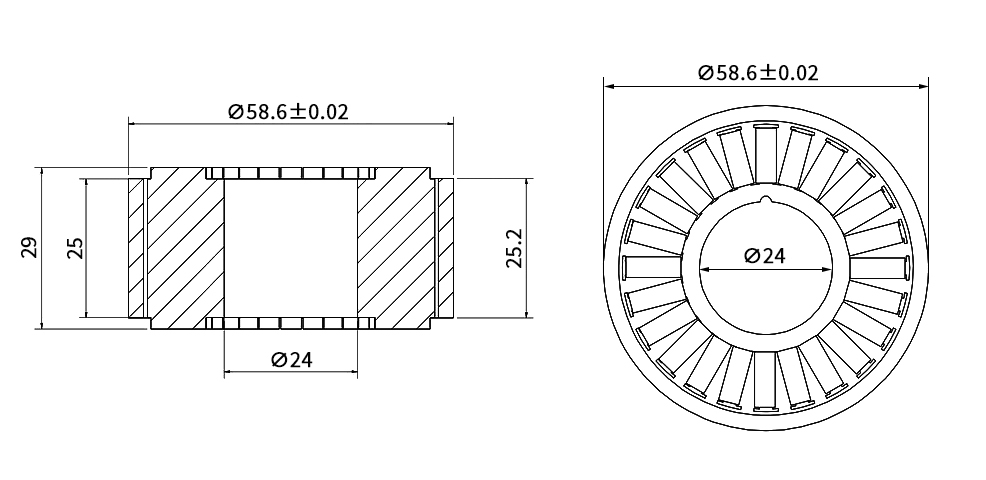

Dimension (Unit: mm)
Applications
Q: Can a frameless BLDC motor be used directly?
A: No, a frameless BLDC motor cannot be used directly out of the box. Since it does not include a housing, shaft, or bearings, it must be integrated into a custom mechanical structure. Proper alignment, mounting, and thermal management are essential. Additionally, it requires a compatible motor controller and, in most cases, an encoder or position sensor for precise operation.
