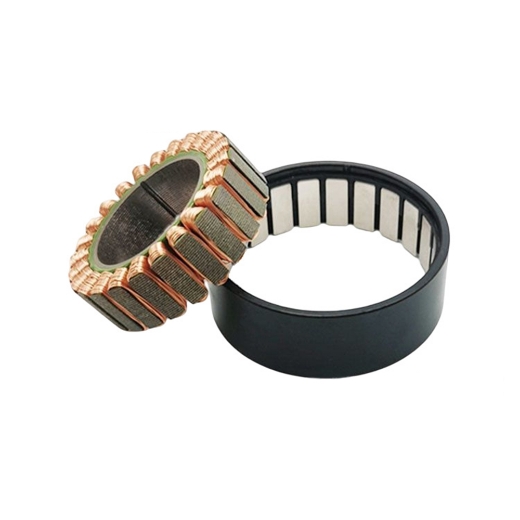

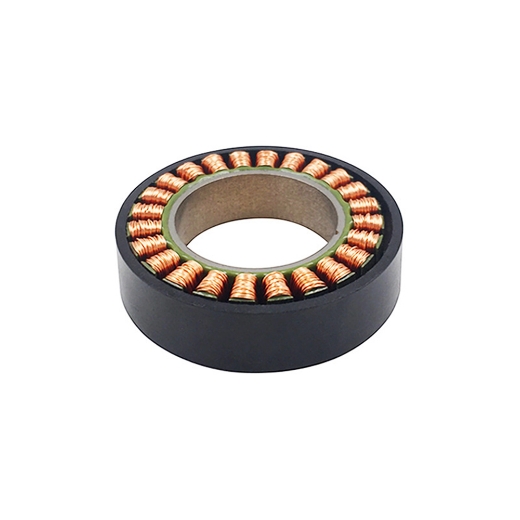

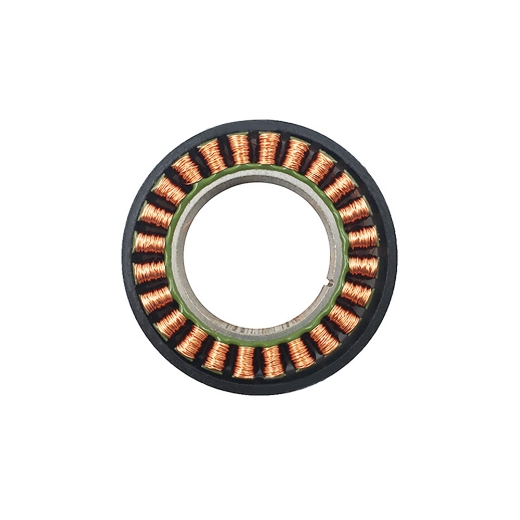

The 6W 12V frameless BLDC motor is engineered for precision, efficiency, and quiet operation, making it ideal for demanding applications. Its frameless design enables seamless integration into custom assemblies, providing greater flexibility in space-constrained or weight-sensitive systems such as robotics, drones, medical devices, and compact machinery. Despite its small size, the motor delivers reliable torque with minimal vibration, offering a perfect balance of performance, adaptability, and precision for modern embedded systems.
Specification
| Model |
BLDC-WK3510 |
| Nominal Voltage |
12V |
| Nominal Current |
0.53A |
| Nominal Torque |
0.11 Nm |
| Nominal Speed |
363 rpm |
| Max. Speed |
550 rpm |
| Stall Torque |
0.16 Nm |
| Stall Current |
0.8A |
| Winding Turns of Motor |
40T |
| Phase to Phase Resistance |
8.8Ω |
| Phase to Phase Inductance |
3.95Mh |
| Speed Constant |
45 rpm/V |
| Torque Constant |
0.2 Nm/A |
| Rotor Inertia |
81 gcm2 |
| Number of Pole Pairs |
11 |
| Motor Weight |
36 / 47 g |
| Working Temperature |
-20~80℃ |
| Max. Demagnetize Temperature |
120℃ |
Features
- The frameless design enables easy integration, saving space and allowing flexible custom designs.
- With a speed of 363 rpm, this frameless BLDC motor is ideal for precise, smooth low-speed applications.
- Operating at 12V, it delivers 6W of power with efficient performance and minimal heat.
- The brushless design reduces maintenance, wear, and increases durability.
- Its frameless build and low speed suit direct-drive systems, removing the need for gears.
- Frameless motors allow custom housing design, perfect for DIY and specialized projects.
Dimension (Unit: mm)
Applications
Q: What is a frameless BLDC motor?
A: A frameless BLDC motor is a type of brushless DC motor that lacks a traditional motor housing or frame. Instead, it features a rotor and stator assembly that can be directly integrated into a custom housing or device. This design offers greater flexibility for space-constrained applications, such as robotics, custom machinery, and specialized projects where a tailored enclosure is required.
