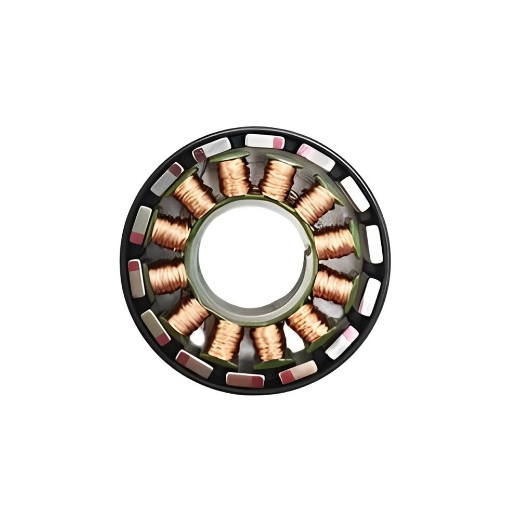

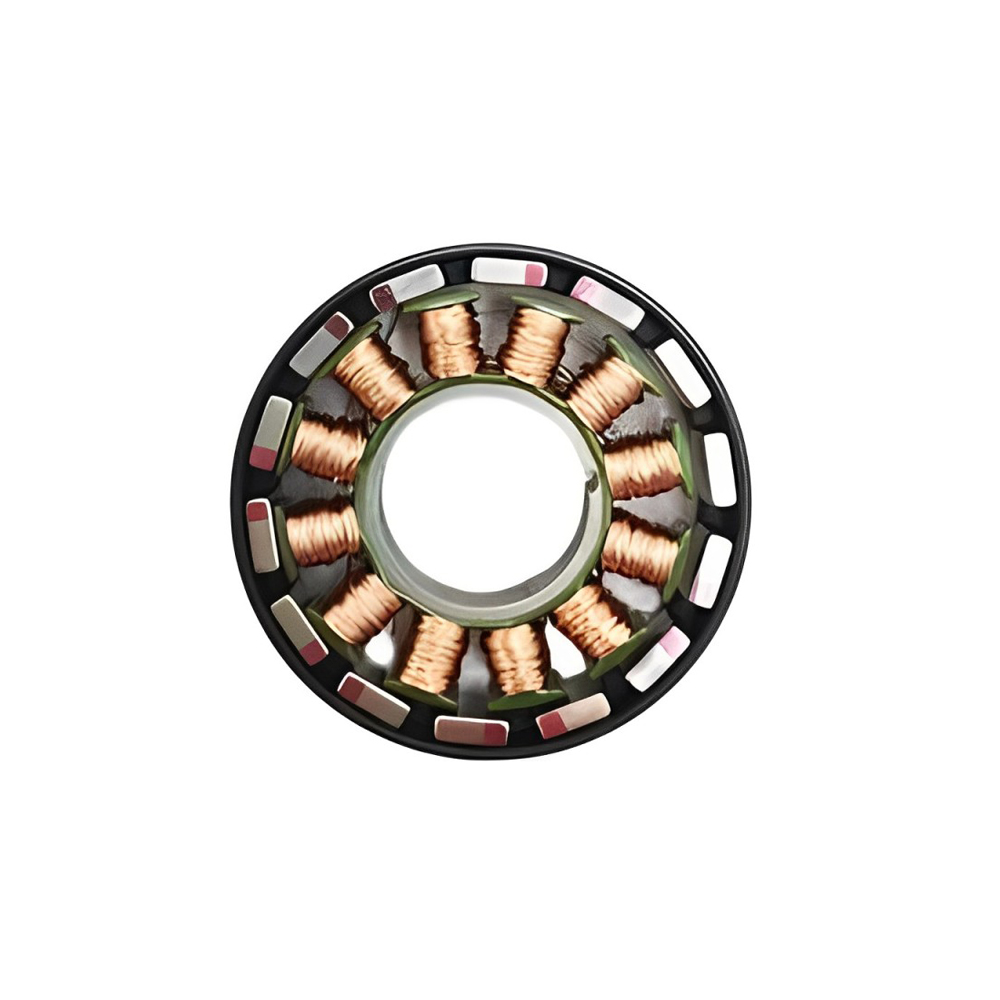

This frameless brushless DC motor integrates easily into custom assemblies, offering flexibility for robotics, drones, and medical devices. Its brushless design reduces wear and heat, ensuring durability and low maintenance. With a power draw of just 0.81A at 12V, it delivers efficient, reliable performance in demanding environments.
Specification
| Model |
BLDC-WK2806 |
| Rated Power |
9.72W |
| Nominal Voltage |
12V |
| Nominal Current |
0.81A |
| Nominal Torque |
0.06 Nm |
| Nominal Speed |
950 rpm |
| Max. Speed |
1452 rpm |
| Stall Torque |
0.09 Nm |
| Stall Current |
1.22A |
| Winding Turns of Motor |
60T |
| Phase to Phase Resistance |
5Ω |
| Phase to Phase Inductance |
1.51Mh |
| Speed Constant |
121 rpm/V |
| Torque Constant |
0.07 Nm/A |
| Rotor Inertia |
51 gcm2 |
| Number of Pole Pairs |
7 |
| Motor Weight |
22 g |
| Working Temperature |
-20~80℃ |
| Max. Demagnetize Temperature |
120℃ |
Features
- The frameless design enables easy integration, saving space and allowing flexible custom designs.
- With a speed of 950 rpm, this frameless BLDC motor is ideal for precise, smooth low-speed applications.
- Operating at 12V, it delivers 9W of power with efficient performance and minimal heat.
- The brushless design reduces maintenance, wear, and increases durability.
- Its frameless build and low speed suit direct-drive systems, removing the need for gears.
- Frameless motors allow custom housing design, perfect for DIY and specialized projects.

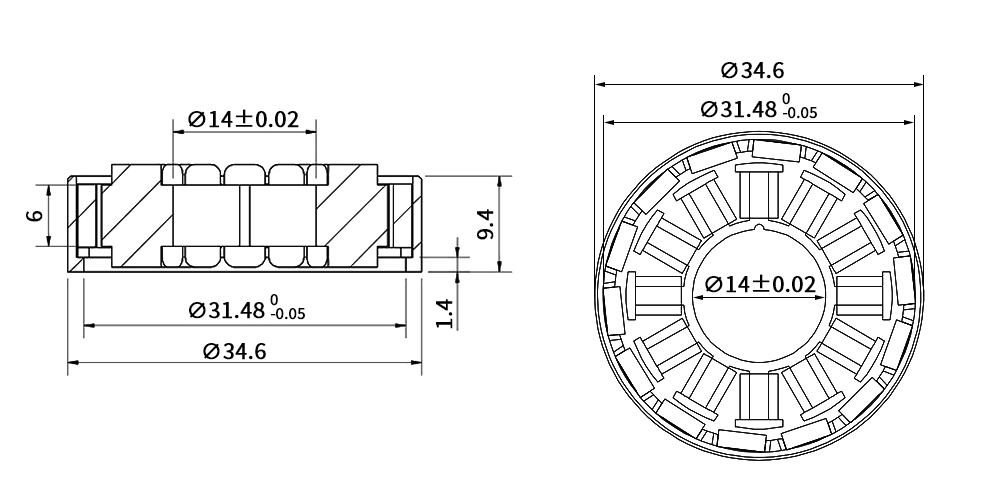

Dimension (Unit: mm)
Applications
Q: What are the advantages of a frameless BLDC motor?
A: Here are the advantages:
- Compact and lightweight: The frameless design allows for integration into custom housings, reducing weight and size.
- Flexibility in design: Without an outer frame, the motor can be tailored to fit specific applications, such as robotic arms, drones, and medical devices.
- High efficiency: Like other electric BLDC motors, frameless motors provide high efficiency, long lifespan, and low maintenance since they don’t have brushes that wear out.
- Quiet operation: Frameless BLDC motors tend to run quieter due to the absence of brushes, which can create noise and friction.
