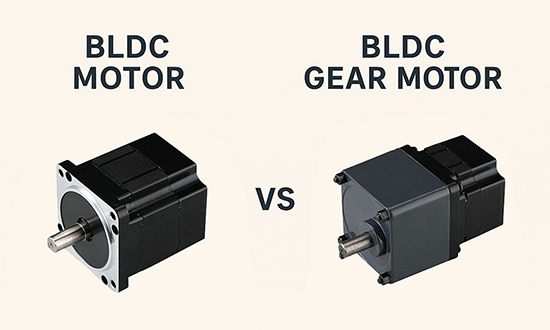

Difference between BLDC Motor and BLDC Gear Motor

Brushless DC (BLDC) motors are one of the most widely used motor technologies today, valued for their high efficiency, durability, and precise control. From drones and robotics to industrial automation and electric vehicles, brushless DC motors have become the heart of countless motion systems.

However, in many cases, a standalone BLDC electric motor may not perfectly meet application requirements. High-speed motors often lack sufficient torque at low speeds, which is where BLDC gear motors come into play. A BLDC gear motor combines a brushless DC motor with a gearbox, creating a unit that can deliver lower speed but significantly higher torque.

Understanding the differences between these two options is essential for engineers, designers, and end-users who need to select the right motor for their application. This article explores the difference between BLDC motors and BLDC gear motors, comparing their structures, performance, and applications.

What is a BLDC Motor?

A BLDC motor is an electronically commutated motor powered by direct current. Unlike brushed DC motors, it uses electronic controllers and Hall sensors (or sensorless algorithms) to achieve commutation instead of mechanical brushes.

BLDC Motor Structure

1. Rotor – Contains permanent magnets that rotate.
2. Stator – Wound with copper coils that generate a rotating magnetic field.
3. Controller – Switches current through stator windings in synchronization with rotor position.
4. Sensors – Hall effect sensors or encoders (in sensored motors) provide rotor position feedback.

In most cases, a BLDC motor delivers high rotational speed but comparatively modest torque.

What is a BLDC Gear Motor?

A BLDC gear motor is a BLDC motor integrated with a gearbox (also known as a gearhead). The gearbox reduces the motor’s speed while multiplying its torque, allowing the same motor to perform in applications requiring high force at lower speeds.

BLDC Gear Motor Structure

1. BLDC Motor Core – Provides input speed and torque.
2. Gearbox (Planetary, Spur, Helical, Worm, etc.) – Reduces speed and increases torque.
3. Shaft Output – Delivers the modified mechanical power to the load.

BLDC Motor vs. BLDC Gear Motor

Choosing between BLDC Motor and BLDC Gear Motor

Selecting the right motor depends on your application’s speed, torque, space, and efficiency requirements. Brushless DC motors are ideal when high speed, compact size, and high efficiency are priorities. They are perfect for drones, fans, electric vehicles, and other applications requiring rapid motion with moderate torque.

In contrast, BLDC gear motors integrate a gearbox to reduce speed and increase torque. They are well-suited for robotics, conveyors, medical devices, and industrial automation, where high torque at low speed is essential. While slightly larger, heavier, and more expensive, gear motors provide precise control and reliable performance under load.

When choosing, consider the load, desired speed, efficiency, space constraints, and budget. If your application demands high-speed rotation with moderate torque, a brushless direct current motor is sufficient. If torque multiplication and precise low-speed control are required, a BLDC gear motor is the better choice.

Conclusion

The main difference between a BLDC motor and a BLDC gear motor lies in their output characteristics. A BLDC motor provides high speed with moderate torque, making it suitable for applications where rapid motion is required. In contrast, a BLDC gear motor delivers high torque at lower speeds, which is essential for applications involving heavy loads or precise positioning. Both options are critical in modern engineering and automation. Choosing between them depends on the balance of speed, torque, efficiency, size, and cost required for your application. By understanding these distinctions, designers and engineers can make informed decisions that maximize performance, reliability, and value.
