12V/24V/36V/48V 100W BLDC Worm Gear Motor

$484.27

| 0 review(s) | Add your review

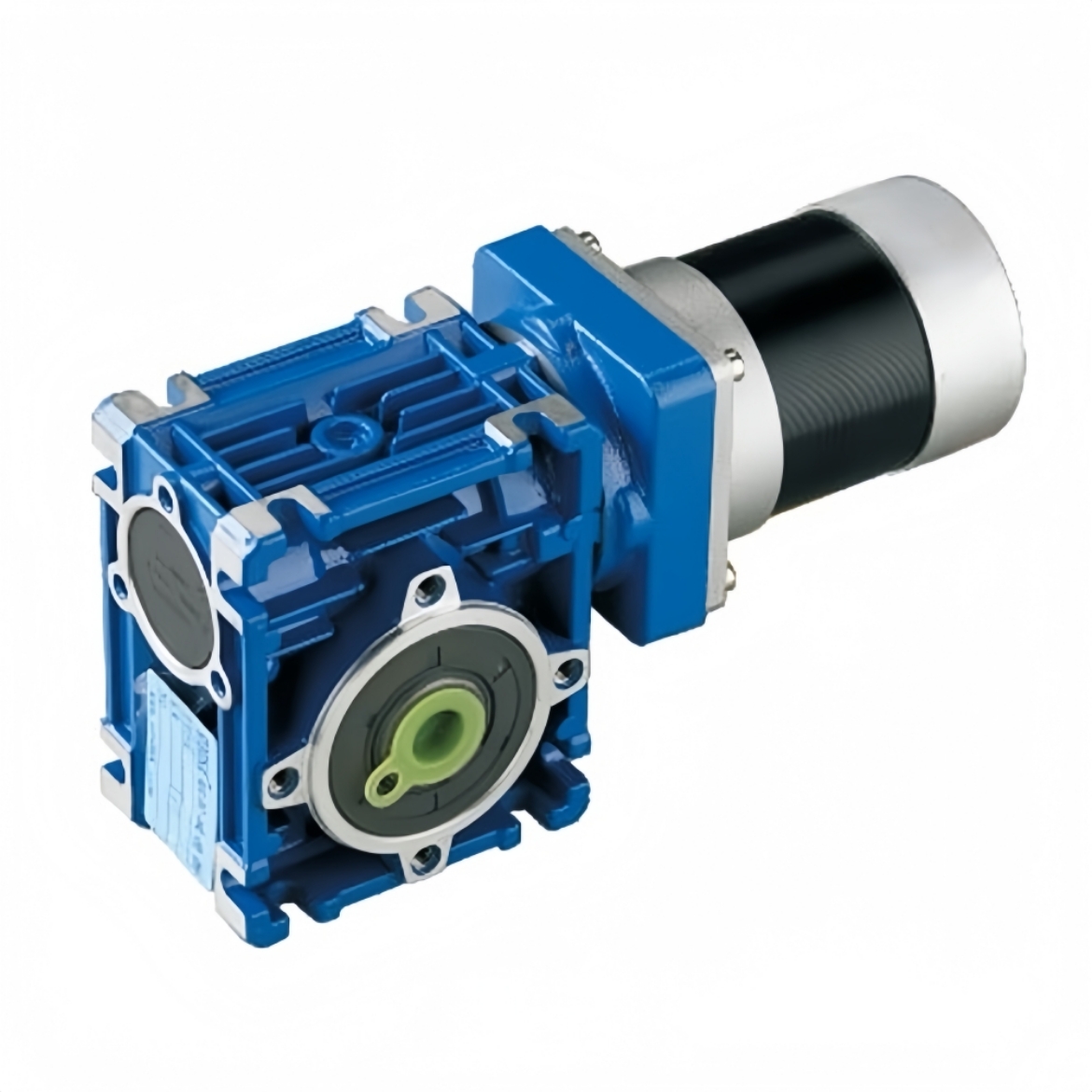

100W BLDC motor with worm gearbox is available with optional power supply of 12V, 24V, 36V or 48V. This 3-phase brushless motor combined with a worm gearbox delivers high torque and efficiency. It supports 12V, 24V or 48V power input, with a rated speed of 2000 rpm, rated torque of 0.32 N·m, and peak torque of 0.96 N·m. Gear ratios range from 7.5:1 to 80:1.

Free shipping

Delivery date: 7-14 days

SKU: BLDC-GEAR-W100

Voltage (DC) *
Gear Ratio *
Controller for 12V Motor *
Controller for 24V Motor *
Controller for 36V Motor *
Controller for 48V Motor *

increase decrease

DESCRIPTION
DOCUMENTS

100W DC worm gear motor operates at a rated speed of 2000 rpm, with gear ratios available from 7.5:1 to 80:1. Powered at 12V, 24V, 36V or 48V, the BLDC motor delivers high torque with low noise through a worm gearbox.

Specification

Motor Model	BLDC-D2BLD100-12A	BLDC-D2BLD100-24A	BLDC-D2BLD100-36A	BLDC-D2BLD100-48A
Voltage	12V DC	24V DC	36V DC	48V DC
Rated Current	10.42A	5.21A	3.47A	2.6A
No-load Current	<1.2A	<0.8A	<0.6A	<0.4A
Recommended Drive Model	BLDC-BLD300
Motor Type	BLDC Motor
Power	100W
No-load Speed	2800 rpm
Rated Speed	2000 rpm
Rated Torque	0.32 Nm
Peak Torque	0.96 Nm
Motor Dimension	57 mm
Shaft Diameter	11 mm
Construction	Permanent Magnet
Direction of Rotation	CW/CCW
Gear Ratio	7.5, 10, 15, 20, 25, 30, 40, 50, 60
Certificates	CCC, CE, RoHS, LVD, EMC

Allowable Torque with Gear Head

Gear Ratio	7.5	10	15	20	25	30	40	50	60	80
Rated Output Speed (rpm)	267	200	133	100	80	67	50	40	33	25
Rated Output Torque (Nm)	2.9	3.8	5.7	7.4	9.1	10.6	13.4	12	17	12

Note:

This torque value is the rated output value of the reducer, not the final motor + output torque value T after reducer.
The formula for calculating the output torque after the final motor + reducer: T = rated torque of the motor * reduction ratio * 0.6, and T≤ rated allowable output torque value of the reducer.

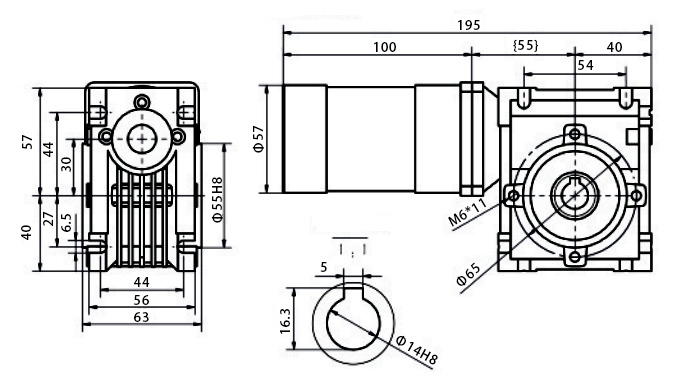

Dimension (Unit: mm)

Mounting screws are included with the gearhead

100W bldc worm gear motor dimension

Details

100W worm gear motor details

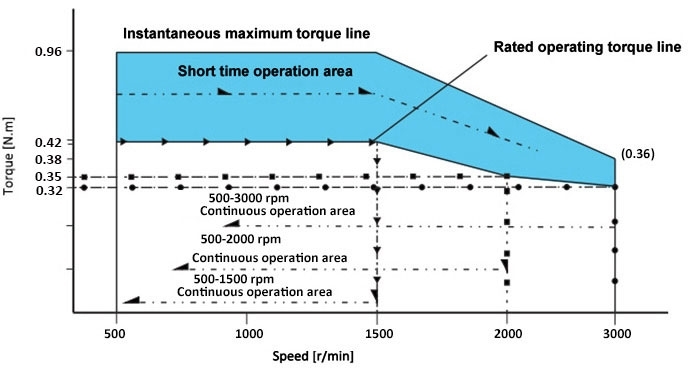

Speed - Torque Curve

Instantaneous maximum torque line: The maximum torque the motor delivers briefly at startup. Beyond this torque, the over-current protection of the driver will cause the motor to stop.
Short-time operation area: The motor can run at a short time within this torque range at different speeds. If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
Rated operating torque line: The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
Continuous operating area: When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Applications

Electronics Manufacturing

Printing Machinery

Industrial Robots

Laser Cutting Equipment

Q: What are the advantages of a BLDC worm gear motor and planetary gear motor?

A: Worm gear motors and planetary gear motors each have their own advantages: the former offers high torque at low speed, compact structure, quiet operation, and a self-locking feature, making it suitable for applications that require holding position and stable output; the latter excels in efficiency, precision, load capacity, and durability, making it better suited for high-performance and long-term continuous operation.
