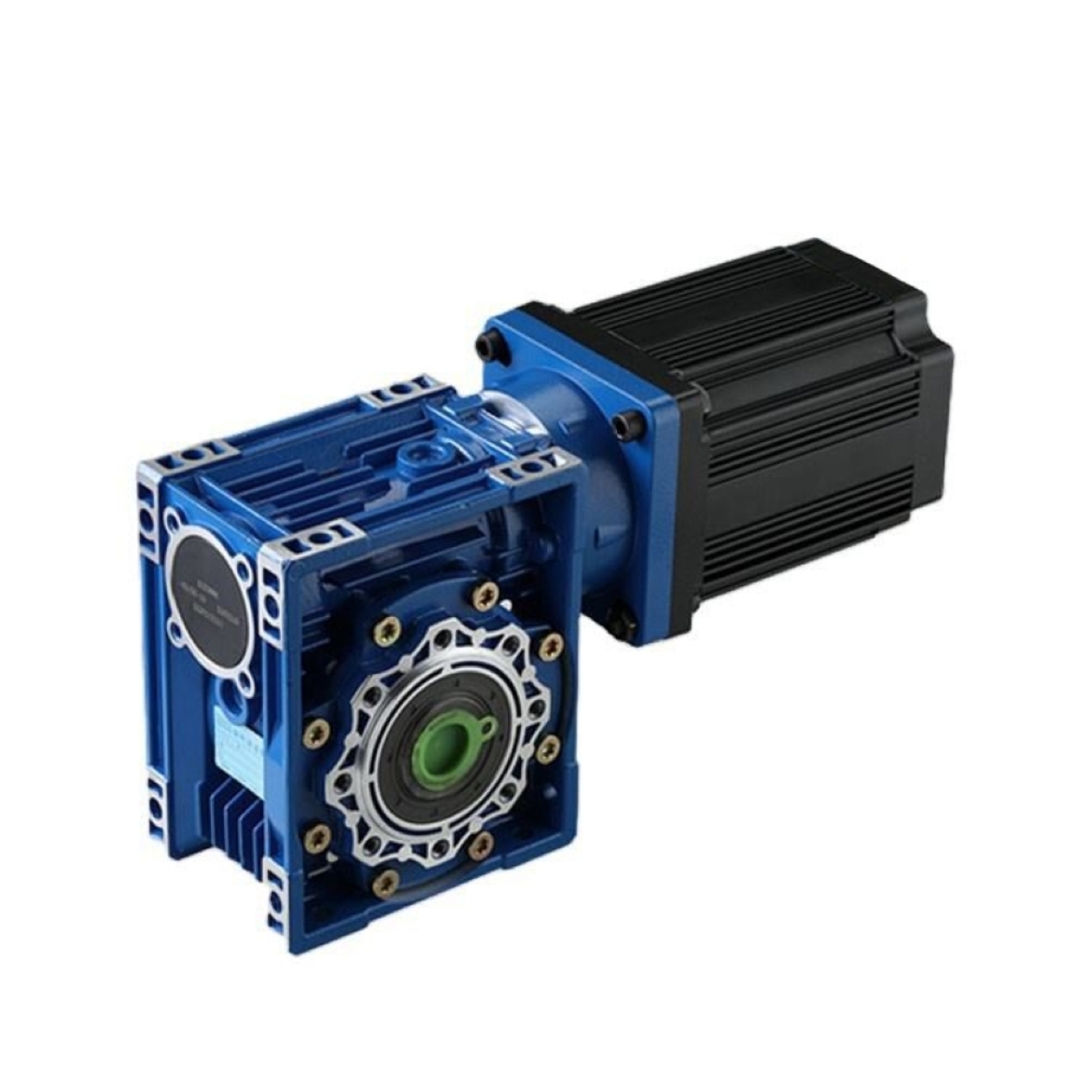

200W worm gear BLDC motor offered at a competitive price. Ideal for electric vehicles, renewable energy systems, and industrial equipment where high torque density and compact design are essential. Perfect for applications demanding reliable power in limited space.
Specification
| Motor Model |
BLDC-D5BLD200-12A |
BLDC-D5BLD200-24A |
BLDC-D5BLD200-36A |
BLDC-D5BLD200-48A |
| Voltage |
12V DC |
24V DC |
36V DC |
48V DC |
| Rated Current |
20.83A |
10.42A |
6.94A |
5.21A |
| No-load Current |
<6.2A |
<4.13A |
<2.5A |
<1.61A |
| Recommended Drive Model |
BLDC-KVD2412N |
BLDC-BLD300 |
BLDC-BLD300 |
BLDC-BLD300 |
| Motor Type |
BLDC Motor |
| Power |
200W |
| No-load Speed |
2700 rpm |
| Rated Speed |
2000 rpm |
| Rated Torque |
0.64 Nm |
| Peak Torque |
1.92 Nm |
| Motor Dimension |
86 mm |
| Shaft Diameter |
11 mm |
| Construction |
Permanent Magnet |
| Direction of Rotation |
CW/CCW |
| Gear Ratio |
7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100 |
| Certificates |
CCC, CE, RoHS, LVD, EMC |
Allowable Torque with Gear Head
| Gear Ratio |
7.5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
60 |
80 |
100 |
| Rated Output Speed (rpm) |
267 |
200 |
133 |
100 |
80 |
67 |
50 |
40 |
33 |
25 |
20 |
| Rated Output Torque (Nm) |
4.3 |
5.7 |
8.6 |
11.2 |
13.6 |
15.9 |
17 |
12 |
17 |
12 |
29 |
Note:
- This torque value is the rated output value of the reducer, not the final motor + output torque value T after reducer.
- The formula for calculating the output torque after the final motor + reducer: T = rated torque of the motor * reduction ratio * 0.6, and T≤ rated allowable output torque value of the reducer.
Dimension (Unit: mm)
Mounting screws are included with the gearhead

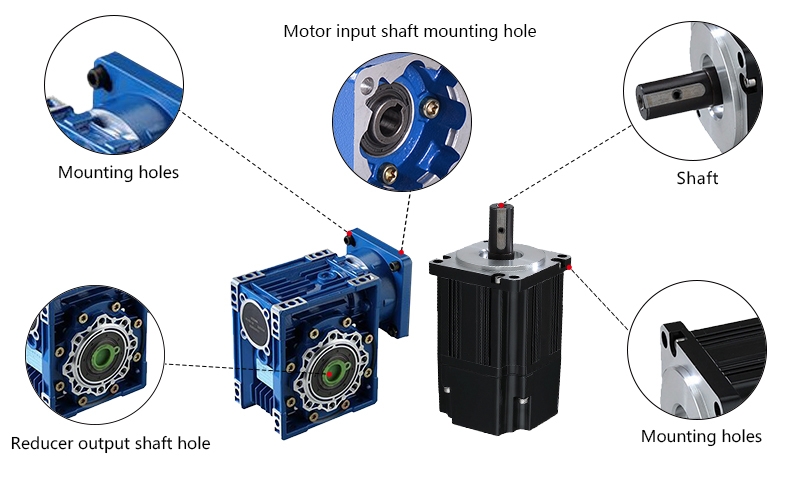

Details

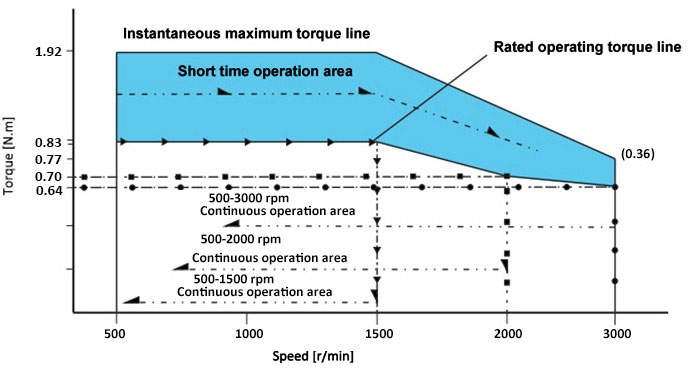

Speed - Torque Curve
- Instantaneous maximum torque line: The maximum torque momentarily impacts the load when the motor is started. Exceeding this level triggers the driver's over-current protection, shutting down the motor.
- Short-time operation area: The motor can operate within this torque range for limited periods at different speeds. Prolonged use generates excess heat, which may cause the motor to stop or burn.
- Rated operating torque line: The rated torque of the motor can sustain at different speeds for continuous, long-term operation.
- Continuous operating area: When the motor rotates at different speeds, it runs continuously in this corresponding zone.
Applications
Electronics Manufacturing
Q: How to extend the service life of a BLDC motor?
A: To extend the service life of a BLDC motor, ensure proper installation and alignment, maintain clean and dry operating conditions, avoid overloading, and provide adequate cooling. Regularly inspect bearings, wiring, and connections, keep the motor free from dust and debris, and use appropriate voltage and current levels. Implementing periodic maintenance and monitoring for unusual noise, vibration, or temperature rise can also help prevent premature wear and ensure long-term reliable operation.
