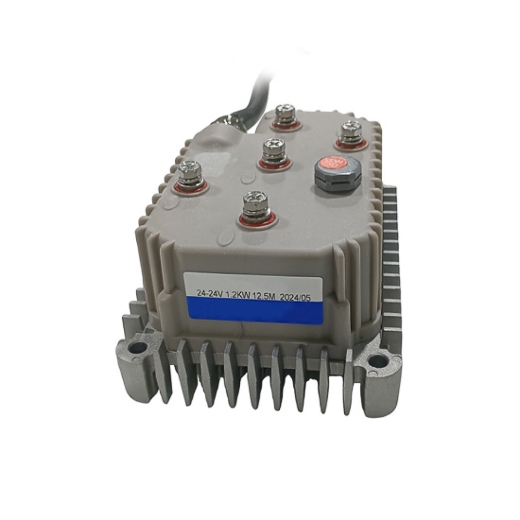

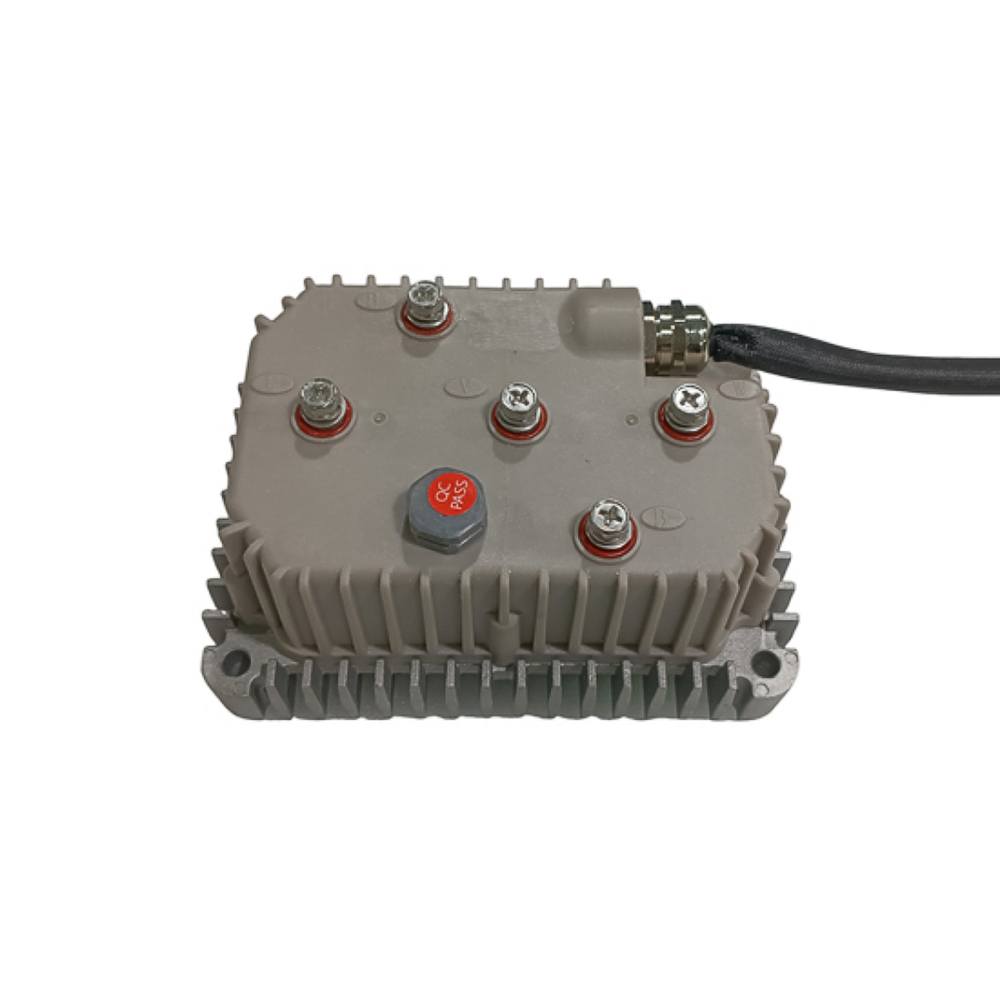

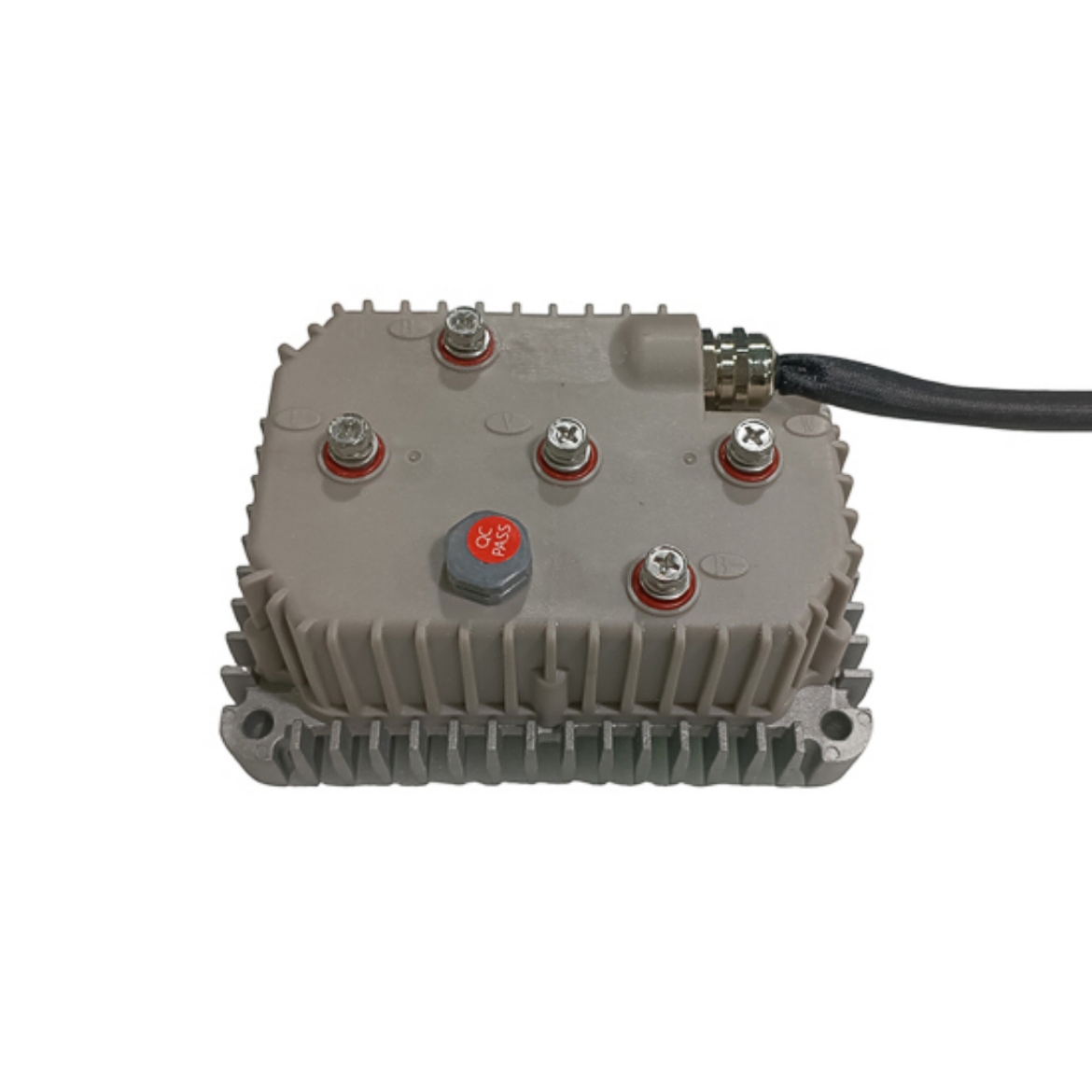

9V-32V BLDC Motor Controller for 12/24V BLDC Motor

$428.06

| 1 review(s) | Add your review

This BLDC Motor Controller is designed for 12V and 24V BLDC motors, offering a wide operating voltage range from 9V to 32V. Featuring synchronous rectification and ultra-low voltage drop, the controller maximizes energy efficiency.

Free shipping

Delivery date: 7-14 days

SKU: BLDC-KVD2412N

Voltage (DC) *

increase decrease

DESCRIPTION
DOCUMENTS

This BLDC motor controller is optimized for 12V and 24V motors, supporting a wide input voltage range of 9V to 32V. Capable of handling peak currents up to 140A, this controller ensures robust performance in demanding applications. Also, it provides a reliable and cost-effective solution for efficient motor control.

Specification

Model	BLDC-KVD2412N
Nominal Voltage	12-24V
Max Operating Voltage	9-32V
Peak Current1 Minute**	140A
Continuous Current	60A-100A
Frequency of Operation	16.6KHz
Standby Battery Current	<0.5mA
5V or 12V Sensor Supply Current	40mA
Supply Current	PWR, 30mA Typical
Configurable Battery Voltage Range	B+
Standard Throttle Input	0-5 Volts (3-wire resistive pot), 1-4 Volts (hall active throttle)
Throttle Input	0-5 Volts, can use 3-wire pot to produce 0-5V signal
Full Power Operating Temperature Range	0°C to 70°C (MOSFET temperature)
Operating Temperature Range	-40°C to 100°C (MOSFET temperature)
Max Battery Current	Configurable

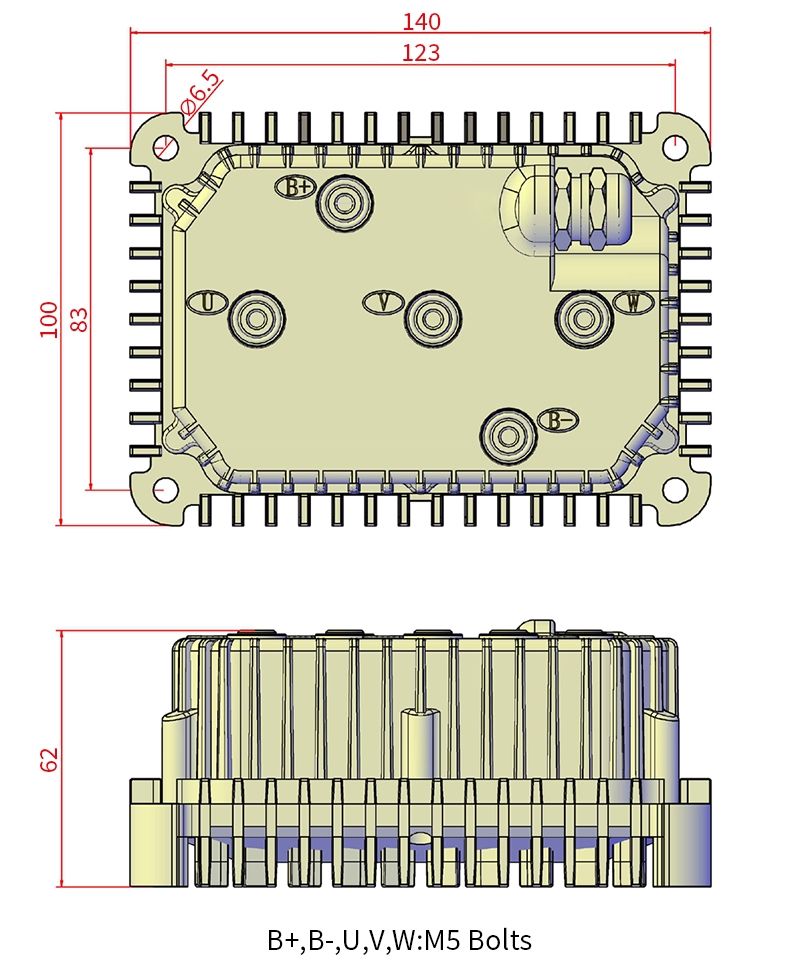

Dimension (Unit: mm)

9V-32V BLDC motor controller dimension

Q: How to make a bldc motor controller last long?

A: To make a BLDC motor controller last longer, focus on preventing overheating by using proper cooling systems, such as heatsinks or fans. Ensure current limiting and stable voltage to avoid overloading. Use high-quality components and include protection features like over-voltage and thermal shutdown. Regular maintenance and proper motor calibration are also essential to maintain efficiency and avoid unnecessary wear.
