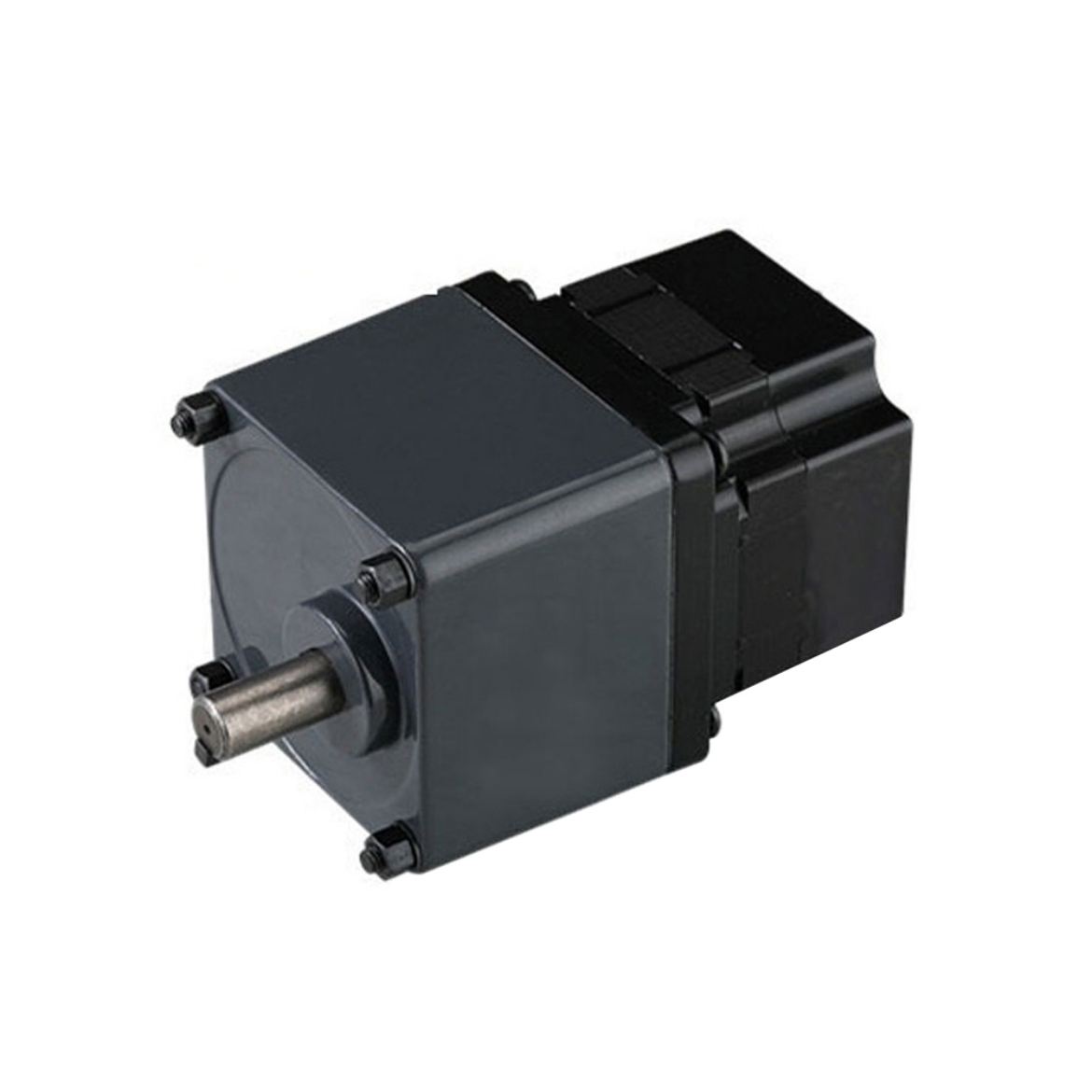

12V/24V/48V 150W BLDC Gear Motor

$193.25

| 0 review(s) | Add your review

This 150W BLDC gear motor operates at rated voltages of 12V, 24V, or 48V and offers a wide selection of gear ratios ranging from 3:1 to 200:1. With a rated speed of 3000 rpm and peak torque reaching up to 1.43 Nm, the motor delivers the power and precision required for industrial automation and specialized machinery.

Free shipping

Delivery date: 7-14 days

SKU: BLDC-GEAR-B150W

Voltage (DC) *
Gear Ratio *
With Brake *
Controller for 12V Motor *
Controller for 24V Motor *
Controller for 48V Motor *

increase decrease

DESCRIPTION
DOCUMENTS

This 150W BLDC gear motor is a compact, high-torque solution designed for applications in medical machinery, mining equipment, hydraulic systems, and CNC machine tools. Available in 12V, 24V, or 48V versions, it offers gear ratios from 3:1 to 200:1, a rated speed of 3000 rpm, and peak torque up to 1.43 Nm. With a rated torque of 0.48 Nm and low current draw across voltages, it delivers efficient performance and high reliability. The brushless design ensures low maintenance, space-saving installation, and smooth operation even in demanding environments.

Specification

Model	BLDC-D5BLD150-12	BLDC-D5BLD150-24	BLDC-D5BLD150-48
Voltage	12V	24V	48V
Rated Current	15.63A	7.81A	3.91A
No-load Current	<5.2A	<3.13A	<1.61A
Compatible Driver Model	BLDC-KVD2412N		BLDC-BLD300
Power	150W
Rated Speed	3000 rpm
No-load Speed	3300 rpm
Rated Torque	0.48 Nm
Peak Torque	1.43 Nm
Weight	3 kg
Protection Grade	IP54
Motor Lead Length	300 mm
Temperature	0~50℃
Gearbox Model	2GN□K Enter the gear ratio into the box (□) within the model name
Gear Ratio	3, 5, 7.5, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200

Allowable Torque with a Gearbox

Gear Ratio	Speed(r/min)	Allowable Torque(N.M)	Allowable Torque(kgf.cm)
3	1000	1.16	11.6
5	600	1.93	19.34
7.5	400	2.9	29.01
10	300	2.87	38.68
12.5	240	4.36	43.57
15	200	5.23	52.29
18	167	6.27	62.74
20	150	6.3	63.03
25	120	7.88	78.79
30	100	9.46	94.55
36	83.33	11.35	113.5
40	75	12.61	126.1
50	60	15.76	157.6
60	50	18.91	189.1
75	40	20	200
90	33	20	200
100	30	20	200
120	25	20	200
150	20	20	200
180	17	20	200
200	15	20	200

Line Define

Power Wire		Hall Wire
Red	U	Red	5V
Yellow	V	Black	GND
Black	W	Blue	Hu
		Green	Hv
		White	Hw

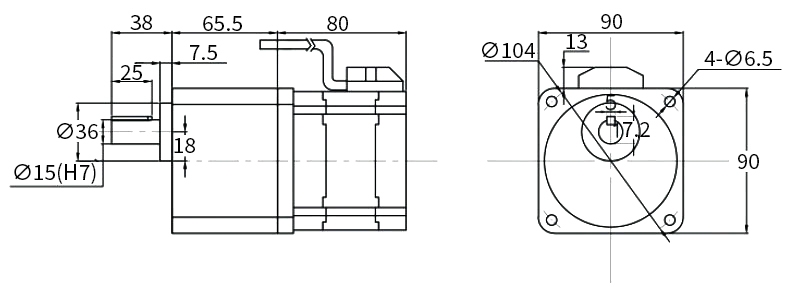

Dimension (Unit: mm)

150W BLDC gear motor dimensions

Applications

Electronics Manufacturing

Printing Machinery

Industrial Robots

Laser Cutting Equipment

Q: What are the typical applications of a BLDC gear motor?

A: BLDC gear motors are commonly used in robotics, medical devices, industrial automation, and smart home systems. Thanks to their built-in gearboxes, they provide high torque at low speeds, making them ideal for precise and efficient motion control. Their brushless design ensures low noise, minimal maintenance, and long service life. Typical applications include robotic arms, infusion pumps, automatic curtains, and camera gimbals.
