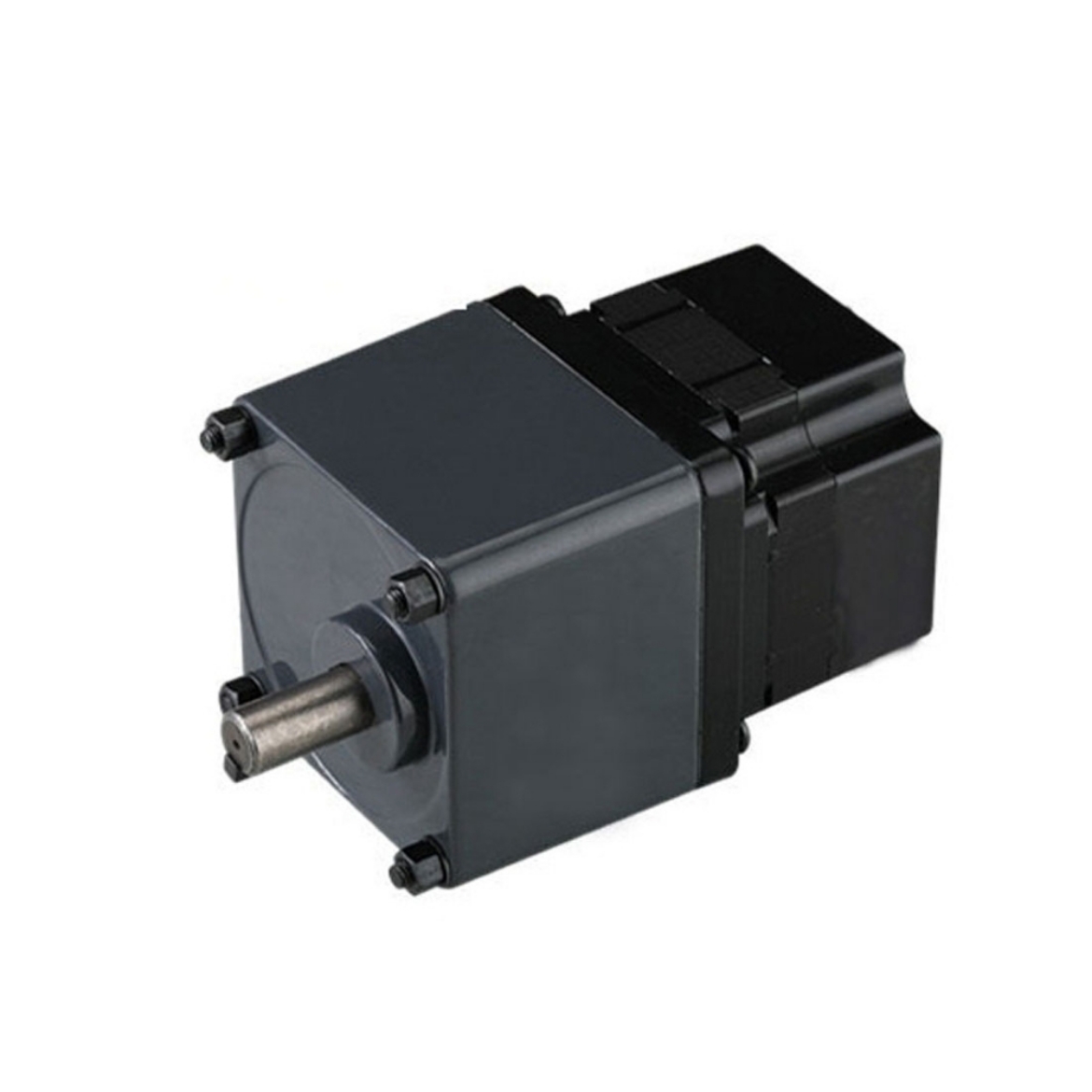

12V/24V/48V 450W BLDC Gear Motor

$326.35

| 0 review(s) | Add your review

Purchase a 450W BLDC gear motor online, available with 24V, 36V, or 48V voltage options. It offers a high gear ratio of up to 200:1, a rated output torque of 1.41 Nm (peaking at 4.3 Nm), and a rated speed of 3000 rpm. Compact and efficient, this motor is well-suited for electric vehicle applications.

Free shipping

Delivery date: 7-14 days

SKU: BLDC-GEAR-B450W

Rated Voltage *
Gear Ratio *
With Brake *
Controller for 12V Motor *
Controller for 24V Motor *
Controller for 48V Motor *

increase decrease

DESCRIPTION

High torque DC gear motors available with peak torque up to 4.3 Nm and gear ratios from 3:1 to 200:1. These 450W motors feature a 90mm gearbox, rated at 3000 rpm, and support 12V, 24V, and 48V DC power options.

Specification

Model	BLDC-D5BLD450-12	BLDC-D5BLD450-24	BLDC-D5BLD450-48
Voltage	12V	24V	48V
Rated Current	46.88A	23.443A	11.71A
No-load Current	<10.2A	<7.13A	<5.61A
Compatible Driver Model	BLDC-KVD2412N	BLDC-BD50	BLDC-BLD750
Power	450W
Rated Speed	3000 rpm
No-load Speed	3300 rpm
Rated Torque	1.41 Nm
Peak Torque	4.3 Nm
Weight	3.5 kg
Protection Grade	IP54
Motor Lead Length	300 mm
Temperature	0~50℃
Gearbox Model	2GN□K Enter the gear ratio into the box (□) within the model name
Gear Ratio	3, 5, 7.5, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200

Allowable Torque with Gear Head

Gear Ratio	Speed (r/min)	Allowable Torque (N.m)	Allowable Torque (kgf.cm)
3	1000	3.48	34.81
5	600	5.8	58.02
7.5	400	8.7	87.02
10	300	11.6	116
12.5	240	13.07	130.7
15	200	15.69	156.9
18	167	18.82	188.2
20	150	20	200
25	120	20	200
30	100	20	200
36	83.33	20	200
40	75	20	200
50	60	20	200
60	50	20	200
75	40	20	200
90	33	20	200
100	30	20	200
120	25	20	200
150	20	20	200
180	17	20	200
200	15	20	200

Line Define

Power Wire		Hall Wire
Red	U	Red	5V
Yellow	V	Black	GND
Black	W	Hu	Blue
		Hv	Green
		Hw	White

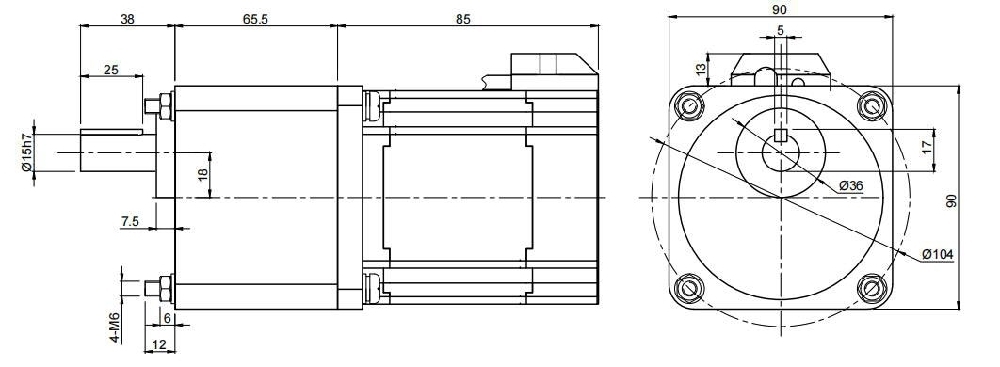

DC Gear Motor Dimension (Unit: mm)

450W bldc gear motor dimension

Applications

Electronics Manufacturing

Printing Machinery

Industrial Robots

Laser Cutting Equipment

Q: What is a BLDC gear motor?

A: A BLDC gear motor is a BLDC motor that is coupled with a gear train. This combination provides high torque and precise speed control, making it suitable for applications where both high power and accurate motion are required. The gear mechanism allows the motor to produce more torque at lower speeds, which is often needed in applications like robotics, automation, and industrial machinery.
