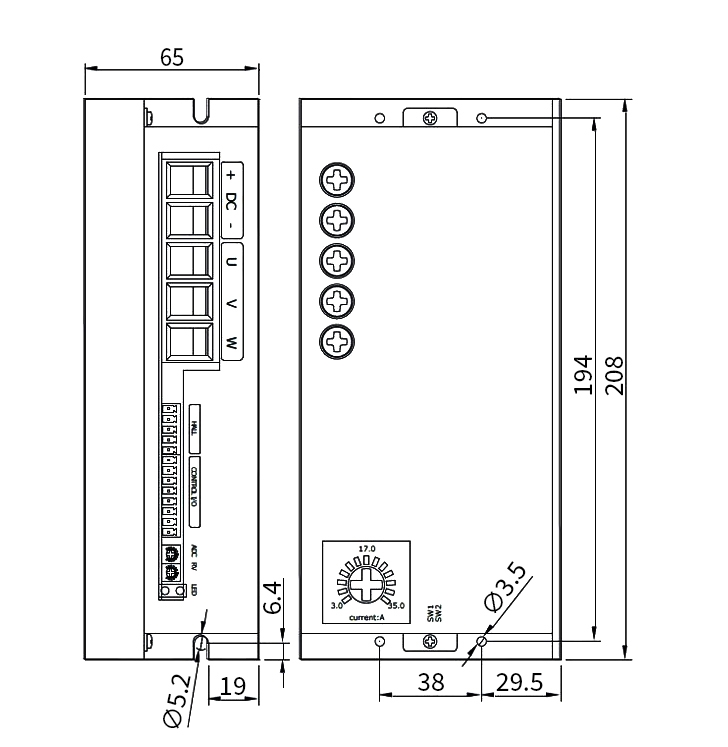

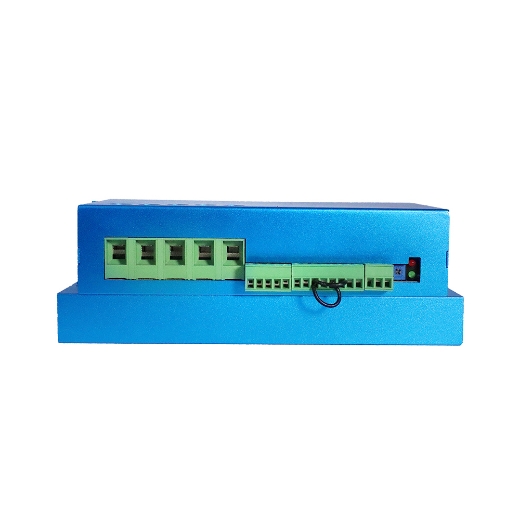

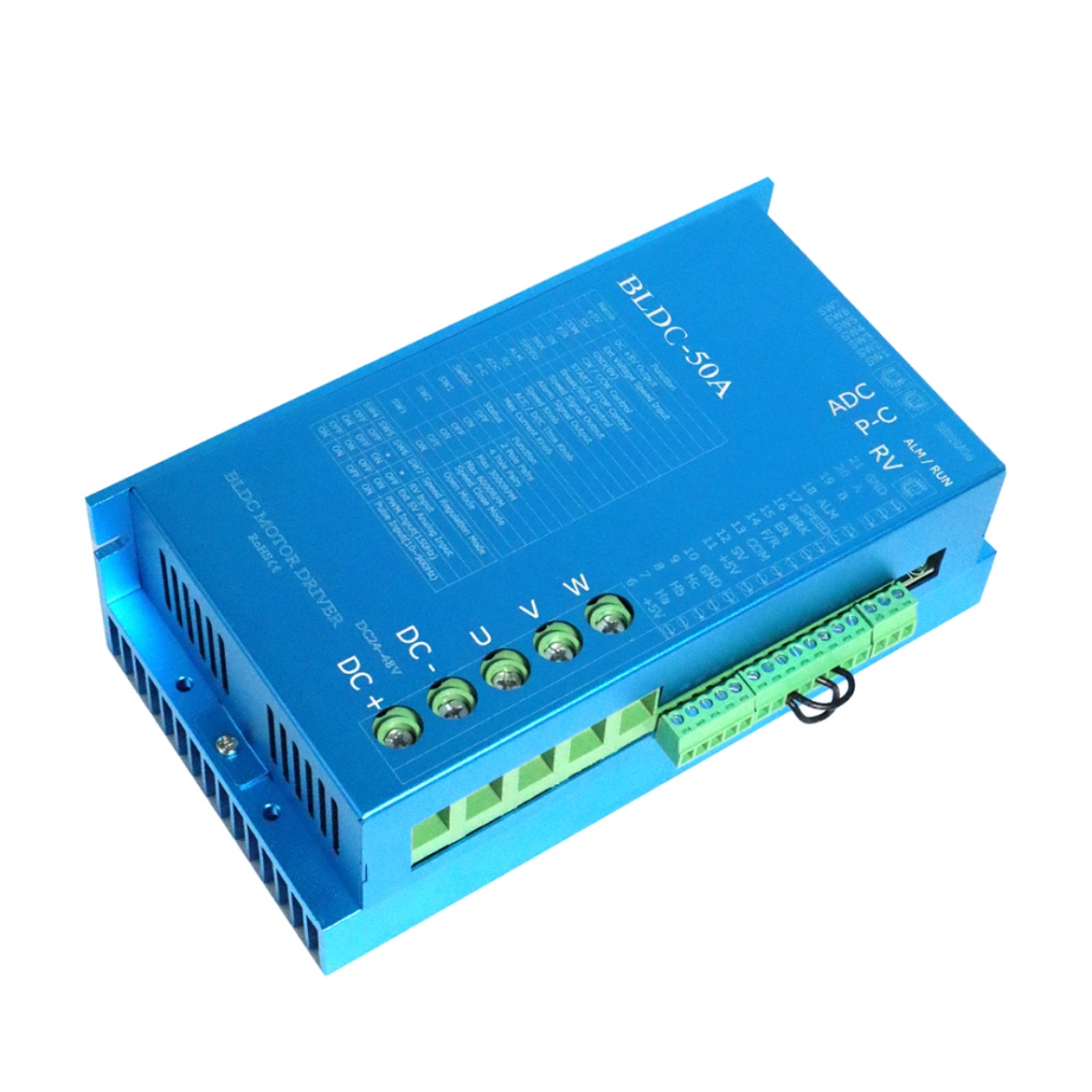

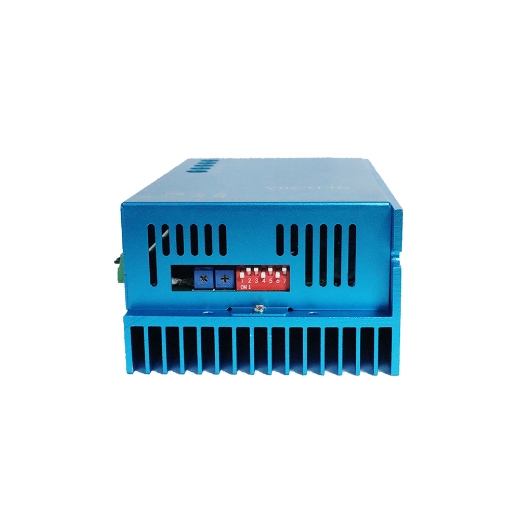

| Model |
BLDC-BD50 |
| Rated Current |
50A |
| Rated Input Voltage Range |
DC +24~ +72V |
| Operating Temperature Range |
-40-+80℃ |

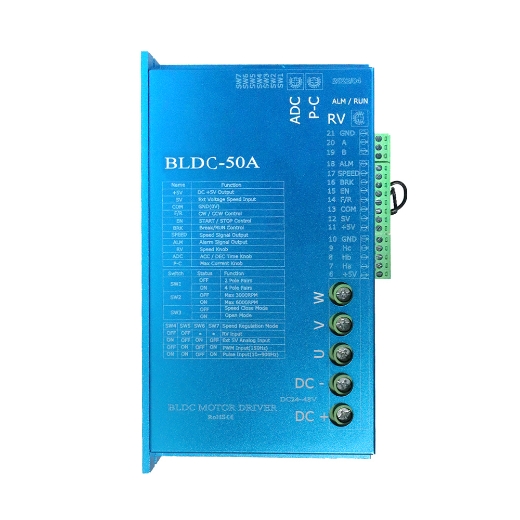

| IO Input |
Supports NPN, PNP |
| NPN: 0V is low, 5~24V is high, current 20mA |
| PNP: 13V high output, low to ground |
| IO Output |
Open Drain NPN Output Voltage: not exceed 30V, Current: 500mA |
| SV Input Characteristics |
DC 0-5V Range or DC 0-10V Range |
| Deadband Voltage Adjustment Range: 0.2~1.0V |
| Input Internal Resistance:100k |
| PWM Input Characteristics |
Frequency Range: 1~10kHz (50% duty cycle) |
| Duty Cycle Range:0~100%(100Hz-1000Hz) |
| Signal Voltage: DC 5~24V |
| Carrier Frequency |
10~20kHz |

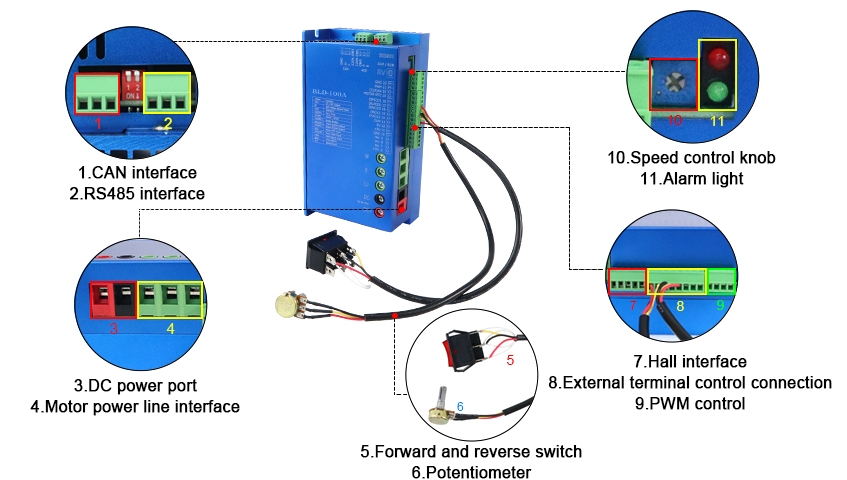

| 485 Communication Parameters |
ID: 1~255 |
| Baud Rate: 9600/19200/38400/57600/115200 bps |
| CAN Communication Parameters |
ID: 0~255 |
| Baud Rate: 125/250/500 kbps |
| Load |
150% of Rated Current |
| Overload Duration: 30~1s (at 150% Rated) |
| External Temperature Sensor |
Customizable |
| ntc=mf52-103f-3435-55l |
| Control Method |
Torque Loop (Open Loop) Speed Loop (Close Loop) |
| Acceleration and Deceleration Times |
0.5-16s Motor Without Load |
| Overheating Protection |
Inside the Driver:+85℃ |
| Note* |
- RS485 (Modbus RTU) and CAN Bus cannot be used at the same time.
- VRM and PWM cannot be used at the same time.
|
