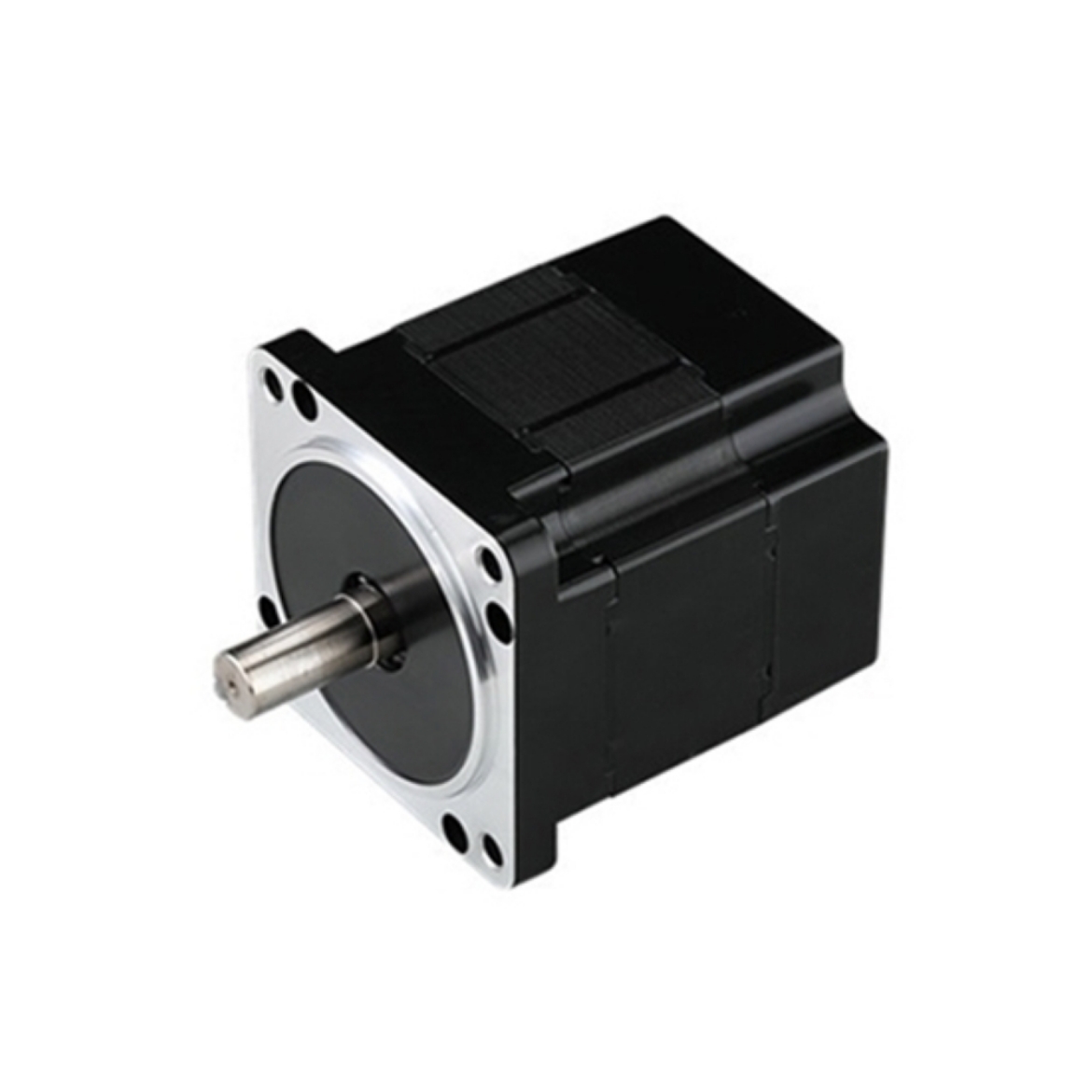

24V/48V 500W BLDC Motor

$376.35

| 0 review(s) | Add your review

3 phase 500W BLDC motor delivers high torque with a 2000 rpm rated speed and 2.4 Nm holding torque. Its brushless design ensures long life and minimal maintenance. Perfect for various applications, it offers smooth, efficient performance when paired with a BLDC controller, providing excellent value with reliable power and durability.

Free shipping

Delivery date: 7-14 days

SKU: BLDC-80-500W

Rated Voltage *

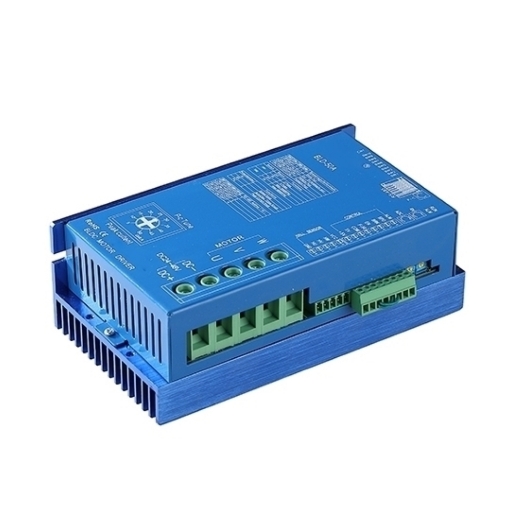

With Matched Controller *
With Matched Gearbox *

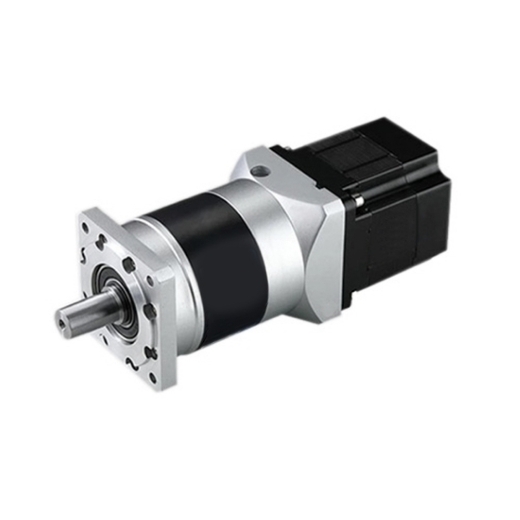

Planetary Gearbox *

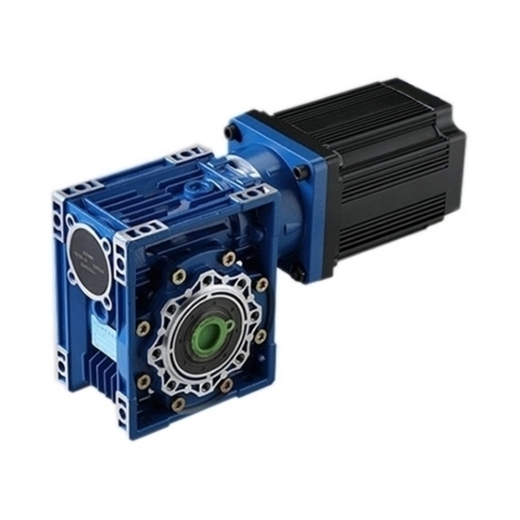

Worm Gearbox *
With Brake *

increase decrease

DESCRIPTION
DOCUMENTS
WIRING VIDEO
SPECIFICATIONS

The 24V/48V 500W BLDC motor offers 2000 rpm speed and 2.4 Nm torque, ensuring precise control over both torque and speed. Featuring an 80mm square flange, this brushless motor delivers high efficiency and smooth operation, making it a great choice for a wide range of applications.

Specification

Model	BLDC-D5BLD500
Rated Power	500W
Rated Voltage	24V DC	48V DC
Matched Controller	BLDC-BD50
Rated Current	26.1A	13.09A
Phase	3 phase
Rated Torque	2.4 Nm
Max. Torque	7.5 Nm
Rated Speed	2000 rpm
No-load Speed	2400 rpm
Working Efficiency	85%
Square Flange Size	80 mm
Insulation Grade	F
Protection Grade	IP54
Motor Lead Length	1 meter
Certificate	CE, RoHS, ISO
Weight	3 kg

Note: Power, voltage, speed, shaft, motor length, and motor lead of BLDC motors can be customized.

Features

Stable Speed Control: The 500W BLDC motor maintains a set speed by continuously comparing feedback signals and adjusting voltage, ensuring consistent performance even with load changes.
Compact & High Power: Uses a permanent magnet rotor in a 3 phase design, delivering a thin profile with high power density.
Wide Speed Range: It offers a broader speed control range than AC motors and inverters, providing strong torque from low to high speeds without brushes.
Energy Efficient: Permanent magnet rotor reduces rotor losses, cutting power consumption by over 20% compared to variable frequency induction motors, supporting energy savings.
Built-in Protection: Brushless DC motor includes safety features to protect the equipment system.

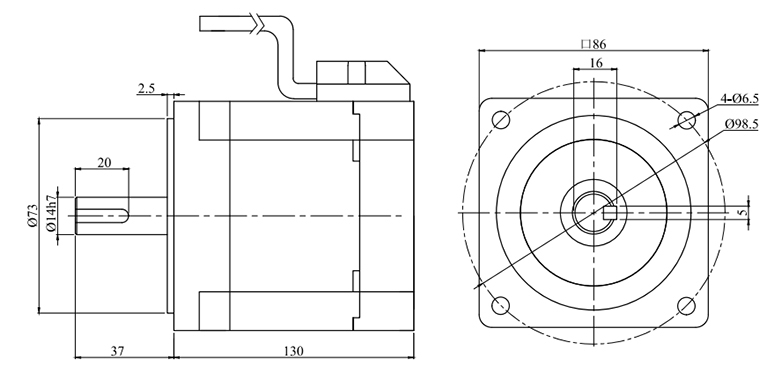

Dimension (Unit: mm)

500W BLDC motor dimension

Line Define

Power Wire		Hall Wire
Red	U	Red	5V
Yellow	V	Black	GND
Black	W	Blue	Hu
		Green	Hv
		White	Hw

Applications

Laser Equipment

Logistics Automation

Medical Equipment

Robot

Q: What to do if a brushless motor gets wet?

A: If a BLDC motor gets wet, the most important thing is to dry it out thoroughly and promptly to prevent corrosion and potential damage. Disassembling and cleaning the motor, especially the bearings, is recommended, followed by a similar water-displacing spray, and then lubrication.
