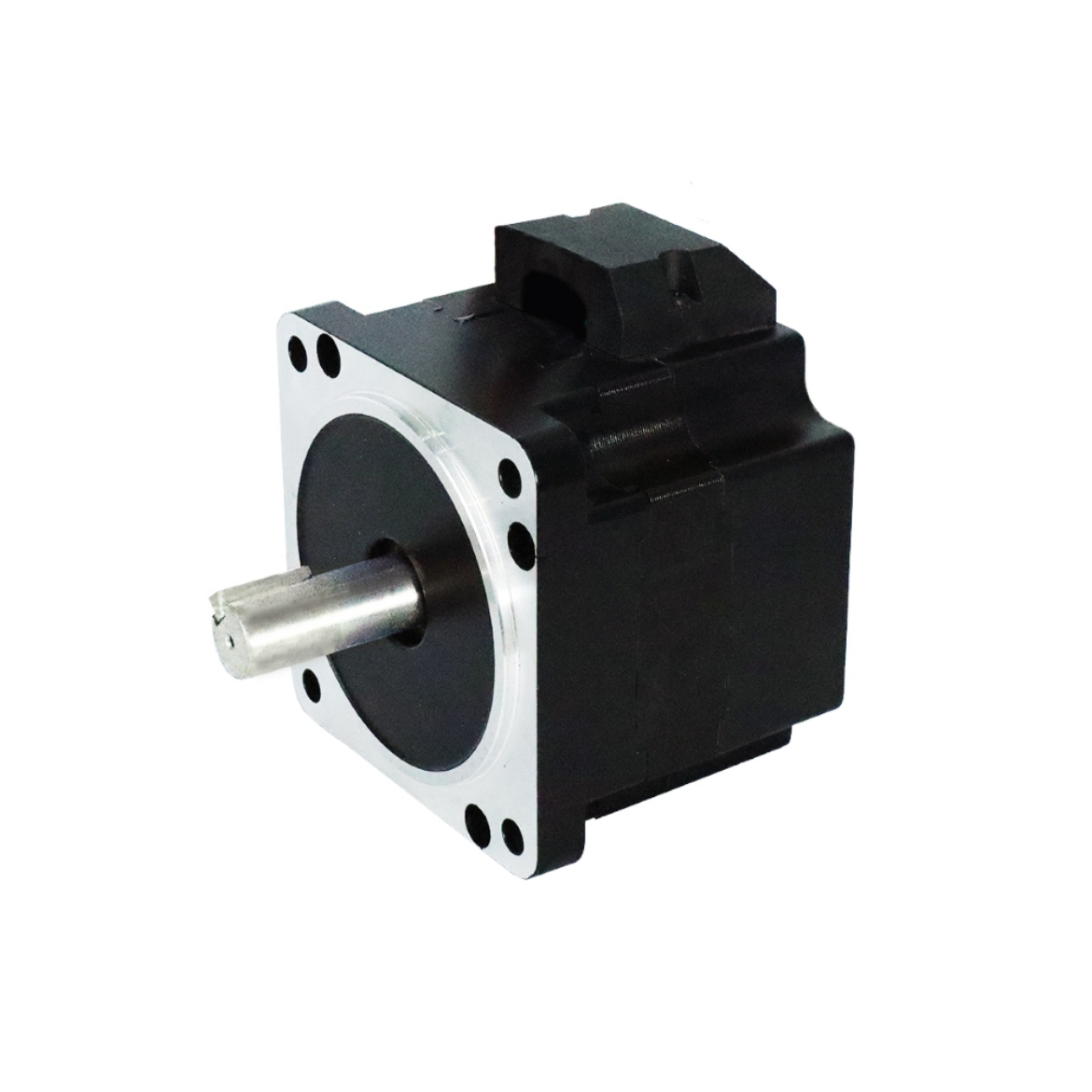

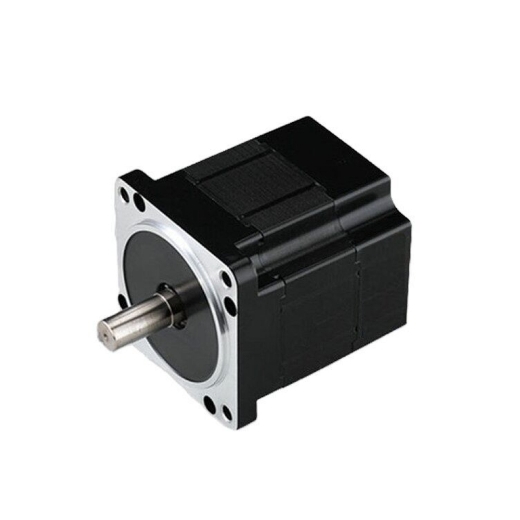

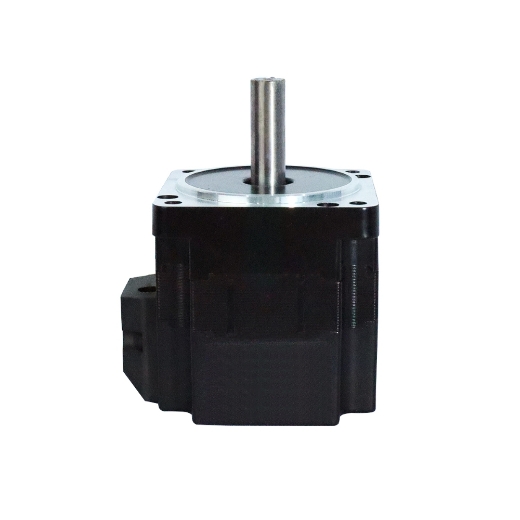

This 3 phase BLDC motor supports 12V to 48V DC input, offering 200W rated power, 0.64 Nm torque, and 3000 rpm speed. Housed in an 86mm square frame, it ensures accurate torque and speed regulation, with excellent efficiency and responsive control for demanding motion applications.
Specification
| Model |
BLDC-D5BLD200 |
| Rated Power |
200W |
| Rated Voltage |
12V |
24V |
36V |
48V |
| Matched Controller |
BLDC-KVD2412N |
BLDC-BLD750 |
BLDC-BLD300B |
| Rated Current |
20.83A |
10.4A |
6.94A |
5.21A |
| Phase |
3 phase |
| Rated Torque |
0.64 Nm |
| Max. Torque |
1.91 Nm |
| Rated Speed |
3000 rpm for standard (or 2000 rpm when matching the worm gearbox) |
| No-load Current |
＜6.2A |
＜4.13A |
＜2.5A |
＜1.61A |
| Working Efficiency |
71% |
85% |
| Square Flange Size |
86 mm |
| Insulation Grade |
F |
| Protection Grade |
IP54 |
| Motor Lead Length |
1 meter |
| Certificate |
CE, RoHS, ISO |
| Weight |
3 kg |
Note: Power, voltage, speed, shaft, motor length, and motor lead of BLDC motors can be customized.
Features
- Stable Speed Regulation: The BLDC motor maintains a set speed by continuously adjusting the input voltage based on feedback from the motor’s actual speed. This closed-loop control ensures stable operation even with sudden load changes.
- Compact and High Output: Utilizing a permanent magnet rotor, this 3-phase DC motor achieves a slim profile while delivering high power output—ideal for applications where space and performance are both critical.
- Broad Speed Range: Unlike traditional AC motors limited by torque at low speeds, the 200W brushless DC motor provides smooth, full-torque performance across a wide speed range, from low to high RPMs.
- Energy Efficient: Thanks to its permanent magnet rotor and low rotor losses, this BLDC motor consumes over 20% less power than typical variable-frequency three-phase induction motors, making it a smart choice for energy-conscious systems.
- Built-in Protection: BLDC motor designed with integrated safety features, which can help safeguard the system and prevent potential damage during operation.
Dimension (Unit: mm)

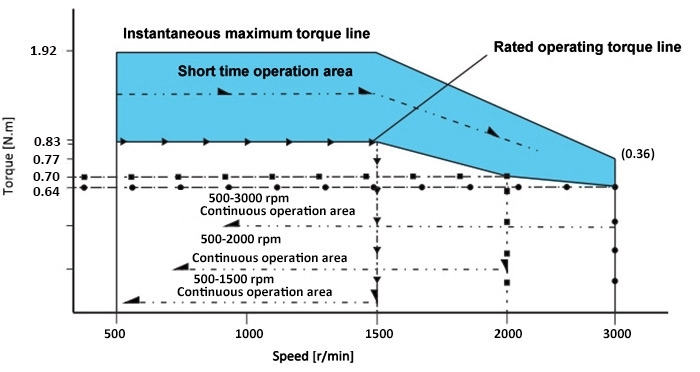

Speed - Torque Curve
- Instantaneous maximum torque line: At startup, the motor briefly delivers peak torque to the load. If this torque exceeds the limit, the driver's over-current protection will activate, shutting down the motor.
- Short-time operation area: The motor can operate for a short time within this torque range at various speeds. Extended operation may lead to excessive heat buildup, potentially triggering a shutdown or causing thermal damage.
- Rated operating torque line: The motor delivers rated torque across a range of speeds and can operate continuously within this range without performance issues.
- Continuous operating area: The motor can operate continuously within this zone while running at various speeds.

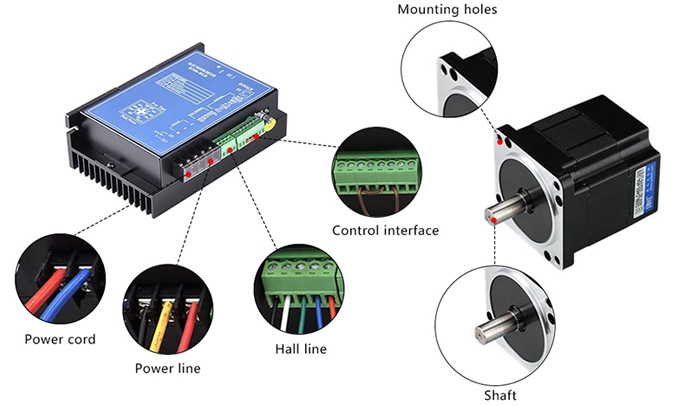

Line Define
| Power Wire |
Hall Wire |
| Red |
U |
Red |
5V |
| Yellow |
V |
Black |
GND |
| Black |
W |
Blue |
Hu |
| Green |
Hv |
| White |
Hw |
Applications
Q: What are the recommended cooling methods for the motor?
A: The recommended cooling methods for the BLDC motor include ensuring adequate airflow around the motor housing, using external heat sinks or mounting the motor to a metal frame for better heat dissipation, and adding a cooling fan if the motor operates under high loads or in enclosed spaces. For continuous or high-power applications, active cooling is highly advised to maintain efficiency and extend motor lifespan.
