This BLDC motor controller supports 18V to 52V power input and is ideal for 24V, 36V, and 48V BLDC motors, including worm gear and planetary gear motors. With a speed range of up to 20,000 RPM and an output current of 25A, it ensures reliable performance and efficient control. Affordable and efficient, it’s perfect for applications like robotics and electric vehicles. A budget-friendly choice for precise motor control without compromising on quality.
Specification
| Model |
BLDC-BLD750 |
| Power Supply |
18V ~ 52V DC |
| Typical Power |
48V DC |
| Rated Current |
25A |
| Output Current |
25A |
| Over Voltage Protection |
5V |
| Under Voltage Protection |
12mA |
| External Potentiometer |
10KΩ |
| Input Analog Voltage |
5 VDC |
| Speed Control Range |
20000rpm |

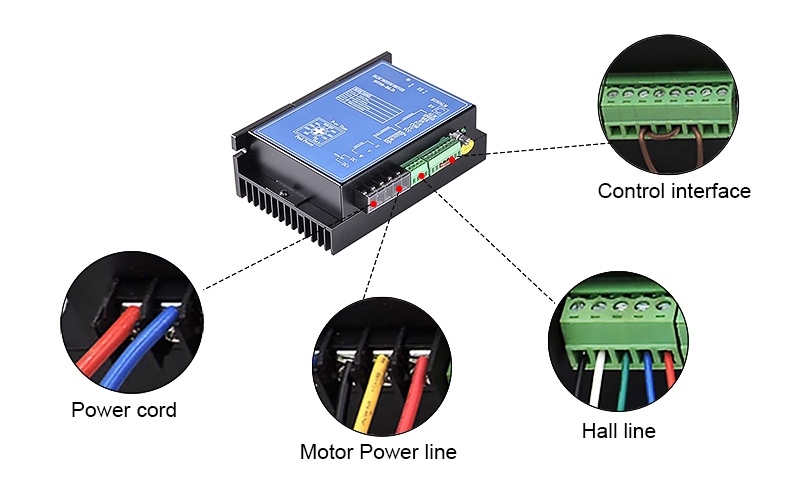

Details

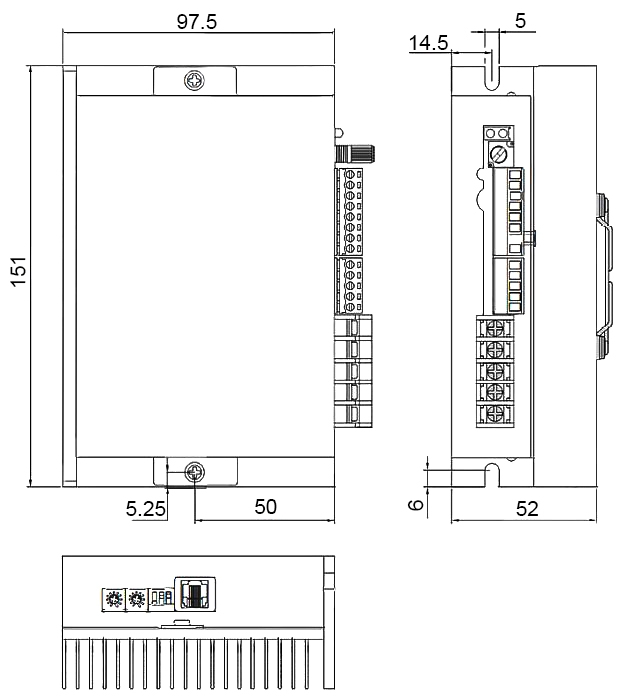

Dimension (Unit: mm)
Q: What are the main components of a BLDC motor controller?
A: A typical BLDC motor controller consists of:
- Microcontroller (MCU): Controls the overall system operation.
- Inverter: Converts DC to three-phase AC.
- Sensors (e.g., Hall sensors): Detects the rotor position in real time.
- Power MOSFETs or IGBTs: Control current flow to the motor.
- PID controller: Provides precise speed and position control.
