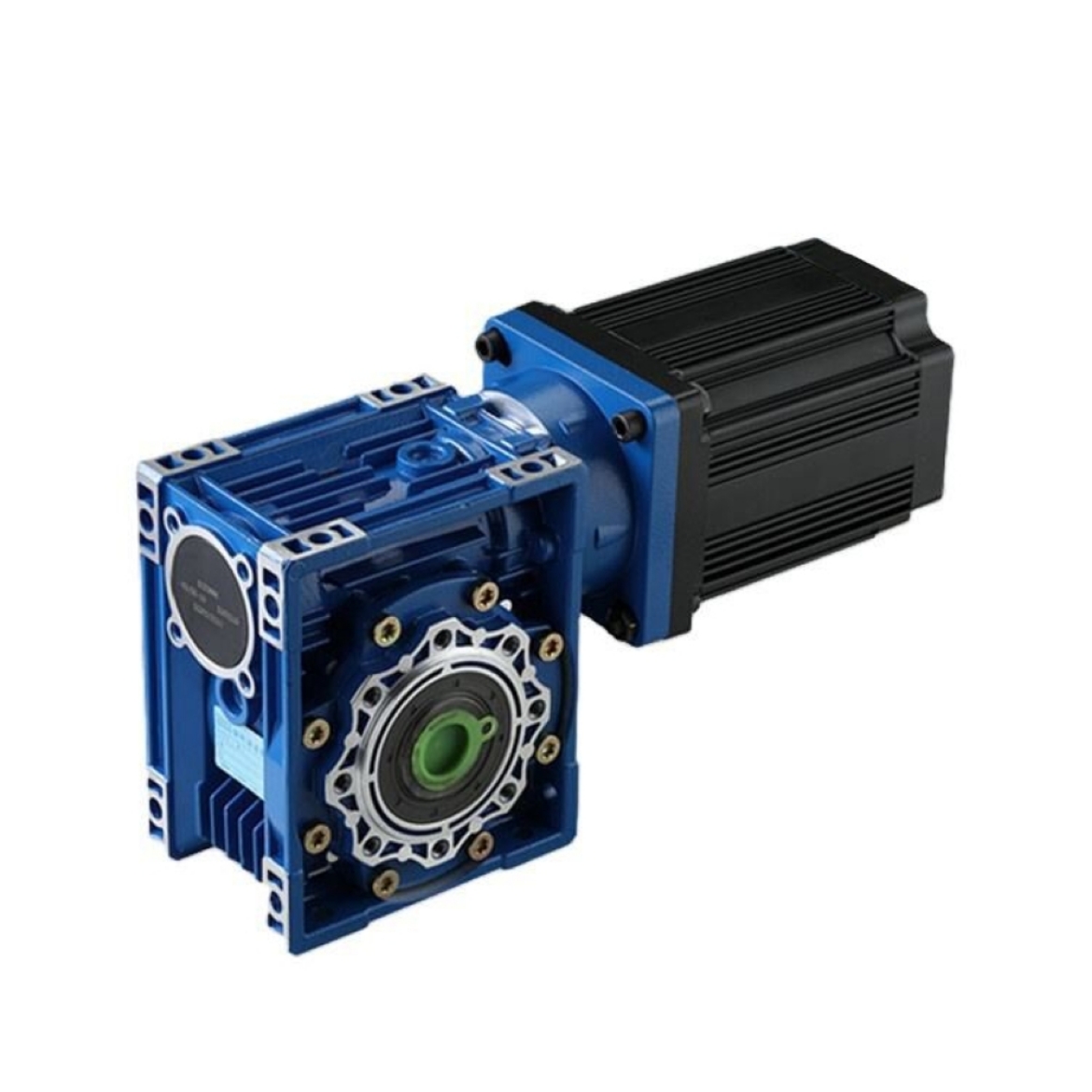

12V/24V/36V/48V 300W BLDC Worm Gear Motor

$662.75

| 0 review(s) | Add your review

300W worm gear motor features a 3-phase brushless motor combined with a worm gearbox for high torque and efficiency. Compatible with 12V, 24V, 36V, or 48V power supplies, it offers gear ratios from 7.5:1 to 80:1, a rated speed of 2000 RPM, 0.96 N·m rated torque, and up to 2.88 N·m peak torque.

Free shipping

Delivery date: 7-14 days

SKU: BLDC-GEAR-W300

Voltage (DC) *
Gear Ratio *
Controller for 12V Motor *
Controller for 24V Motor *
Controller for 36V Motor *
Controller for 48V Motor *

increase decrease

DESCRIPTION

300W BLDC motor pairs with a worm gearbox to deliver high torque at 12V, 24V, 36V or 48V input. Available gear ratios range from 7.5:1 to 100:1, offering strong performance and high-speed output for demanding applications.

Specification

Motor Model	BLDC-D5BLD300-12A	BLDC-D5BLD300-24A	BLDC-D5BLD300-36A	BLDC-D5BLD300-48A
Voltage	12V DC	24V DC	36V DC	48V DC
Rated Current	31.25A	15.63A	10.42A	7.81A
No-load Current	<7.2A	<6.13A	<3.5A	<4.61A
Recommended Drive Model	BLDC-KVD2412N	BLDC-BLD750	BLDC-BLD750	BLDC-BLD300
Motor Type	BLDC Motor
Power	300W
No-load Speed	2700 rpm
Rated Speed	2000 rpm
Rated Torque	0.96 Nm
Peak Torque	2.88 Nm
Motor Dimension	86 mm
Shaft Diameter	11 mm
Construction	Permanent Magnet
Direction of Rotation	CW/CCW
Gear Ratio	7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100
Certificates	CCC, CE, RoHS, LVD, EMC

Allowable Torque with Gear Head

Gear Ratio	7.5	10	15	20	25	30	40	50	60	80	100
Rated Output Speed (rpm)	267	200	133	100	80	67	50	40	33	25	20
Rated Output Torque (Nm)	6.4	8.6	12.9	17.2	32	36	32	38	28	34	29

Note:

This torque value is the rated output value of the reducer, not the final motor + output torque value T after reducer.
The formula for calculating the output torque after the final motor + reducer: T = rated torque of the motor * reduction ratio * 0.6, and T≤ rated allowable output torque value of the reducer.

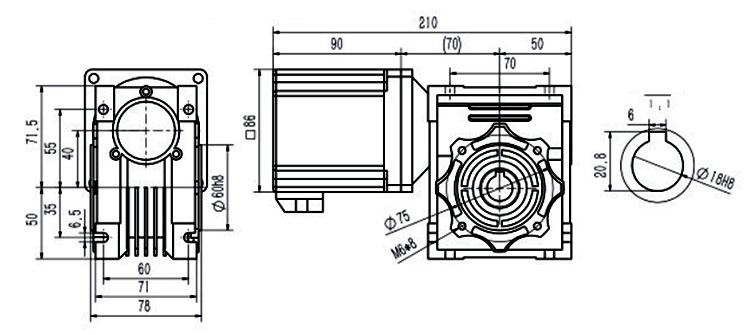

Dimension (Unit: mm)

Mounting screws are included with the gearhead

300W bldc worm gear motor dimension

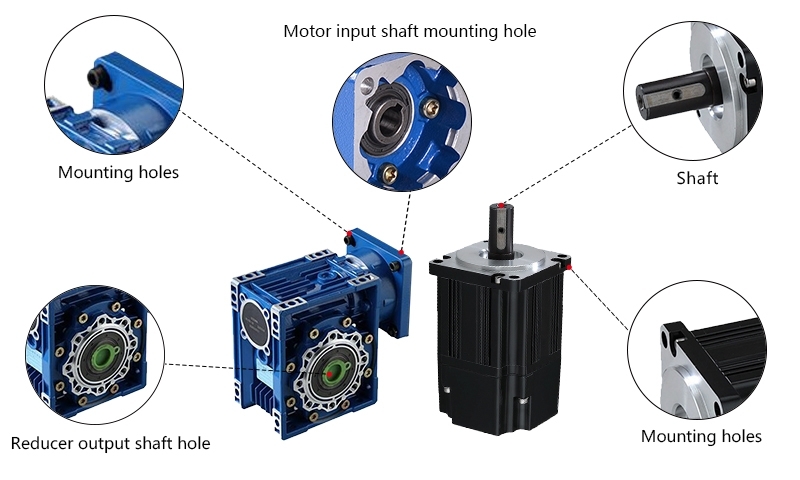

Details

300W worm gear motor details

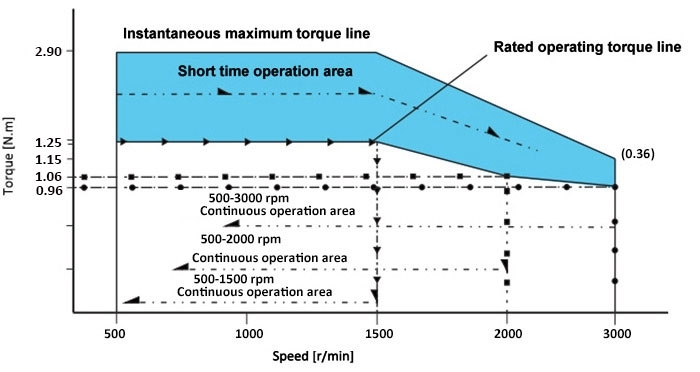

Speed - Torque Curve

Instantaneous maximum torque line: The maximum torque momentarily impacts the load when the motor is started. Exceeding this level triggers the driver's over-current protection, shutting down the motor.
Short-time operation area: The motor can operate within this torque range for limited periods at different speeds. Prolonged use generates excess heat, which may cause the motor to stop or burn.
Rated operating torque line: The rated torque of the motor can sustain at different speeds for continuous, long-term operation.
Continuous operating area: When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Applications

Electronics Manufacturing

Printing Machinery

Industrial Robots

Laser Cutting Equipment

Q: What are the differences between planetary gear motor and worm gear motor?

A: Planetary and worm gear reducers differ significantly in structure and performance. The planetary reducer uses a cylindrical gear system, offering higher load capacity, greater precision, and better stability than the worm gear reducer, which relies on a worm-and-wheel mechanism. Planetary reducers are compact, have low backlash, high accuracy, long lifespan, and deliver high output torque. Worm gear reducers, on the other hand, provide self-locking capability and high reduction ratios, with input and output shafts on different axes or planes. However, they are larger in size, less efficient, and lower in precision.
