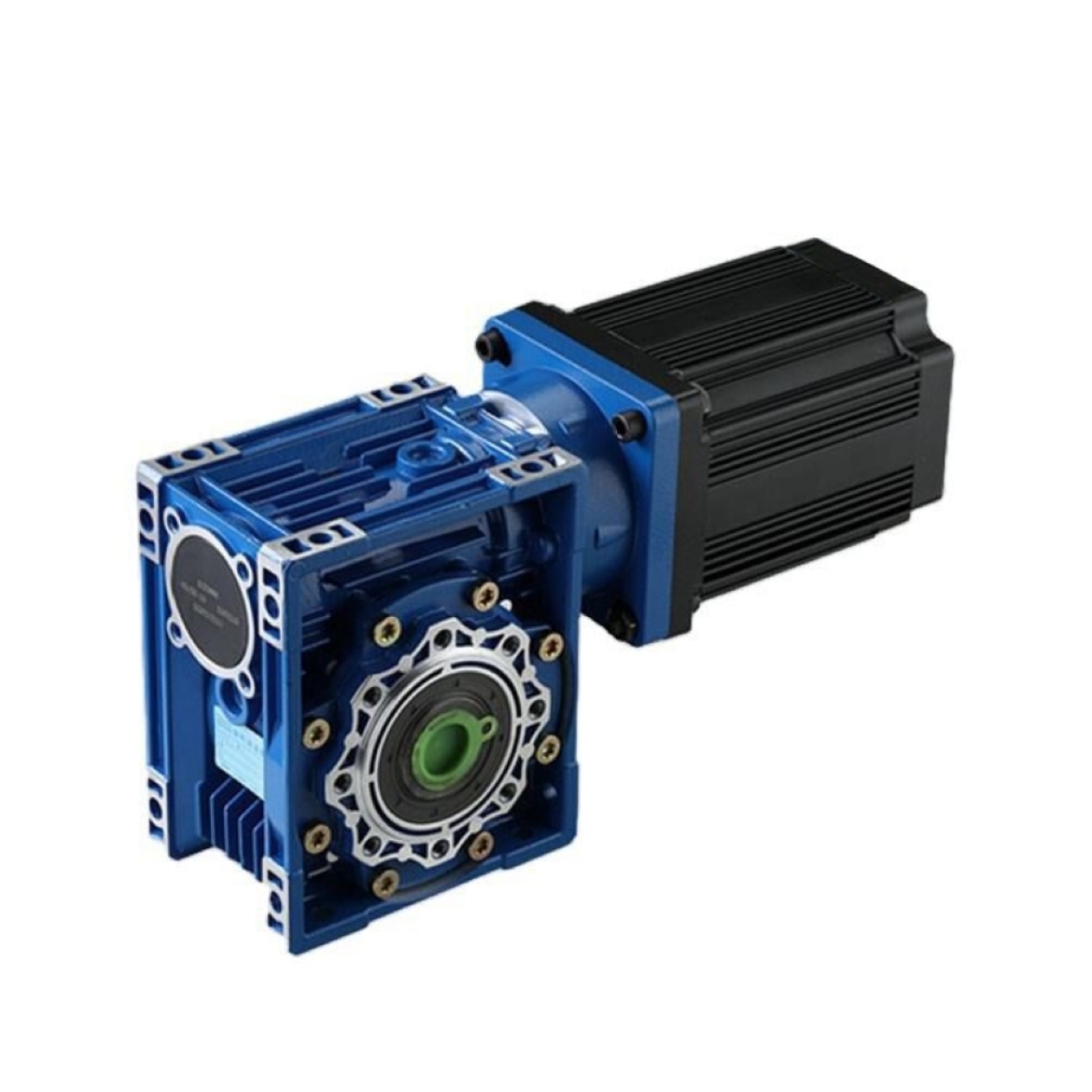

48V 2000W BLDC Worm Gear Motor

High-performance 2000W worm gear motor available at a competitive price. This BLDC gear motor is a best choice for new energy electric car, renewable energy systems, industrial equipment which require high torque density and compact occasions.

Specification

Allowable Torque with Gear Head

Note:

• This torque value is the rated output value of the reducer, not the final motor + output torque value T after reducer.
• The formula for calculating the output torque after the final motor + reducer: T = rated torque of the motor * reduction ratio * 0.6, and T≤ rated allowable output torque value of the reducer.

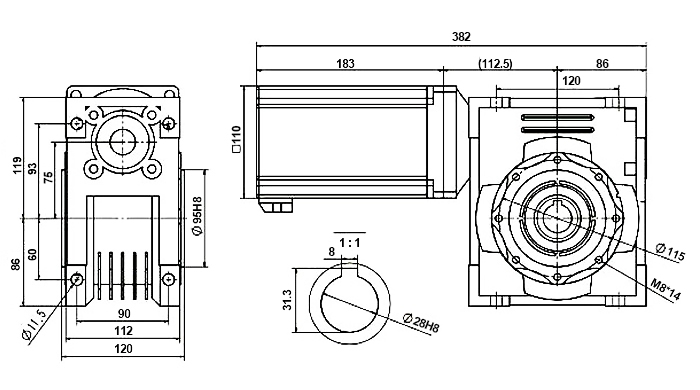

Dimension (Unit: mm)

Mounting screws are included with the gearhead

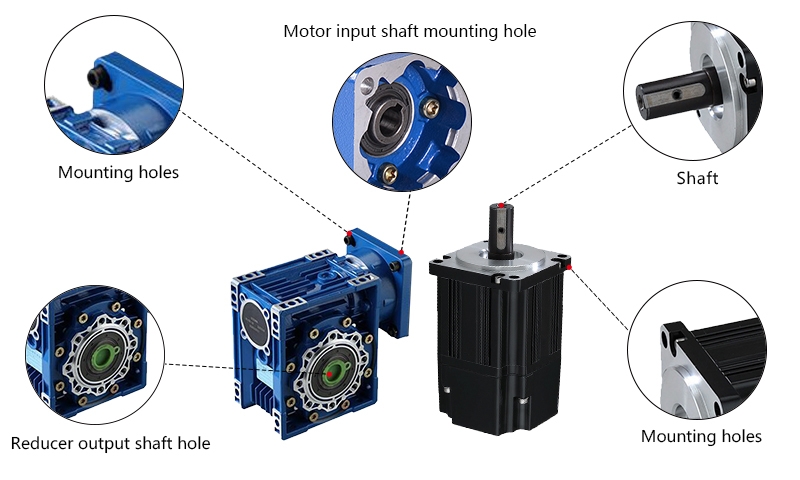

Details

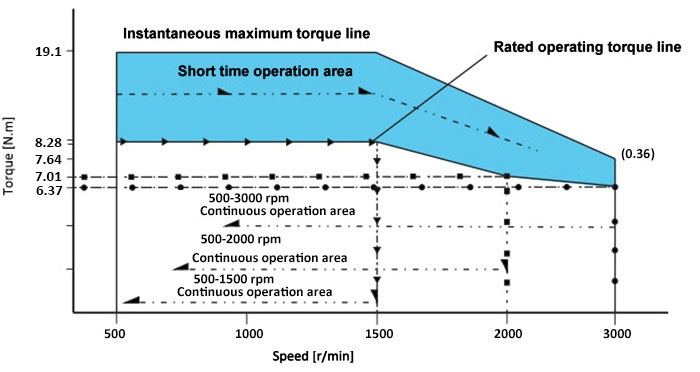

Speed - Torque Curve



• Instantaneous maximum torque line: The maximum torque momentarily impacts the load when the motor is started. Exceeding this level triggers the driver's over-current protection, shutting down the motor.
• Short-time operation area: The motor can operate within this torque range for limited periods at different speeds. Prolonged use generates excess heat, which may cause the motor to stop or burn.
• Rated operating torque line: The rated torque of the motor can sustain at different speeds for continuous, long-term operation.
• Continuous operating area: When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Applications

Electronics Manufacturing

Printing Machinery

Industrial Robots

Laser Cutting Equipment

Q: Why do 2kW worm gear motors work better than standard gear motors?

A: Compared to standard gear motors, 2kW worm gear motors perform better in low-speed, high-torque applications. They feature a self-locking function to prevent reverse movement, operate smoothly and quietly, and have a compact structure. These advantages make them ideal for use in automation systems, lifting equipment, and other applications where load holding, safety, and space efficiency are important.
