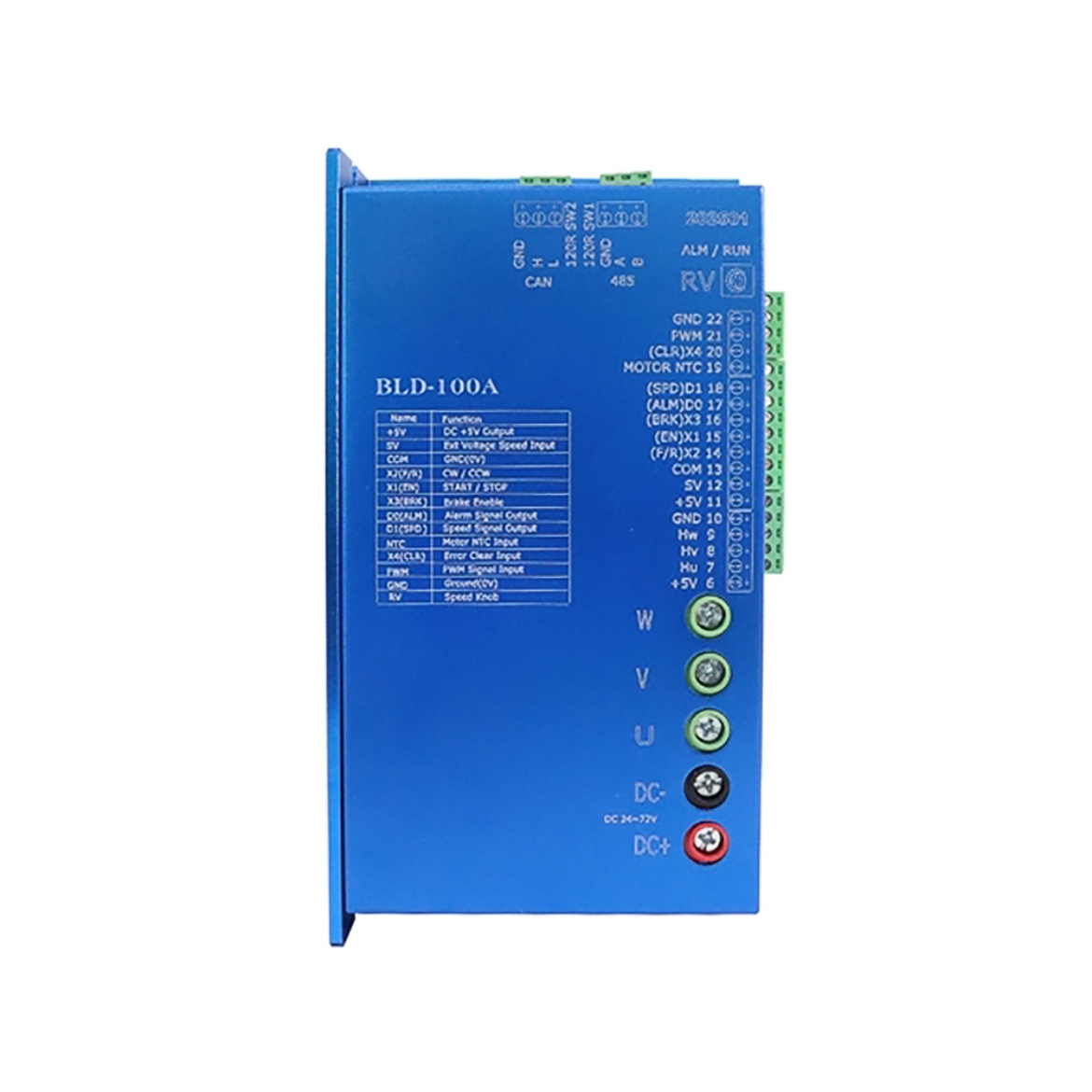

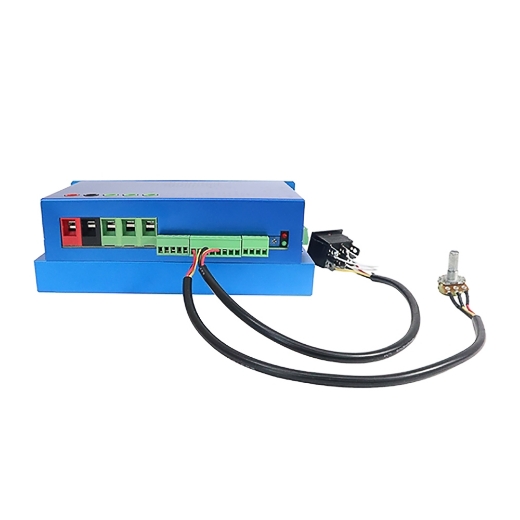

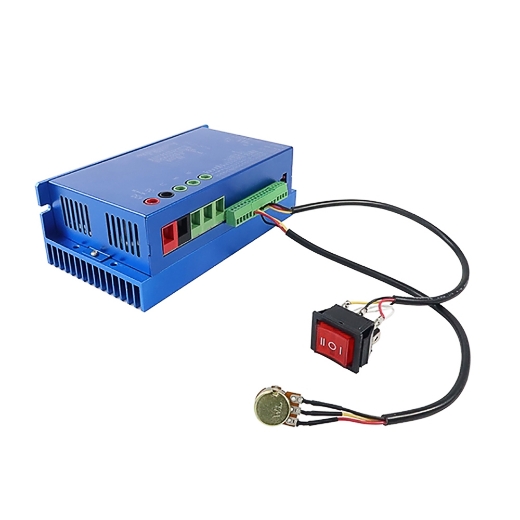

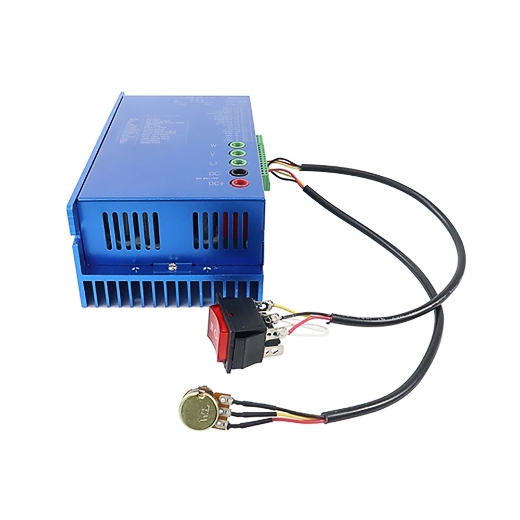

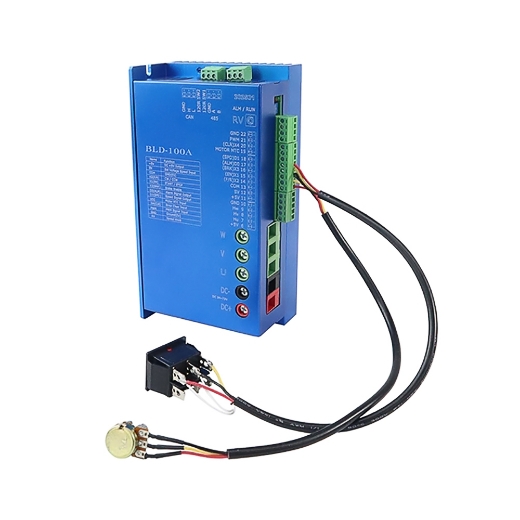

24V-60V BLDC Motor Controller for 24/36/48/60V BLDC Motor

$473.06

| 0 review(s) | Add your review

Suitable for 24V, 36V, 48V, and 60V motor systems, the 24V-60V BLDC motor controller is designed to control the speed of three-phase BLDC motors with a voltage range of 24V to 60V. It also supports both Hall sensor motors (providing 50 RPM) and encoder sensor motors (providing 1 RPM) for high-precision control.

Free shipping

Delivery date: 7-14 days

SKU: BLDC-C100

Voltage (DC) *

increase decrease

DESCRIPTION

The 24V-60V BLDC motor controller supports 24V, 36V, 48V, and 60V three-phase BLDC motors, with a rated current of 75A. It offers precise speed control, compatible with Hall sensor, magnetic, and photoelectric sensors. Featuring RS-485 communication, it ensures smooth operation and integration into complex systems. Designed for well-ventilated environments, this controller provides reliable and efficient performance in a variety of applications.

Specification

Model	BLDC-BD100
Rated Current	75A
Power Supply	24V ~ 60V DC
Rated Input Voltage Range	DC +24~ +72V
Operating Temperature Range	-40-+80℃
IO Input	Supports NPN, PNP
	NPN: 0V is low, 5~24V is high, current 20mA
	PNP: 13V high output, low to ground
IO Output	Open Drain NPN Output Voltage: not exceed 30V, Current: 500mA
SV Input Characteristics	DC 0-5V Range or DC 0-10V Range
	Deadband Voltage Adjustment Range: 0.2~1.0V
	Input Internal Resistance:100k
PWM Input Characteristics	Frequency Range: 1~10kHz (50% duty cycle)
	Duty Cycle Range:0~100%(100Hz-1000Hz)
	Signal Voltage: DC 5~24V
Carrier Frequency	10~20kHz
485 Communication Parameters	ID: 1~255
485 Communication Parameters	Baud Rate: 9600/19200/38400/57600/115200 bps
CAN Communication Parameters	ID: 0~255
CAN Communication Parameters	Baud Rate: 125/250/500 kbps
Load	150% of Rated Current
Load	Overload Duration: 30~1s (at 150% Rated)
External Temperature Sensor	Customizable
External Temperature Sensor	ntc=mf52-103f-3435-55l
Control Method	Torque Loop (Open Loop) Speed Loop (Close Loop)
Acceleration and Deceleration Times	0.5-16s Motor Without Load
Overheating Protection	Inside the Driver:+85℃
Note*	RS485 (Modbus RTU) and CAN Bus cannot be used at the same time. VRM and PWM cannot be used at the same time.

Details

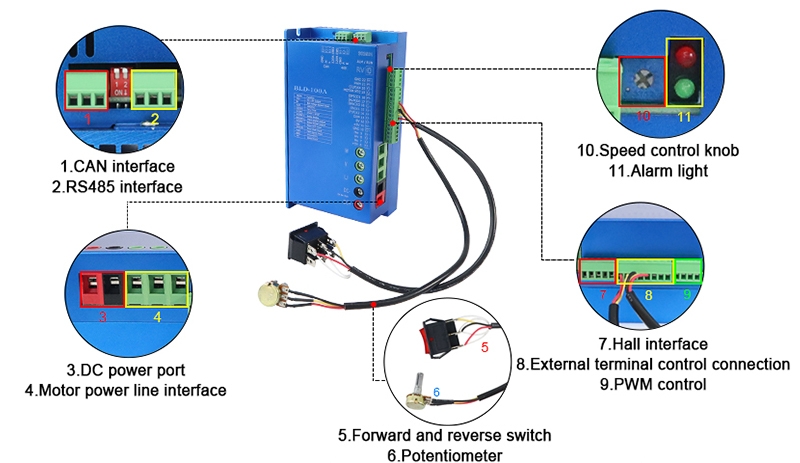

24V-60V brushless DC motor controller details

Dimension (Unit: mm)

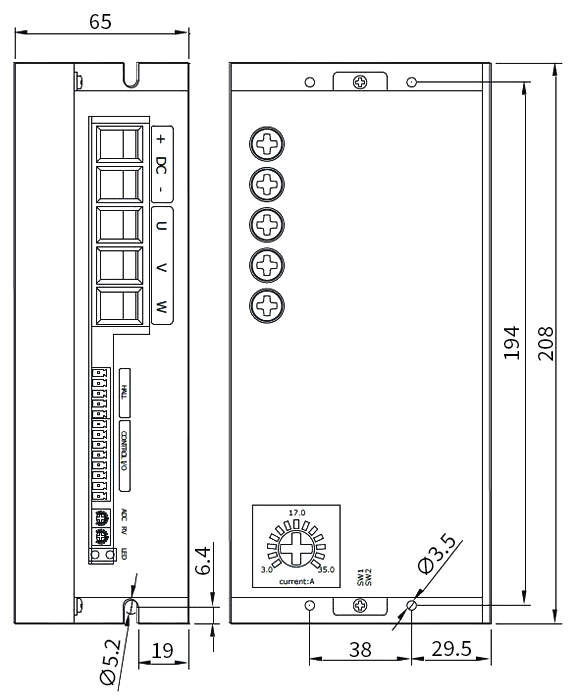

Dimensions of brushless DC driver 24V-60V

Note:

Please install, connect and debug the motor controller with industry technicians.
It is not allowed to install, remove or replace the circuit of the motor controller when it is live.
Be sure to install necessary protective devices between the power input and the power supply (battery) to avoid dangerous accidents or fatal injuries.
Need to install: overcurrent protector, insurance, emergency switch.
Please do the isolation and insulation protection between the motor controller and the ground and equipment.
If there is a real need for live debugging of this motor controller, please choose a non-metallic well-insulated screwdriver or special debugging tool.
This motor controller shall be installed in a well-ventilated environment.
This motor controller cannot be directly used in high humidity, dust, corrosive gas, or strong vibration of an abnormal environment.

Q: What type of motor does a BLDC controller support?

A: It supports three-phase brushless DC motors, including both sensored (with Hall sensors) and sensorless types. The controller uses these signals (or back-EMF) for accurate commutation.
