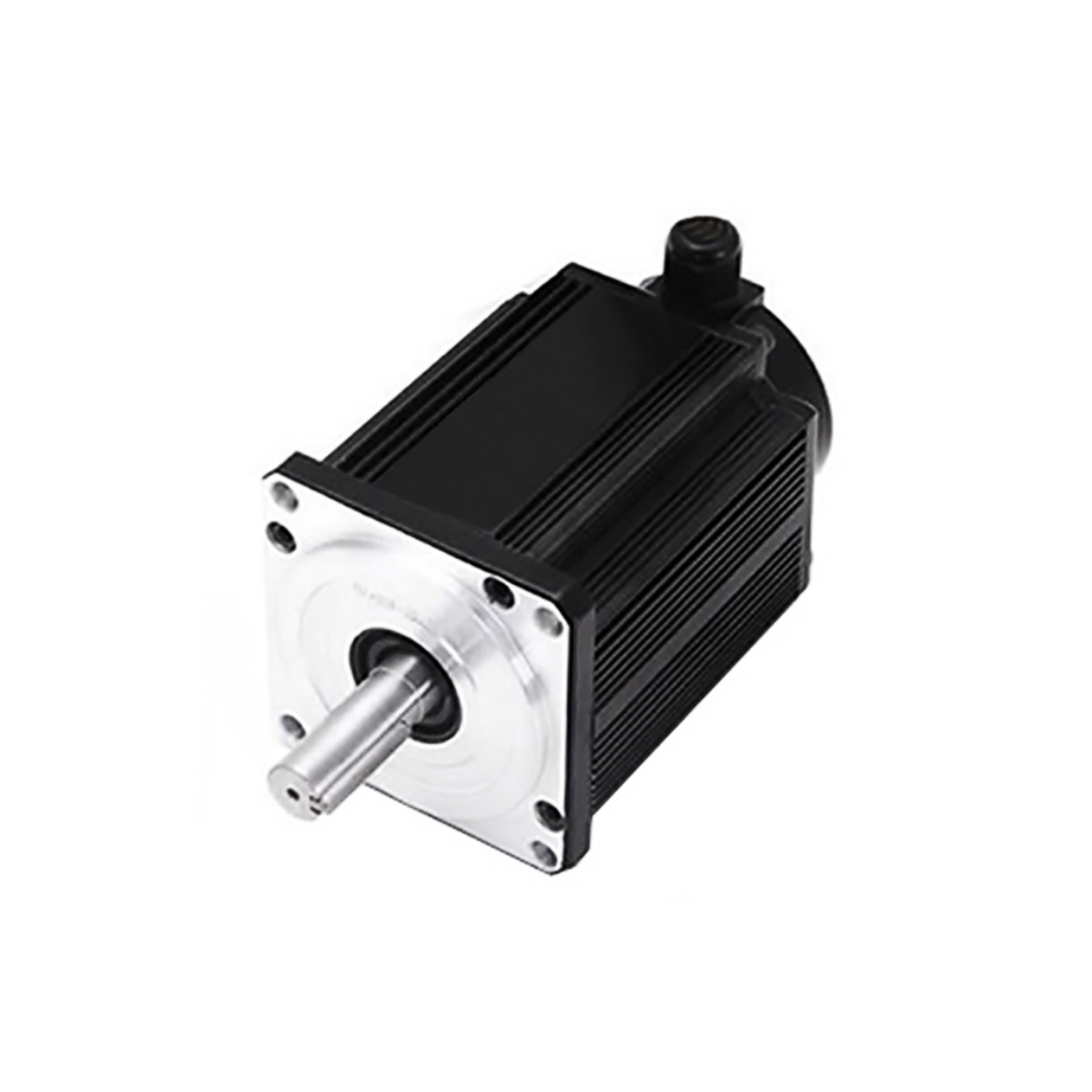

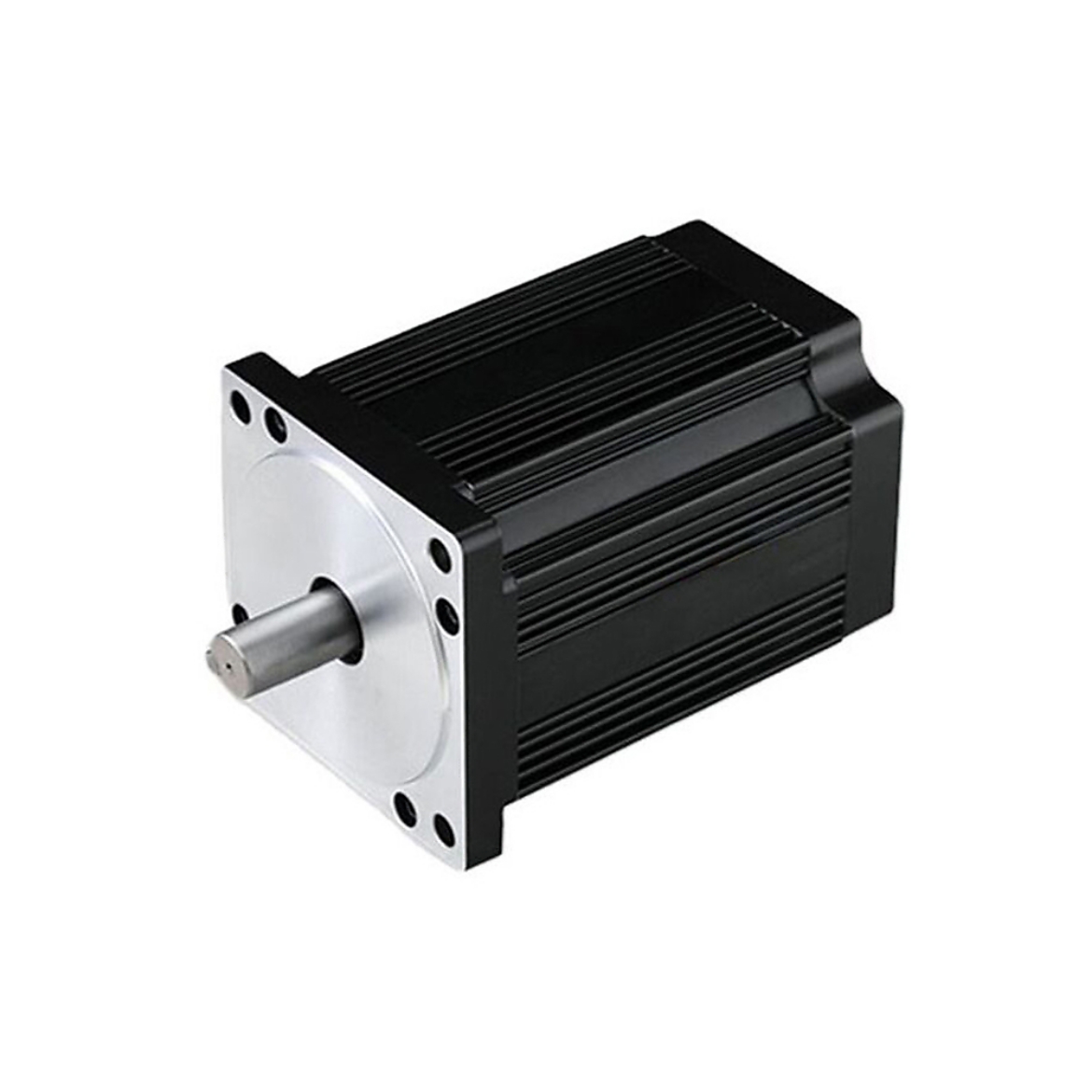

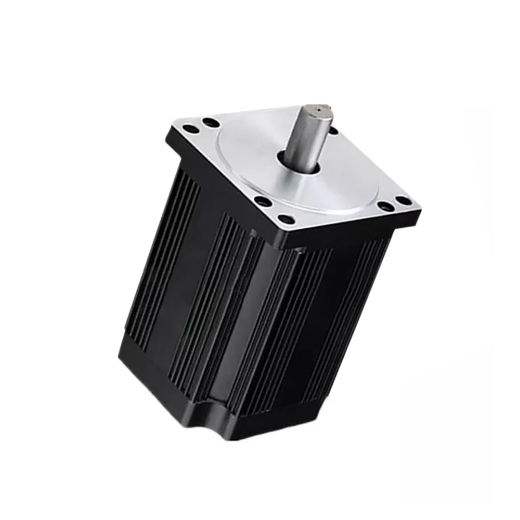

24V/36V/48V 600W BLDC Motor

$505.88

| 0 review(s) | Add your review

With a rated power of 600 watts, the 24V/36V/48V 600W BLDC motor provides optimal efficiency and output for systems requiring high torque and consistent performance. Featuring a rated torque of 1.91 Nm and a maximum torque of 5.73 Nm, this high-torque BLDC motor is ideal for applications requiring precise control.

Free shipping

Delivery date: 7-14 days

SKU: BLDC-110-600W

Voltage (DC) *
With Brake *
With Brake *
With Brake *

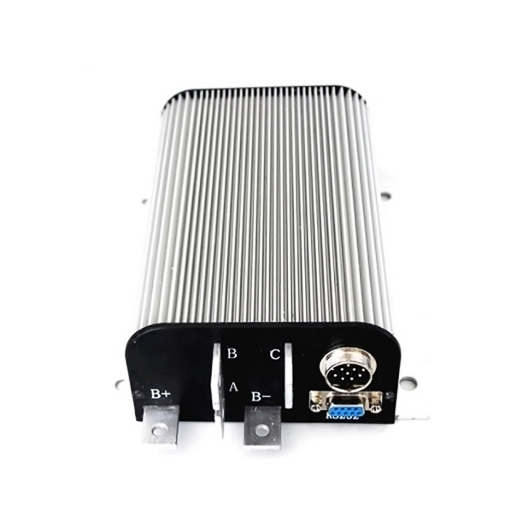

With Matched Controller *
With Matched Controller *
With Matched Controller *
With Matched Gearbox *

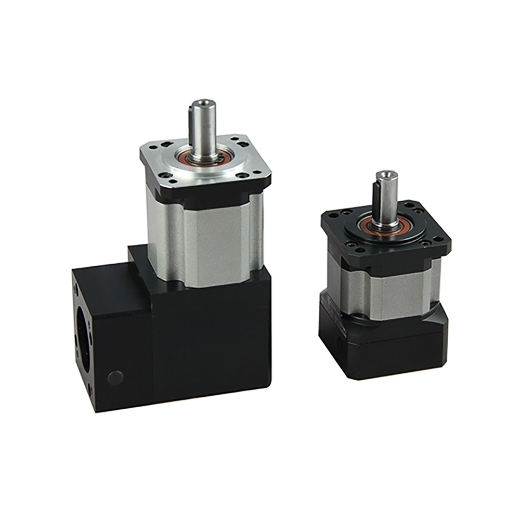

Planetary Gearbox *
Worm Gearbox *

increase decrease

DESCRIPTION
DOCUMENTS
WIRING VIDEO

This 600W 3-phase brushless DC motor delivers 600W power, 1.91 Nm rated torque, and 3000 rpm speed, with a maximum torque of 5.73 Nm. Its three-phase design allows for precise speed control and efficient operation, making it ideal for high-torque applications with low maintenance needs. Perfect for industrial equipment and electric vehicles.

Specification

Model	BLDC-D110BLD600-24A -30S	BLDC-D110BLD600-36A -30S	BLDC-D110BLD600-48A-30S
Rated Power	600W
Rated Voltage	24V DC	36V DC	48V DC
Matched Controller	BLDC-BD100	BLDC-BLD750	BLDC-BLD750
Rated Current	31.2A	20.83A	15.63A
Phase	3 phase
Rated Torque	1.91 Nm
Max. Torque	5.73 Nm
Rated Speed	3000 rpm for standard (or 2000 rpm when matching the worm gearbox)
No-load Speed	/	/	4200 rpm
No-load Current	＜7.5A	＜3.8A	＜3.8A
Working Efficiency	85%
Square Flange Size	110 mm
Insulation Grade	F
Protection Grade	IP54
Certificate	CE, RoHS, ISO
Weight	6.6 kg	6.6 kg	4.5 kg

Note: Power, voltage, speed, shaft, motor length, and motor lead of BLDC motors can be customized.

Features

Stable Speed Control: The 600W BLDC motor maintains consistent speed by dynamically adjusting voltage based on feedback signals, ensuring steady performance under varying loads.
Compact & High Power: Features a 3-phase design with a permanent magnet rotor, combining a slim profile with high power density.
Wide Speed Range: Delivers strong torque across a wide speed range, outperforming AC motors and inverters—without the wear of brushes.
Energy Efficient: The permanent magnet rotor cuts rotor losses, reducing power consumption by more than 20% compared to traditional induction motors.
Built-in Protection: BLDC motor integrated safety features help safeguard the system and extend equipment life.

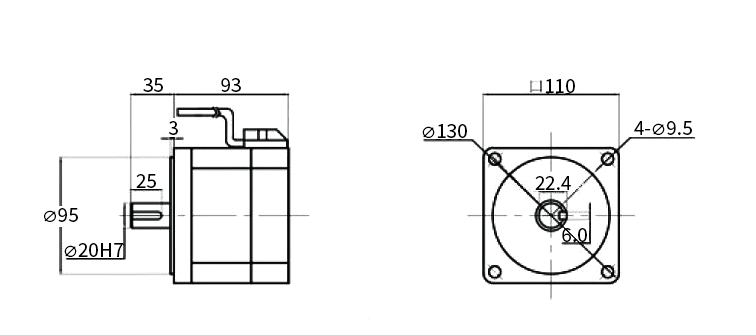

Dimension (Unit: mm)

600W BLDC motor dimensions

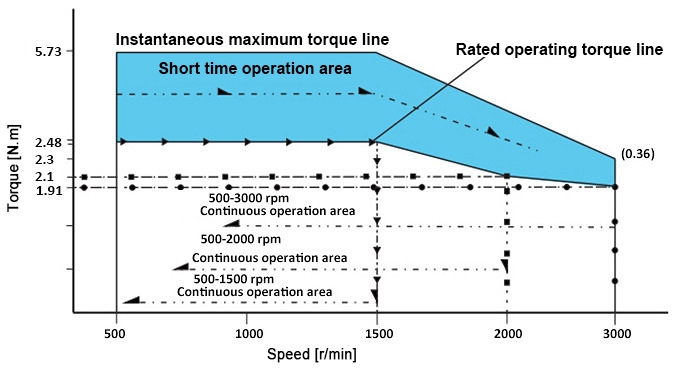

Speed - Torque Curve

Instantaneous maximum torque line: This torque represents the peak load impact when the motor starts. If exceeded, the driver’s over-current protection will trigger, stopping the motor.
Short-time operation area: The BLDC motor can operate briefly within this torque range at various speeds. Prolonged operation may cause overheating, potentially leading to motor shutdown or damage.
Rated operating torque line: At different speeds, this torque level is the electric DC motor’s rated load, allowing long-duration operation without issues.
Continuous operating area: The brushless motor can run continuously within this zone at varying speeds, maintaining stable operation.

Line Define

Power Wire		Hall Wire
Red	U	Red	5V
Yellow	V	Black	GND
Black	W	Blue	Hu
		Green	Hv
		White	Hw

Applications

Laser Equipment

Logistics Automation

Medical Equipment

Robot

Q: How do you choose the right BLDC motor?

A: When selecting a BLDC motor, consider the following factors:

Power requirements: Choose a motor that meets the power demand of the application.
Speed and torque: Select a motor with the appropriate speed range and maximum torque for your needs.
Size and weight: Ensure the motor fits within your available space.
Power supply: Match the motor with the correct voltage and current specifications.
Control method: Decide if you need a sensor-based controller (such as Hall sensors) or sensorless control.
