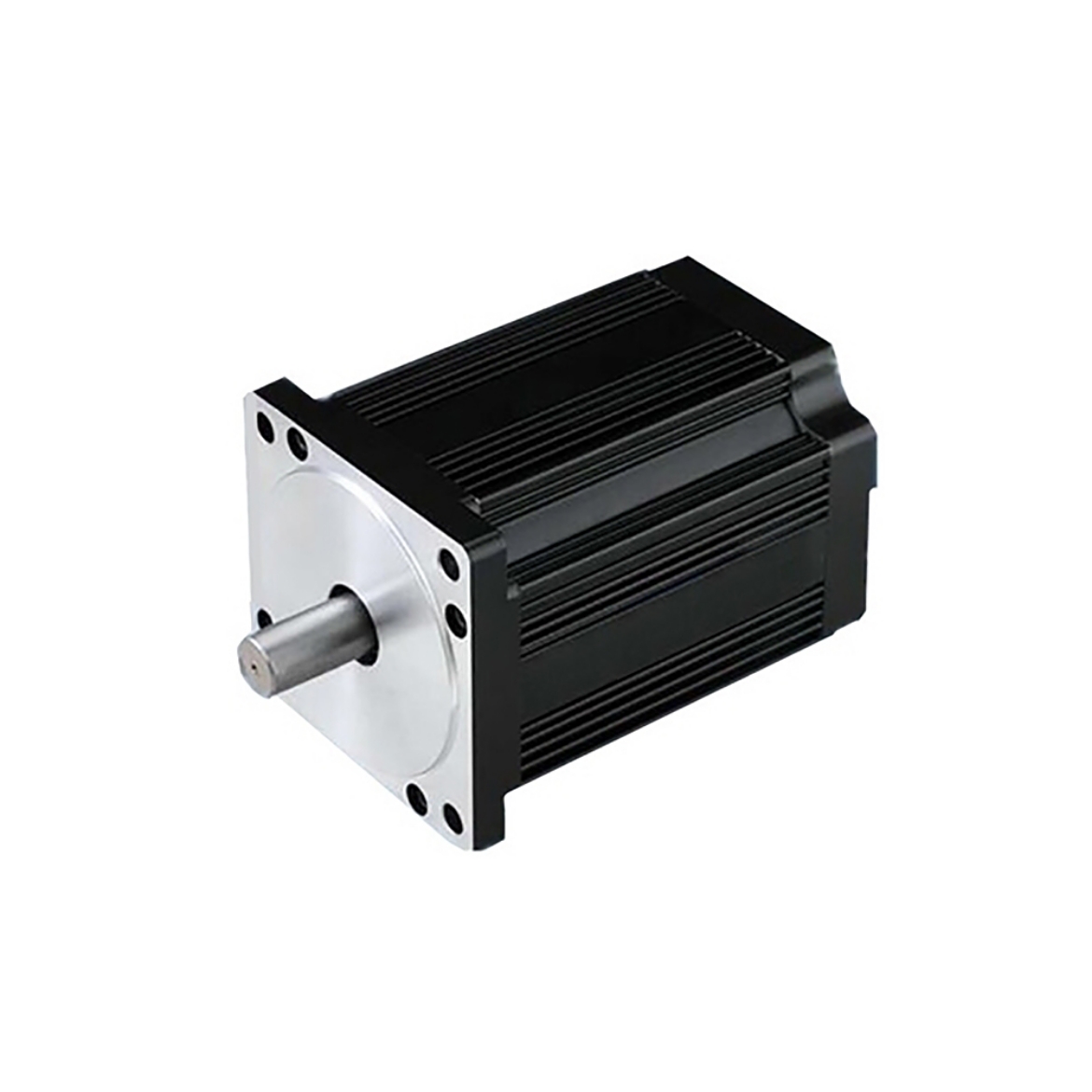

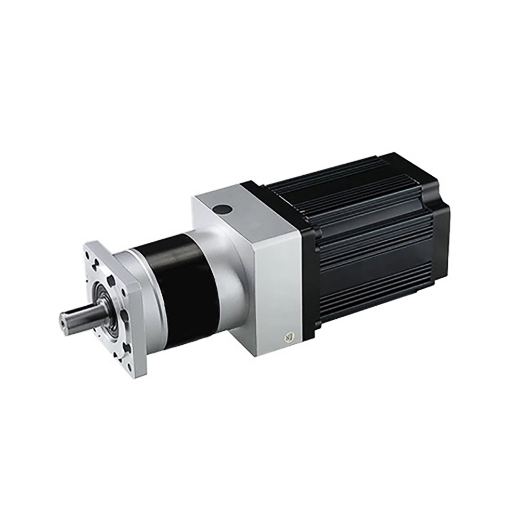

The 1000W BLDC motor, offering a rated speed of 3000 RPM and 3.18 Nm holding torque, is perfect for electric vehicle applications with its 3-phase brushless design, ensuring durability, quieter operation, and lower maintenance. Available in 24V, 36V, and 48V options, it includes Hall sensors for accurate speed control, and a compatible controller and gearbox provide a cost-effective, long-term solution.
Specification
| Model |
BLDC-D110BLD1000 |
| Rated Power |
1000W |
| Rated Voltage |
24V DC |
36V DC |
48V DC |

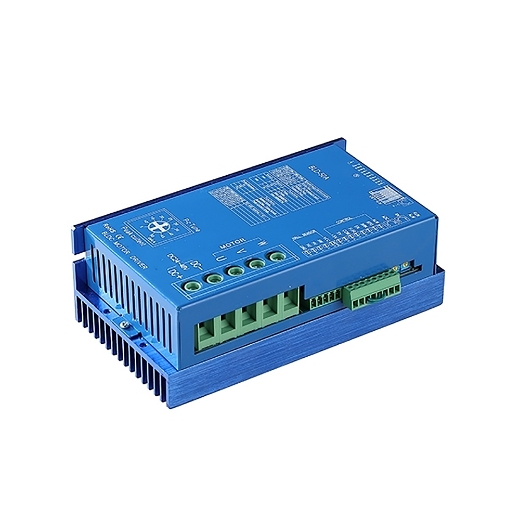

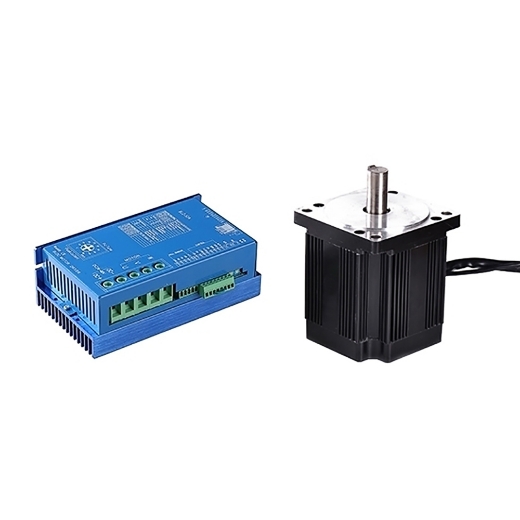

| Matched Controller |
BLDC-C100 |
| Rated Current |
52.08A |
34.72A |
26.04A |
| Phase |
3 phase |
| Rated Torque |
3.18 Nm |
| Max. Torque |
9.55 Nm |
| Rated Speed |

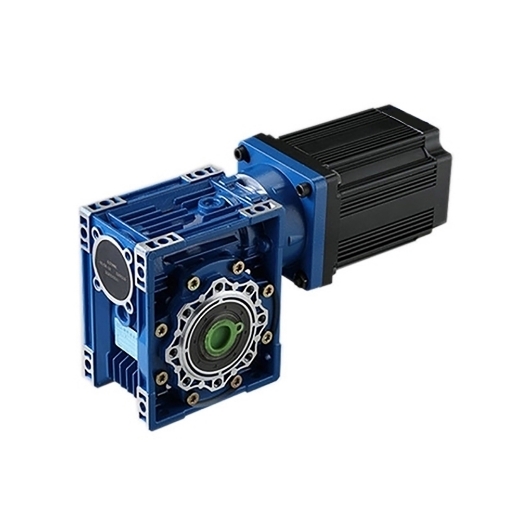

3000 rpm for standard (or 2000 rpm when matching the worm gearbox) |
| No-load Speed |
4200 rpm |
| Working Efficiency |
85% |
| Square Flange Size |
110 mm |
| Insulation Grade |
F |
| Protection Grade |
IP54 |
| Motor Lead Length |
1 meter |
| Certificate |
CE, RoHS, ISO |
| Weight |
4.2 kg |
Note: Power, voltage, speed, shaft, motor length, and motor lead of BLDC motors can be customized.

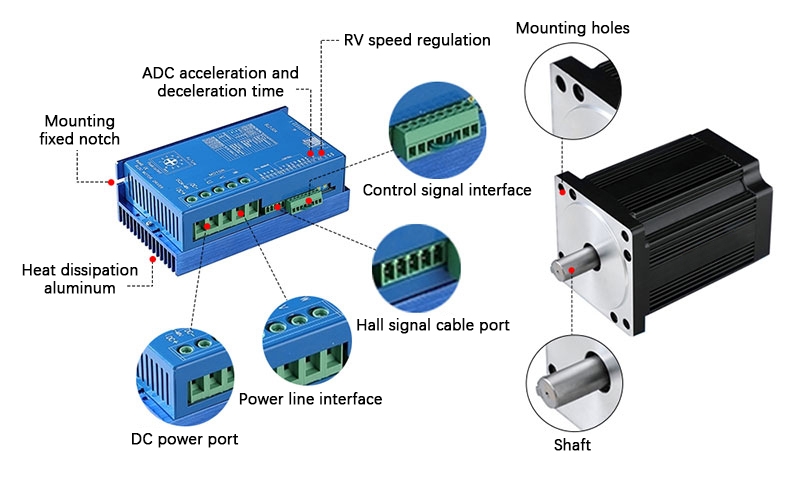

Features
- Stable Speed Control: The 1000W BLDC motor maintains a set speed by continuously comparing feedback signals and adjusting voltage, ensuring consistent performance even with load changes.
- Compact & High Power: Uses a permanent magnet rotor in a 3 phase design, delivering a thin profile with high power density.
- Wide Speed Range: It offers a broader speed control range than AC motors and inverters, providing strong torque from low to high speeds without brushes.
- Energy Efficient: Permanent magnet rotor reduces rotor losses, cutting power consumption by over 20% compared to variable frequency induction motors, supporting energy savings.
- Built-in Protection: Brushless DC motor includes safety features to protect the equipment system.

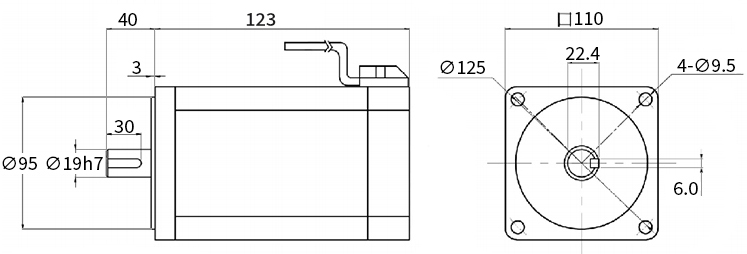

Dimension (Unit: mm)

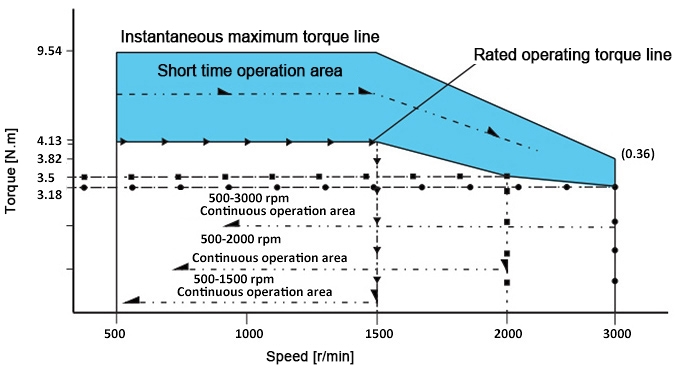

Speed - Torque Curve
- Instantaneous maximum torque line: This torque represents the peak load impact when the motor starts. If exceeded, the driver’s over-current protection will trigger, stopping the motor.
- Short-time operation area: The BLDC motor can operate briefly within this torque range at various speeds. Prolonged operation may cause overheating, potentially leading to motor shutdown or damage.
- Rated operating torque line: At different speeds, this torque level is the electric DC motor’s rated load, allowing long-duration operation without issues.
- Continuous operating area: The brushless motor can run continuously within this zone at varying speeds, maintaining stable operation.

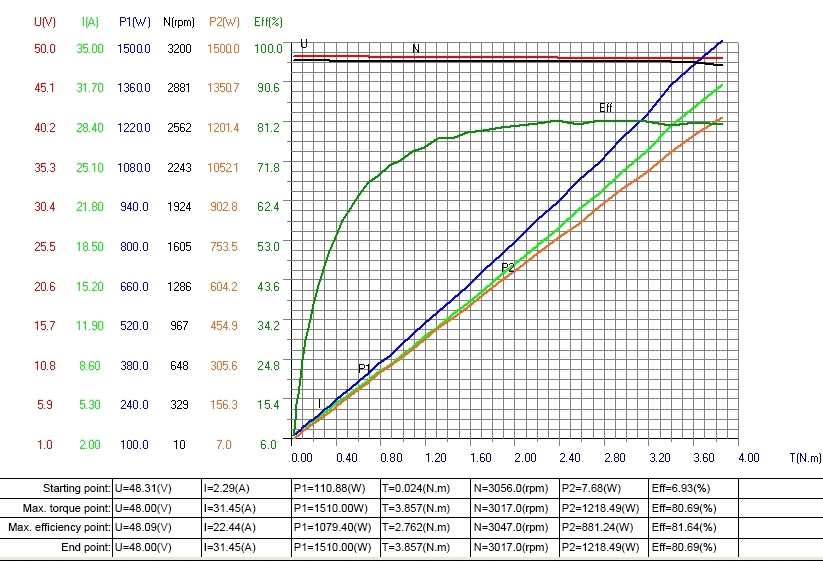

Characterstic Curve
Line Define
| Power Wire |
Hall Wire |
| Red |
U |
Red |
5V |
| Yellow |
V |
Black |
GND |
| Black |
W |
Blue |
Hu |
| Green |
Hv |
| White |
Hw |
Applications
Q: Does this motor have any feedback mechanism for speed control?
A: Yes, the brushless DC motor is equipped with Hall sensors that provide precise velocity feedback, allowing for accurate speed control and smooth, responsive operation. These sensors monitor the motor's rotational position, sending real-time data to the controller to adjust the power input accordingly, ensuring that the motor maintains the desired speed under varying load conditions. This feedback mechanism helps improve overall performance, stability, and efficiency, making it ideal for applications where precise speed regulation is critical, such as electric vehicles and robotics.
