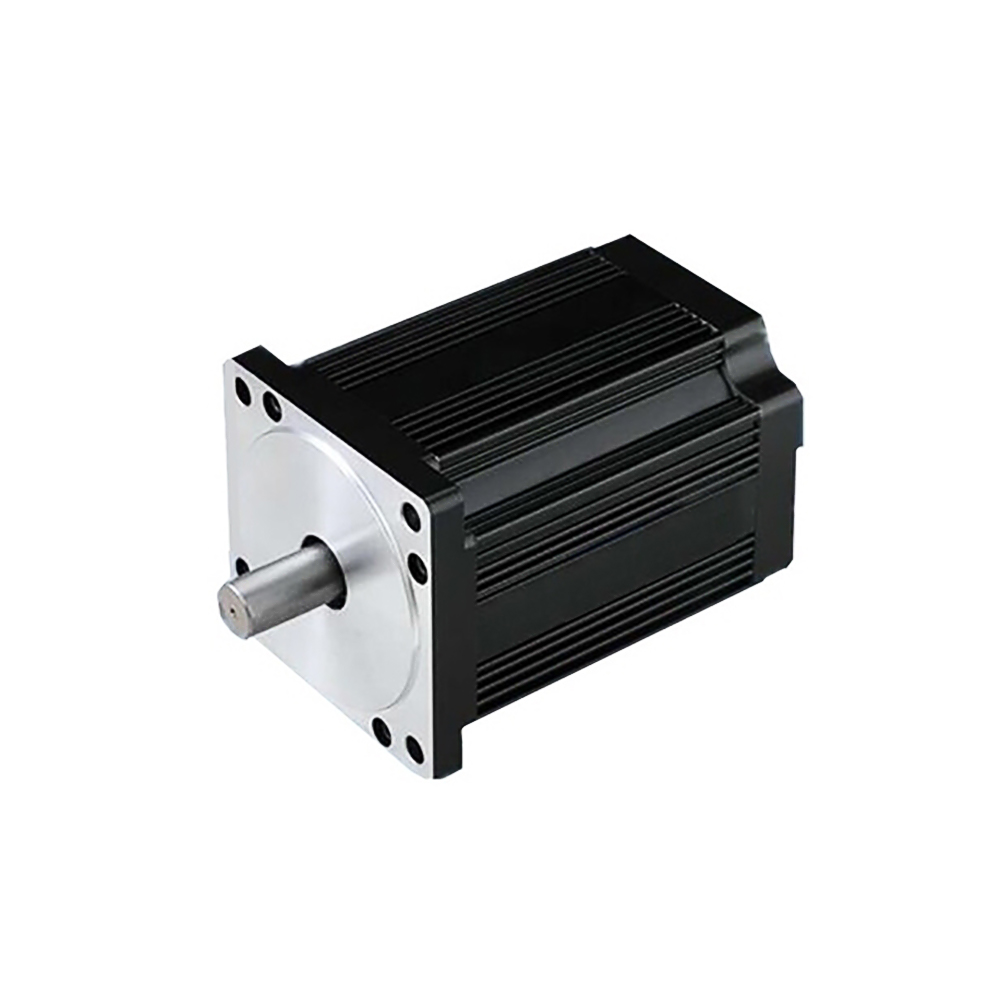

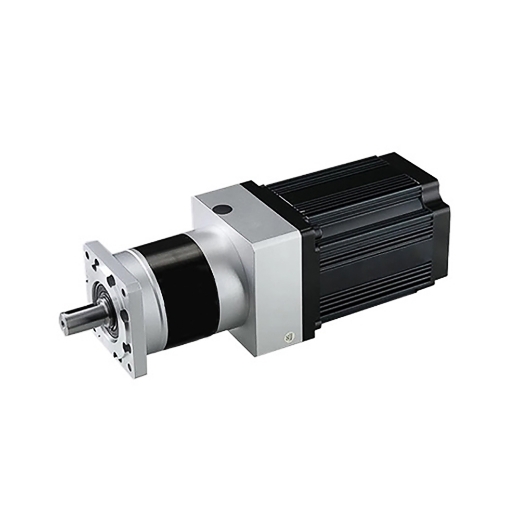

The 1500W 3-phase BLDC motor delivers impressive performance with a 3000 RPM rated speed and 4.78 Nm of continuous torque, reaching a peak of 14.33 Nm. Designed for 36V and 48V DC power sources, it boasts an efficiency greater than 85%, IP54 protection, and Class F insulation, ensuring reliable operation in harsh conditions. Optional features include a brake system and compatibility with planetary or worm gearboxes, offering a complete, cost-effective solution for electric vehicle applications.
Specification
| Model |
BLDC-D110BLD1500 |
| Rated Power |
1500W |
| Rated Voltage |
36V DC |
48V DC |
| Matched Controller |
BLDC-C100 |
| Rated Current |
52.08A |
39.06A |
| Phase |
3 phase |
| Rated Torque |
4.78 Nm |
| Max. Torque |
14.33 Nm |
| Rated Speed |
3000 rpm for standard (or 2000 rpm when matching the worm gearbox) |
| No-load Speed |
4200 rpm |
| Working Efficiency |
85% |
| Square Flange Size |
110 mm |
| Insulation Grade |
F |
| Protection Grade |
IP54 |
| Motor Lead Length |
1 meter |
| Certificate |
CE, RoHS, ISO |
| Weight |
5.5 kg |
Note: Power, voltage, speed, shaft, motor length, and motor lead of BLDC motors can be customized.
Features
- Stable Speed Control: The 1500W BLDC motor maintains a set speed by continuously comparing feedback signals and adjusting voltage, ensuring consistent performance even with load changes.
- Compact & High Power: Uses a permanent magnet rotor in a 3 phase design, delivering a thin profile with high power density.
- Wide Speed Range: It offers a broader speed control range than AC motors and inverters, providing strong torque from low to high speeds without brushes.
- Energy Efficient: Permanent magnet rotor reduces rotor losses, cutting power consumption by over 20% compared to variable frequency induction motors, supporting energy savings.
- Built-in Protection: Brushless DC motor includes safety features to protect the equipment system.
Dimension (Unit: mm)
Speed - Torque Curve
- Instantaneous maximum torque line: This torque represents the peak load impact when the motor starts. If exceeded, the driver’s over-current protection will trigger, stopping the motor.
- Short-time operation area: The BLDC motor can operate briefly within this torque range at various speeds. Prolonged operation may cause overheating, potentially leading to motor shutdown or damage.
- Rated operating torque line: At different speeds, this torque level is the electric DC motor’s rated load, allowing long-duration operation without issues.
- Continuous operating area: The brushless motor can run continuously within this zone at varying speeds, maintaining stable operation.
Characteristic Curve
Line Define
| Power Wire |
Hall Wire |
| Red |
U |
Red |
5V |
| Yellow |
V |
Black |
GND |
| Black |
W |
Blue |
Hu |
| Green |
Hv |
| White |
Hw |
Applications
Q: What are the key advantages of using a 3-phase BLDC motor?
