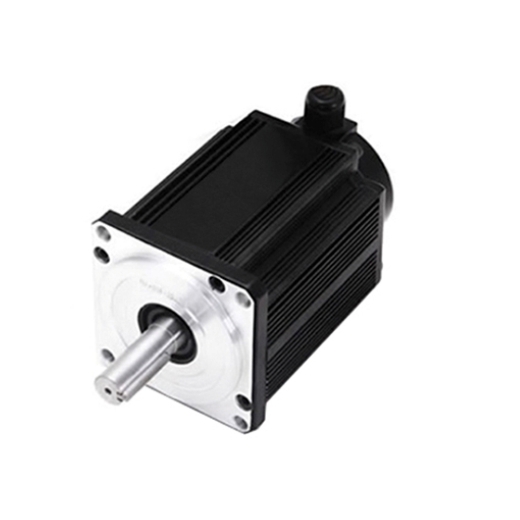

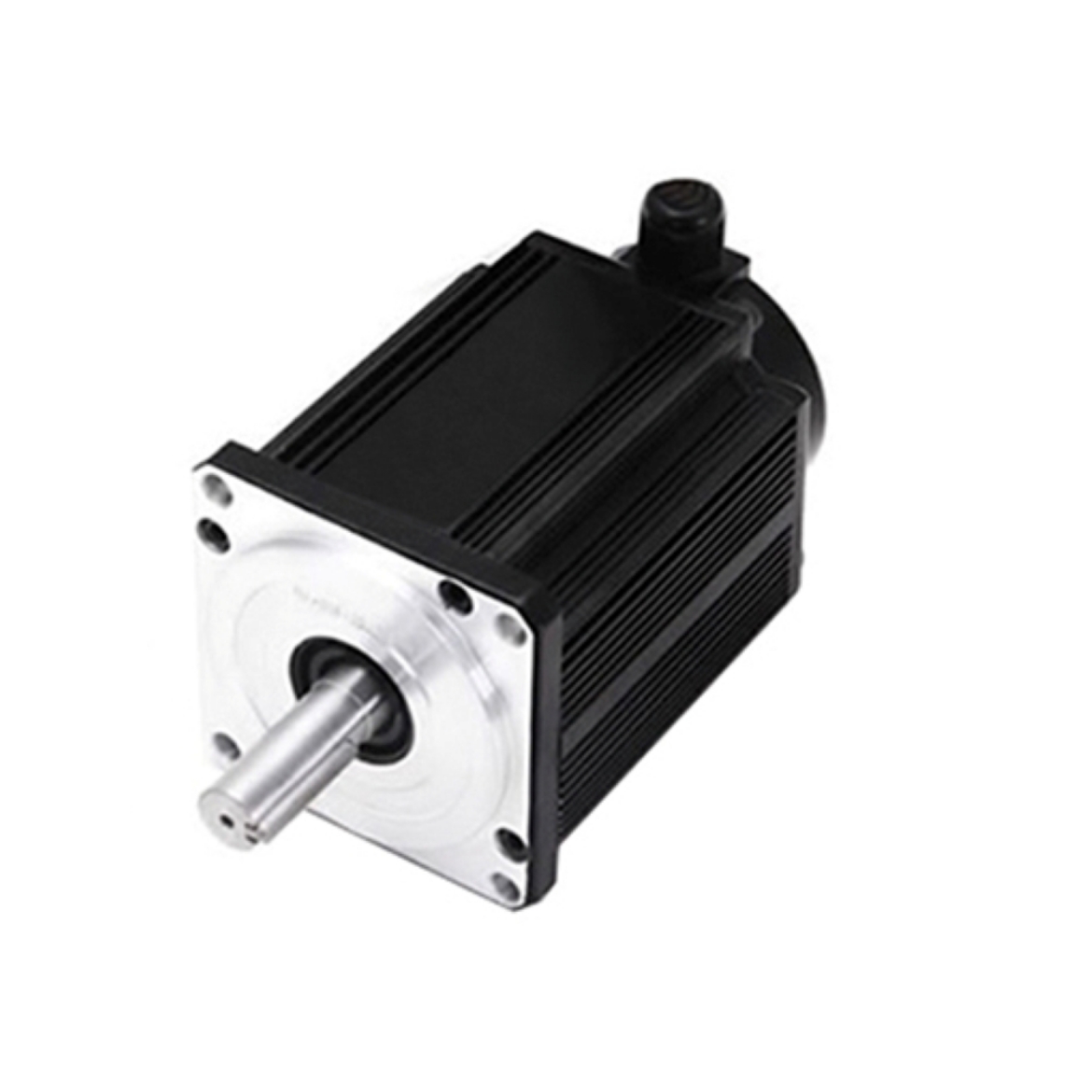

24V/48V/72V/96V 1900W BLDC Motor

$553.28

| 0 review(s) | Add your review

1900W BLDC motor, paired with a BLDC controller, operates at 48V, 72V, or 96V. This 3-phase motor delivers 3000 rpm and 6 Nm holding torque, with a brushless design built for extended, continuous use.

Free shipping

Delivery date: 7-14 days

SKU: BLDC-110-1900W

Voltage (DC) *
With Brake *

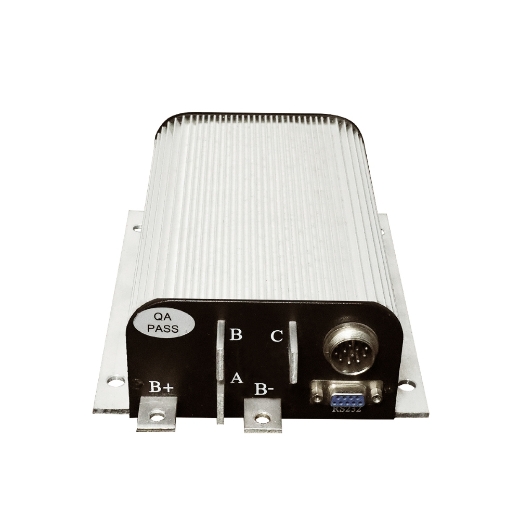

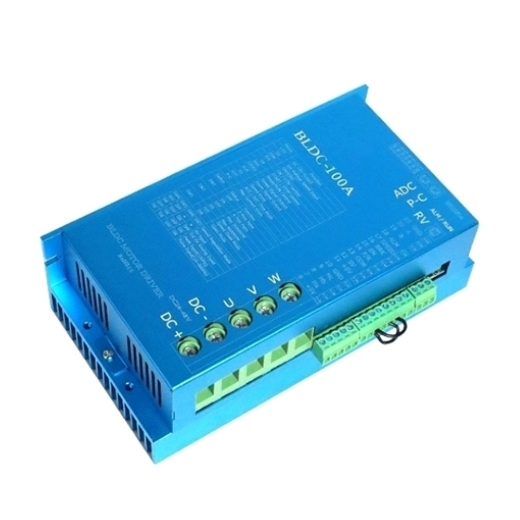

With Matched Controller *
With Matched Controller *
With Matched Controller *
With Matched Controller *
With Matched Gearbox *

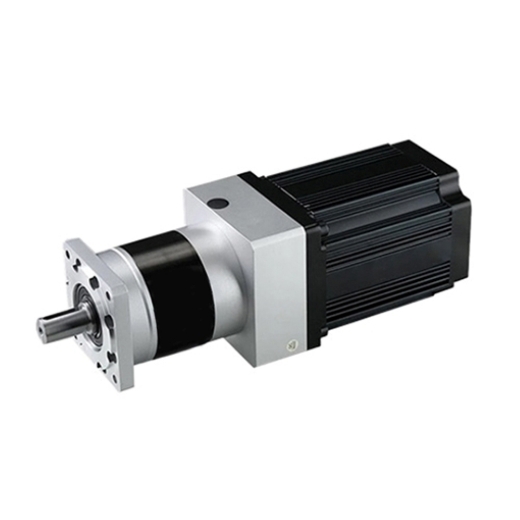

Planetary Gearbox *
Worm Gearbox *

increase decrease

DESCRIPTION
DOCUMENTS
WIRING VIDEO

3-phase BLDC motor kit with 2.5 hp motor, controller, and planetary gearbox. Features 110 mm flange, 3000 rpm, 6 Nm torque, and over 85% efficiency. IP54 with shaft seal for dust and moisture protection. Cost-effective replacement for brushed DC motors, offering better value as a complete set.

Specification

Model	BLDC-110BLD1900
Rated Power	1900W
Rated Voltage	24V DC	48V DC	72V DC	96V DC
Matched Controller	BLDC-KEB	BLDC-BD100	BLDC-BD100	BLDC-KEB
Rated Current	100.2A	49.5A	37A	25A
Phase	3 phase
Rated Torque	6 Nm
Max. Torque	18 Nm
Rated Speed	3000 rpm (Rated input speed is 2000 rpm when using a turbine reducer)
No-load Speed	3600 rpm (Flange size is 130 mm when using a turbine reducer)
Working Efficiency	0.85
Square Flange Size	110 mm
Insulation Grade	F
Protection Grade	IP54
Working Temperature	10℃~+40℃
Humidity	≤90% (no condensation)
Number of Poles	4 pairs of poles (8 poles)
Brake Length	40-50mm
Brake Apparatus Voltage	24V DC/ 48V DC, (Electromagnetic brake will trigger when the DC supply cuts off)
Motor Lead Length	30cm
Certificate	CE, RoHS, ISO/TS16949
Weight	6.6 kg

Note: Power, voltage, speed, shaft, motor length, and motor lead of BLDC motors can be customized.

Features

Stable Speed Control: The 1900W BLDC motor maintains a set speed by continuously comparing feedback signals and adjusting voltage, ensuring consistent performance even with load changes.
Compact & High Power: Uses a permanent magnet rotor in a 3 phase design, delivering a thin profile with high power density.
Wide Speed Range: It offers a broader speed control range than AC motors and inverters, providing strong torque from low to high speeds without brushes.
Energy Efficient: Permanent magnet rotor reduces rotor losses, cutting power consumption by over 20% compared to variable frequency induction motors, supporting energy savings.
Built-in Protection: Brushless DC motor includes safety features to protect the equipment system.

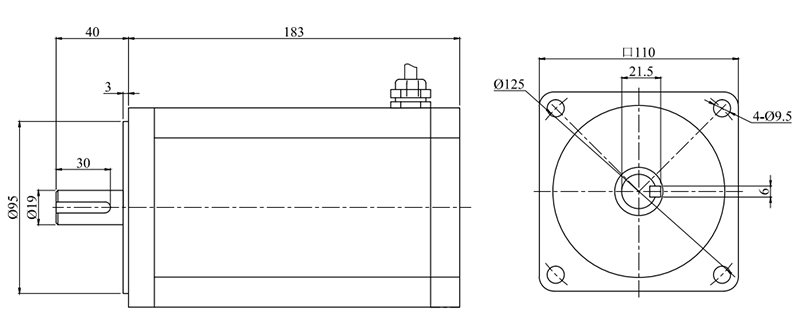

Dimension (Unit: mm)

1900W BLDC motor dimension

Line Define

Power Wire		Hall Wire
Red	U	Red	5V
Yellow	V	Black	GND
Black	W	Blue	Hu
		Green	Hv
		White	Hw

Applications

Laser Equipment

Logistics Automation

Medical Equipment

Robot

Q: Does this motor have any feedback mechanism for speed control?

A: Yes, the brushless DC motor is equipped with Hall sensors that provide precise velocity feedback, allowing for accurate speed control and smooth, responsive operation. These sensors monitor the motor's rotational position, sending real-time data to the controller to adjust the power input accordingly, ensuring that the motor maintains the desired speed under varying load conditions. This feedback mechanism helps improve overall performance, stability, and efficiency, making it ideal for applications where precise speed regulation is critical, such as electric vehicles and robotics.
