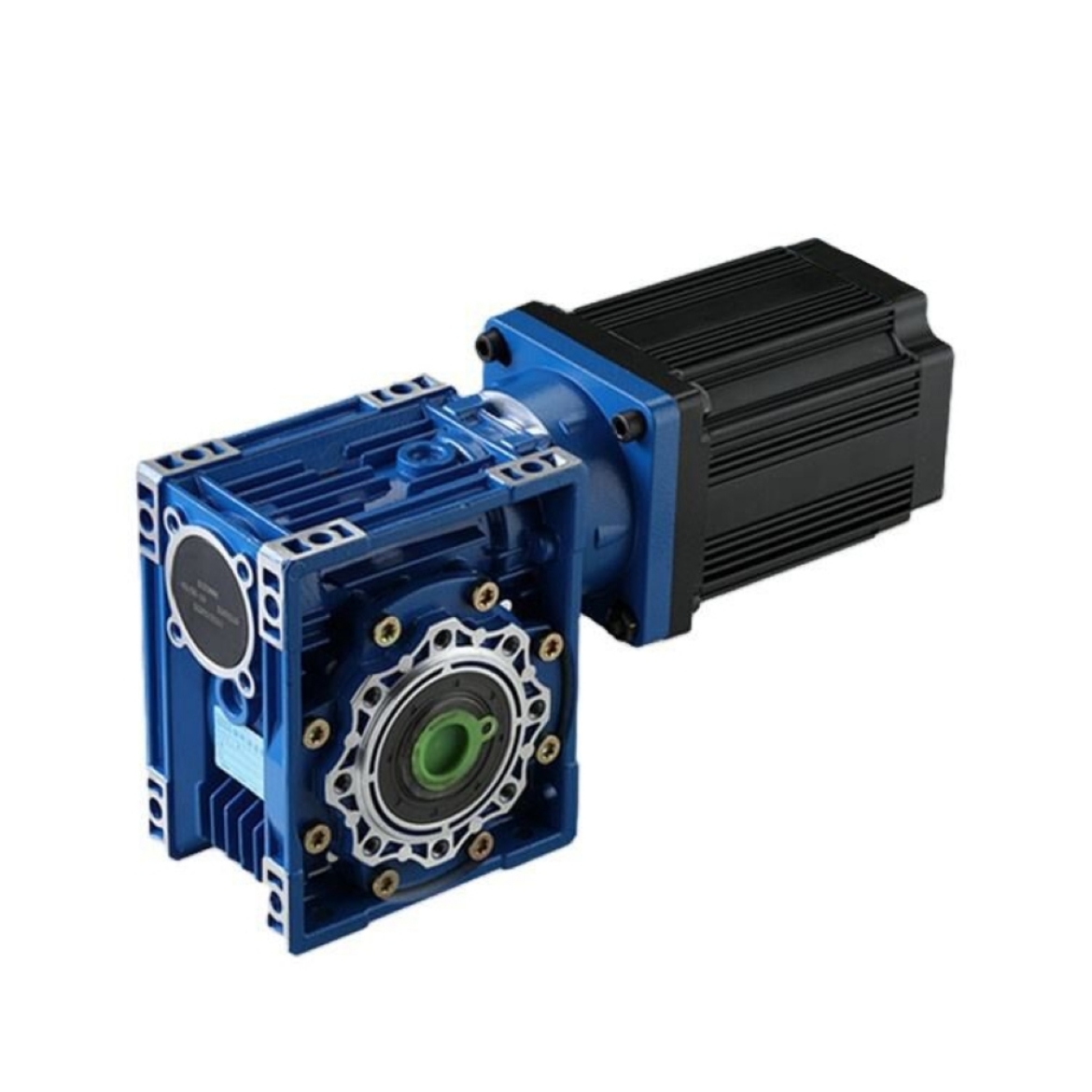

24V/36V/48V 600W BLDC Worm Gear Motor

The high-torque 600W 3-phase BLDC motor paired with a worm gearbox, operating at 24V, 36V, or 48V, delivers a no-load speed of 2700 rpm. Ideal for electric vehicles, renewable energy setups, and industrial machinery.

Specification

Allowable Torque with Gear Head

Note:

• This torque value is the rated output value of the reducer, not the final motor + output torque value T after reducer.
• The formula for calculating the output torque after the final motor + reducer: T = rated torque of the motor * reduction ratio * 0.6, and T≤ rated allowable output torque value of the reducer.

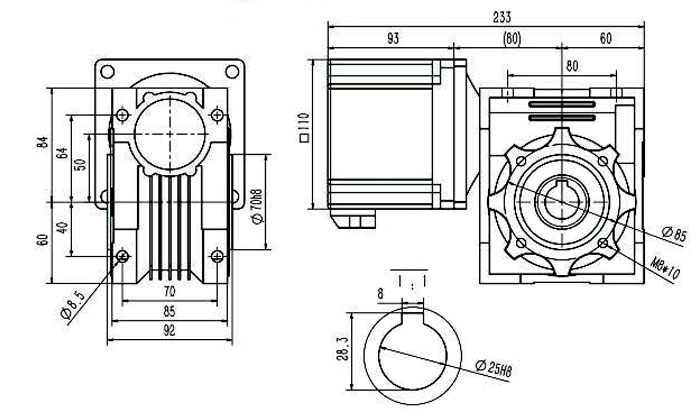

Dimension (Unit: mm)

Mounting screws are included with the gearhead

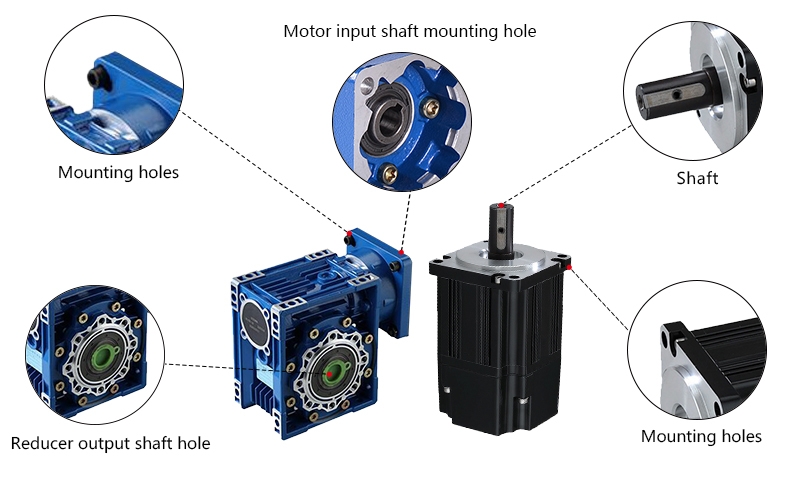

Details

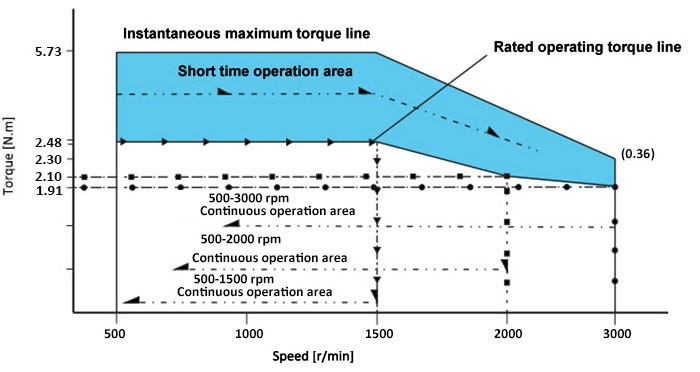

Speed - Torque Curve



• Instantaneous maximum torque line: The maximum torque momentarily impacts the load when the motor is started. Exceeding this level triggers the driver's over-current protection, shutting down the motor.
• Short-time operation area: The motor can operate within this torque range for limited periods at different speeds. Prolonged use generates excess heat, which may cause the motor to stop or burn.
• Rated operating torque line: The rated torque of the motor can sustain at different speeds for continuous, long-term operation.
• Continuous operating area: When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Applications

Electronics Manufacturing

Printing Machinery

Industrial Robots

Laser Cutting Equipment

Q: Why does a worm gear motor reduce speed?

A: A worm gear motor reduces speed because of the high gear reduction ratio created by the worm and worm wheel mechanism. The worm (a screw-like gear) turns the worm wheel (a toothed gear) with fewer revolutions, which slows down the output speed significantly. This design allows the motor to convert high-speed, low-torque input into low-speed, high-torque output—ideal for applications that require strong, controlled motion.
