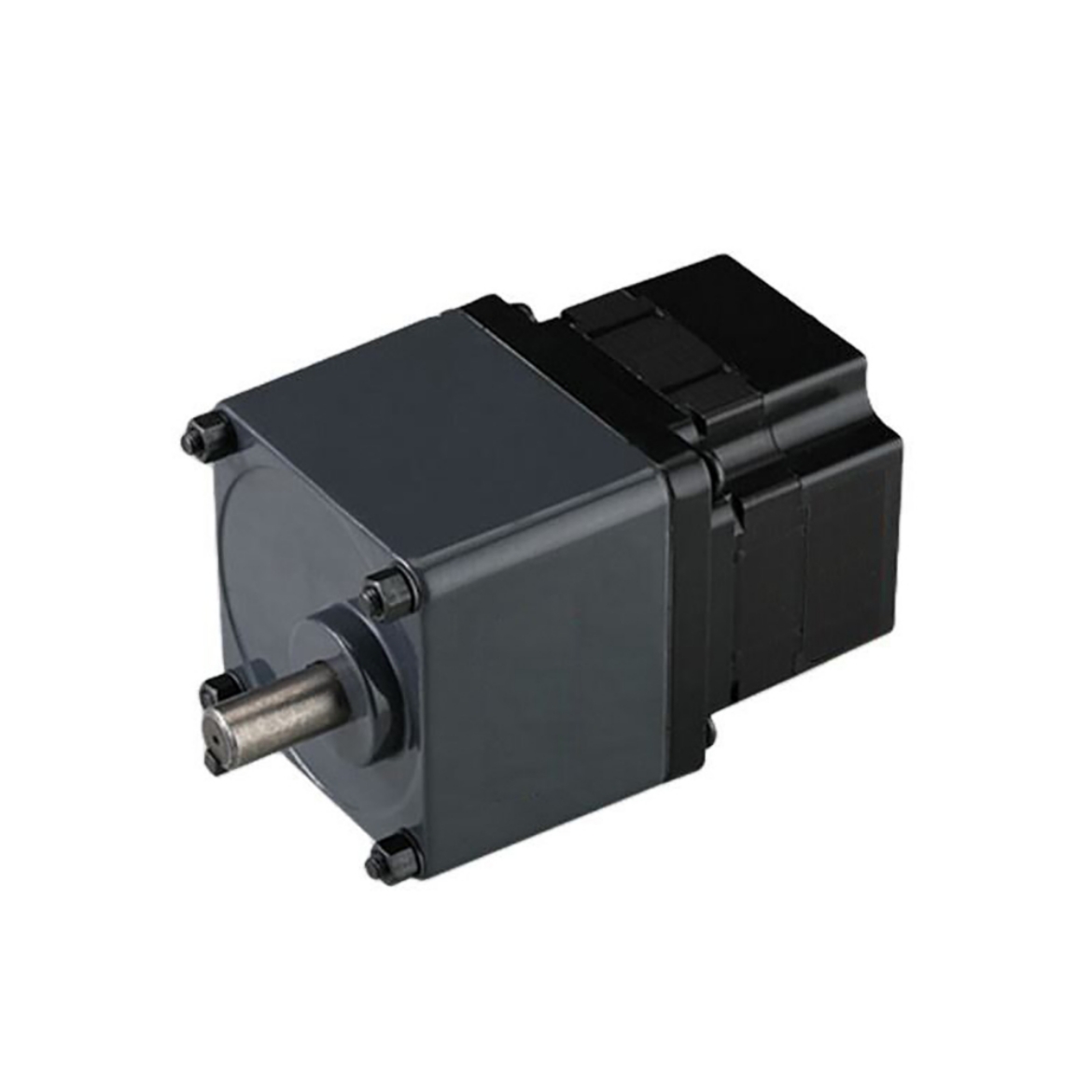

The 300W BLDC gear motor is available in 12V, 24V, and 48V configurations, operating at a rated speed of 3000 rpm. With a rated torque of 0.96 Nm and a peak torque of 2.87 Nm, it’s perfect for applications like medical equipment, lifts, power seats, and automotive systems. Offering customizable gear ratios from 3:1 to 200:1 and easy integration with controllers, this motor ensures efficient, reliable, and low-maintenance performance. Its cost-effective design makes it an excellent choice for industries requiring precision and durability.
Specification
| Model |
BLDC-D5BLD300-12 |
BLDC-D5BLD300-24 |
BLDC-D5BLD300-48 |
| Voltage |
12V |
24V |
48V |
| Rated Current |
31.25A |
15.63A |
7.81A |
| No-load Current |
<7.2A |
<6.13A |
<4.61A |
| Compatible Driver Model |
BLDC-KVD2412N |
BLDC-BLD750 |
BLDC-BLD300 |
| Power |
300W |
| Rated Speed |
3000 rpm |
| No-load Speed |
3300 rpm |
| Rated Torque |
0.96 N.m |
| Peak Torque |
2.87 N.m |
| Weight |
3 kg |
| Protection Grade |
IP54 |
| Motor Lead Length |
300mm |
| Temperature |
0~50℃ |
| Gearbox Model |
2GN□K Enter the gear ratio into the box (□) within the model name |
| Gear Ratio |
3, 5, 7.5, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200 |
Allowable Torque with a Gearbox
| Gear Ratio |
Speed(r/min) |
Allowable Torque(N.M) |
Allowable Torque(kgf.cm) |
| 3 |
1000 |
2.32 |
23.21 |
| 5 |
600 |
3.87 |
38.68 |
| 7.5 |
400 |
5.8 |
58.02 |
| 10 |
300 |
7.74 |
77.36 |
| 12.5 |
240 |
8.71 |
87.14 |
| 15 |
200 |
10.46 |
104.6 |
| 18 |
167 |
12.55 |
125.5 |
| 20 |
150 |
12.61 |
126.1 |
| 25 |
120 |
15.76 |
157.6 |
| 30 |
100 |
18.91 |
189.1 |
| 36 |
83.33 |
20 |
200 |
| 40 |
75 |
20 |
200 |
| 50 |
60 |
20 |
200 |
| 60 |
50 |
20 |
200 |
| 75 |
40 |
20 |
200 |
| 90 |
33 |
20 |
200 |
| 100 |
30 |
20 |
200 |
| 120 |
25 |
20 |
200 |
| 150 |
20 |
20 |
200 |
| 180 |
17 |
20 |
200 |
| 200 |
15 |
20 |
200 |
Line Define
| Power Wire |
Hall Wire |
| Red |
U |
Red |
5V |
| Yellow |
V |
Black |
GND |
| Black |
W |
Blue |
Hu |
| Green |
Hv |
| White |
Hw |

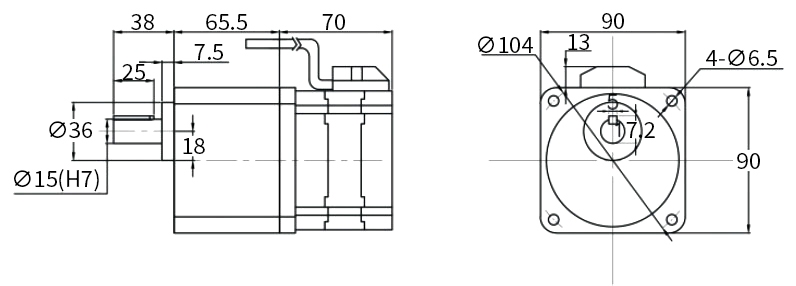

Dimension (Unit: mm)
Applications
Electronics Manufacturing
Q: Where can this BLDC gear motor be used?
A: This BLDC gear motor is commonly used in a variety of applications such as medical tables, patient lifts, power seats, and automotive systems. It is ideal for systems that require precision, low maintenance, and efficient power transmission.
