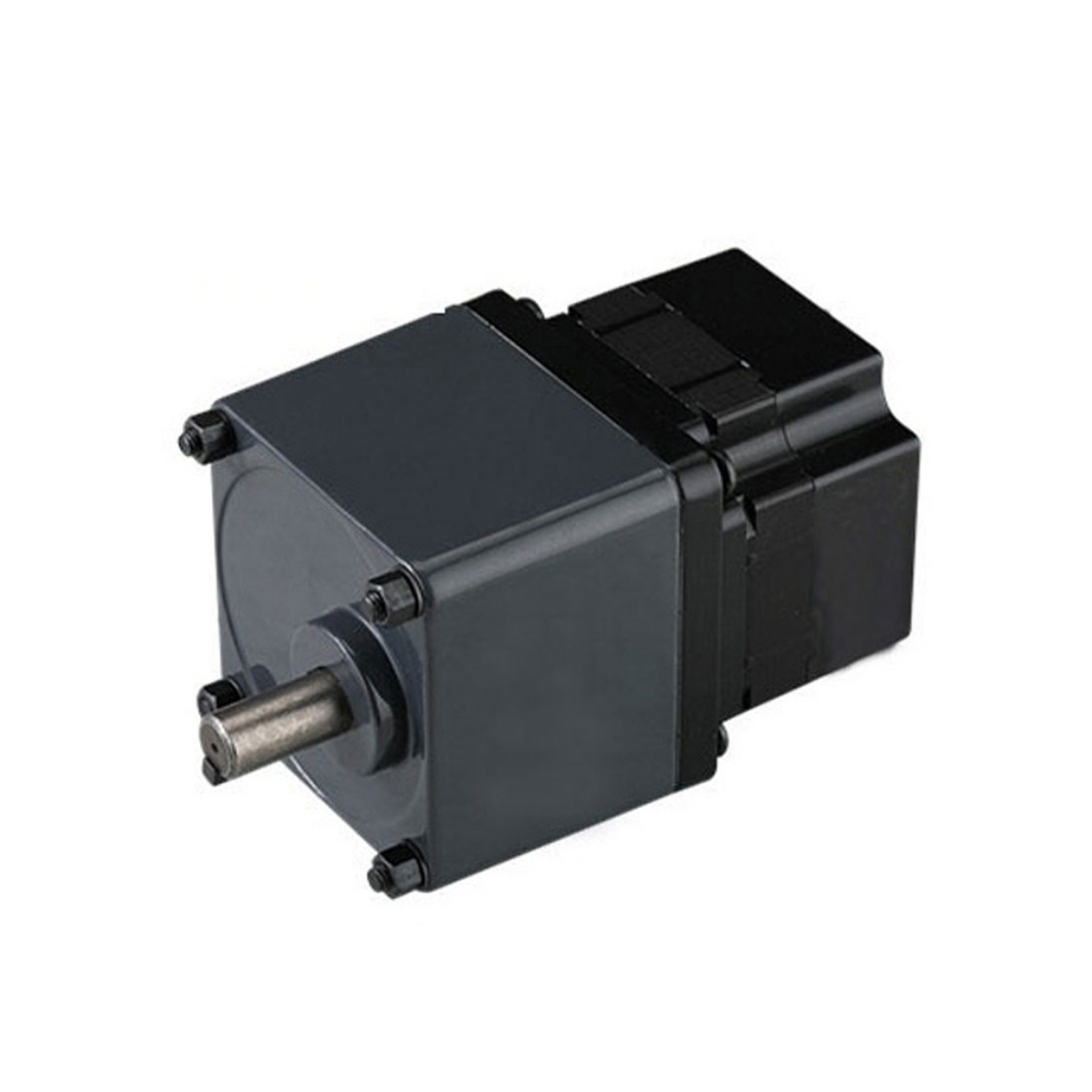

12V/24V/48V 200W BLDC Gear Motor

This 200W BLDC geared motor offers voltage options (12V, 24V, 48V) and a rated speed of 3000 RPM, delivering up to 1.91 Nm of peak torque. Built with segmental steel and steel cast iron, it ensures high durability, wear resistance, and low vibration/noise. With an IP54 protection class, it's resistant to dust and water, and its energy-efficient design minimizes current draw (20.83A at 12V, 10.42A at 24V, 5.21A at 48V), making it ideal for demanding applications.

Specification

Allowable Torque with a Gearbox

Line Define

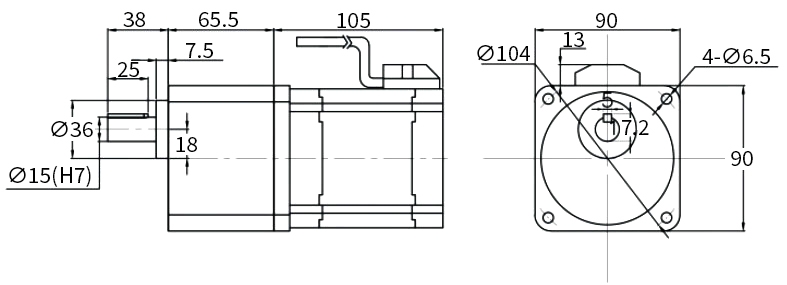

Dimension (Unit: mm)

Applications

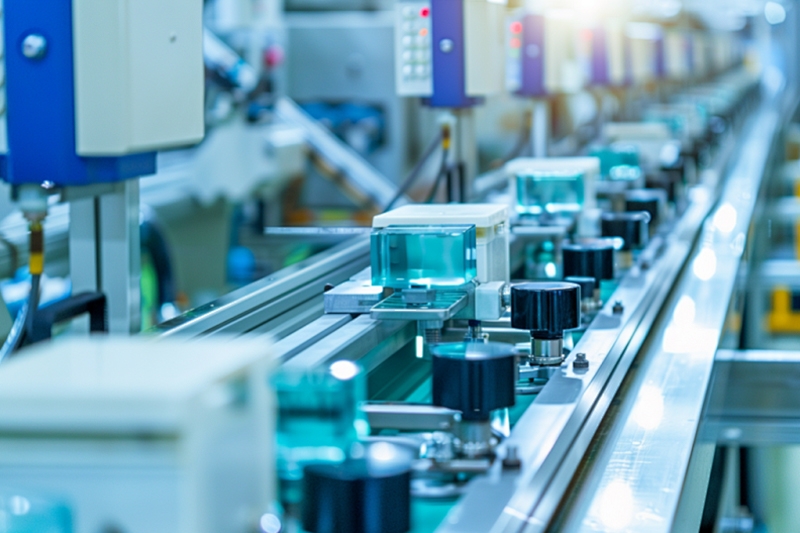

Electronics Manufacturing

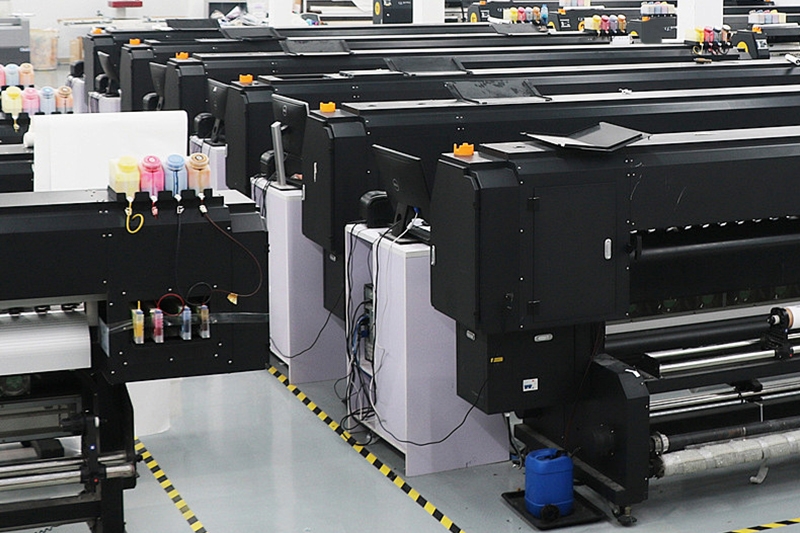

Printing Machinery

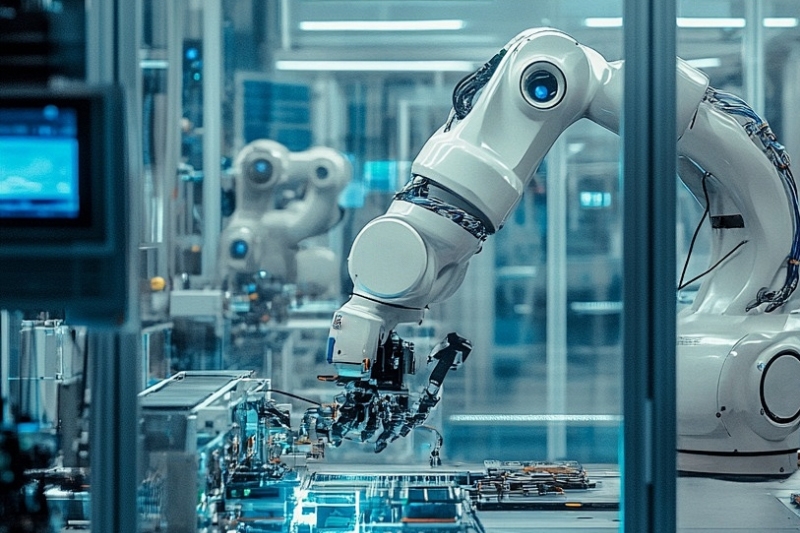

Industrial Robots

Laser Cutting Equipment

Q: What are the steps to properly set up and use a 12V brushless DC gear motor?

A: To use this BLDC gear motor, you'll need an ESC (Electronic Speed Controller) to control the motor's speed and direction. First, connect the three motor wires to the ESC's output, then connect the ESC's power input to a 12V battery or power supply. The ESC will also need a control signal, which can be provided by a manual controller (like a throttle) or an automated system like Arduino.

Once everything is connected, power on the system and adjust the control signal to vary the motor speed. Monitor the motor temperature to avoid overloading. You can also tweak the ESC settings, such as motor timing and braking functions, to optimize performance.
