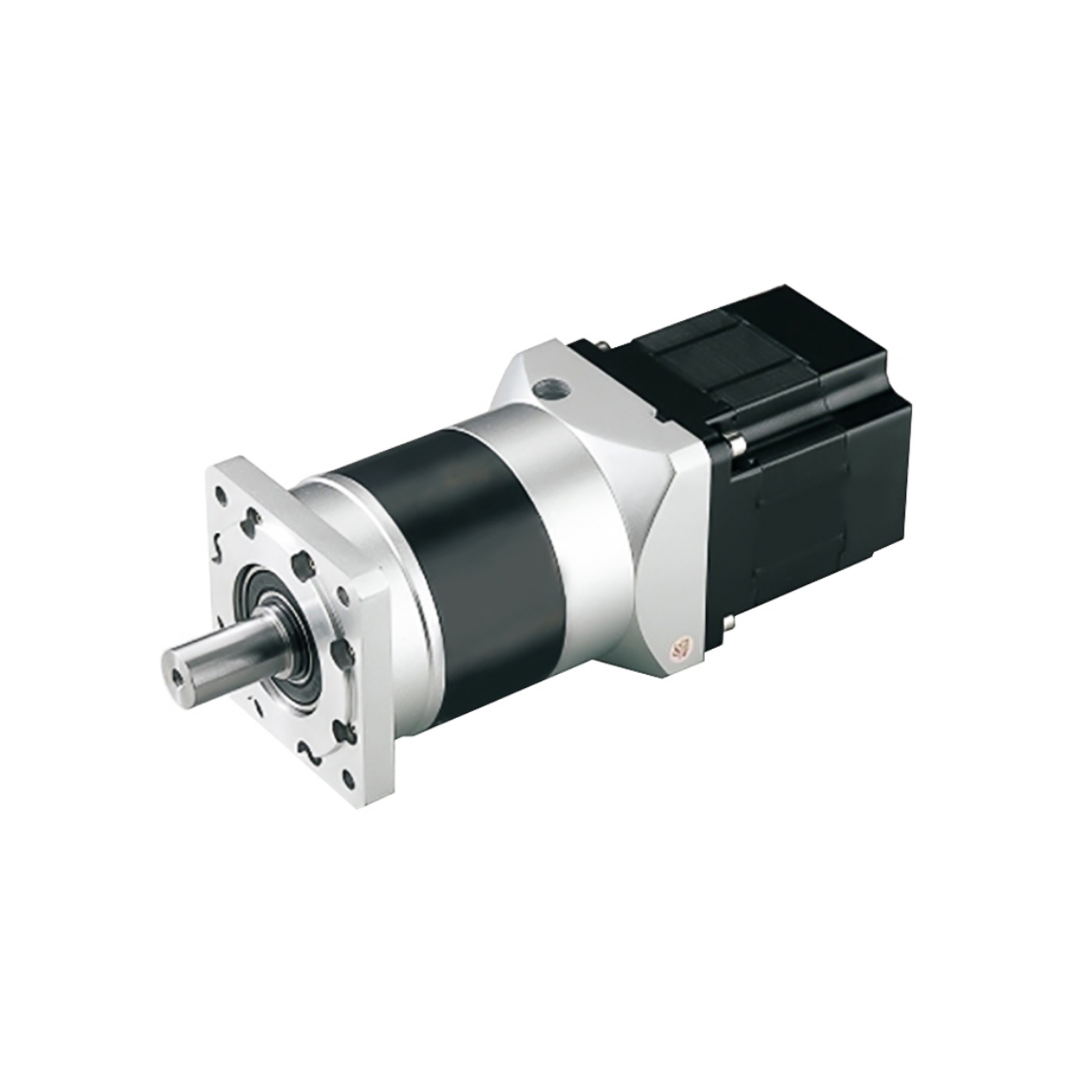

12V/24V/36V/48V 300W BLDC Planetary Gear Motor

The 300W brushless DC motor with a planetary gearbox, featuring an 86mm diameter, provides a rated torque of 0.96Nm and can reach a peak torque of up to 2.87Nm. Its brushless design ensures reduced maintenance, longer lifespan, and quieter operation. With its compact size and high torque output, this motor is ideal for applications that demand precision and durability, making it an excellent solution for power transmission across various industries.

Specification

Note

• If you would like CAD drawings of the motor and planetary gearbox, please contact us.
• Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.

Features

• Multiple Voltage Options: Available in 12V, 24V, 36V, and 48V DC to meet various requirements.
• High Planetary Gear Ratio of up to 250:1: Equipped with a planetary gearbox offering a high reduction ratio of up to 250:1 for efficient power transmission.
• Customizable Specifications: Power, voltage, speed, shaft size, motor length, and lead can all be tailored to suit specific needs.
• Energy-efficient BLDC Motor: Features a brushless DC motor (BLDC) that ensures low power consumption, high efficiency, and longer battery life.
• High Torque at Low Speeds: The planetary gear motor provides excellent torque output even at low speeds, ideal for high-torque applications.
• Easy Speed Adjustment and Reversible Direction: Supports convenient speed control and reversible direction for flexible operation.

Speed - Torque Curve



• Instantaneous maximum torque line: This torque represents the peak load impact when the motor starts. If exceeded, the driver’s over-current protection will trigger, stopping the motor.
• Short-time operation area: The BLDC motor can operate briefly within this torque range at various speeds. Prolonged operation may cause overheating, potentially leading to motor shutdown or damage.
• Rated operating torque line: At different speeds, this torque level is the electric DC motor’s rated load, allowing long-duration operation without issues.
• Continuous operating area: The brushless motor can run continuously within this zone at varying speeds, maintaining stable operation.

Applications

Electronics Manufacturing

Printing Machinery

Industrial Robots

Laser Cutting Equipment

Q: What are the advantages of using a BLDC gear motor?

A: The following are the advantages:

• High Efficiency: BLDC gear motors are more efficient than brushed motors because they eliminate the friction and power losses associated with brushes.
• Longer Lifespan: The lack of brushes reduces wear and tear, increasing the motor's durability and overall lifespan.
• Low Maintenance: Due to the absence of brushes, these motors require less maintenance compared to brushed motors.
• Smooth Operation: BLDC motors offer smoother and quieter operation, ideal for environments where noise reduction is important.
• Compact Design: These motors with gearbox provide high torque in a smaller form factor, making them suitable for space-constrained applications.
