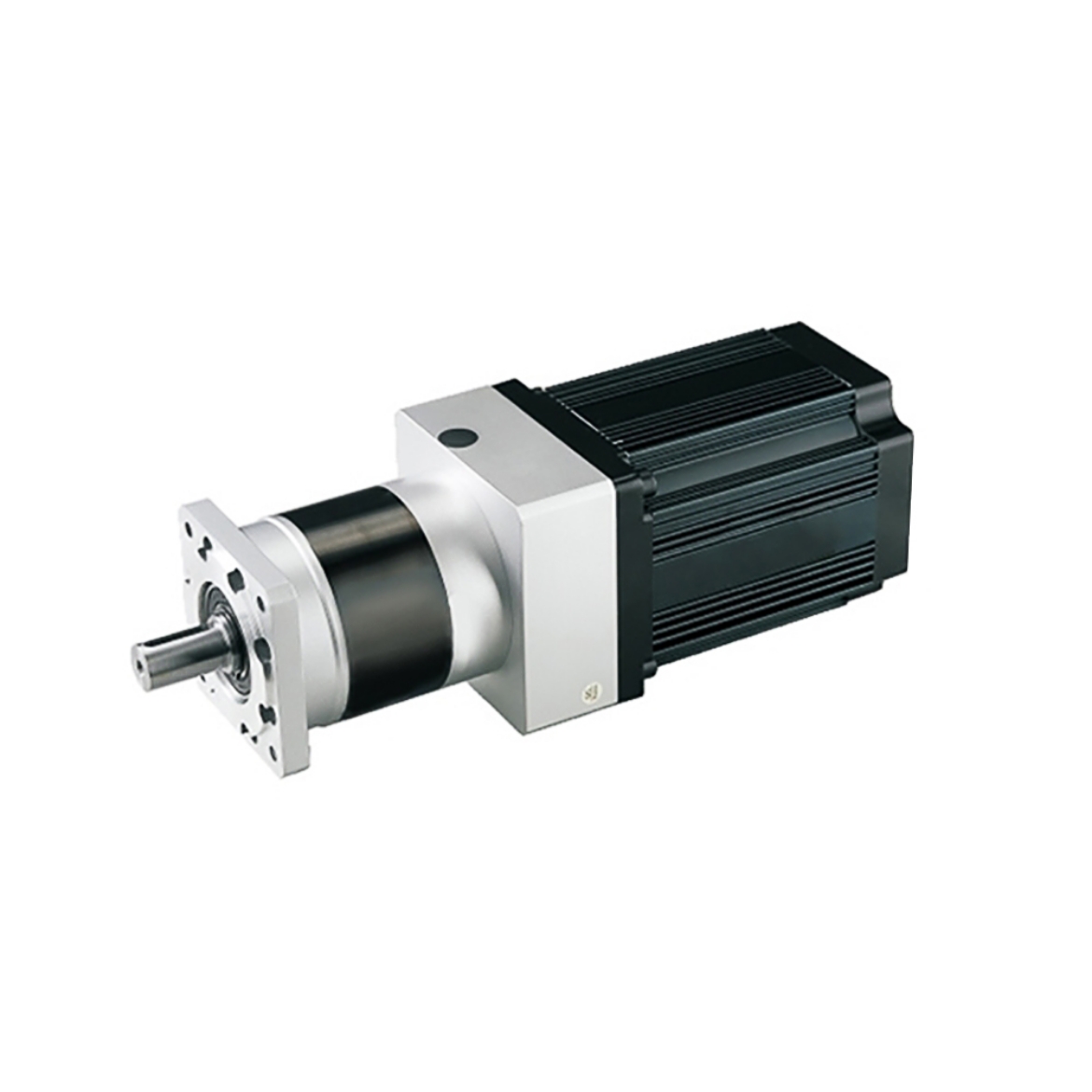

24V/36V/48V 600W BLDC Planetary Gear Motor

$679.83

| 0 review(s) | Add your review

Available in 24V, 36V, and 48V configurations, the 600W BLDC planetary gear motor features a rated speed of 3000 RPM and a holding torque of 1.91Nm, making it an ideal choice for electric vehicles, industrial machinery, and other demanding systems.

Free shipping

Delivery date: 7-14 days

SKU: BLDC-GEAR-P600

Voltage (DC) *
Controller for 24V Motor *
Controller for 36V Motor *
Controller for 48V Motor *
With Brake *
Gear Ratio *

increase decrease

DESCRIPTION
DOCUMENTS
WIRING VIDEO

This 600W BLDC motor, available in 24V, 36V, and 48V options, combines a three-phase motor with a planetary gearbox, delivering enhanced torque and high efficiency. With a gear ratio of up to 250:1, it ensures smooth power transmission, minimal noise, and low vibration, ideal for electric vehicles and robotics. Designed for low energy consumption and long battery life, it offers superior performance and reliability in a compact, space-saving design.

Specification

Model	BLDC-D110BLD600-24A-30S	BLDC-D110BLD600-36A-30S	BLDC-D110BLD600-48A-30S
Voltage	24V DC	36V DC	48V DC
Rated Current	31.25A	20.83A	15.63A
No Load Current	＜7.5A	＜5A	＜3.8A
Recommended Drive Model	BLDC-BD100	BLDC-BD50	BLDC-BLD750
Motor Type	BLDC Motor
Power	600W
Rated Speed	3000 rpm
No Load Speed	4200 rpm
Rated Torque	1.91 Nm
Peak Torque	5.73 Nm
Motor Dimension	110 mm
Construction	Permanent Magnet
Direction of Rotation	CW/CCW
Certificate	CCC, CE, ROSH, LVD, EMC
Gear Ratio	4, 5, 7, 10, 16, 20, 25, 28, 35, 40, 50, 70, 80, 100, 125, 140, 175, 200, 250

Note

If you would like CAD drawings of the motor and planetary gearbox, please contact us.
Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.

Features

Multiple Voltage Options: Available in 24V, 36V, and 48V DC to meet various requirements.
High Planetary Gear Ratio of up to 250:1: Equipped with a planetary gearbox offering a high reduction ratio of up to 250:1 for efficient power transmission.
Customizable Specifications: Power, voltage, speed, shaft size, motor length, and lead can all be tailored to suit specific needs.
Energy-efficient BLDC Motor: Features a brushless DC motor (BLDC) that ensures low power consumption, high efficiency, and longer battery life.
High Torque at Low Speeds: The planetary gear motor provides excellent torque output even at low speeds, ideal for high-torque applications.
Easy Speed Adjustment and Reversible Direction: Supports convenient speed control and reversible direction for flexible operation.

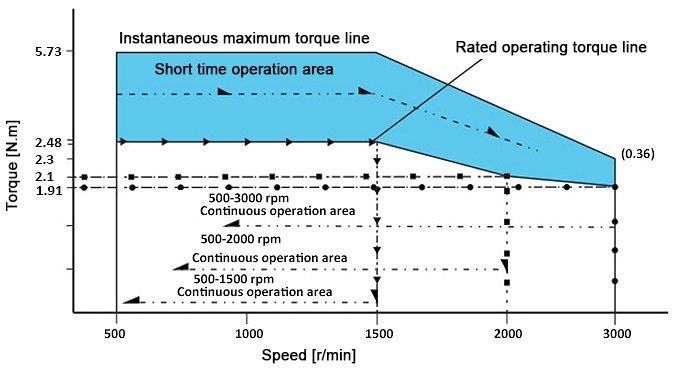

600W BLDC planetary gear motor torque speed curve

Speed - Torque Curve

Instantaneous maximum torque line: This torque represents the peak load impact when the motor starts. If exceeded, the driver’s over-current protection will trigger, stopping the motor.
Short-time operation area: The BLDC motor can operate briefly within this torque range at various speeds. Prolonged operation may cause overheating, potentially leading to motor shutdown or damage.
Rated operating torque line: At different speeds, this torque level is the electric DC motor’s rated load, allowing long-duration operation without issues.
Continuous operating area: The brushless motor can run continuously within this zone at varying speeds, maintaining stable operation.

Applications

Electronics Manufacturing

Printing Machinery

Industrial Robots

Laser Cutting Equipment

Q: What are the main causes of oil leakage in a planetary gear motor?

A: Oil leakage in planetary gear motors can be caused by:

Seal Damage: Worn or degraded seals allow oil to escape.
Overpressure: Excessive internal pressure can damage seals and gaskets.
High Temperatures: Overheating can increase pressure and cause leaks.
Incorrect Lubricant: Using the wrong oil can damage seals and components.
Improper Assembly: Misaligned parts or improperly torqued bolts can create gaps.
Wear and Tear: Long-term use can wear down components, leading to leakage.

Proper maintenance and correct assembly can help prevent oil leaks.
