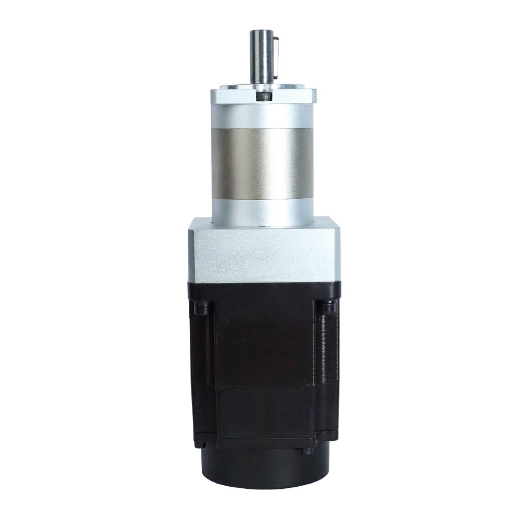

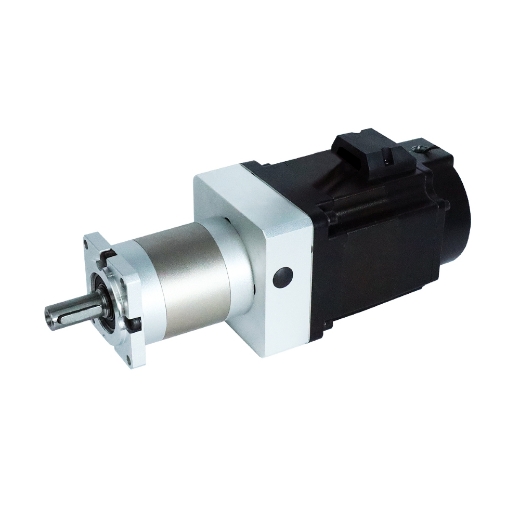

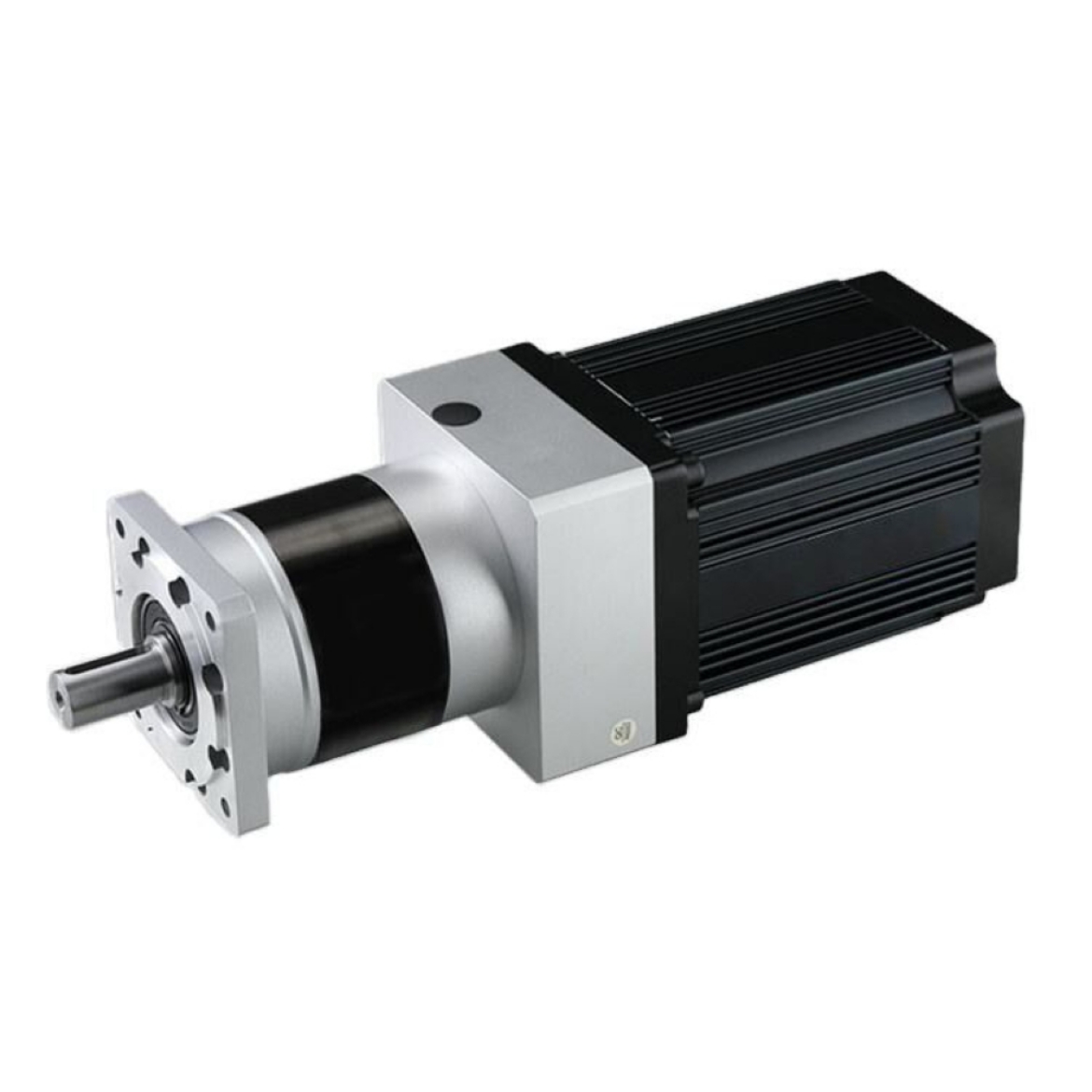

24V/36V/48V 1000W BLDC Planetary Gear Motor

$903.57

| 0 review(s) | Add your review

24V/36V/48V 1000W BLDC motor with a planetary gearbox delivers 3000rpm with 2.39N·m torque (7.16N·m peak). Low noise 110mm planetary gear motor ensures efficient power transmission, ideal for EVs and industrial automation requiring high torque density and quiet operation.

Free shipping

Delivery date: 7-14 days

SKU: BLDC-GEAR-P1000

Voltage (DC) *
Controller for 24V Motor *
Controller for 36V Motor *
Controller for 48V Motor *
With Brake *
Gear Ratio *

increase decrease

DESCRIPTION
DOCUMENTS
WIRING VIDEO

This 1000W BLDC planetary gear motor delivers high-performance 3000rpm operation at 24V/36V/48V, featuring adjustable gear ratios from 3:1 to 250:1 for versatile speed-torque adaptation. The low-noise DC planetary gear motor provides reliable power transmission for electric vehicles, renewable energy systems, and industrial machinery applications, combining robust performance with energy-efficient operation in a compact design.

Specification

Model	BLDC-D110BLD1000-24A-30S	BLDC-D110BLD1000-36A-30S	BLDC-D110BLD1000-48A-30S
Voltage	24V DC	36V DC	48V DC
Rated Current	52.08A	34.72A	26.04A
No Load Current	＜12A	＜8.5A	＜6A
Recommended Drive Model	BLDC-BD100
Motor Type	BLDC Motor
Power	1000W
Rated Speed	3000 rpm
No Load Speed	4200 rpm
Rated Torque	3.18 Nm
Peak Torque	9.55 Nm
Motor Dimension	110 mm
Construction	Permanent Magnet
Direction of Rotation	CW/CCW
Certificate	CCC, CE, ROSH, LVD, EMC
Gear Ratio	3, 4, 5, 7, 10, 16, 20, 25, 28, 35, 40, 50, 70, 80, 100, 125, 140, 175, 200, 250

Note: If you would like CAD drawings of the motor and planetary gearbox, please contact us.

Features

Multiple Voltage Options: Available in 24V, 36V, and 48V DC to meet various requirements.
High Planetary Gear Ratio of up to 250:1: Equipped with a planetary gearbox offering a high reduction ratio of up to 250:1 for efficient power transmission.
Customizable Specifications: Power, voltage, speed, shaft size, motor length, and lead can all be tailored to suit specific needs.
Energy-efficient BLDC Motor: Features a brushless DC motor (BLDC) that ensures low power consumption, high efficiency, and longer battery life.
High Torque at Low Speeds: The planetary gear motor provides excellent torque output even at low speeds, ideal for high-torque applications.
Easy Speed Adjustment and Reversible Direction: Supports convenient speed control and reversible direction for flexible operation.

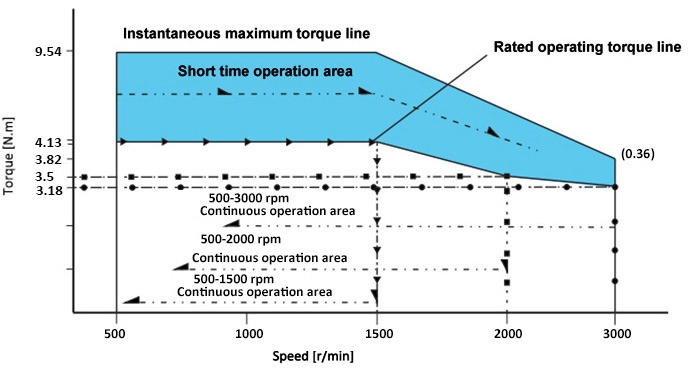

Speed - Torque Curve

Instantaneous maximum torque line: This torque represents the peak load impact when the motor starts. If exceeded, the driver’s over-current protection will trigger, stopping the motor.
Short-time operation area: The BLDC motor can operate briefly within this torque range at various speeds. Prolonged operation may cause overheating, potentially leading to motor shutdown or damage.
Rated operating torque line: At different speeds, this torque level is the electric DC motor’s rated load, allowing long-duration operation without issues.
Continuous operating area: The brushless motor can run continuously within this zone at varying speeds, maintaining stable operation.

Applications

Electronics Manufacturing

Printing Machinery

Industrial Robots

Laser Cutting Equipment

Q: What is the advantages of BLDC planetary gear motor?

A: BLDC planetary gear motors combine brushless DC motors with planetary gearboxes, offering superior performance with high efficiency, extended lifespan, and compact high-torque output. They enable precise speed control and quiet operation, making them ideal for robotics, medical equipment, industrial automation, and automotive systems. Their maintenance-free design and energy-saving characteristics provide reliable, long-term solutions for demanding applications.
