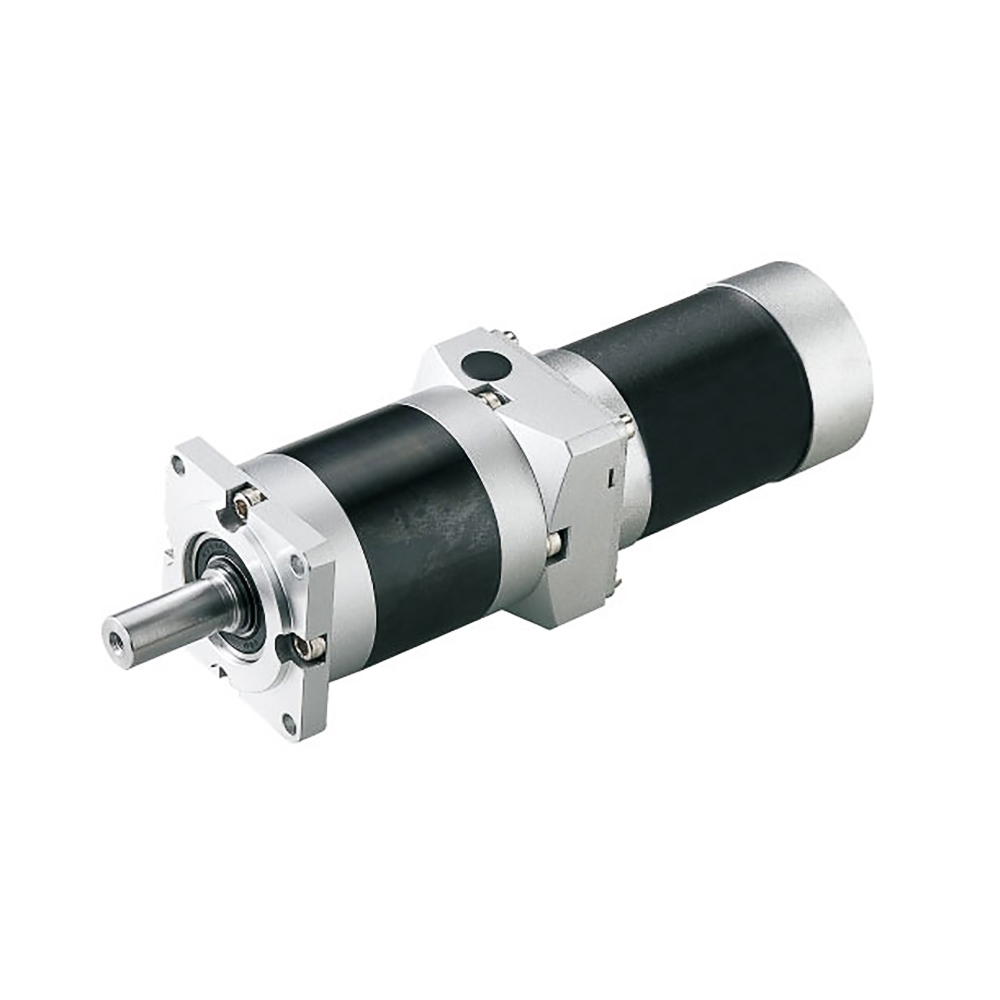

This planetary gear motor integrates a 3-phase brushless DC motor with a planetary gearbox, providing 3000 RPM and a rated torque of 0.32Nm, along with a speed reduction ratio as high as 250:1. The combination ensures smooth, efficient operation, delivering high torque at low speeds. With a peak torque of 0.96Nm, this motor is well-suited for use in electric vehicles and industrial machinery, offering reliable and customizable power solutions.
Specification
| Model |
BLDC-D2BLD100-12A-30S |
BLDC-D2BLD100-24A-30S |
BLDC-D2BLD100-36A-30S |
BLDC-D2BLD100-48A-30S |
| Voltage |
12V DC |
24V DC |
36V DC |
48V DC |
| Rated Current |
10.42A |
5.21A |
3.47A |
0.32A |
| No Load Current |
＜1.2A |
＜0.8A |
＜0.6A |
＜0.4A |
| Recommended Drive Model |
BLDC-BLD300 |
BLDC-BLD300 |
BLDC-BLD300 |
BLDC-BLD300 |
| Motor Type |
BLDC Motor |
| Power |
100W |
| Rated Speed |
3000 rpm |
| No Load Speed |
3300 rpm |
| Rated Torque |
0.32 Nm |
| Peak Torque |
0.96 Nm |
| Motor Dimension |
57 mm/60 mm |
| Shaft Diameter |
14 mm |
| Construction |
Permanent Magnet |
| Direction of Rotation |
CW/CCW |
| Certificate |
CCC, CE, ROSH, LVD, EMC |
| Gear Ratio |
4, 5, 7, 10, 16, 20, 25, 28, 35, 40, 50, 70, 80, 100, 125, 140, 175, 200, 250 |
Note
- If you would like CAD drawings of the motor and planetary gearbox, please contact us.
- Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.
Features
- Multiple Voltage Options: Available in 12V, 24V, 36V, and 48V DC to meet various requirements.
- High Planetary Gear Ratio of up to 250:1: Equipped with a planetary gearbox offering a high reduction ratio of up to 250:1 for efficient power transmission.
- Customizable Specifications: Power, voltage, speed, shaft size, motor length, and lead can all be tailored to suit specific needs.
- Energy-efficient BLDC Motor: Features a brushless DC motor (BLDC) that ensures low power consumption, high efficiency, and longer battery life.
- High Torque at Low Speeds: The planetary gear motor provides excellent torque output even at low speeds, ideal for high-torque applications.
- Easy Speed Adjustment and Reversible Direction: Supports convenient speed control and reversible direction for flexible operation.
Speed - Torque Curve
- Instantaneous maximum torque line: This torque represents the peak load impact when the motor starts. If exceeded, the driver’s over-current protection will trigger, stopping the motor.
- Short-time operation area: The BLDC motor can operate briefly within this torque range at various speeds. Prolonged operation may cause overheating, potentially leading to motor shutdown or damage.
- Rated operating torque line: At different speeds, this torque level is the electric DC motor’s rated load, allowing long-duration operation without issues.
- Continuous operating area: The brushless motor can run continuously within this zone at varying speeds, maintaining stable operation.
Applications
Electronics Manufacturing
Q: What is a BLDC planetary gear motor?
A: A BLDC planetary gear motor combines a Brushless DC (BLDC) motor with a planetary gearbox to provide high efficiency and torque output. The BLDC motor operates without brushes, reducing wear and energy loss, which results in longer lifespan and better performance compared to traditional brushed motors. The planetary gearbox further enhances the system by offering high torque at low speeds and efficient power transmission, making it ideal for applications requiring precise control and reliability. This combination is commonly used in robotics, automation, and electric vehicles due to its durability and energy efficiency.
