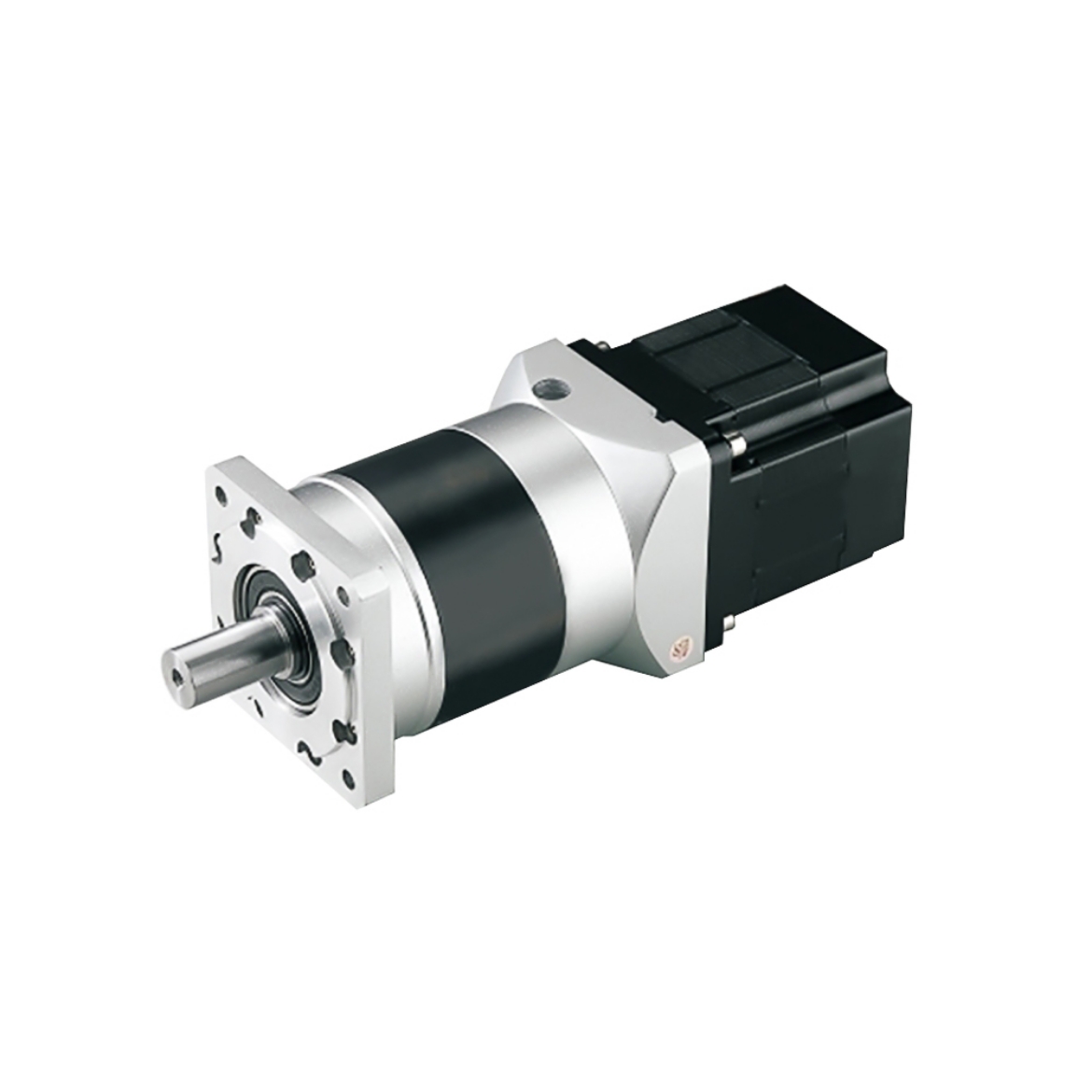

12V/24V/36V/48V 200W BLDC Planetary Gear Motor

$530.62

| 0 review(s) | Add your review

Featuring a motor diameter of 86mm and a brushless design, this 200W BLDC motor with a planetary gearbox delivers smooth and reliable performance at a rated speed of 3000 RPM and a torque output of 0.64Nm. The motor is also available in multiple voltage configurations—12V, 24V, 36V, and 48V.

Free shipping

Delivery date: 7-14 days

SKU: BLDC-GEAR-P200

Voltage (DC) *
Controller for 12V Motor *
Controller for 24V Motor *
Controller for 36V Motor *
Controller for 48V Motor *
With Brake *
Gear Ratio *

increase decrease

DESCRIPTION
DOCUMENTS
WIRING VIDEO

With a wide range of gear ratios (4:1 to 250:1), low noise operation, and long battery life, this motor ensures high torque output and durability, making it ideal for robotics, material handling, and automated systems. Its brushless design enhances longevity, reduces maintenance, and offers a cost-effective solution for power transmission needs.

Specification

Model	BLDC-D5BLD200-12A-30S	BLDC-D5BLD200-24A-30S	BLDC-D5BLD200-36A-30S	BLDC-D5BLD200-48A-30S
Voltage	12V DC	24V DC	36V DC	48V DC
Rated Current	20.83A	10.42A	6.94A	5.21A
No Load Current	＜6.2A	＜4.13A	＜2.5A	＜1.61A
Recommended Drive Model	BLDC-BD100	BLDC-BLD300	BLDC-BLD300	BLDC-BLD300
Motor Type	BLDC Motor
Power	200W
Rated Speed	3000 rpm
No Load Speed	3300 rpm
Rated Torque	0.64 Nm
Peak Torque	1.91 Nm
Motor Dimension	86 mm
Shaft Diameter	14 mm
Construction	Permanent Magnet
Direction of Rotation	CW/CCW
Certificate	CCC, CE, ROSH, LVD, EMC
Gear Ratio	4, 5, 7, 10, 16, 20, 25, 28, 35, 40, 50, 70, 80, 100, 125, 140, 175, 200, 250

Note

If you would like CAD drawings of the motor and planetary gearbox, please contact us.
Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.

Features

Multiple Voltage Options: Available in 12V, 24V, 36V, and 48V DC to meet various requirements.
High Planetary Gear Ratio of up to 250:1: Equipped with a planetary gearbox offering a high reduction ratio of up to 250:1 for efficient power transmission.
Customizable Specifications: Power, voltage, speed, shaft size, motor length, and lead can all be tailored to suit specific needs.
Energy-efficient BLDC Motor: Features a brushless DC motor (BLDC) that ensures low power consumption, high efficiency, and longer battery life.
High Torque at Low Speeds: The planetary gear motor provides excellent torque output even at low speeds, ideal for high-torque applications.
Easy Speed Adjustment and Reversible Direction: Supports convenient speed control and reversible direction for flexible operation.

Speed - Torque Curve

Instantaneous maximum torque line: This torque represents the peak load impact when the motor starts. If exceeded, the driver’s over-current protection will trigger, stopping the motor.
Short-time operation area: The BLDC motor can operate briefly within this torque range at various speeds. Prolonged operation may cause overheating, potentially leading to motor shutdown or damage.
Rated operating torque line: At different speeds, this torque level is the electric DC motor’s rated load, allowing long-duration operation without issues.
Continuous operating area: The brushless motor can run continuously within this zone at varying speeds, maintaining stable operation.

Applications

Electronics Manufacturing

Printing Machinery

Industrial Robots

Laser Cutting Equipment

Q: What is the lifespan of the BLDC gear motor?

A: The lifespan of a brushless DC (BLDC) gear motor typically ranges from 10,000 to 15,000 hours of continuous operation. This can vary depending on factors like load conditions, operating temperature, and maintenance. Since BLDC motors don’t have brushes that wear out over time, they tend to last significantly longer than brushed motors. Proper usage, cooling, and maintenance can further extend the motor’s lifespan.
