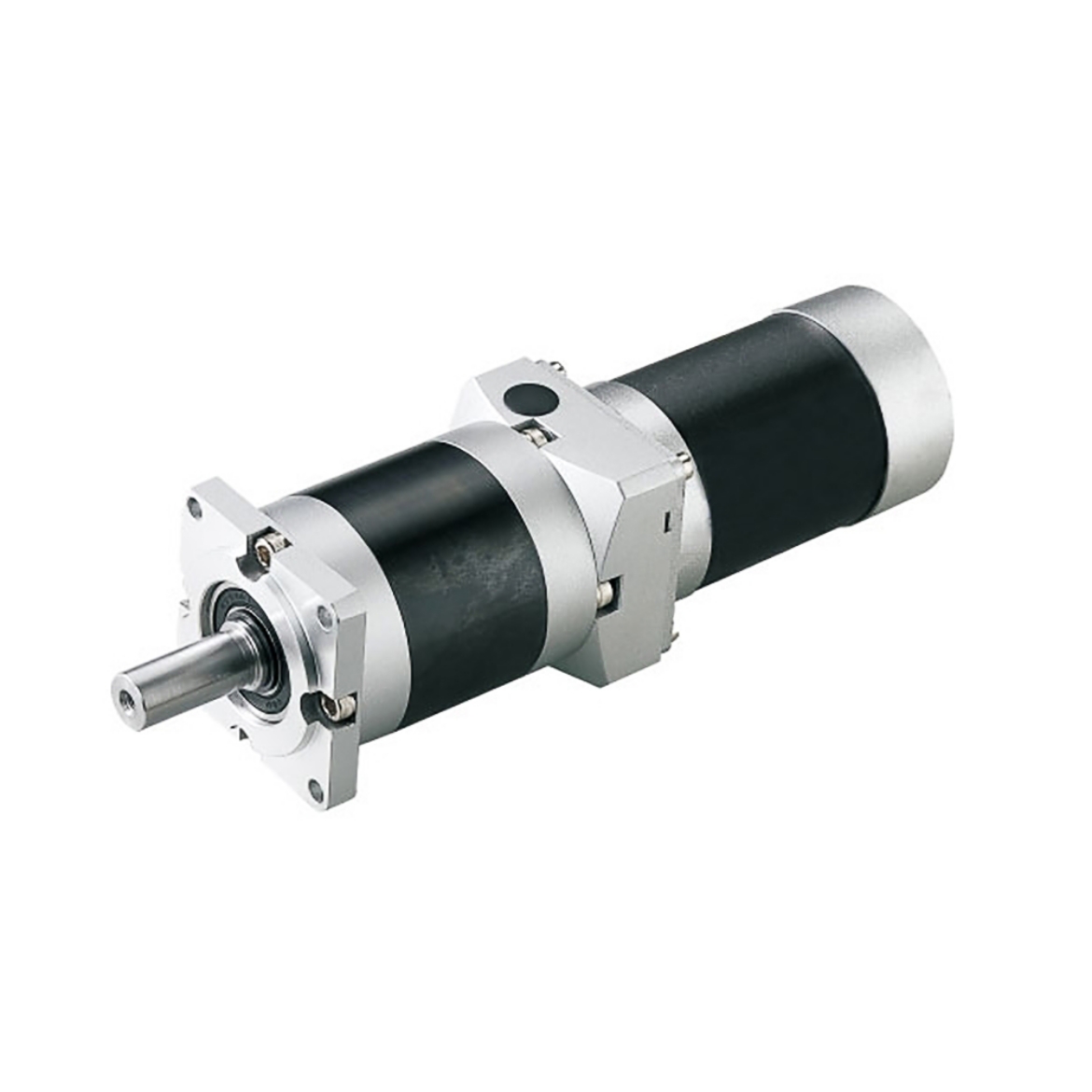

This 150W BLDC motor with a planetary gearbox, available in 12V, 24V, 36V, and 48V DC power options, is designed for high-efficiency industrial and automotive applications. With a rated speed of 3000 RPM and a torque of 0.48Nm, it delivers reliable, low-maintenance performance. The motor’s peak torque of up to 1.43Nm, allows for optimal speed and torque control. Its brushless design ensures durability and quiet operation, making it an ideal choice for electric vehicles, industrial machinery, and other applications with space and noise constraints.
Specification
| Model |
BLDC-D2BLD150-12A-30S |
BLDC-D2BLD150-24A-30S |
BLDC-D2BLD150-36A-30S |
BLDC-D2BLD150-48A-30S |
| Voltage |
12V DC |
24V DC |
36V DC |
48V DC |
| Rated Current |
15.63A |
7.81A |
5.21A |
3.91A |
| No Load Current |
＜1.5A |
＜1.0A |
＜0.8A |
＜0.6A |
| Recommended Drive Model |
BLDC-BD100 |
BLDC-BLD300 |
BLDC-BLD300 |
BLDC-BLD300 |
| Motor Type |
BLDC Motor |
| Power |
150W |
| Rated Speed |
3000 rpm |
| No Load Speed |
3300 rpm |
| Rated Torque |
0.48 Nm |
| Peak Torque |
1.43 Nm |
| Motor Dimension |
57 mm/60 mm |
| Shaft Diameter |
14 mm |
| Construction |
Permanent Magnet |
| Direction of Rotation |
CW/CCW |
| Certificate |
CCC, CE, ROSH, LVD, EMC |
| Gear Ratio |
4, 5, 7, 10, 16, 20, 25, 28, 35, 40, 50, 70, 80, 100, 125, 140, 175, 200, 250 |
Note
- If you would like CAD drawings of the motor and planetary gearbox, please contact us.
- Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.
Features
- Multiple Voltage Options: Available in 12V, 24V, 36V, and 48V DC to meet various requirements.
- High Planetary Gear Ratio of up to 250:1: Equipped with a planetary gearbox offering a high reduction ratio of up to 250:1 for efficient power transmission.
- Customizable Specifications: Power, voltage, speed, shaft size, motor length, and lead can all be tailored to suit specific needs.
- Energy-efficient BLDC Motor: Features a brushless DC motor (BLDC) that ensures low power consumption, high efficiency, and longer battery life.
- High Torque at Low Speeds: The planetary gear motor provides excellent torque output even at low speeds, ideal for high-torque applications.
- Easy Speed Adjustment and Reversible Direction: Supports convenient speed control and reversible direction for flexible operation.
Speed - Torque Curve
- Instantaneous maximum torque line: This torque represents the peak load impact when the motor starts. If exceeded, the driver’s over-current protection will trigger, stopping the motor.
- Short-time operation area: The BLDC motor can operate briefly within this torque range at various speeds. Prolonged operation may cause overheating, potentially leading to motor shutdown or damage.
- Rated operating torque line: At different speeds, this torque level is the electric DC motor’s rated load, allowing long-duration operation without issues.
- Continuous operating area: The brushless motor can run continuously within this zone at varying speeds, maintaining stable operation.
Applications
Electronics Manufacturing
Q: What is a gearbox used for in a BLDC motor?
A: A gearbox in a BLDC motor is used to modify the motor's output speed and torque to suit specific application requirements. By combining a brushless DC motor with a gearbox, this creates a BLDC gear motor, which reduces speed while increasing torque. This allows the motor to handle higher loads and provide more precise control at lower speeds. The gearbox is typically used when a higher torque is needed without sacrificing the efficiency and longevity of the motor. This makes the BLDC gear motor ideal for applications in robotics, electric vehicles, conveyors, and other systems that require a balance of speed, power, and reliability.
