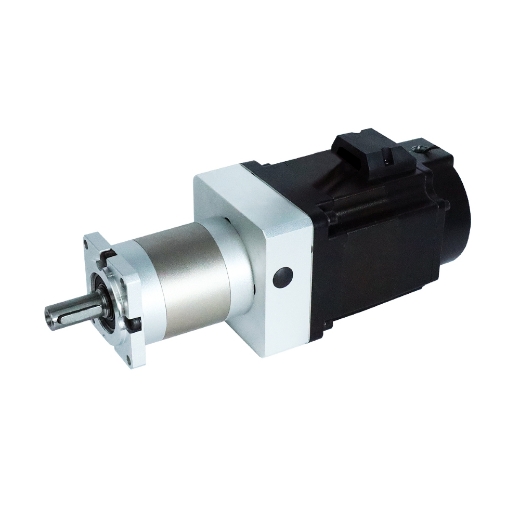

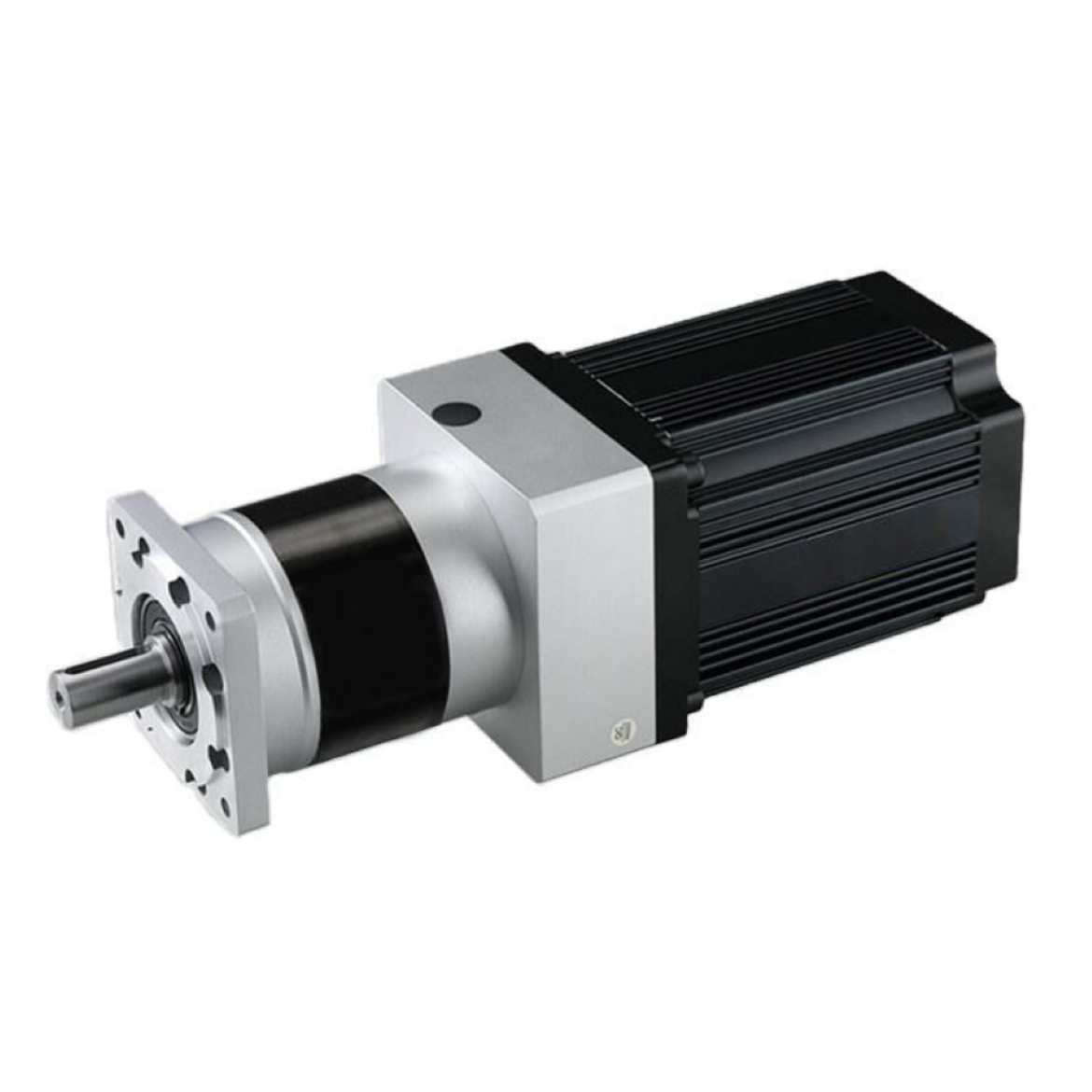

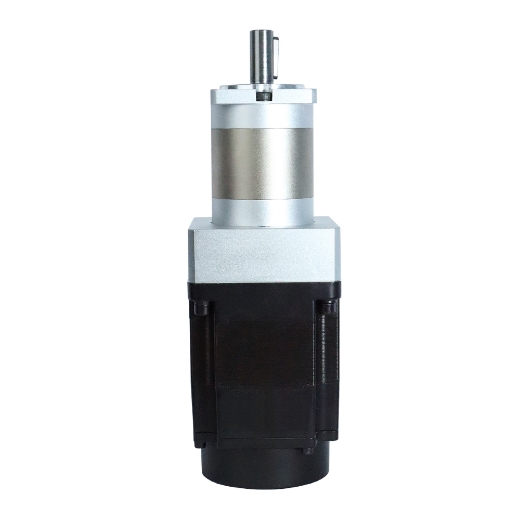

36V/48V 1500W BLDC Planetary Gear Motor

$920.08

| 0 review(s) | Add your review

The 1500W BLDC planetary gear motor operates on a 36V or 48V power supply, delivering a rated speed of 3000 rpm, 4.78 Nm torque, and a gear ratio range from 3:1 to 250:1. This compact brushless motor with a planetary gearbox is ideal for electric vehicles. Power, voltage, speed, shaft type, motor length, and lead specifications can be customized.

Free shipping

Delivery date: 7-14 days

SKU: BLDC-GEAR-P1500

Voltage (DC) *
With Matched Controller *
With Brake *
Gear Ratio *

increase decrease

DESCRIPTION
DOCUMENTS
WIRING VIDEO

1500W BLDC planetary gear motor available online, delivering 3000 rpm, 4.78 Nm rated torque, and up to 14.33 Nm peak torque. Operates quietly and efficiently on 36V or 48V. The BLDC motor pairs with a high-ratio planetary gearbox to provide high torque at low speeds.

Specification

Motor Model	BLDC-D110BLD1500-36A-30S	BLDC-D110BLD1500-48A-30S
Voltage	36V DC	48V DC
Rated Current	52.8A	39.06A
No Load Current	＜20A	＜15A
Recommended drive model	BLDC-BD100
Motor Type	BLDC Motor
Power	1500W
Rated Speed	3000 rpm
No Load Speed	3300 rpm
Rated Torque	4.78 N·m
Peak Torque	14.33 N·m
Construction	Permanent Magnet
Direction of Rotation	CW/CCW
Certificate	CCC, CE, ROSH, LVD, EMC
Gear Ratio	3, 4, 5, 7, 10, 16, 20, 25, 28, 35, 40, 50, 70, 80, 100, 125, 140, 175, 200, 250

Note

If you would like CAD drawings of the motor and planetary gearbox, please contact us.
Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.

Features

Multiple Voltage Options: Available in 36V and 48V DC to meet various requirements.
High Planetary Gear Ratio of up to 250:1: Equipped with a planetary gearbox offering a high reduction ratio of up to 250:1 for efficient power transmission.
Customizable Specifications: Power, voltage, speed, shaft size, motor length, and lead can all be tailored to suit specific needs.
Energy-efficient BLDC Motor: Features a brushless DC motor (BLDC) that ensures low power consumption, high efficiency, and longer battery life.
High Torque at Low Speeds: The planetary gear motor provides excellent torque output even at low speeds, ideal for high-torque applications.
Easy Speed Adjustment and Reversible Direction: Supports convenient speed control and reversible direction for flexible operation.

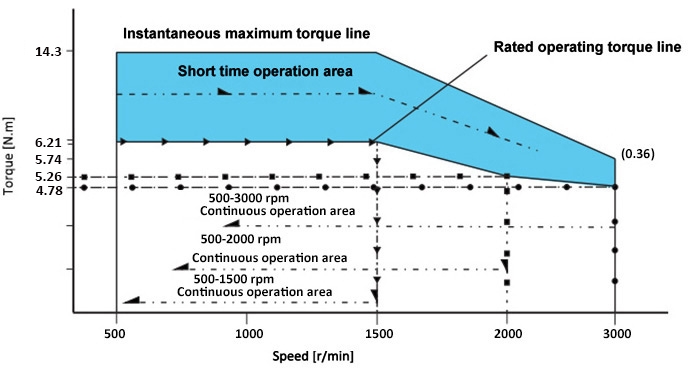

Speed - Torque Curve

Instantaneous maximum torque line: The maximum torque momentarily impacts the load when the motor is started. Exceeding this level triggers the driver's over-current protection, shutting down the motor.
Short-time operation area: The BLDC motor can operate within this torque range for limited periods at different speeds. Prolonged use generates excess heat, which may cause the motor to stop or burn.
Rated operating torque line: The rated torque of the motor can sustain at different speeds for continuous, long-term operation.
Continuous operating area: When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Applications

Electronics Manufacturing

Printing Machinery

Industrial Robots

Laser Cutting Equipment

Q: What does the gear ratio of a planetary gearbox affect?

A: The gear ratio of a planetary gearbox determines the balance between output speed and torque: a higher ratio delivers more torque at lower speeds, while a lower ratio increases speed but reduces torque. It also influences efficiency, precision, and how much load the BLDC motor can handle.
