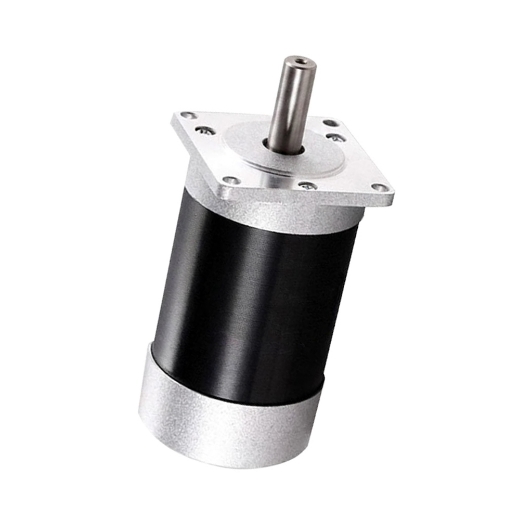

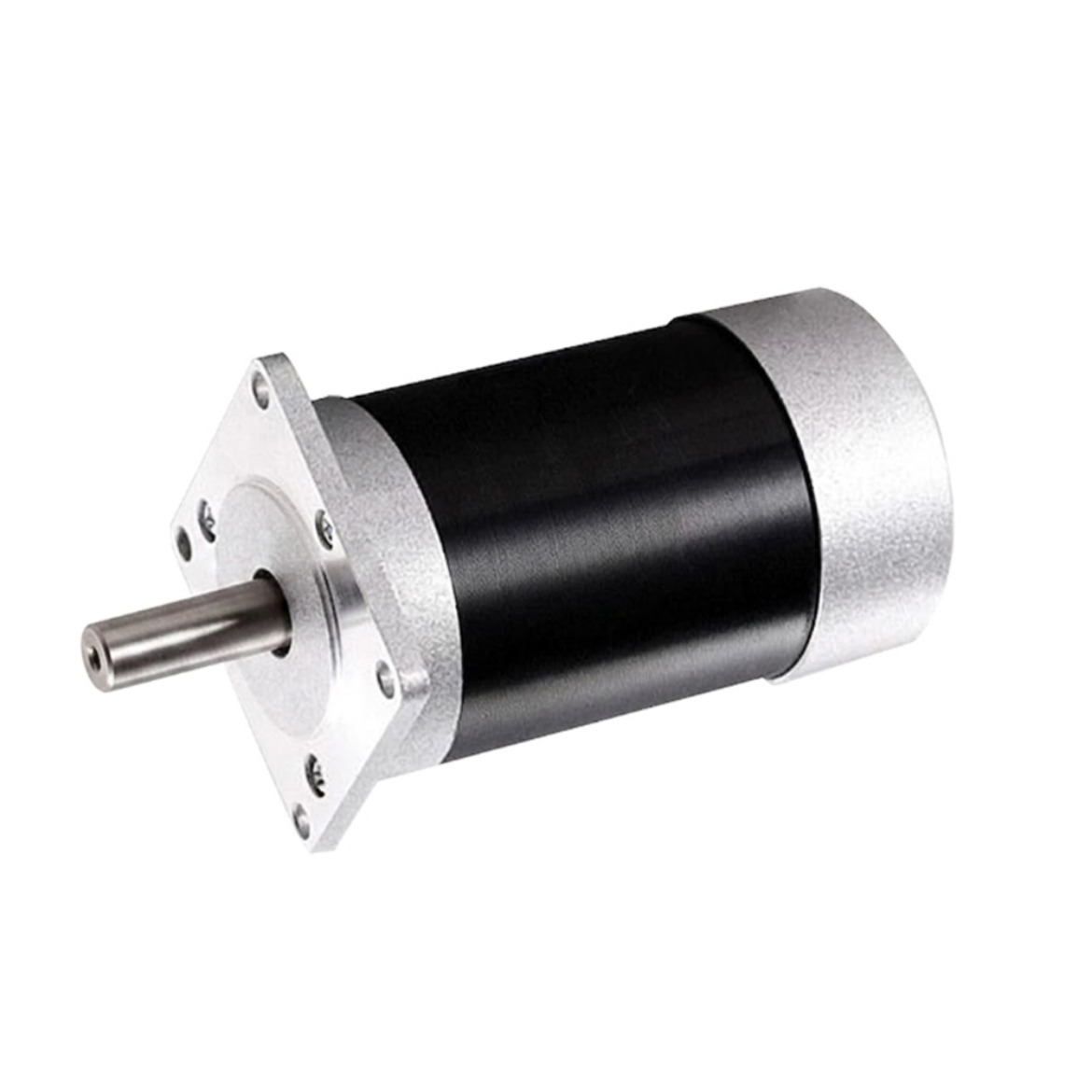

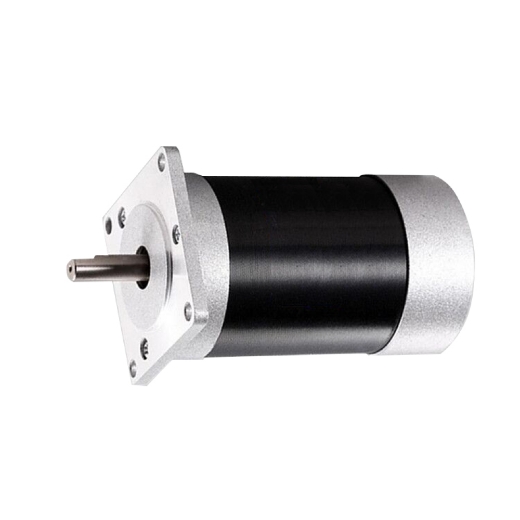

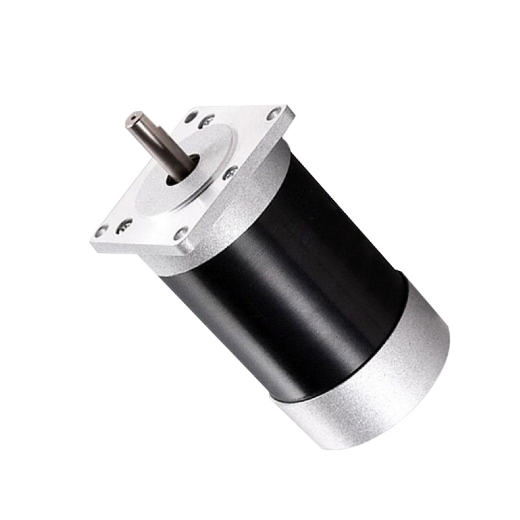

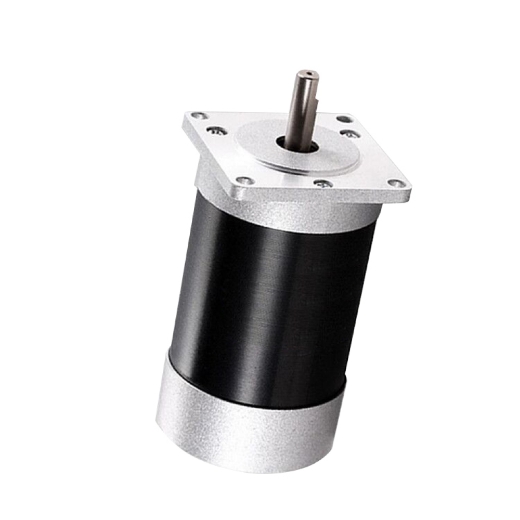

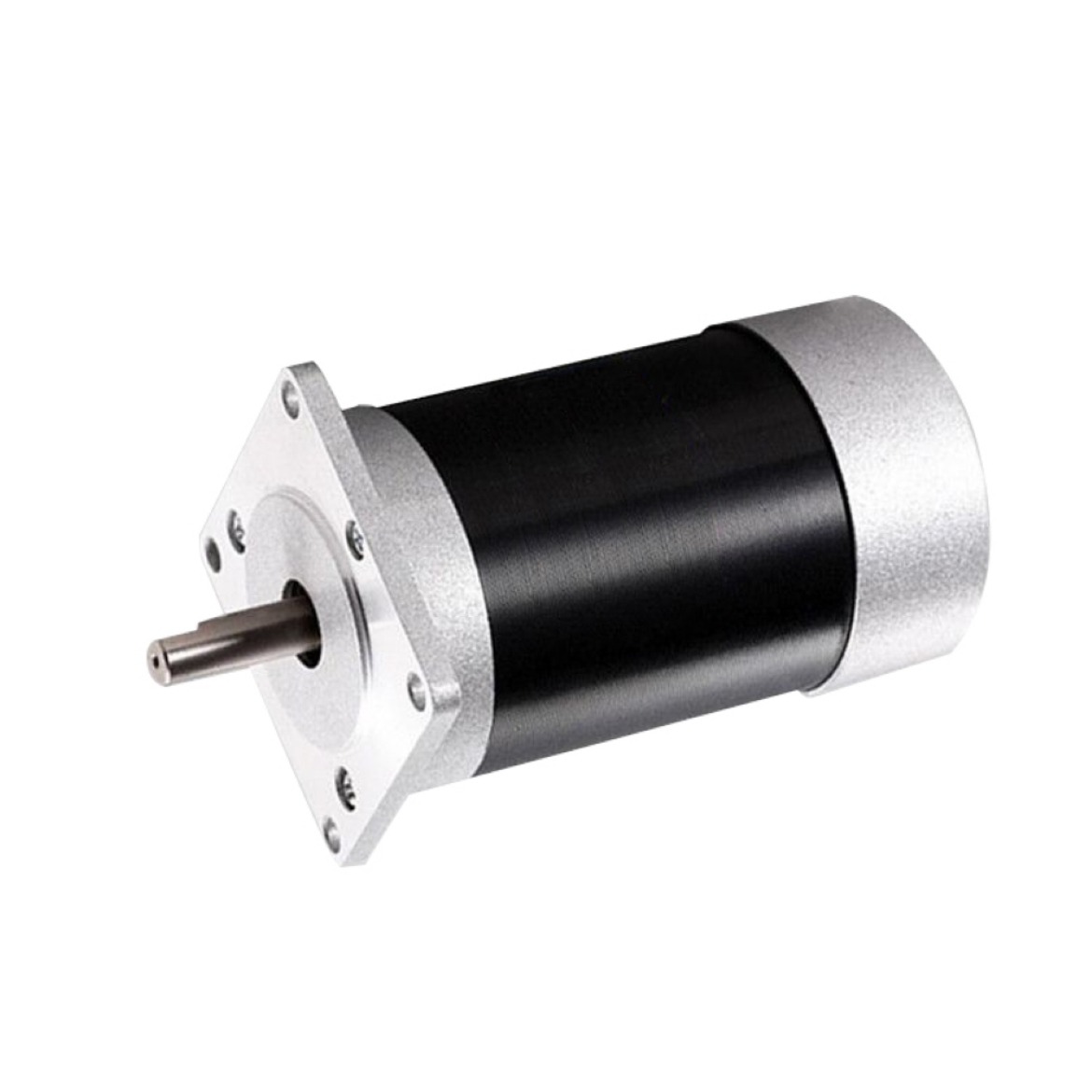

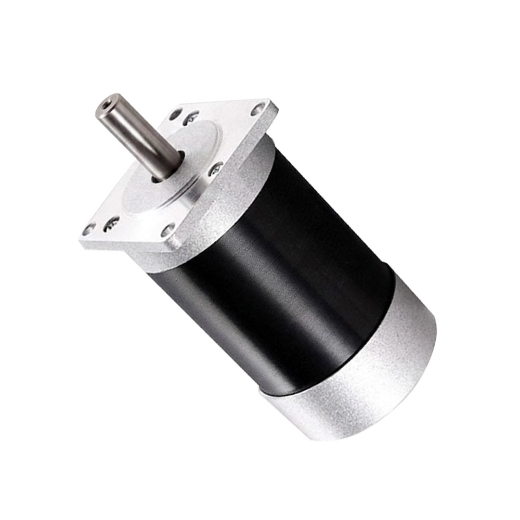

This 50W 3-phase brushless DC motor features 3000 rpm rated speed, 0.16 Nm torque (0.48 Nm peak), and is available in 12V, 24V, and 36V options. Its compact, efficient, and maintenance-free design makes it ideal for low-voltage applications like electric vehicles, automation, robotics, tools, and aerospace systems.
Specification
| Model |
BLDC-D2BLD50-12A-30S |
BLDC-D2BLD50-24A-30S |
BLDC-D2BLD50-36A-30S |
| Rated Power |
50W |
| Rated Voltage |
12V DC |
24V DC |
36V DC |
| Matched Controller |
BLDC-BLD300 |
BLDC-BLD120A |
BLDC-BLD300 |
| Rated Current |
5.21A |
2.6A |
1.7A |
| Phase |
3 phase |
| Rated Torque |
0.16 Nm |
| Max. Torque |
0.48 Nm |
| Rated Speed |
3000 rpm for standard (or 2000 rpm when matching the worm gearbox) |
| No-load Speed |
/ |
3300 rpm |
/ |
| No-load Current |
＜0.8A |
＜0.4A |
＜0.8A |
| Working Efficiency |
71% |
85% |
| Square Flange Size |
60 mm |
| Insulation Grade |
F |
| Protection Grade |
IP54 |
| Motor Lead Length |
1 meter |
| Certificate |
CE, RoHS, ISO |
| Weight |
2 kg |
Note: Power, voltage, speed, shaft, motor length, and motor lead of BLDC motors can be customized.
Features
- Stable Speed Control: The 50W BLDC motor maintains a set speed by continuously comparing feedback signals and adjusting voltage, ensuring consistent performance even with load changes.
- Compact & High Power: Uses a permanent magnet rotor in a 3 phase design, delivering a thin profile with high power density.
- Wide Speed Range: It offers a broader speed control range than AC motors and inverters, providing strong torque from low to high speeds without brushes.
- Energy Efficient: Permanent magnet rotor reduces rotor losses, cutting power consumption by over 20% compared to variable frequency induction motors, supporting energy savings.
- Built-in Protection: Brushless DC motor includes safety features to protect the equipment system.

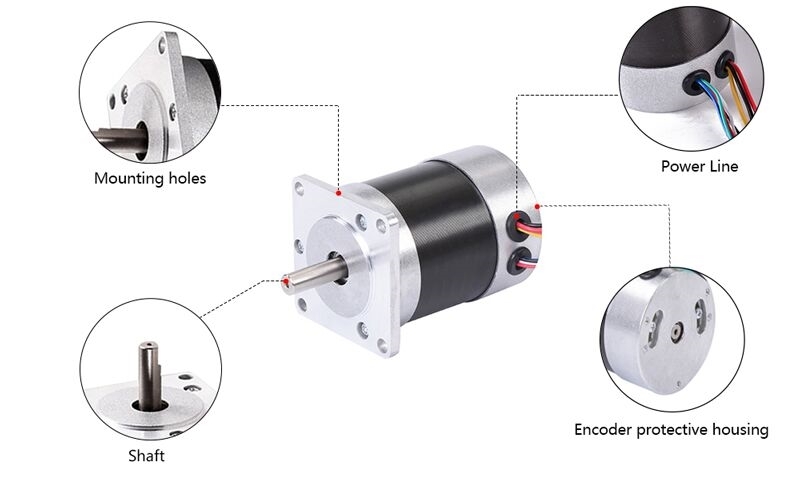

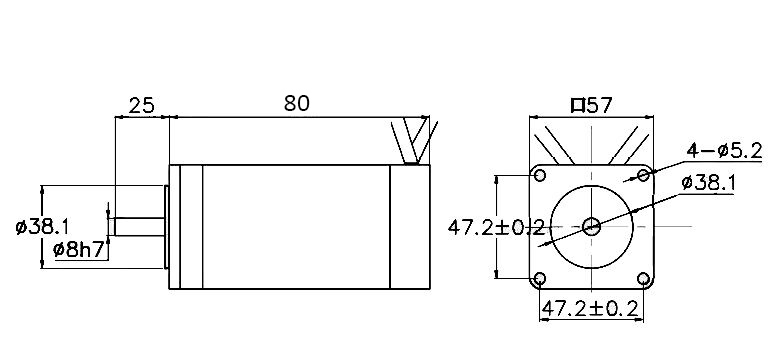

Dimension (Unit: mm)

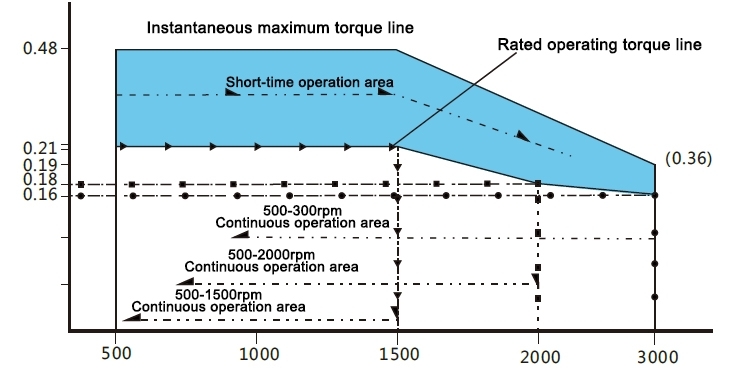

Speed - Torque Curve
- Instantaneous maximum torque line: This torque represents the peak load impact when the motor starts. If exceeded, the driver’s over-current protection will trigger, stopping the motor.
- Short-time operation area: The BLDC motor can operate briefly within this torque range at various speeds. Prolonged operation may cause overheating, potentially leading to motor shutdown or damage.
- Rated operating torque line: At different speeds, this torque level is the electric DC motor’s rated load, allowing long-duration operation without issues.
- Continuous operating area: The brushless motor can run continuously within this zone at varying speeds, maintaining stable operation.
Line Define
| Power Wire |
Hall Wire |
| Red |
U |
Red |
5V |
| Yellow |
V |
Black |
GND |
| Black |
W |
Blue |
Hu |
| Green |
Hv |
| White |
Hw |
Applications
Q: What is the difference between BLDC motors and traditional DC motors?
A: Here are the differences:
- BLDC Motors: These motors don’t have brushes and commutators. Instead, the direction of the current is controlled electronically by a controller. This results in higher efficiency, longer lifespan, and lower maintenance.
- Traditional DC Motors: These have brushes and a commutator to reverse the direction of the current. This introduces friction, wear, and sparks, which leads to lower efficiency and requires more frequent maintenance.
