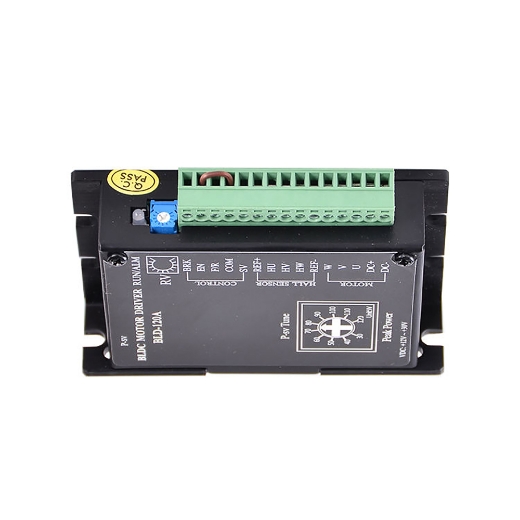

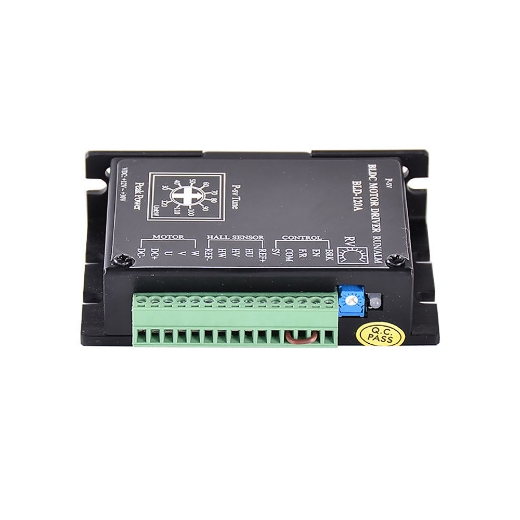

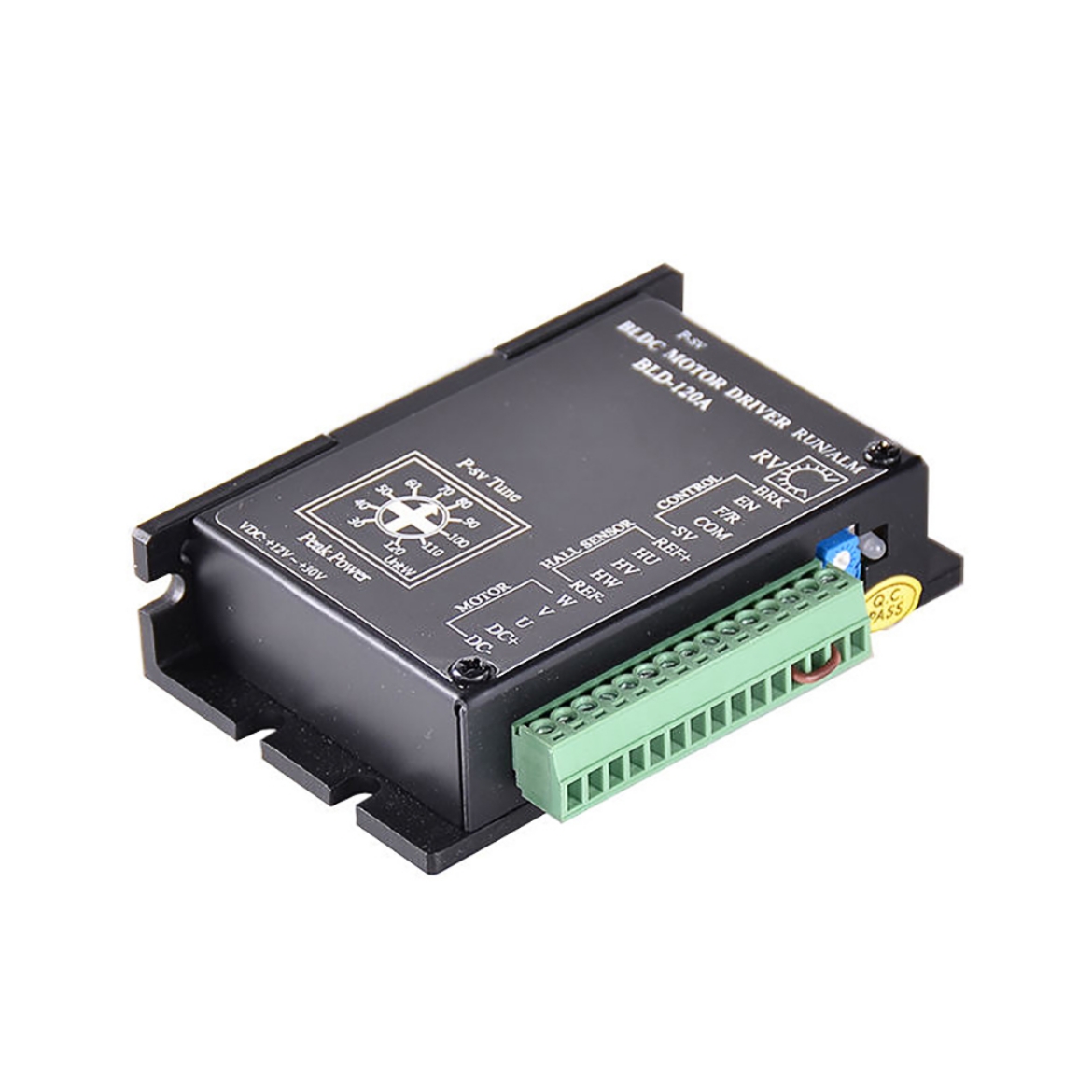

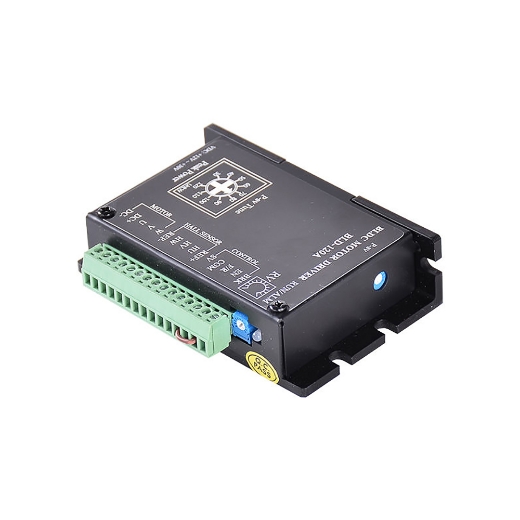

Picture of 12V-30V BLDC Motor Controller for 12/24V BLDC Motor Picture of 12V-30V BLDC Motor Controller for 12/24V BLDC Motor Picture of 12V-30V BLDC Motor Controller for 12/24V BLDC Motor Picture of 12V-30V BLDC Motor Controller for 12/24V BLDC Motor

12V-30V BLDC Motor Controller for 12/24V BLDC Motor

$159.99
| 1 review(s) | Add your review
The 12V-30V BLDC motor controller is a compact, efficient solution for 12V or 24V driving motors. It features smooth acceleration and deceleration settings, overcurrent protection, and easy operation with an external potentiometer. Also, speed can be adjusted via analog or PWM inputs.
Free shipping
Delivery date: 7-14 days
SKU: BLDC-C120A
increase decrease

The 12V-30V BLDC motor controller is a high-performance, compact solution designed to drive BLDC motors with power ratings of up to 120W. Ideal for applications requiring precise control over motor speed and operation, this controller offers seamless integration into systems with 12V or 24V BLDC motors.

Specification

Model BLDC-BLD120A
Power Supply 12V~30V DC
Typical Power 24V DC
Output Current 8A
Over Voltage Protection 5V
Under Voltage Protection 20mA
External Potentiometer 10KΩ
Input Analog Voltage 5 VDC
Speed Control Range 20000 rpm

Features


  • Flexible Speed Control: This BLDC Motor Controller enables precise speed adjustment via external analog or PWM signals, offering smooth acceleration and deceleration settings.
  • Compact and Powerful: Designed to drive motors up to 120W, the controller's compact size ensures space efficiency without compromising performance.
  • Overcurrent Protection: Equipped with built-in power protection, the controller features a maximum current setting to safeguard the system from potential overloads.
  • Easy Operation: Simplifies user interaction with an external potentiometer, making speed adjustments and operation effortless.
  • Versatile Compatibility: Perfectly compatible with both 12V and 24V BLDC motors, providing reliable performance across a range of applications.

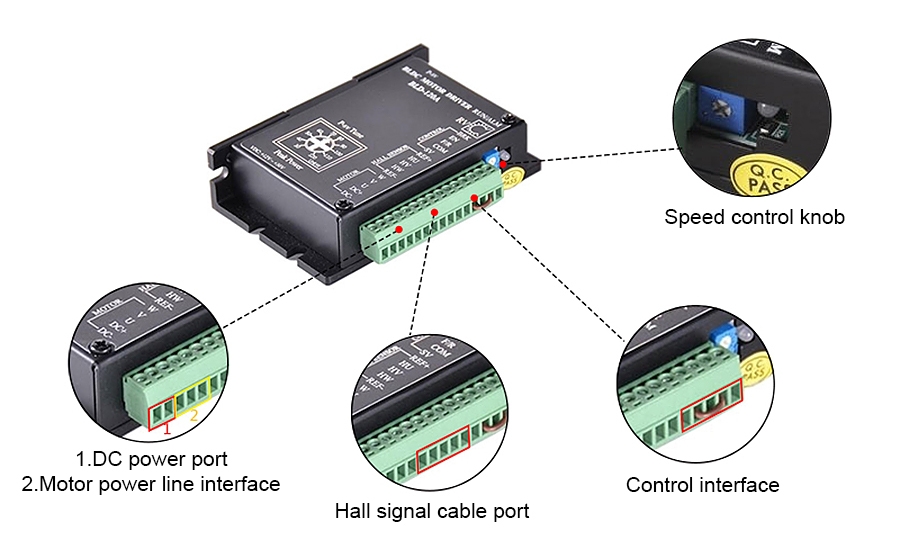

12V-30V BLDC motor controller details


Dimension (Unit: mm)

12V-30V BLDC motor controller dimensions

Q: What is a BLDC motor controller?

A: A BLDC motor controller is an electronic device that controls the operation of a BLDC motor. It regulates the speed, direction, and torque of the motor by controlling the switching of current to the motor's stator windings. It typically uses techniques such as commutation, PWM (Pulse Width Modulation), and sensor feedback.

Write your own review
*
*
Existing reviews
Great controller for bldc motors
Works perfectly with my 24V BLDC motor. It’s easy to install, responds quickly, and delivers smooth performance at both voltages. No issues with stability or power under load. Highly recommend for anyone looking for a reliable and efficient controller!
William | 11/27/2025 2:16 AM
Was this review helpful? Yes No (0/0)
