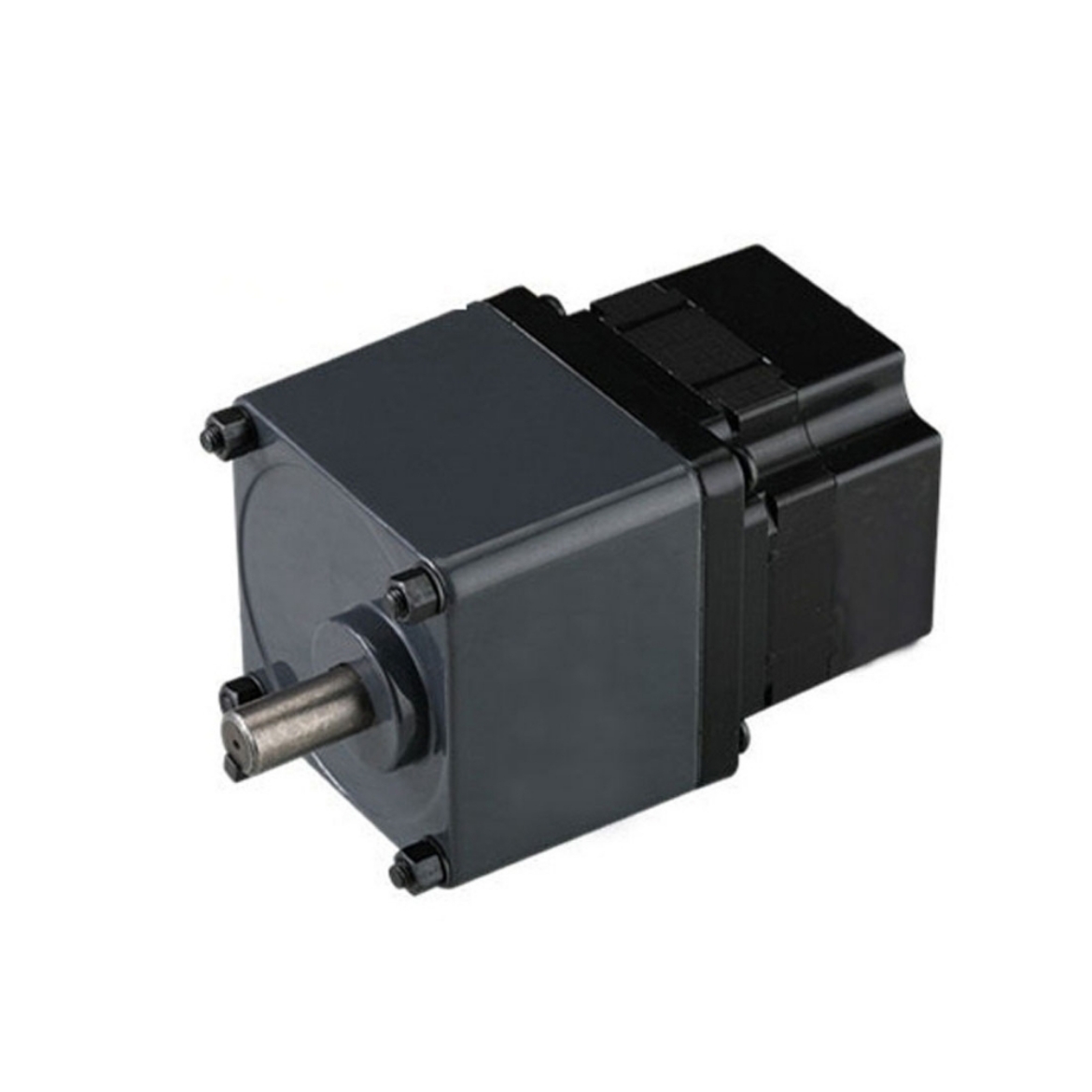

12V/24V/48V 90W BLDC Gear Motor

$193.25

| 0 review(s) | Add your review

90W BLDC gear motor with controller and brake, offered in 12V, 24V, or 48V options. It features a rated speed of 3000 rpm, rated torque of 0.29 N·m, and gear ratios ranging from 3:1 to 200:1. DC geared motors are commonly used in the steel and machinery industries for their space-efficient design.

Free shipping

Delivery date: 7-14 days

SKU: BLDC-GEAR-B90W

Voltage (DC) *
Gear Ratio *
With Brake *
Controller for 12V Motor *
Controller for 24V Motor *
Controller for 48V Motor *

increase decrease

DESCRIPTION

Compact 90W brushless DC gear motor, equipped with a brake and controller. Rated current: 9.38A at 12V, 4.69A at 24V, and 2.34A at 48V. Designed for low noise and high energy efficiency, featuring gears treated with high-frequency hardening for extended durability and long service life.

Specification

Model	BLDC-D5BLD90-12	BLDC-D5BLD90-24	BLDC-D5BLD90-48
Voltage	12V	24V	48V
Rated Current	9.38A	4.69A	2.34A
No-load Current	<0.85A	<0.7A	<0.5A
Compatible Driver Model	BLDC-BLD300		BLDC-BLD120A
Power	90W
Rated Speed	3000 rpm
No-load Speed	3300 rpm
Rated Torque	0.29 Nm
Peak Torque	0.86 Nm
Weight	2.3 kg
Protection Grade	IP54
Motor Lead Length	300 mm
Temperature	0~50℃
Gearbox Model	2GN□K Enter the gear ratio into the box (□) within the model name
Gear Ratio	3, 5, 7.5, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200

Allowable Torque with a Gearbox

Gear Ratio	Speed (r/min)	Allowable Torque (N.m)	Allowable Torque (kgf.cm)
3	1000	0.67	6.96
5	600	1.16	11.6
7.5	400	1.74	17.4
10	300	2.32	23.21
12.5	240	2.61	26.14
15	200	3.14	3.77
18	167	3.77	37.65
20	150	3.78	37.82
25	120	4.73	47.27
30	100	5.67	56.73
36	83.33	6.81	68.07
40	75	7.56	75.64
50	60	9.46	94.55
60	50	11.35	113.5
75	40	14.18	141.8
90	33	15.21	152.1
100	30	16.9	169
120	25	20	200
150	20	20	200
180	17	20	200
200	15	20	200

Line Define

Power Wire		Hall Wire
Red	U	Red	5V
Yellow	V	Black	GND
Black	W	Hu	Blue
		Hv	Green
		Hw	White

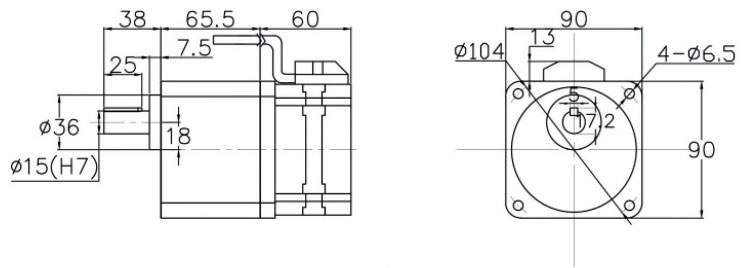

DC Gear Motor Dimension (Unit: mm)

90W bldc gear motor dimension

Applications

Electronics Manufacturing

Printing Machinery

Industrial Robots

Laser Cutting Equipment

Q: What is the function of gear reduction?

A: The function of gear reduction is to decrease the motor's output speed while increasing its torque. This allows the BLDC motor to drive heavier loads with greater control and efficiency, especially in applications that require precise, low-speed movement.
