The BLDC motor offers a durable, compact design ideal for industrial applications. Its brushless construction reduces wear, minimizes friction, and ensures efficient, spark-free operation. With over 85% efficiency and Class F insulation, it provides high performance and energy savings. Customization options are available for power, voltage, speed, and other parameters to meet specific needs.
Specification
| Model |
BLDC-D110BLDC1300-24A-30S |
| Rated Power |
1300W |
| Rated Voltage |
24V |
| Matched Controller |
BLDC-KEB |
| Rated Current |
67.7A |
| Phase |
3 phase |
| Rated Torque |
4.1 Nm |
| Max. Torque |
9.55 Nm |
| Rated Speed |
3000 rpm for standard (or 2000 rpm when matching the worm gearbox) |
| No-load Current |
＜12A |
| Working Efficiency |
85% |
| Square Flange Size |
110 mm |
| Insulation Grade |
F |
| Protection Grade |
IP54 |
| Motor Lead Length |
1 meter |
| Certificate |
CE, RoHS, ISO |
| Weight |
5.65 kg |
Note: Power, voltage, speed, shaft, motor length, and motor lead of BLDC motors can be customized.

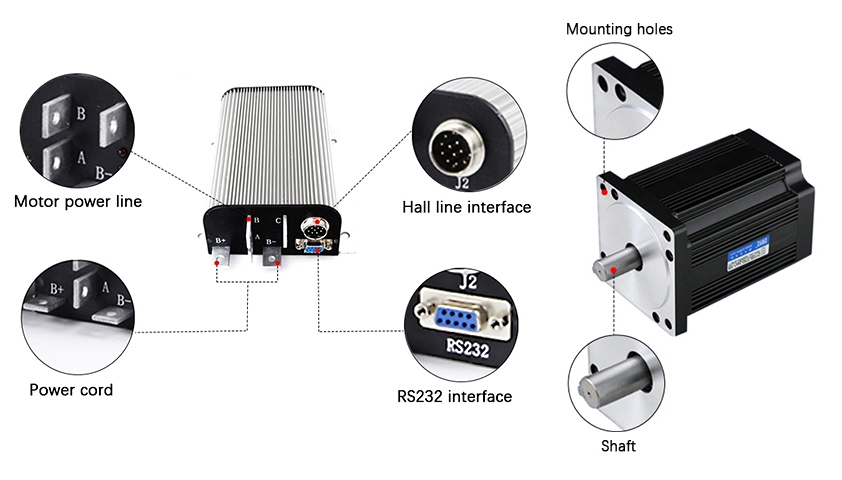

Features
- Stable Speed Control: The 1300W BLDC motor maintains a set speed by continuously comparing feedback signals and adjusting voltage, ensuring consistent performance even with load changes.
- Compact & High Power: Uses a permanent magnet rotor in a 3 phase design, delivering a thin profile with high power density.
- Wide Speed Range: It offers a broader speed control range than AC motors and inverters, providing strong torque from low to high speeds without brushes.
- Energy Efficient: Permanent magnet rotor reduces rotor losses, cutting power consumption by over 20% compared to variable frequency induction motors, supporting energy savings.
- Built-in Protection: Brushless DC motor includes safety features to protect the equipment system.

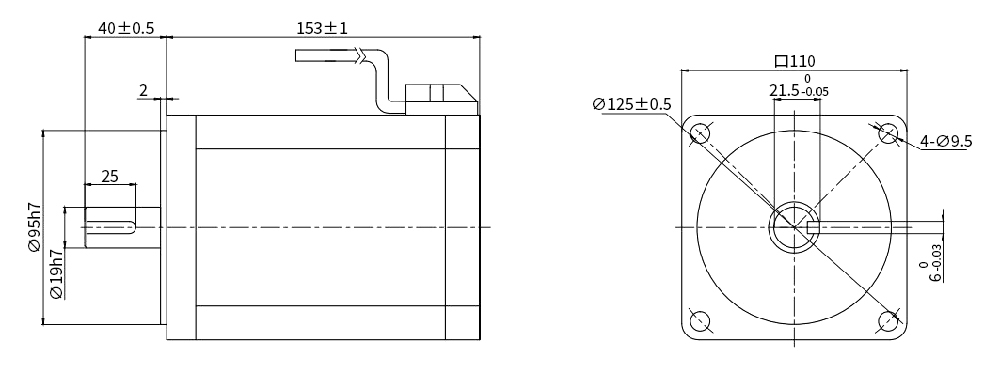

Dimension (Unit: mm)

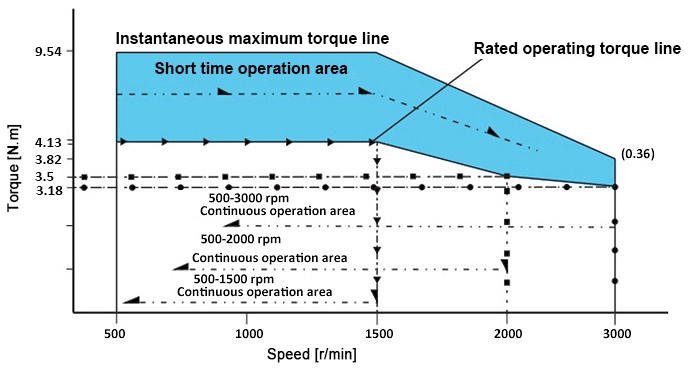

Speed - Torque Curve
- Instantaneous maximum torque line: This torque represents the peak load impact when the motor starts. If exceeded, the driver’s over-current protection will trigger, stopping the motor.
- Short-time operation area: The BLDC motor can operate briefly within this torque range at various speeds. Prolonged operation may cause overheating, potentially leading to motor shutdown or damage.
- Rated operating torque line: At different speeds, this torque level is the electric DC motor’s rated load, allowing long-duration operation without issues.
- Continuous operating area: The brushless motor can run continuously within this zone at varying speeds, maintaining stable operation.
Line Define
| Power Wire |
Hall Wire |
| Red |
U |
Red |
5V |
| Yellow |
V |
Black |
GND |
| Black |
W |
Blue |
Hu |
| Green |
Hv |
| White |
Hw |
Applications
Q: How is speed control achieved in a BLDC motor?
A: Speed control of a BLDC motor is typically achieved by adjusting the voltage or frequency supplied to the motor. Common speed control methods include:
- PWM (Pulse Width Modulation) Control: By adjusting the pulse width, the average voltage is controlled, which in turn adjusts the motor speed.
- Voltage Control: Increasing or decreasing the voltage directly changes the motor speed, suitable for less precise applications.
- Frequency Control: Changing the frequency of the driving signal controls the motor speed.
