This motor features an IP65-rated body for dust and water protection, high efficiency over 85%, and an integrated planetary gearbox for enhanced torque and control. It’s ideal for electric vehicle applications and can be fitted with an optional brake system for added safety. Combining durability, performance, and efficiency, this BLDC motor kit is a cost-effective choice for electric car manufacturers.
Specification
| Model |
BLDC-DH130BLD2300 |
| Rated Power |
2300W |
| Rated Voltage |
48V DC |
72V DC |
96V DC |
| Matched Controller |
BLDC-KBL/BLDC-KEB |
| Rated Current |
60A |
40A |
30A |
| Phase |
3 phase |
| Rated Torque |
7.32 Nm |
| Max. Torque |
23 Nm |
| Rated Speed |
3000 rpm (2600 rpm rated speed at 24V DC) |
| No-load Speed |
3600 rpm |
| Working Efficiency |
85% |
| Square Flange Size |
130 mm |
| Insulation Grade |
F |
| Protection Grade |
IP65 |
| Motor Lead Length |
30 cm, if you buy a kit (motor+controller), an extra 1 meter of wire shall be provided. |
| Certificate |
CE, RoHS, ISO |
| Weight |
9.05 kg |
Note: Power, voltage, speed, shaft, motor length, and motor lead of BLDC motors can be customized.
Features
- Stable Speed Control: The 2300W BLDC motor maintains a set speed by continuously comparing feedback signals and adjusting voltage, ensuring consistent performance even with load changes.
- Compact & High Power: Uses a permanent magnet rotor in a 3 phase design, delivering a thin profile with high power density.
- Wide Speed Range: It offers a broader speed control range than AC motors and inverters, providing strong torque from low to high speeds without brushes.
- Energy Efficient: Permanent magnet rotor reduces rotor losses, cutting power consumption by over 20% compared to variable frequency induction motors, supporting energy savings.
- Built-in Protection: Brushless DC motor includes safety features to protect the equipment system.

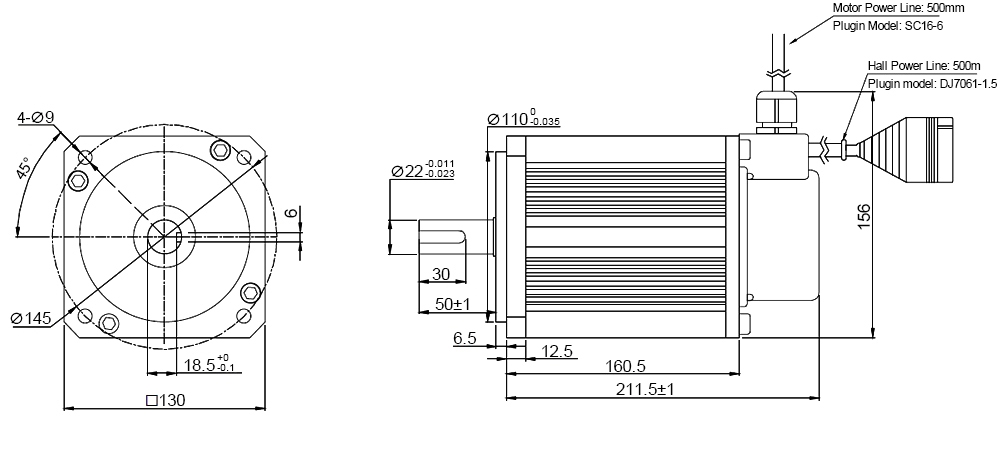

Dimension (Unit: mm)
Line Define
| Power Wire |
Hall Wire |
| Red |
U |
Red |
5V |
| Yellow |
V |
Black |
GND |
| Black |
W |
Blue |
Hu |
| Green |
Hv |
| White |
Hw |
Applications
Q: Can BLDC motors be used for high-torque applications?
A: Yes, BLDC motors are highly capable of providing high torque at low speeds, especially when paired with a gear reduction system like a planetary gearbox. This makes them suitable for applications requiring high torque, such as electric vehicles, drones, and robotic systems.
