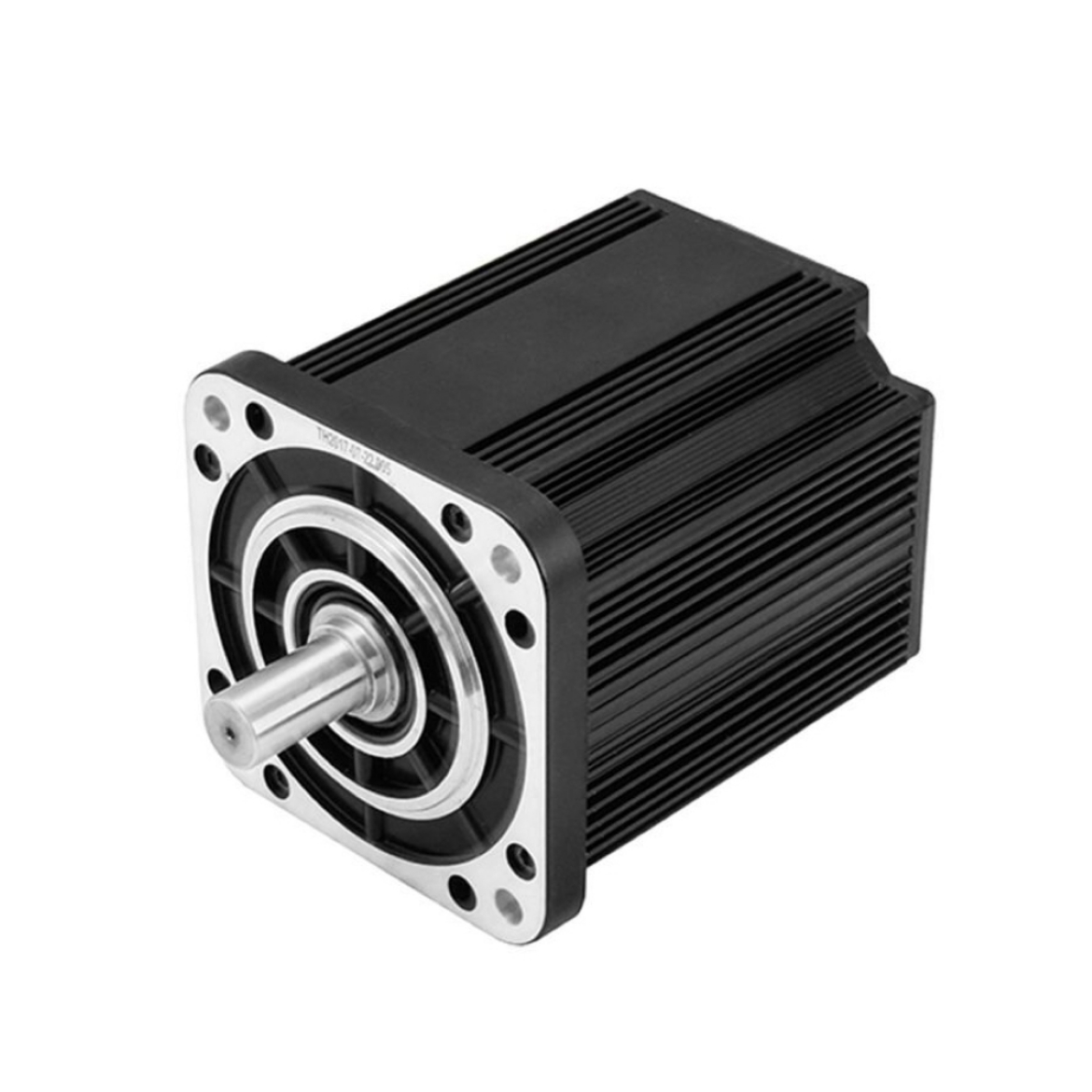

48V/72V/96V 2500W BLDC Motor

$2,045.38

| 0 review(s) | Add your review

2500W BLDC motor compatible with 48V/72V/96V DC supply. Rated speed 2000 rpm, high torque 12 Nm, peak torque up to 30 Nm. Complete BLDC motor kit available, including 3-phase motor, controller, and gearbox—ideal for electric vehicle applications.

Free shipping

Delivery date: 7-14 days

SKU: BLDC-180-2500W

Voltage (DC) *
With Brake *
With Matched Controller *
With Planetary Gearbox *
Inline Gearbox *
Right Angle Gearbox *

increase decrease

DESCRIPTION
DOCUMENTS

3-phase 2.5kW BLDC motor (48V/72V/96V) with a rated speed of 2000 rpm and no-load speed up to 2400 rpm. It delivers 12 Nm holding torque, features an IP65-rated housing, and comes direct from the manufacturer. Options include voltage configuration, brake, matching controller, and gearbox. For best value, we recommend purchasing a complete BLDC motor set.

Specification

Model	BLDC-D180BLD2500
Rated Power	2500W
Rated Voltage	48V DC	72V DC	96V DC

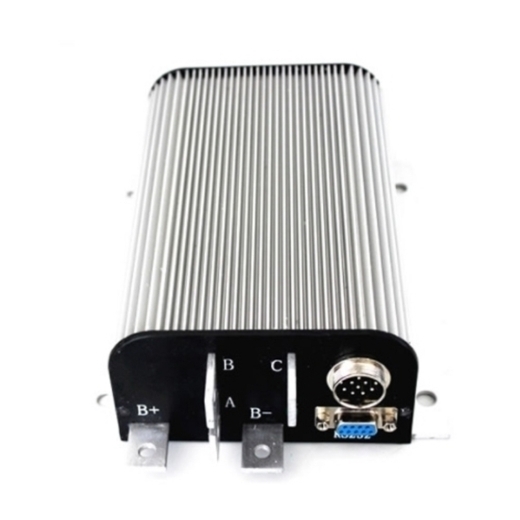

Matched Controller	BLDC-KBL
Rated Current	62A	41A	31A
Phase	3 phase
Rated Torque	12Nm
Max. Torque	30 Nm
Rated Speed	2000 rpm
No-load Speed	2400 rpm
Working Efficiency	85%
Square Flange Size	180 mm
Insulation Grade	F
Protection Grade	IP65
Working Temperature	10℃~+40℃
Humidity	≤90% (no condensation)
Motor Lead Length	30 cm, If you buy a kit (motor+controller), an extra 1 meter of wire shall be provided.
Certificate	CE, RoHS, ISO/TS16949
Weight	18.5 kg

Note: Power, voltage, speed, shaft, motor length, and motor lead of BLDC motors can be customized.

Features

Stable Speed Control: The 2500W BLDC motor maintains a set speed by continuously comparing feedback signals and adjusting voltage, ensuring consistent performance even with load changes.
Compact & High Power: Uses a permanent magnet rotor in a 3 phase design, delivering a thin profile with high power density.
Wide Speed Range: It offers a broader speed control range than AC motors and inverters, providing strong torque from low to high speeds without brushes.
Energy Efficient: Permanent magnet rotor reduces rotor losses, cutting power consumption by over 20% compared to variable frequency induction motors, supporting energy savings.
Built-in Protection: Brushless DC motor includes safety features to protect the equipment system.

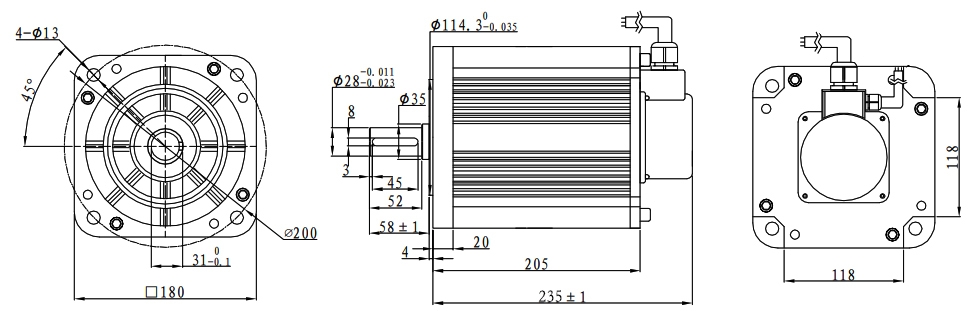

Dimension (Unit: mm)

2500W BLDC motor dimension

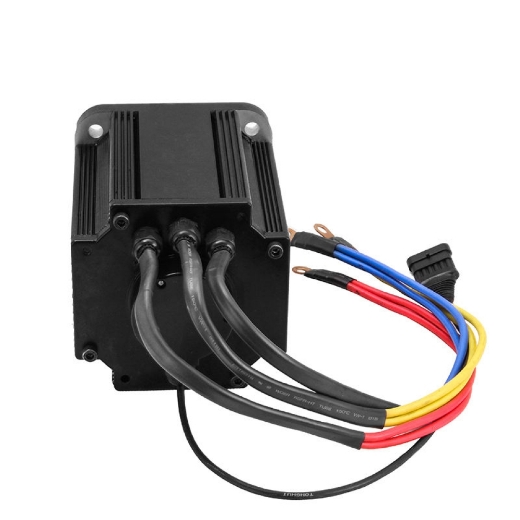

Line Define

Power Wire

Red	Yellow	Blue
Motor U	Motor V	Motor W

Feedback Wire

Hall Line Color	Hall Signal Definition	Plug Serial Number
Orange and Black	5V	1
Orange	0V	2
Yellow	Hall A	3
Blue	Hall B	4
Green	Hall C	5

Applications

Laser Equipment

Logistics Automation

Medical Equipment

Robot

Q: How to deal with oil leakage from a BLDC motor?

A: To deal with oil leakage from a BLDC motor, first identify the source—usually from bearings or seals—then clean the area and replace any worn or damaged seals or bearings. Ensure proper lubrication levels, use compatible lubricants, and check for alignment or mounting issues that may cause excess wear. Regular maintenance and inspection can prevent recurrence.
