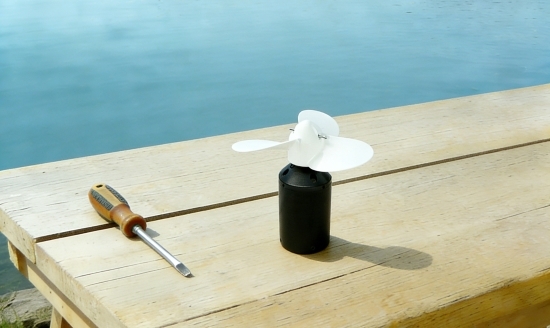

Brushless DC (BLDC) motors are widely used in various applications due to their high efficiency, reliability, and longevity. However, one of the key distinctions in BLDC electric motor design is whether they are sensorless or sensor-based. In this article, we'll dive into the concept of a sensorless BLDC motor, explain how it works, and discuss the advantages and disadvantages of this technology.
Understanding BLDC Motors
Before delving into sensorless BLDC motors, let’s briefly review what a brushless DC motor is. A BLDC motor is a type of electric motor that operates without brushes, unlike traditional brushed DC motors. It uses a permanent magnet rotor and an electronically controlled stator to generate rotational motion. The motor’s operation is controlled by a controller that switches the current in the motor windings, creating a rotating magnetic field that drives the rotor.
There are two main types of BLDC motors based on feedback mechanisms:
- Sensor-based BLDC motors: These use position sensors (usually Hall sensors) to provide real-time rotor position feedback to the motor controller.
- Sensorless BLDC motors: These do not rely on position sensors but instead determine the rotor's position through the back electromotive force (back EMF) generated by the motor.
How Does a Sensorless BLDC Motor Work?
In a sensorless BLDC motor, the motor controller detects the rotor's position indirectly by measuring the back EMF of the motor. Back EMF is the voltage generated in the motor windings when the rotor moves. The key to sensorless operation is that the motor controller can estimate the position of the rotor based on this back EMF.
Here’s a simple breakdown of how it works:
- Rotor movement: As the rotor spins, it creates a back EMF in the stator windings.
- Back EMF detection: The motor controller continuously monitors the back EMF, which changes depending on the rotor's position.
- Rotor position estimation: By analyzing the back EMF, the controller determines when to energize the next phase of the motor, ensuring smooth and continuous rotation.
- Commutation: The controller adjusts the current in the motor windings to keep the rotor turning. The commutation timing is critical to ensuring the motor operates efficiently.
The primary difference in a sensorless brushless DC motor is the reliance on back EMF for rotor position detection instead of external sensors like Hall effect sensors.
Advantages and Disadvantages of Sensorless BLDC Motors
Sensorless BLDC motors offer several advantages, making them a popular choice in various applications; While they also come with some limitations:
| Advantages | Disadvantages |
| Simplicity and Cost Savings: Without the need for external position sensors (like Hall sensors), the design of sensorless BLDC motors is simpler and cheaper. Fewer components mean fewer points of failure and reduced cost. | Startup Issues: One of the most significant challenges with sensorless BLDC motors is their performance during startup. Since there is no position feedback initially, the motor may struggle to start, especially at low speeds. At startup, the back EMF is negligible, which makes it difficult for the controller to estimate the rotor position. To overcome this, sensorless systems often use algorithms like zero-crossing detection or initialization routines to ensure smooth startup. |
| Reduced Maintenance: Since there are no physical brushes or sensors that wear out over time, sensorless BLDC motors generally have a longer lifespan and require less maintenance compared to brushed motors or sensor-based BLDC motors. | Limited Torque at Low Speeds: Sensorless BLDC motors may produce less torque at lower speeds, especially when the back EMF is too small to be accurately detected. This can affect their ability to perform at low-speed, high-torque applications. |
| Efficiency: Sensorless BLDC motors can be more efficient in certain applications because they avoid the mechanical losses associated with brushes and sensors. They also tend to be more reliable due to fewer components that can fail. | More Complex Control Algorithms: To accurately detect rotor position without sensors, the motor controller needs to use more sophisticated algorithms and signal processing techniques. This can increase the complexity of the motor control system, requiring more advanced software and processing power. |
| Compact Design: The absence of sensors allows for more compact motor designs. This is especially beneficial in applications where space is limited. | Sensorless Operation in Some Designs: Sensorless BLDC motors may not be ideal for designs that require precise position feedback, such as robotic arms or some high-precision applications. In these cases, sensor-based motors are preferred. |
| Reliability in Harsh Environments: Without physical sensors or brushes, sensorless motors can operate more effectively in harsh environments where dirt, moisture, or vibrations may damage traditional components. | Load Dependency: The back EMF is dependent on the motor’s load and speed. At higher loads or during rapid changes in speed, the back EMF may not be as reliable for rotor position estimation, which can lead to less accurate control. |
Applications of Sensorless BLDC Motors
Sensorless BLDC motors are commonly used in applications where simplicity, cost-efficiency, and reliability are paramount. Some of the typical applications include:
- Electric Vehicles (EVs): Sensorless BLDC motors are widely used in electric bikes, scooters, and even in some low-cost electric cars. They are an excellent choice due to their robustness and simplicity.
- Home Appliances: Devices like washing machines, vacuum cleaners, and ceiling fans often use sensorless brushless DC motors due to their efficiency and longevity.
- Drones: Many small drones and UAVs use these motors because of their reduced cost and compact size, which are important for lightweight and cost-effective designs.
- Pumps and Fans: The motors are used in industrial pumps, fans, and other applications where high reliability and low maintenance are needed.
- Computer Cooling Systems: Small sensorless BLDC motors are commonly used in computer cooling fans due to their quiet operation and high efficiency.
Conclusion
Sensorless BLDC electric motors are an excellent choice for applications requiring high efficiency, low maintenance, and simplicity. While they have some limitations, such as challenges at startup and reduced torque at low speeds, they are still widely used in various fields like electric vehicles, home appliances, and industrial applications. Understanding how they work, their advantages, and their limitations can help you make an informed decision about whether a sensorless BLDC motor is the right choice for your project or application.
Ultimately, the choice between a sensorless and sensor-based brushless DC motor depends on the specific needs of the application and the trade-offs you're willing to make in terms of performance, cost, and complexity.
